- Part number
- GV2G4LA
- Model no
- GV2G
Description
About the GV2G
About the GV2G

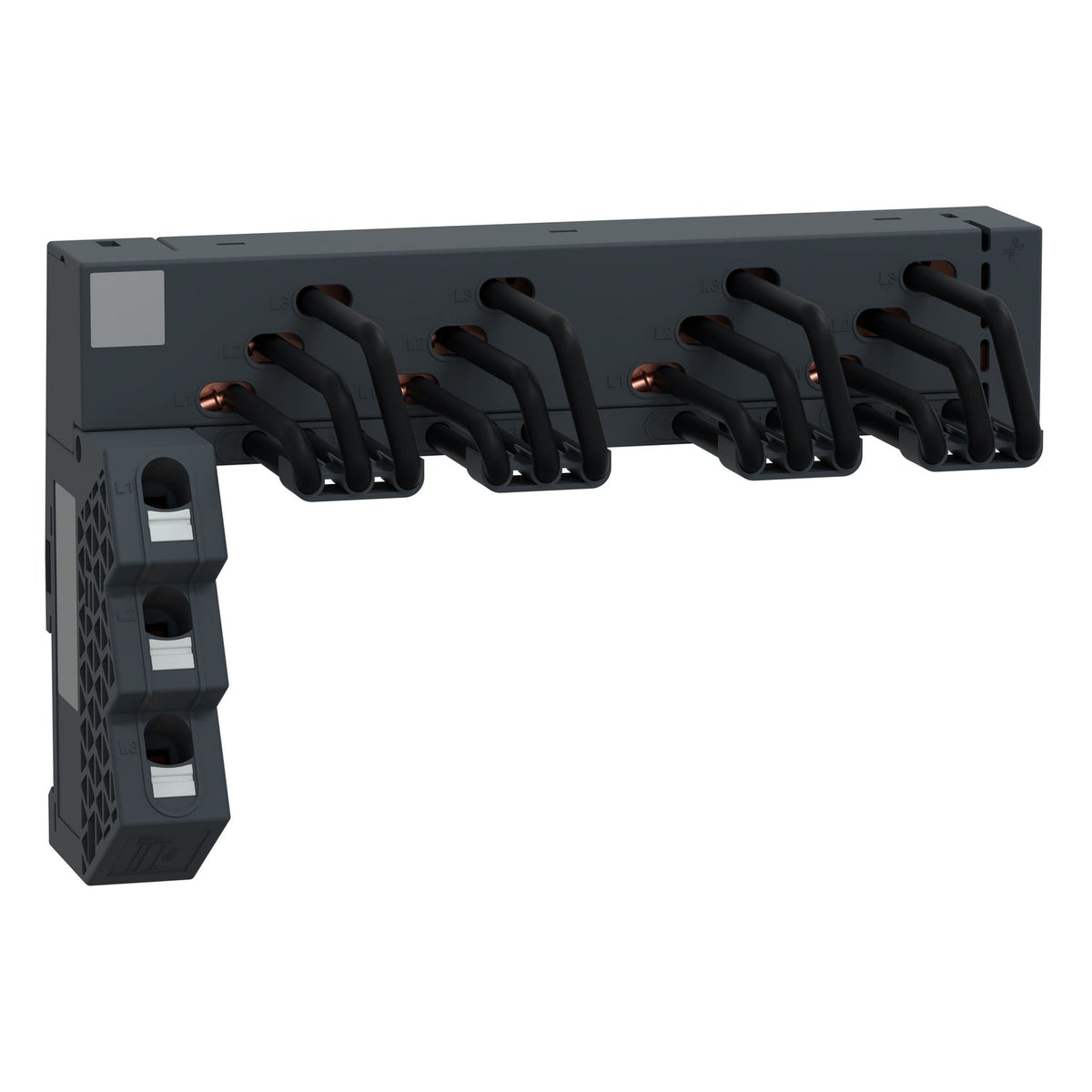

The Schneider Electric GV2G4LA is a Linergy FT comb busbar with 4 tap-offs and a built-in infeed module on the left side, rated 63 A at 690 V Ui across 3 phases. It parallel-wires a group of GV2ME motor circuit breakers from a single 3-phase incomer, clipping onto the same 35 mm DIN rail and keeping the 45 mm connection pitch between tap-offs.
Certifications & Standards
- CE
- cULus
Selection Notes
The infeed side decides the panel layout: pick the GV2G4LA (left-side infeed) to match where the incoming supply conductor enters the panel relative to the GV2ME row, so the busbar run does not cross back over itself. Add a GV2G extension busbar downstream if the group needs more than 4 tap-offs.
Specification
Full specification
Main 12
| Range | Linergy |
|---|---|
| Product name | FT |
| Device short name | GV2G |
| Product or Component Type | Comb busbar |
| Accessory / separate part category | Connection accessory |
| Poles description | 3P |
| Range compatibility | TeSys Deca, TeSys GV2 |
| Product Compatibility | GV2ME...A |
| Fixing mode | 35 mm symmetrical DIN rail clipped |
| Number of tap-offs | 4 |
| Connections - terminals | Push-in terminals: 1 cable(s) 0.002…0.02 in² (1.5…16 mm²) - solid, Push-in terminals: 1 cable(s) 0.002…0.04 in² (1.5…25 mm²) - flexible without cable end, Push-in terminals: 1 cable(s) 0.002…0.02 in² (1.5…16 mm²) - flexible with cable end, Push-in terminals: 1 cable(s) (16 AWG...10 AWG) - solid, Push-in terminals: 1 cable(s) (16 AWG...6 AWG) - stranded |
| [Ith] conventional free air thermal current | 63 A |
Complementary 5
| Product Certifications | CE, cULus |
|---|---|
| [Ui] Rated Insulation Voltage | 690 V |
| Connection pitch | 1.8 in (45 mm) |
| Width | 8.0 in (203 mm) |
| Net Weight | 1.46 lb(US) (0.66 kg) |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Show all 31 specifications ↓ Show less ↑13 more values in Identification, Logistics.
Identification 8
| Part number | GV2G4LA |
|---|---|
| Type designation | GV2G |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606487863984 |
Logistics 5
| Country of origin | CN |
|---|---|
| Shipping weight | 0.66 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for GV2G4LA
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- cULus
- CE
Quick answers
Questions about the GV2G
What is the rated current of GV2G?
The rated current of GV2G is 63 A.
What is the HS code of GV2G for customs?
The tariff (HS) code on file for GV2G is 853890.
What is the EAN of GV2G?
The EAN (GTIN) of GV2G is 3606487863984.
Where does GV2G ship from, and how fast?
GV2G ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
