Part number
GV1G09
Model no
GV1G
$10.44 On request Dispatch — · From TürkiyeGet a Quote

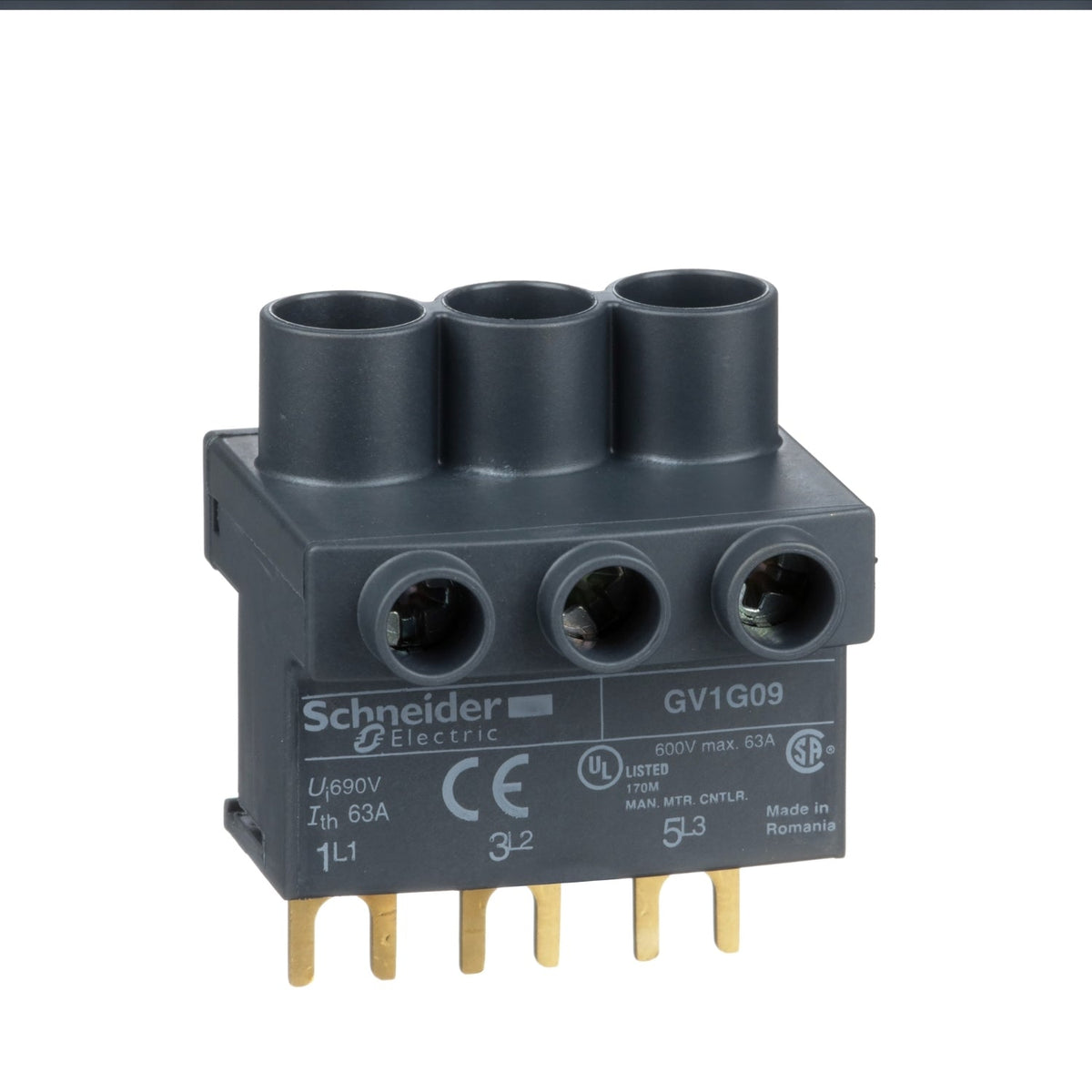

Schneider Electric GV1G09 Linergy FT Top Feed Terminal Block 3P 63 A 690 V Automation Component

Linergy FT top-feed terminal block, 3P 63 A, 690 V, for TeSys GV2/Deca/U busbars

Range
Linergy
Product name
FT
Device short name
GV1G
Product or Component Type
Terminal block
Accessory / separate part category
Connection accessory
Poles description
3P
EAN
3389110212570
Description

About the GV1G

The Schneider Electric GV1G09 is a 3-pole top-feed terminal block from the Linergy FT range, rated 63 A at 690 V, used to supply busbar sets GV2G on TeSys GV2, TeSys Deca and TeSys U motor circuit breakers. It mounts directly onto the top terminals of the devices connected by the busbar set and connects to the supply cable through screw clamp terminals.

Certifications & Standards

  • CE
  • UKCA

Selection Notes

Pair the GV1G09 with a GV2G terminal block and a GV2 busbar set to feed a row of parallel-mounted motor starters from a single incoming cable; its IP20 rating and 690 V insulation voltage match the TeSys GV2/Deca/U frame it feeds.

Specification

Full specification

29 values · Last verified 30 Oct 2026

Main 7

Range Linergy
Product name FT
Device short name GV1G
Product or Component Type Terminal block
Accessory / separate part category Connection accessory
Poles description 3P
Range compatibility TeSys GV2, TeSys Deca, TeSys U, TeSys LS1

Complementary 7

[Ie] rated operational current 63 A
Mounting Location Top
IP degree of protection IP20 conforming to IEC 60529
[Ui] rated insulation voltage 690 V IEC 60947-1
Connections - terminals Screw clamp terminals 1 cable(s) (4 AWG) - solid, Screw clamp terminals 1 cable(s) 0.002…0.02 in² (1.5…16 mm²) - flexible with cable end, Screw clamp terminals 1 cable(s) 0.002…0.02 in² (1.5…16 mm²) - flexible without cable end, Screw clamp terminals 1 cable(s) 0.002…0.04 in² (1.5…25 mm²) - solid, Screw clamp terminals 2 cable(s) 0.002…0.006 in² (1.5…4 mm²) - flexible with cable end, Screw clamp terminals 2 cable(s) 0.002…0.009 in² (1.5…6 mm²) - solid, Screw clamp terminals 2 cable(s) 0.002…0.006 in² (1.5…4 mm²) - flexible without cable end, Screw clamp terminals 1 cable(s) (4 AWG) - flexible
Tightening torque 15.05 lbf.in (1.7 N.m) screw clamp terminals, 19.5 lbf.in (2.2 N.m) connector
Net Weight 0.09 lb(US) (0.04 kg)

Environment 1

Product Certifications CE, UKCA
Show all 29 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number GV1G09
Type designation GV1G
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110212570

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin RO
Shipping weight 0.04 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for GV1G09

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • UKCA
Quick answers

Questions about the GV1G

What is the HS code of GV1G for customs?

The tariff (HS) code on file for GV1G is 853890.

What is the EAN of GV1G?

The EAN (GTIN) of GV1G is 3389110212570.

Where does GV1G ship from, and how fast?

GV1G ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
