Schneider Electric GV2G2RA Linergy FT Comb Busbar 63 A 2 Tap-offs Right Infeed for GV2ME Automation Component

% $-41.97
Schneider Electric GV2G2RA Linergy FT busbar 63 A 2 tap-offs – automation component
Schneider Electric GV2G2RA Linergy FT busbar 63 A 2 tap-offs – automation component

Schneider Electric GV2G2RA Linergy FT Comb Busbar 63 A 2 Tap-offs Right Infeed for GV2ME Automation Component

Brand: Schneider Electric
Reference No: GV2G2RA
Catalog No: GV2G2RA
Tariff Code (HS): 853890
Rated Current: 63 A
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$41.97

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

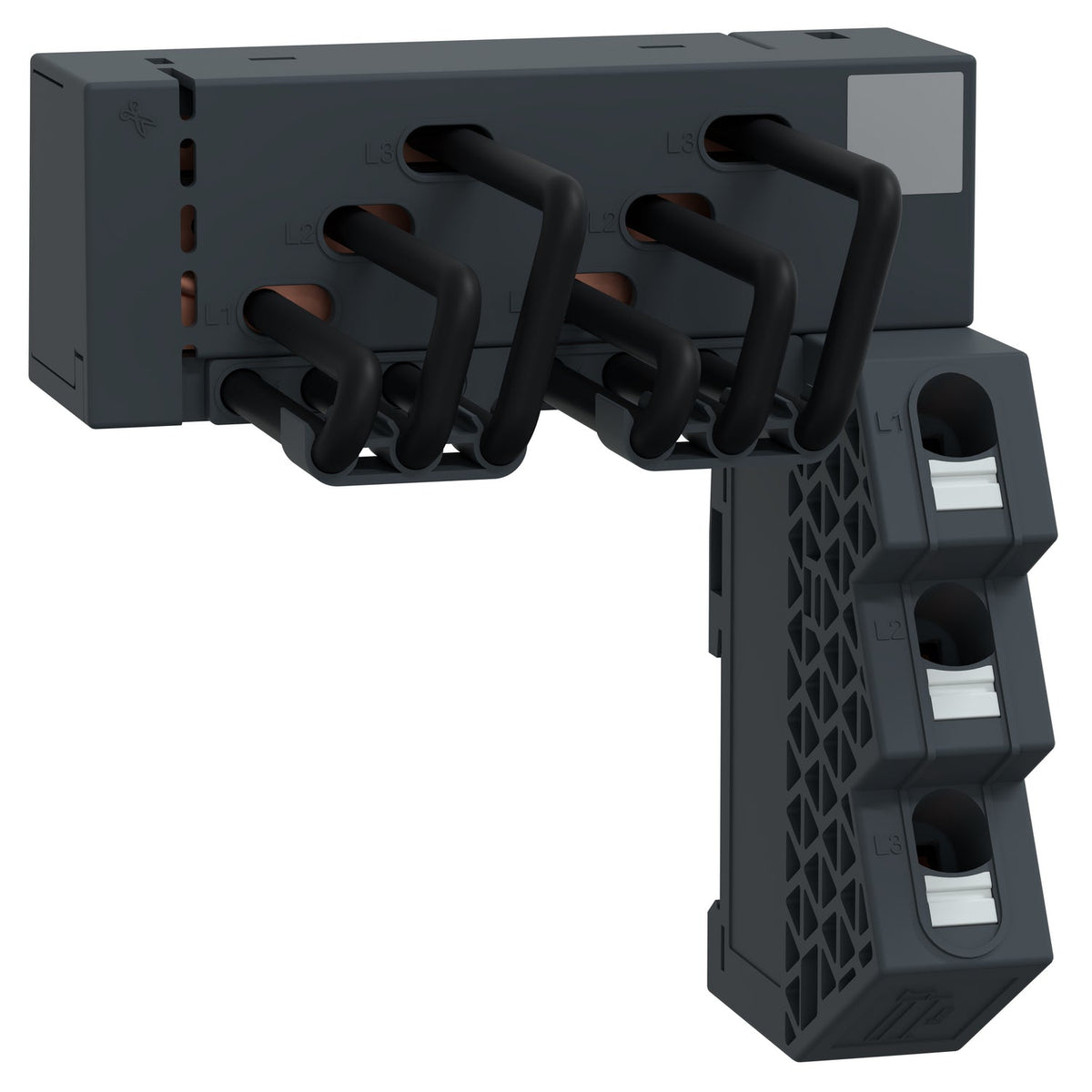

The Schneider Electric GV2G2RA is a Linergy FT comb busbar with 2 tap-offs and a built-in infeed module on the right side, rated 63 A at 690 V Ui across 3 phases. It parallel-wires a group of GV2ME motor circuit breakers from a single 3-phase incomer, clipping onto the same 35 mm DIN rail and keeping the 45 mm connection pitch between tap-offs.

Technical Specifications

Reference GV2G2RA
Brand Schneider Electric
Range Linergy FT
Product Type Comb busbar
Poles 3P
Range Compatibility TeSys Deca / TeSys GV2
Product Compatibility GV2ME...A
Number of Tap-offs 2
[Ith] Conventional Free Air Thermal Current 63 A
[Ui] Rated Insulation Voltage 690 V
Connection Pitch 45 mm
Fixing Mode 35 mm DIN rail (clipped)
Connections - Terminals (Infeed) Push-in terminal, 1.5...25 mm² (solid/flexible)
Width 113 mm
Net Weight 0.41 kg
Units per Package 6

Certifications & Standards

  • CE
  • cULus

Selection Notes

The infeed side decides the panel layout: pick the GV2G2RA (right-side infeed) to match where the incoming supply conductor enters the panel relative to the GV2ME row, so the busbar run does not cross back over itself. Add a GV2G extension busbar downstream if the group needs more than 2 tap-offs.

Technical Details

Short Description
Linergy FT comb busbar, 63 A, 2 tap-offs, for GV2ME groups.
Rated Current (Ampere)
63 A
Mounting Type
35 mm DIN rail
Catalog No
GV2G2RA
Delivery Date (Days)
30 days
Model Number
Linergy FT
Tariff Code
853890
