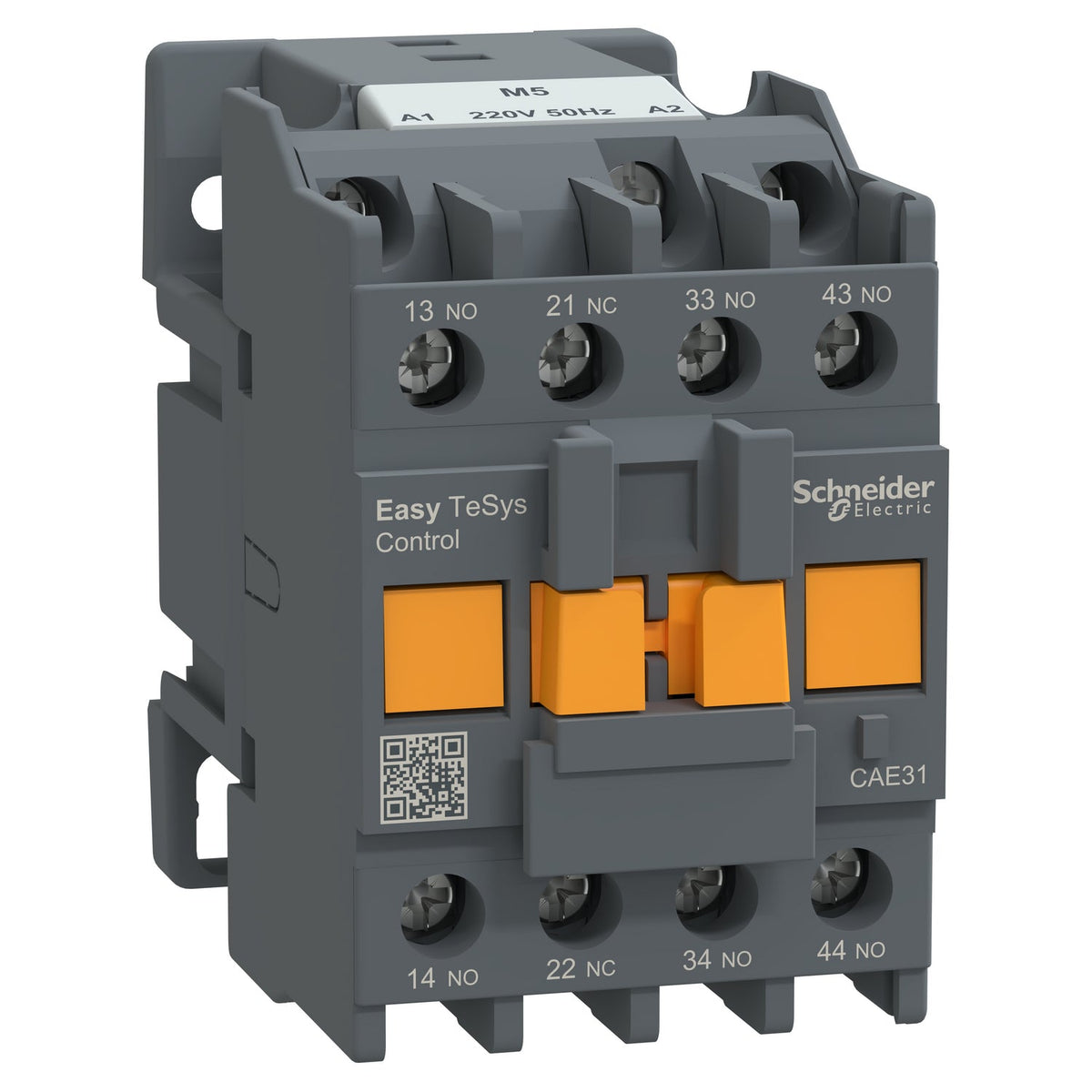

The Schneider Electric CAE31M5 is an Easy TeSys control relay with a 3 NO + 1 NC contact composition, rated 10 A Ith at up to 690 V AC, and a 220 V AC 50 Hz control circuit. It provides four instantaneous auxiliary contacts for AC-15/AC-14 switching duty and wires in through screw clamp terminals on a 45 mm wide DIN-rail body.
Choose the CAE31M5 where the application needs 3 NO + 1 NC instantaneous switching at budget Easy TeSys cost rather than the full TeSys Deca CAD range — the contact mix is fixed, so pick the sibling variant whose NO/NC split matches the interlock or signalling circuit without adding a separate auxiliary contact block. The 220 V AC 50 Hz coil draws 70 VA inrush and 8 VA holding at 50 Hz, which the control transformer sizing should account for. Like the rest of the Easy TeSys range it carries a 180 cyc/min maximum operating rate, lower than the TeSys Deca CAD line, so reserve it for standard-duty rather than high-cycling applications.
| Range | Easy TeSys |
|---|---|
| Range of product | Easy TeSys Control Relay |
| Product or component type | Control relay |
| Device short name | CAE |
| Contactor application | Control circuit |
| Colour | Grey (RAL 7011) |
| Utilisation category | AC-14, AC-15 |
|---|---|
| Pole contact composition | 3 NO + 1 NC |
| [Ue] rated operational voltage | <= 690 V AC |
| Control circuit type | AC at 50 Hz |
| [Uc] control circuit voltage | 220 V AC 50 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| [Ith] conventional free air thermal current | 10 A (at 40 °C) |
| Irms rated making capacity | 140 A at 690 V AC conforming to IEC 60947-5-1 |
| [Icw] rated short-time withstand current | 120 A - 500 ms, 140 A - 100 ms |
| Associated fuse rating | 10 A gG at 690 V conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-5-1 |
| Mounting support | Plate, Rail |
| Connections - terminals | Screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible without cable end, Screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end, Screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end, Screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end, Screw clamp terminals 1 1…2.5 mm² - cable stiffness: solid without cable end, Screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end |
| Recommended tightening torque | 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2 |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc at 50 Hz, Drop-out: 0.3...0.6 Uc |
| Operating time | 4...19 ms coil energisation and NC opening, 12...22 ms coil energisation and NO closing, 4...12 ms coil de-energisation and NC opening, 6...17 ms coil de-energisation and NO closing |
| Mechanical durability | 10 Mcycles |
| Maximum operating rate | 180 cyc/mn |
| Inrush power in VA | 70 VA 50 Hz (at 20 °C) |
| Hold-in power consumption in VA | 8 VA 50 Hz (at 20 °C) |
| Minimum switching voltage | 17 V |
| Minimum switching current | 5 mA |
| Non-overlap time | 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact |
| Insulation resistance | > 10 MOhm |
| Mechanical robustness | Shocks control relay open: 7 Gn for 11 ms, Shocks control relay closed: 10 Gn for 11 ms, Vibrations control relay open: 1.5 Gn, 5...300 Hz, Vibrations control relay closed: 3 Gn, 5...300 Hz |
| Height | 74 mm |
| Width | 45 mm |
| Depth | 80 mm |
| Net weight | 0.28 kg |
| Standards | EN/IEC 60947-1, EN/IEC 60947-5-1, GB/T 14048.1, GB/T 14048.5, IS/IEC 60947-1, IS/IEC 60947-5-1 |
|---|---|
| Product certifications | CB Scheme, CCC, CE, EAC, BIS |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Protective treatment | TH conforming to IEC 60068 |
| Ambient air temperature for operation | -20…70 °C |
| Ambient air temperature for storage | -60…80 °C |
| Operating altitude | 3000 m without derating |
| Part number | CAE31M5 |
|---|---|
| Type designation | CAE |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.000 cm |
| Package 1 Width | 7.500 cm |
| Package 1 Length | 8.500 cm |
| Package 1 Weight | 293.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 10.842 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 576 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 181.472 kg |
| Shipping weight | 0.28 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
