Schneider Electric CAE40B5 Easy TeSys Control Relay 4NO 24 V AC Coil Screw Clamp Auxiliary Contactor

% $-12.98

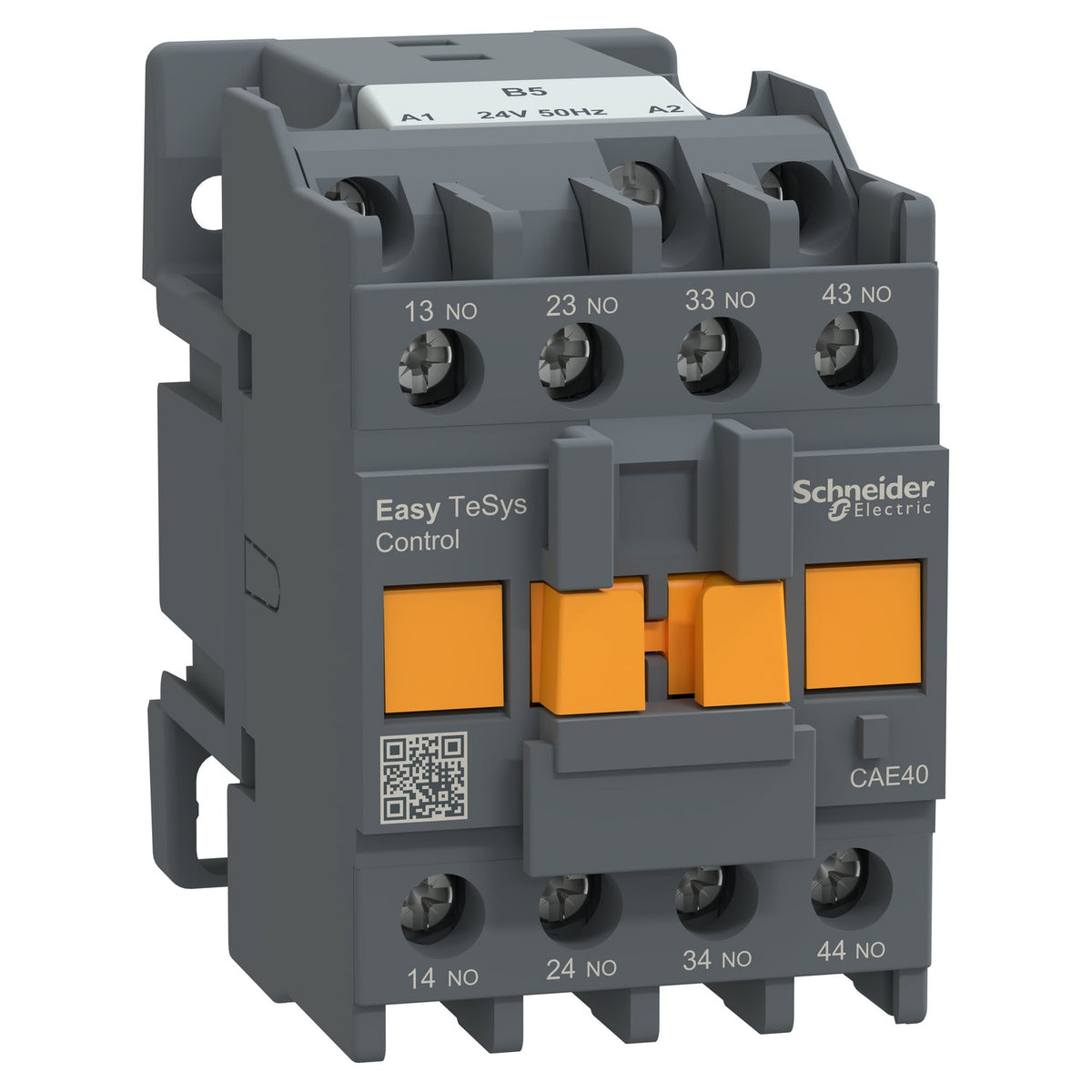

Schneider Electric CAE40B5 Easy TeSys control relay 4NO – 24 V AC coil
Schneider Electric CAE40B5 Easy TeSys control relay 4NO – 24 V AC coil

Schneider Electric CAE40B5 Easy TeSys Control Relay 4NO 24 V AC Coil Screw Clamp Auxiliary Contactor

Brand: Schneider Electric
Reference No: CAE40B5
Catalog No: CAE40B5
Series: Easy TeSys Control Relay
Tariff Code (HS): 853650
Rated Current: 10 A
Rated Voltage: 24 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$12.98

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Schneider Electric's CAE40B5 control relay combines 4NO contacts with a 24 V AC coil in the Easy TeSys range, rated 10 A conventional thermal current at up to 690 V. It handles AC-14/AC-15 pilot loads at standard operating rates and connects via screw clamp terminals, suited to DIN rail or screw-fixed panel mounting.

Technical Specifications

Reference CAE40B5
Brand Schneider Electric
Range Easy TeSys
Product Type Control Relay
Pole Contact Composition 4NO
Utilisation Category AC-14 / AC-15
Rated Operational Voltage (Ue) ≤690 V AC
Control Circuit Voltage (Uc) 24 V AC
Conventional Thermal Current (Ith) 10 A (at 40 °C)
Rated Making Capacity (Irms) 140 A at 690 V AC (IEC 60947-5-1)
Rated Short-Time Withstand Current (Icw) 120 A - 500 ms / 140 A - 100 ms
Rated Insulation Voltage (Ui) 690 V (IEC 60947-5-1)
Control Circuit Voltage Limits drop-out 0.3–0.6 Uc, operational 0.85–1.1 Uc @50 Hz
Maximum Operating Rate 180 cyc/min
Inrush / Hold-in Power 70 VA / 8 VA @50 Hz (20 °C)
Mounting 35 mm DIN rail or screw-fixed mounting plate
Connections Screw clamp terminals, 1–2.5 mm²
Dimensions (H × W × D) 74 × 45 × 80 mm (H × W × D)
Net Weight 0.28 kg
IP Degree of Protection IP2X
Ambient Temperature -20…+70 °C operation, -60…+80 °C storage

Certifications & Standards

  • CE
  • CCC
  • EAC
  • BIS
  • IEC 60947-5-1

Selection Notes

The 4NO contact set gives four make contacts for signal duplication where no break contact is required. This Easy TeSys range is certified CE, CCC, EAC and BIS but carries no UL or CSA listing, so it fits IEC-standard markets; panels that need UL 508 traceability for North America should use the TeSys K (CA2K) or TeSys Deca control relay instead. At 180 cycles/min maximum operating rate it suits standard-duty pilot switching rather than high-cycle automatic sequencing.

Technical Details

Short Description
Easy TeSys control relay, 4NO, 10 A Ith, 24 V AC coil, screw clamp terminals, DIN rail or panel mount.
Rated Current (Ampere)
10 A
Rated Voltage (VAC)
24 V AC
Mounting Type
DIN Rail (35 mm) or Screw
Protection Type
IP2X
Catalog No
CAE40B5
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
CAE
Tariff Code
853650
