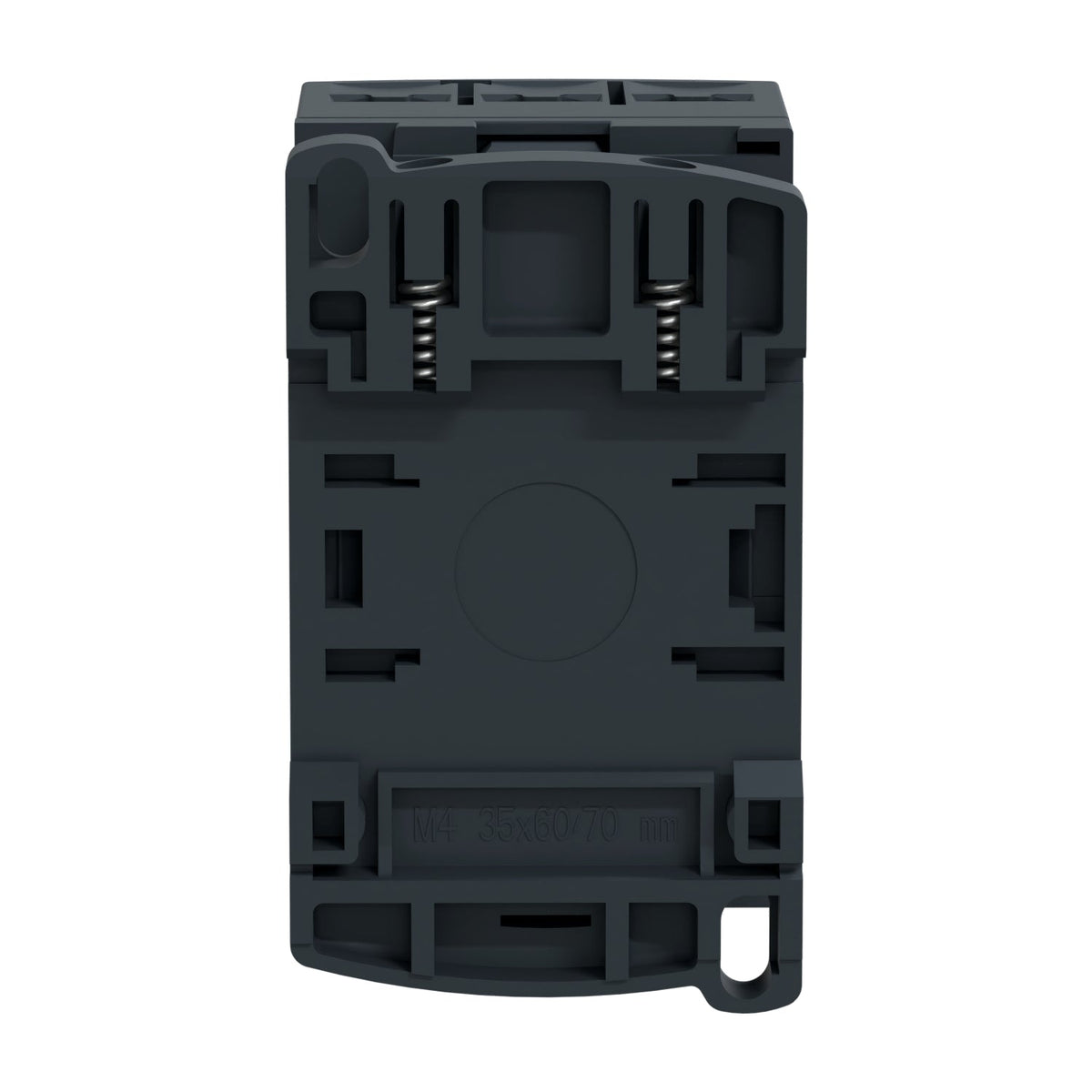

Schneider Electric CAD50M7 TeSys Deca Control Relay 5 NO 220 V AC Coil Screw Clamp Auxiliary Contactor

The Schneider Electric CAD50M7 is a TeSys Deca control relay with a 5 NO contact composition, rated 10 A Ith at up to 690 V AC, and a 220 V AC 50/60 Hz control circuit. It switches electromagnetic loads in AC-15 and DC-13 duty and wires into the control circuit of a motor starter or automation panel through screw clamp terminals.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• cULus
• CCC
• EN/IEC 60947-5-1

Selection Notes

Pick the CAD50M7 where the panel needs 5 NO switching in one block — the 50/60 Hz AC coil matches a standard control transformer secondary already present in most panels. The screw clamp wiring style is the other variant axis in this family: screw clamp terminals use a standard flat or Pozidriv screwdriver, matching existing panel wiring conventions. At 10 A Ith and a 100 A / 1 s short-time withstand, the CAD50M7 is sized for auxiliary and interlock duty alongside a main contactor, not as the load-switching device itself.
