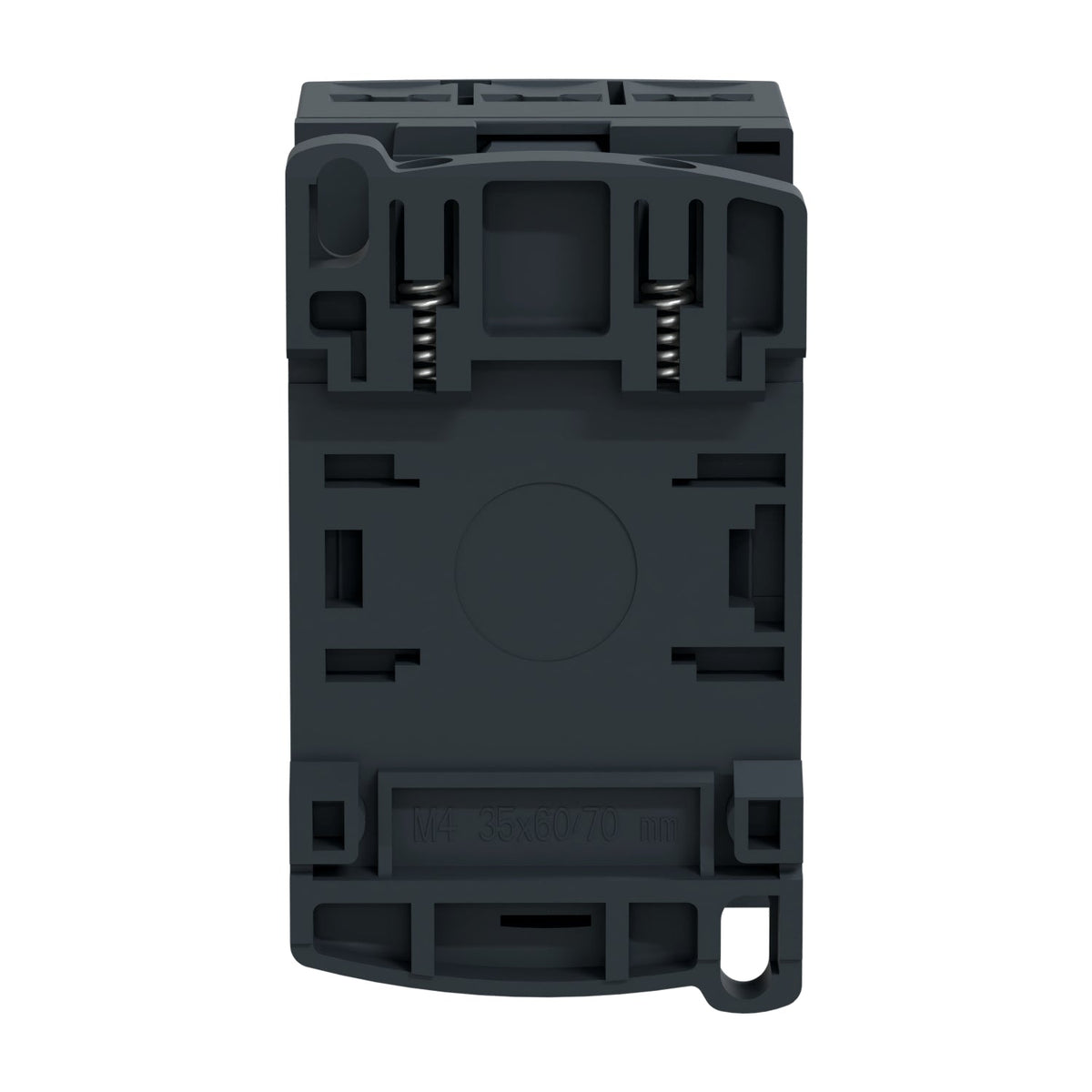

Schneider Electric CAD50FD TeSys Deca Control Relay 5NO 110 V DC Coil Screw Clamp Auxiliary Contactor

Schneider Electric's CAD50FD control relay carries 5NO contacts and a 110 V DC coil within the TeSys Deca range, rated 10 A conventional thermal current at up to 690 V. It handles AC-15/DC-13 pilot loads across a -40 to +60 °C range and connects via screw clamp terminals, suited to DIN rail or screw-fixed panel mounting.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• UL
• CSA
• CCC
• EAC
• IEC 60947-5-1

Selection Notes

With five make contacts, useful where one command must be duplicated to several downstream circuits without a break contact, the 5NO configuration fits that wiring pattern. Specify the 110 V DC coil to match the existing control voltage rather than adding a transformer. The DC coil carries no steady-state inrush surge but closes in 53–72 ms — noticeably slower than the AC-coil variant's 12–22 ms — because of the electronic surge-limiting circuit; account for that when the relay is in a fast-cycling sequence.
