Part number
CAD50ED
Model no
CAD
$37.57 On request Dispatch — · From TürkiyeGet a Quote
Schneider TeSys Deca

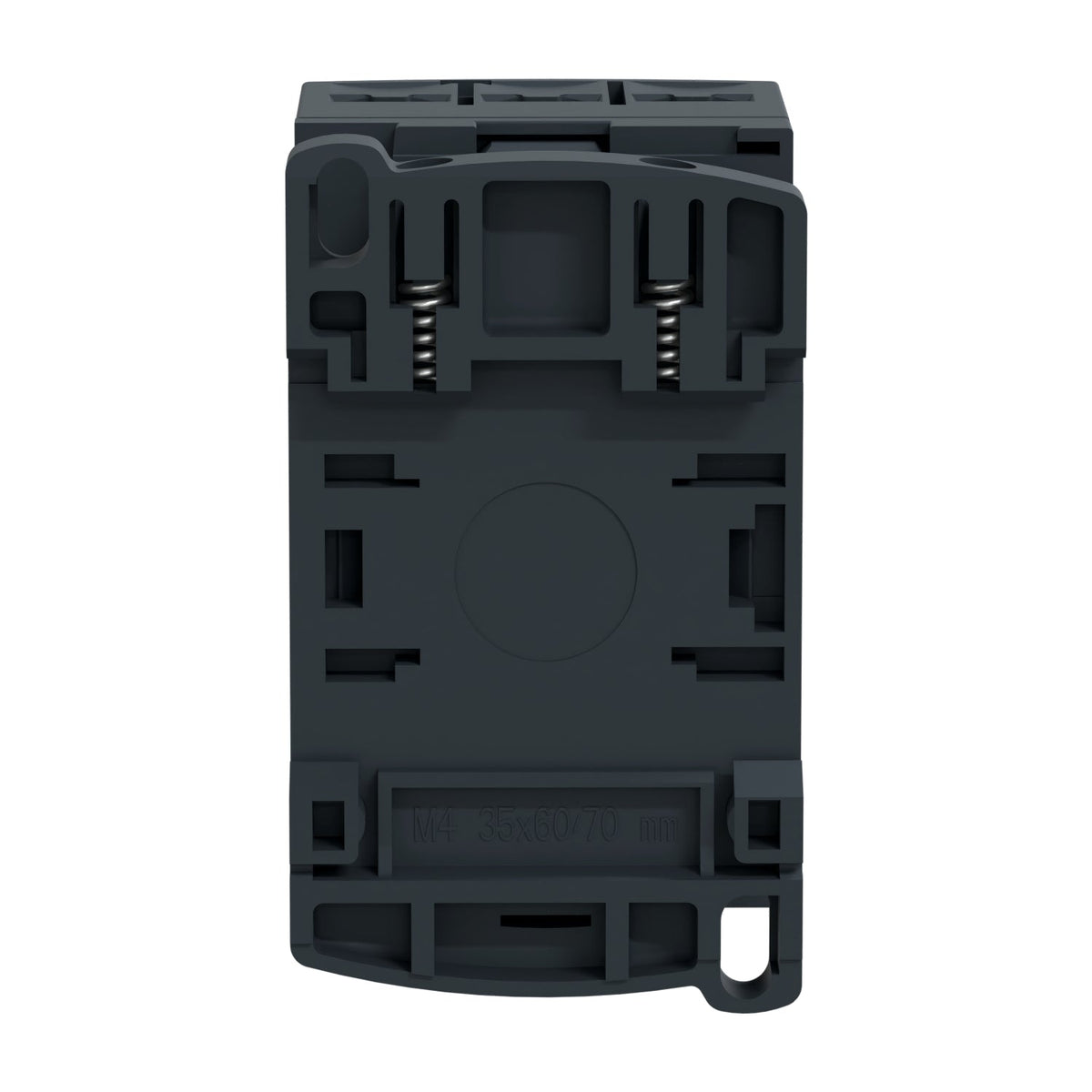

Schneider Electric CAD50ED TeSys Deca Control Relay 5NO 48 V DC Coil Screw Clamp Auxiliary Contactor

TeSys Deca control relay, 5NO, 10 A Ith, 48 V DC coil, screw clamp terminals, DIN rail or panel mount.

Rated current
10 A
Rated operational voltage
48 V DC
Poles
3P
EAN
3389110405712
Description

About the CAD

CAD50ED is Schneider Electric's TeSys Deca control relay in a 5NO arrangement, built around a 48 V DC coil and a 140 A AC rated making capacity for up to 690 V circuits. Rated for AC-15/DC-13 duty between -40 and +60 °C, it duplicates and interlocks pilot signals in motor control circuits, terminating on screw clamp terminals on DIN rail or a mounting plate.

Certifications & Standards

  • CE
  • UKCA
  • UL
  • CSA
  • CCC
  • EAC
  • IEC 60947-5-1

Selection Notes

Choose this 5NO variant for five make contacts, useful where one command must be duplicated to several downstream circuits without a break contact. The 48 V DC coil matches circuits already wired at that voltage, avoiding a separate step-down winding. The DC coil carries no steady-state inrush surge but closes in 53–72 ms — noticeably slower than the AC-coil variant's 12–22 ms — because of the electronic surge-limiting circuit; account for that when the relay is in a fast-cycling sequence.

Specification

Full specification

56 values · Last verified 30 Oct 2026

Main 5

Range TeSys, TeSys Deca
Product name TeSys CAD
Product or Component Type Control relay
Device short name CAD
Contactor application Control circuit

Complementary 30

Utilisation category AC-14, DC-13, AC-15
Pole contact composition 5 NO
[Ue] rated operational voltage <= 690 V AC 25...400 Hz
Control circuit type DC standard
[Uc] control circuit voltage 48 V DC
[Uimp] rated impulse withstand voltage 6 kV IEC 60947
[Ith] conventional free air thermal current 10 A (at 140 °F (60 °C))
Irms rated making capacity 140 A AC IEC 60947-5-1, 250 A DC IEC 60947-5-1
[Icw] rated short-time withstand current 100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms
Associated fuse rating 10 A gG conforming to IEC 60947-5-1
[Ui] rated insulation voltage 600 V UL, 600 V CSA, 690 V IEC 60947-5-1
Mounting Support Plate, Rail
Connections - terminals screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)flexible without cable end, screw clamp terminals 2 0.002…0.006 in² (1…4 mm²)flexible without cable end, screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)flexible with cable end, screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²)flexible with cable end, screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)solid without cable end, screw clamp terminals 2 0.002…0.006 in² (1…4 mm²)solid without cable end
Tightening torque 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2, 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm, 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2
Control circuit voltage limits 0.1...0.25 Uc (-40…158 °F (-40…70 °C)):drop-out DC, 0.7...1.25 Uc (-40…140 °F (-40…60 °C)):operational DC, 1...1.25 Uc (140…158 °F (60…70 °C)):operational DC
Operating time 53...72 ms coil energisation and NO closing, 16...24 ms coil de-energisation and NO opening
Mechanical durability 30 Mcycles
Maximum operating rate 180 cyc/mn
Time constant 28 ms
Inrush power in W 5.4 W 68 °F (20 °C))
Hold-in power consumption in W 5.4 W 68 °F (20 °C)
Minimum switching voltage 17 V
Minimum switching current 5 mA
Non-overlap time 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Insulation resistance > 10 MOhm
Mechanical robustness Shocks control relay open10 Gn for 11 ms IEC 60068-2-27, Shocks control relay closed15 Gn for 11 ms IEC 60068-2-27, Vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6, Vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
Height 3.03 in (77 mm)
Width 1.8 in (45 mm)
Depth 3.7 in (93 mm)
Net Weight 1.28 lb(US) (0.58 kg)

Environment 7

Standards EN/IEC 60947-5-1, GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, JIS C8201-5-1
Product Certifications CB, CCC, UL, CSA, EAC, CE, UKCA
IP degree of protection IP2X front face VDE 0106
Protective treatment TH IEC 60068
Ambient air temperature for operation -40…140 °F (-40…60 °C), 140…158 °F (60…70 °C) with derating
Ambient Air Temperature for Storage -76…176 °F (-60…80 °C)
Operating altitude 0...9842.52 ft (0...3000 m)
Show all 56 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number CAD50ED
Type designation CAD
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110405712

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.58 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for CAD50ED

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CE
  • UKCA
  • CCC
  • EAC
  • EN/IEC 60947-5-1
  • GB/T 14048.5
  • UL 60947-5-1
  • CSA C22.2 No 60947-5-1
  • JIS C8201-5-1
Quick answers

Questions about the CAD

What is the rated current of CAD?

The rated current of CAD is 10 A.

Which supply voltage is CAD rated for?

The rated operational voltage of CAD is 48 V DC.

What is the HS code of CAD for customs?

The tariff (HS) code on file for CAD is 853650.

What is the EAN of CAD?

The EAN (GTIN) of CAD is 3389110405712.

Where does CAD ship from, and how fast?

CAD ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
