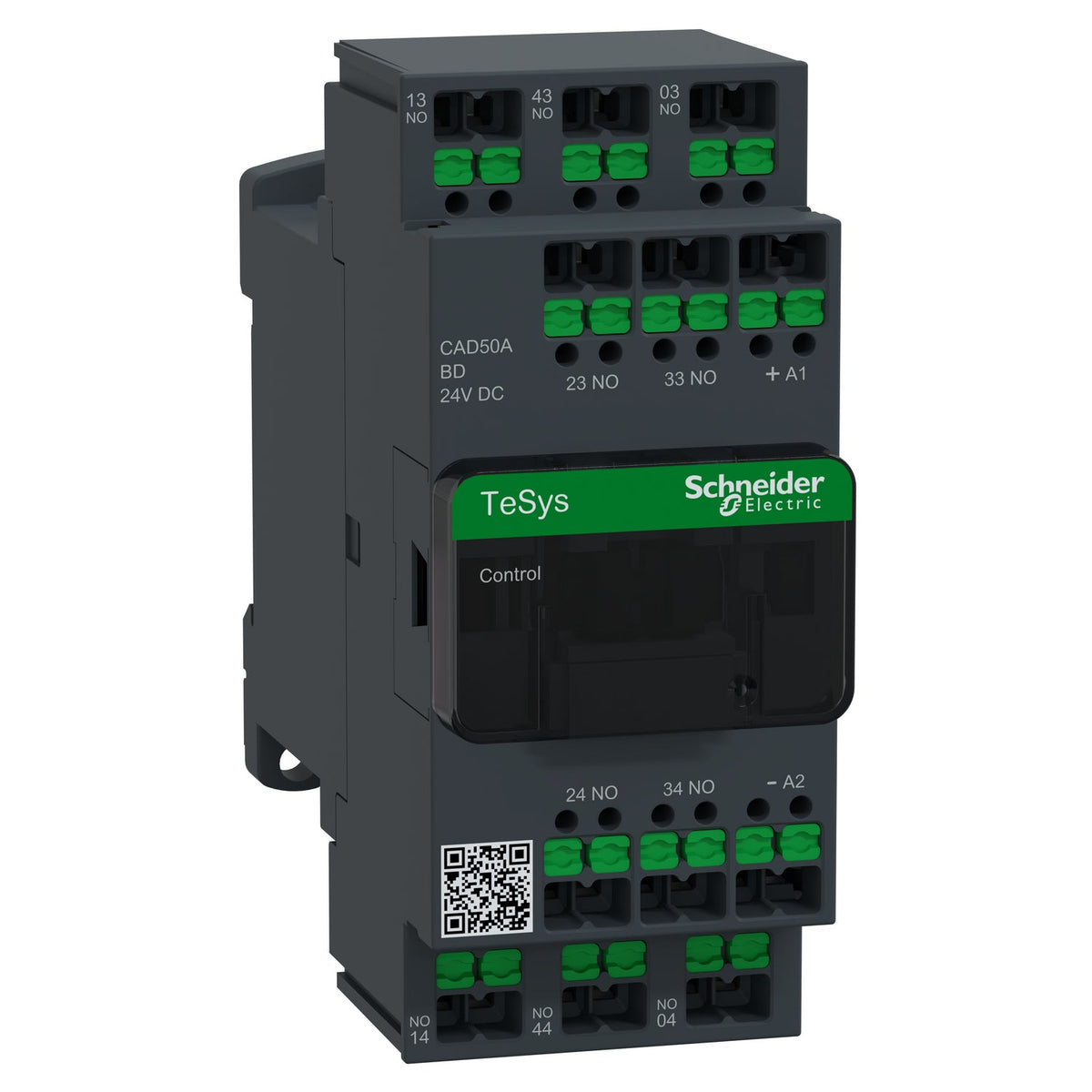

Schneider Electric CAD50ABD TeSys Deca Control Relay 5 NO 24 V DC Coil Snap-In Auxiliary Contactor

The Schneider Electric CAD50ABD is a TeSys Deca control relay with a 5 NO contact composition, rated 10 A Ith at up to 690 V AC, and a 24 V DC control circuit. It switches electromagnetic loads in AC-15 and DC-13 duty and wires into the control circuit of a motor starter or automation panel through snap-in terminals.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• cULus
• CCC
• EN/IEC 60947-5-1

Selection Notes

Pick the CAD50ABD where the panel needs 5 NO switching in one block — the DC coil draws no steady-state inrush current once energised and avoids AC coil hum, which suits control circuits fed from a DC supply or battery backup. The snap-in wiring style is the other variant axis in this family: snap-in terminals wire without tools, which speeds up panel assembly on repeat builds. At 10 A Ith and a 100 A / 1 s short-time withstand, the CAD50ABD is sized for auxiliary and interlock duty alongside a main contactor, not as the load-switching device itself.
