CAD32F7
Model no
CAD
$25.12 On request Dispatch — · From TürkiyeGet a Quote
Schneider TeSys Deca

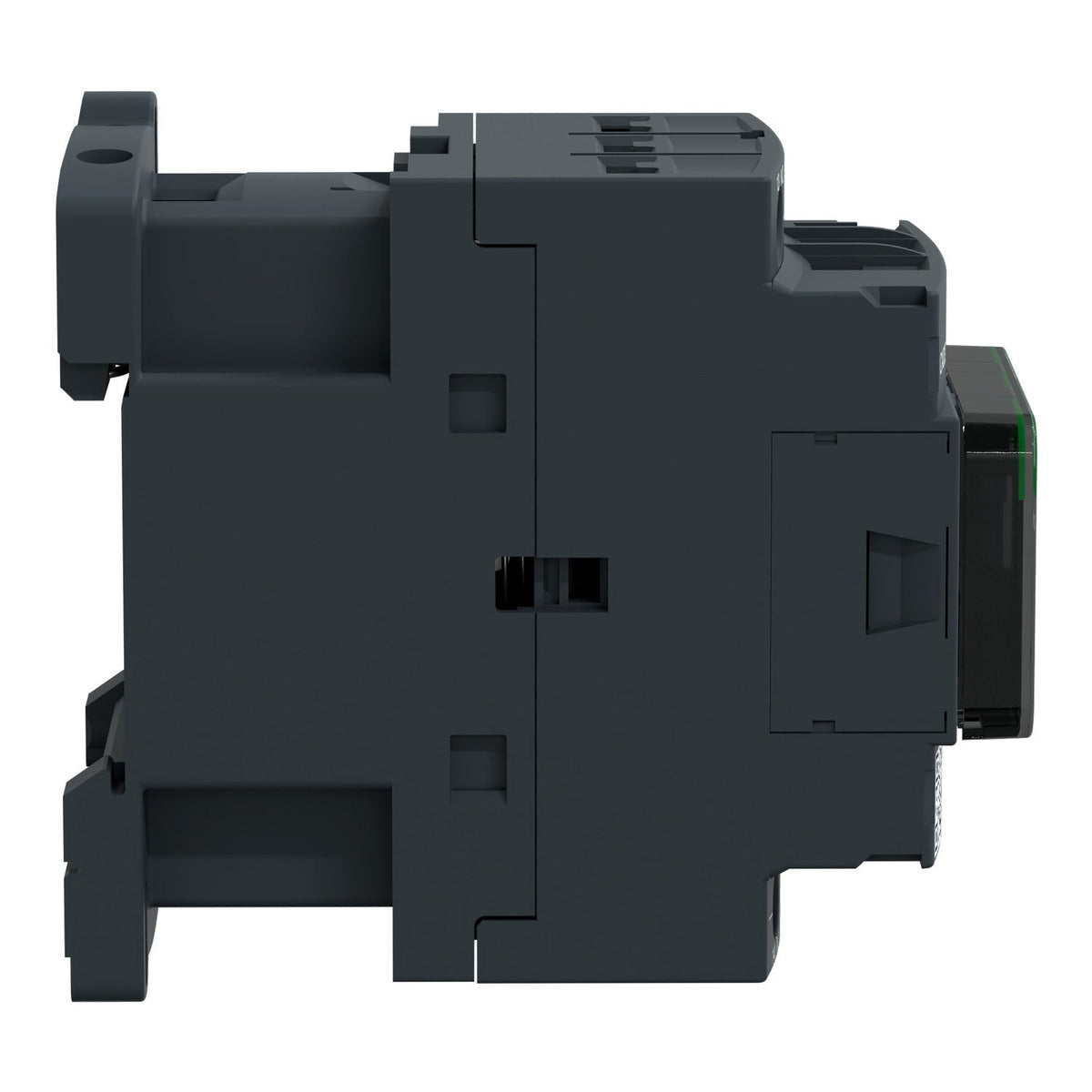

Schneider Electric CAD32F7 TeSys Deca Control Relay 3NO 2NC 110 V AC Coil Screw Clamp Auxiliary Contactor

TeSys Deca control relay, 3NO+2NC, 10 A Ith, 110 V AC coil, screw clamp terminals, DIN rail or panel mount.

Rated current
10 A
Rated operational voltage
110 V AC
Poles
3P
EAN
3389110534276
Description

About the CAD

The Schneider Electric CAD32F7 is a TeSys Deca control relay with 3NO+2NC contact composition and a 110 V AC coil, rated 10 A conventional thermal current (Ith) at up to 690 V. It switches AC-15/DC-13 electromagnetic loads for pilot-circuit control and interlocking, rated for -40 to +60 °C ambient operation, with screw clamp terminals for DIN rail or panel mounting.

Certifications & Standards

  • CE
  • UKCA
  • UL
  • CSA
  • CCC
  • EAC
  • IEC 60947-5-1

Selection Notes

The 3NO+2NC contact set gives a break contact for indication or safety-chain monitoring alongside the make contacts, useful for interlocking circuits. Pick the 110 V AC coil when the control circuit already runs at that voltage, so the relay coil connects directly without an extra transformer tap. The AC coil closes in 12–22 ms and draws 70 VA at inrush, dropping to 8 VA hold-in — the figure to size a shared control transformer against when several TeSys Deca relays operate together.

Specification

Full specification

55 values · Last verified 30 Oct 2026

Main 5

Range TeSys, TeSys Deca
Product name TeSys CAD
Product or Component Type Control relay
Device short name CAD
Contactor application Control circuit

Complementary 29

Utilisation category AC-15, AC-14, DC-13
Pole contact composition 3 NO + 2 NC
[Ue] rated operational voltage <= 690 V AC 25...400 Hz
Control circuit type AC 50/60 Hz
[Uc] control circuit voltage 110 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 6 kV IEC 60947
[Ith] conventional free air thermal current 10 A (at 140 °F (60 °C))
Irms rated making capacity 140 A AC IEC 60947-5-1, 250 A DC IEC 60947-5-1
[Icw] rated short-time withstand current 100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms
Associated fuse rating 10 A gG conforming to IEC 60947-5-1
[Ui] rated insulation voltage 600 V UL, 600 V CSA, 690 V IEC 60947-5-1
Mounting Support Rail, Plate
Connections - terminals screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)flexible without cable end, screw clamp terminals 2 0.002…0.006 in² (1…4 mm²)flexible without cable end, screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)flexible with cable end, screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²)flexible with cable end, screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)solid without cable end, screw clamp terminals 2 0.002…0.006 in² (1…4 mm²)solid without cable end
Tightening torque 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2, 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm, 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2
Control circuit voltage limits 0.3...0.6 Uc (-40…158 °F (-40…70 °C)):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40…140 °F (-40…60 °C)):operational AC 50 Hz, 0.85...1.1 Uc (-40…140 °F (-40…60 °C)):operational AC 60 Hz, 1...1.1 Uc (140…158 °F (60…70 °C)):operational AC 50/60 Hz
Operating time 12...22 ms coil energisation and NO closing, 4...12 ms coil de-energisation and NO opening, 4...19 ms coil energisation and NC opening, 6...17 ms coil de-energisation and NC closing
Mechanical durability 30 Mcycles
Maximum operating rate 180 cyc/mn
Inrush power in VA 70 VA 50 Hz (at 68 °F (20 °C))
Hold-in power consumption in VA 8 VA 50 Hz (at 68 °F (20 °C))
Minimum switching voltage 17 V
Minimum switching current 5 mA
Non-overlap time 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Insulation resistance > 10 MOhm
Mechanical robustness Shocks control relay open10 Gn for 11 ms IEC 60068-2-27, Shocks control relay closed15 Gn for 11 ms IEC 60068-2-27, Vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6, Vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
Height 3.03 in (77 mm)
Width 1.8 in (45 mm)
Depth 3.3 in (84 mm)
Net Weight 1.28 lb(US) (0.58 kg)

Environment 7

Standards EN/IEC 60947-5-1, GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, JIS C8201-5-1
Product Certifications CB, CCC, UL, CSA, EAC, CE, UKCA
IP degree of protection IP2X front face VDE 0106
Protective treatment TH IEC 60068
Ambient air temperature for operation -40…140 °F (-40…60 °C), 140…158 °F (60…70 °C) with derating
Ambient Air Temperature for Storage -76…176 °F (-60…80 °C)
Operating altitude 0...9842.52 ft (0...3000 m)
Show all 55 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number CAD32F7
Type designation CAD
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110534276

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.58 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for CAD32F7

No documents are on file for this part yet.

Ask us for the datasheet
