Schneider Electric CAD32D7 TeSys Deca Control Relay 3NO 2NC 42 V AC Coil Screw Clamp Auxiliary Contactor

% $-24.55

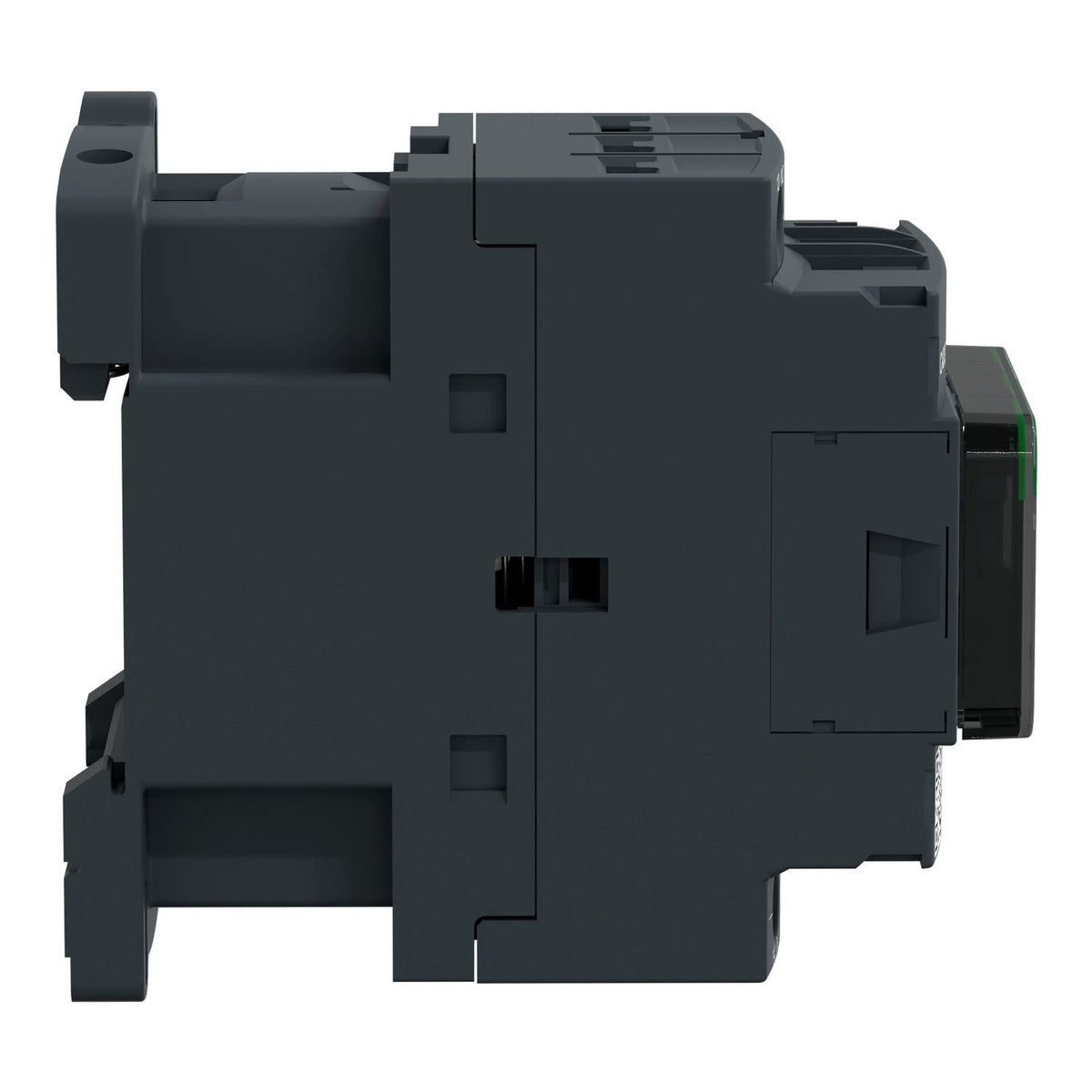

Schneider Electric CAD32D7 TeSys Deca control relay 3NO+2NC – 42 V AC coil
Schneider Electric CAD32D7 TeSys Deca control relay 3NO+2NC – 42 V AC coil

Schneider Electric CAD32D7 TeSys Deca Control Relay 3NO 2NC 42 V AC Coil Screw Clamp Auxiliary Contactor

Brand: Schneider Electric
Reference No: CAD32D7
Catalog No: CAD32D7
Tariff Code (HS): 853650
Rated Current: 10 A
Rated Voltage: 42 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$24.55

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

CAD32D7 is Schneider Electric's TeSys Deca control relay in a 3NO+2NC arrangement, built around a 42 V AC coil and a 140 A AC rated making capacity for up to 690 V circuits. Rated for AC-15/DC-13 duty between -40 and +60 °C, it duplicates and interlocks pilot signals in motor control circuits, terminating on screw clamp terminals on DIN rail or a mounting plate.

Technical Specifications

Reference CAD32D7
Brand Schneider Electric
Range TeSys Deca
Product Type Control Relay
Pole Contact Composition 3NO+2NC
Utilisation Category AC-14 / AC-15 / DC-13
Rated Operational Voltage (Ue) ≤690 V AC (25–400 Hz)
Control Circuit Voltage (Uc) 42 V AC
Conventional Thermal Current (Ith) 10 A (at 60 °C)
Rated Making Capacity (Irms) 140 A AC / 250 A DC (IEC 60947-5-1)
Rated Short-Time Withstand Current (Icw) 100 A - 1 s / 120 A - 500 ms / 140 A - 100 ms
Rated Insulation Voltage (Ui) 690 V (IEC 60947-5-1) / 600 V (UL, CSA)
Control Circuit Voltage Limits drop-out 0.3–0.6 Uc, operational 0.8–1.1 Uc @50 Hz / 0.85–1.1 Uc @60 Hz
Maximum Operating Rate 180 cyc/min
Inrush / Hold-in Power 70 VA / 8 VA @50 Hz (20 °C)
Mounting 35 mm DIN rail or screw-fixed mounting plate
Connections Screw clamp terminals, 1–4 mm²
Dimensions (H × W × D) 77 × 45 × 84 mm (H × W × D)
Net Weight 0.58 kg
IP Degree of Protection IP2X (front face)
Ambient Temperature -40…+60 °C operation (to 70 °C with derating), -60…+80 °C storage

Certifications & Standards

  • CE
  • UKCA
  • UL
  • CSA
  • CCC
  • EAC
  • IEC 60947-5-1

Selection Notes

Choose this 3NO+2NC variant for a break contact for indication or safety-chain monitoring alongside the make contacts, useful for interlocking circuits. The 42 V AC coil matches circuits already wired at that voltage, avoiding a separate step-down winding. The AC coil closes in 12–22 ms and draws 70 VA at inrush, dropping to 8 VA hold-in — the figure to size a shared control transformer against when several TeSys Deca relays operate together.

Technical Details

Short Description
TeSys Deca control relay, 3NO+2NC, 10 A Ith, 42 V AC coil, screw clamp terminals, DIN rail or panel mount.
Rated Current (Ampere)
10 A
Rated Voltage (VAC)
42 V AC
Mounting Type
DIN Rail (35 mm) or Screw
Protection Type
IP2X
Catalog No
CAD32D7
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
CAD
Tariff Code
853650
