Schneider TeSys Deca

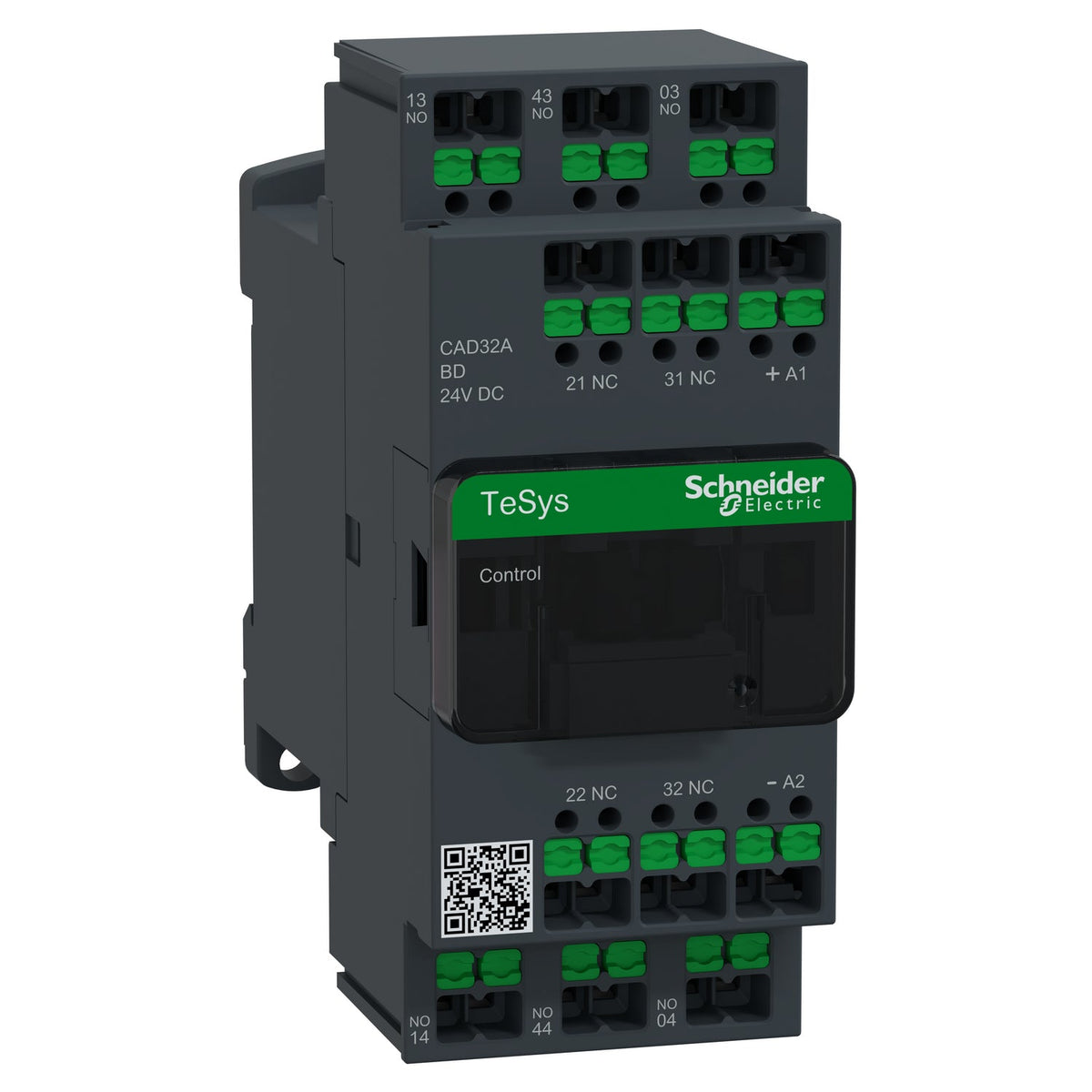

Schneider Electric CAD32ABD TeSys Deca Control Relay 3 NO 2 NC 24 V DC Coil Snap-In Auxiliary Contactor

TeSys Deca control relay, 3 NO + 2 NC, 24 V DC coil, 10 A Ith, snap-in terminals.

Rated current
10 A
Rated operational voltage
24 V DC
Poles
3P
EAN
3606487540830
Description

About the CAD

The Schneider Electric CAD32ABD is a TeSys Deca control relay with a 3 NO + 2 NC contact composition, rated 10 A Ith at up to 690 V AC, and a 24 V DC control circuit. It switches electromagnetic loads in AC-15 and DC-13 duty and wires into the control circuit of a motor starter or automation panel through snap-in terminals.

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • CCC
  • EN/IEC 60947-5-1

Selection Notes

Pick the CAD32ABD where the panel needs 3 NO + 2 NC switching in one block — the DC coil draws no steady-state inrush current once energised and avoids AC coil hum, which suits control circuits fed from a DC supply or battery backup. The snap-in wiring style is the other variant axis in this family: snap-in terminals wire without tools, which speeds up panel assembly on repeat builds. At 10 A Ith and a 100 A / 1 s short-time withstand, the CAD32ABD is sized for auxiliary and interlock duty alongside a main contactor, not as the load-switching device itself.

Specification

Full specification

55 values · Last verified 30 Oct 2026

Main 5

Range TeSys
Product name TeSys CAD
Product or Component Type Control relay
Device short name CAD
Contactor application Control circuit

Complementary 29

Utilisation category AC-15, AC-14, DC-13
Pole contact composition 3 NO + 2 NC
[Ue] rated operational voltage <= 690 V AC 25...400 Hz
Control circuit type DC standard
[Uc] control circuit voltage 24 V DC
[Uimp] rated impulse withstand voltage 6 kV IEC 60947
[Ith] conventional free air thermal current 10 A (at 140 °F (60 °C))
Irms rated making capacity 140 A AC, 250 A DC
[Icw] rated short-time withstand current 100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms
Associated fuse rating 10 A gG conforming to IEC 60947-5-1
[Ui] rated insulation voltage 690 V IEC 60947-5-1
Mounting Support Rail, Plate
Connections - terminals snap-in terminal 1 0.0008…0.006 in² (0.5…4 mm²)flexible without cable end, snap-in terminal 2 0.0008…0.006 in² (0.5…4 mm²)flexible without cable end, snap-in terminal 1 0.0008…0.004 in² (0.5…2.5 mm²)flexible with cable end, snap-in terminal 2 0.0008…0.004 in² (0.5…2.5 mm²)flexible with cable end
Control circuit voltage limits 0.1...0.25 Uc (-40…158 °F (-40…70 °C)):drop-out DC, 0.7...1.25 Uc (-40…140 °F (-40…60 °C)):operational DC, 1...1.25 Uc (140…158 °F (60…70 °C)):operational DC
Operating time 53...72 ms coil energisation and NO closing, 16...24 ms coil de-energisation and NO opening, 47...63 ms coil energisation and NC opening, 15...25 ms coil de-energisation and NC closing
Mechanical durability 30 Mcycles
Maximum operating rate 180 cyc/mn
Time constant 28 ms
Inrush power in W 5.4 W 68 °F (20 °C))
Hold-in power consumption in W 5.4 W 68 °F (20 °C)
Minimum switching voltage 17 V
Minimum switching current 5 mA
Non-overlap time 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Insulation resistance > 10 MOhm
Mechanical robustness Shocks control relay open10 Gn for 11 ms IEC 60068-2-27, Shocks control relay closed15 Gn for 11 ms IEC 60068-2-27, Vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6, Vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
Height 4.2 in (107 mm)
Width 1.8 in (45 mm)
Depth 3.7 in (93 mm)
Net Weight 19.8 oz (562 g)

Environment 7

Standards EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, JIS C8201-5-1
Product Certifications CB Scheme, CCC, cULus, CE, UKCA, EU-RO-MR by DNV
IP degree of protection IP2X front face VDE 0106
Protective treatment TH IEC 60068
Ambient air temperature for operation -40…140 °F (-40…60 °C), 140…158 °F (60…70 °C) with derating
Ambient Air Temperature for Storage -76…176 °F (-60…80 °C)
Operating altitude 0...9842.52 ft (0...3000 m)
Show all 55 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number CAD32ABD
Type designation CAD
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606487540830

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 0.562 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
