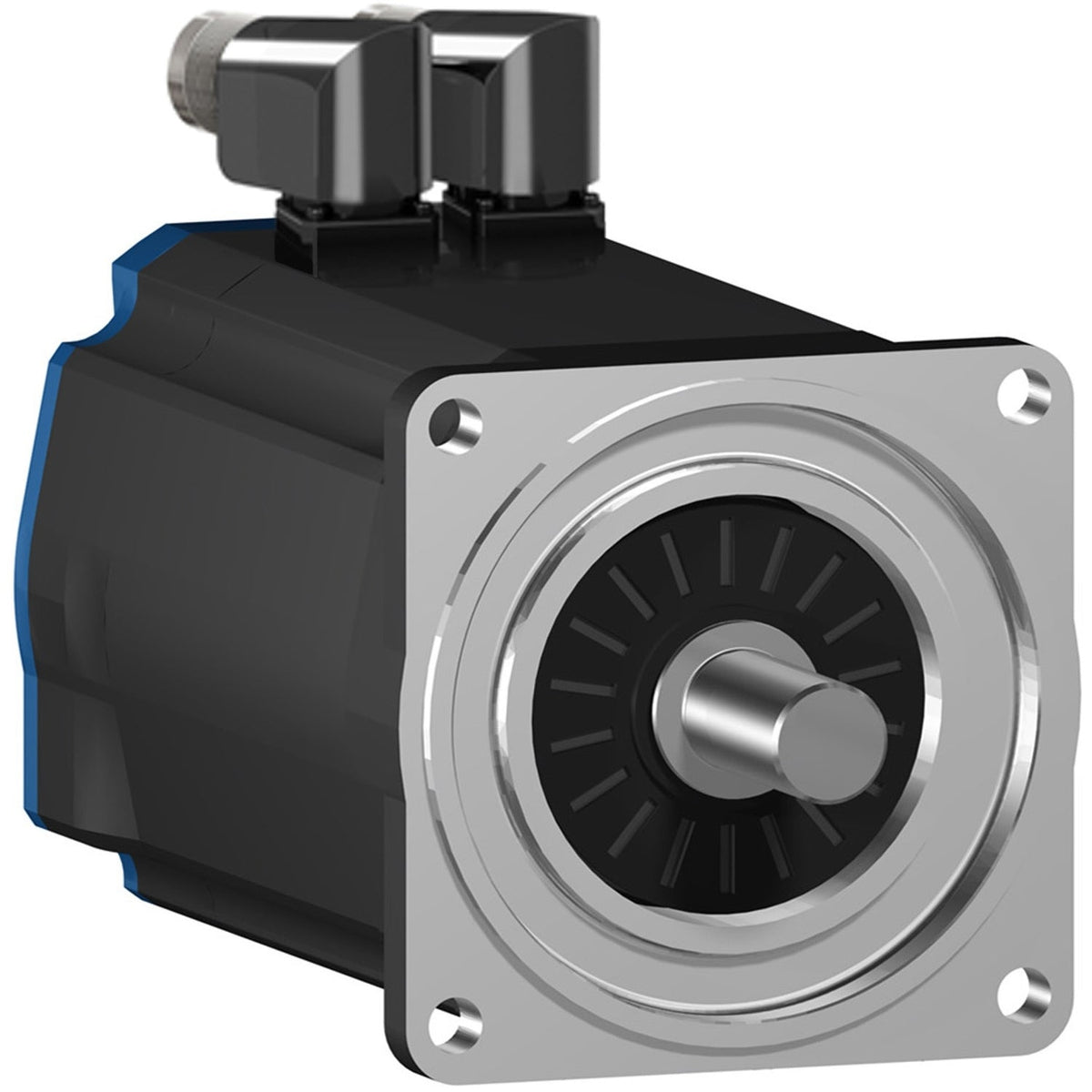

Schneider Electric BSH1004P11A2A Lexium 05 BSH 9.31 N·m 1500 rpm 100 mm Flange Keyed Shaft Servo Motor
Schneider Electric BSH1004P11A2A Lexium 05 BSH servo motor, 9.31 N·m, 1500 rpm, 100 mm flange, without brake.
Description
About the BSH
About the BSH
The BSH1004P11A2A is a Schneider Electric Lexium 05 BSH low-inertia AC servo motor rated for 9.31 N·m continuous stall torque at 1500 rpm nominal speed, built on a 100 mm international standard flange. It uses a keyed shaft and ships without brake, paired with Lexium servo drives via a single-turn SinCos Hiperface absolute encoder.
Selection Notes
At 9.31 N·m continuous stall torque on a 100 mm flange, this is the low-inertia class of the Lexium 05 line, suited to fast point-to-point and cyclic motion (pick-and-place, indexing) rather than constant-load conveying. The keyed shaft gives a positive, slip-free torque connection for direct coupling, the standard interface across the BSH10xx frame. It ships without brake, for horizontal or balanced axes where the LXM05/LXM15 drive's regenerative braking holds the load during a stop; where the axis must hold position with the drive off, the equivalent 'F' brake variant of this same frame is the one to specify. The single-turn SinCos Hiperface absolute encoder (131,072 counts/revolution) reports exact shaft angle within one mechanical turn without a battery, so the drive reads position on power-up without a separate homing move for single-turn travel. Continuous stall current is 6.2 A and maximum permanent current 32.3 A: size the paired LXM05/LXM15 drive to this continuous rating rather than the frame's peak figure, and re-check drive sizing before substituting a different torque variant of this same 100 mm flange into an existing design.
Specification
Full specification
Main 15
| Device short name | BSH |
|---|---|
| Product or Component Type | Servo motor |
| Maximum mechanical speed | 6000 rpm |
| Continuous stall torque | 70.8 lbf.in (8 N.m) LXM32.D30N4 10 A, 400 V, three phase, 70.8 lbf.in (8 N.m) LXM32.D30N4 10 A, 480 V, three phase, 82.40 lbf.in (9.31 N.m) LXM15MD40N4, 400 V, three phase, 82.40 lbf.in (9.31 N.m) LXM15MD40N4, 480 V, three phase, 82.40 lbf.in (9.31 N.m) LXM15MD28M3, 230 V, three phase, 82.40 lbf.in (9.31 N.m) LXM15MD28N4, 230 V, three phase, 82.40 lbf.in (9.31 N.m) LXM15MD28N4, 400 V, three phase, 82.40 lbf.in (9.31 N.m) LXM15MD28N4, 480 V, three phase, 82.40 lbf.in (9.31 N.m) LXM15MD40N4, 230 V, three phase, 82.40 lbf.in (9.31 N.m) LXM05AD34N4, 380...480 V, three phase, 82.40 lbf.in (9.31 N.m) LXM05AD42M3X 10 A, 200...240 V, three phase, 82.40 lbf.in (9.31 N.m) LXM05AD57N4, 380...480 V, three phase, 82.40 lbf.in (9.31 N.m) LXM05BD34N4, 380...480 V, three phase, 82.40 lbf.in (9.31 N.m) LXM05BD42M3X, 200...240 V, three phase, 82.40 lbf.in (9.31 N.m) LXM05BD57N4, 380...480 V, three phase, 82.40 lbf.in (9.31 N.m) LXM05CD34N4, 380...480 V, three phase, 82.40 lbf.in (9.31 N.m) LXM05CD42M3X, 200...240 V, three phase, 82.40 lbf.in (9.31 N.m) LXM05CD57N4, 380...480 V, three phase |
| Peak stall torque | 335.4 lbf.in (37.9 N.m) LXM32.D30N4 10 A, 400 V, three phase, 335.4 lbf.in (37.9 N.m) LXM32.D30N4 10 A, 480 V, three phase, 227.5 lbf.in (25.7 N.m) LXM15MD28M3, 230 V, three phase, 227.5 lbf.in (25.7 N.m) LXM15MD28N4, 230 V, three phase, 227.5 lbf.in (25.7 N.m) LXM15MD28N4, 400 V, three phase, 227.5 lbf.in (25.7 N.m) LXM15MD28N4, 480 V, three phase, 299.42 lbf.in (33.83 N.m) LXM15MD40N4, 230 V, three phase, 299.42 lbf.in (33.83 N.m) LXM15MD40N4, 400 V, three phase, 299.42 lbf.in (33.83 N.m) LXM15MD40N4, 480 V, three phase, 207.73 lbf.in (23.47 N.m) LXM05AD34N4, 380...480 V, three phase, 316.0 lbf.in (35.7 N.m) LXM05AD42M3X 10 A, 200...240 V, three phase, 316.0 lbf.in (35.7 N.m) LXM05AD57N4, 380...480 V, three phase, 207.73 lbf.in (23.47 N.m) LXM05BD34N4, 380...480 V, three phase, 316.0 lbf.in (35.7 N.m) LXM05BD42M3X, 200...240 V, three phase, 316.0 lbf.in (35.7 N.m) LXM05BD57N4, 380...480 V, three phase, 207.73 lbf.in (23.47 N.m) LXM05CD34N4, 380...480 V, three phase, 316.0 lbf.in (35.7 N.m) LXM05CD42M3X, 200...240 V, three phase, 316.0 lbf.in (35.7 N.m) LXM05CD57N4, 380...480 V, three phase |
| Nominal output power | 2600 W LXM32.D30N4 10 A, 480 V, three phase, 2100 W LXM32.D30N4 10 A, 400 V, three phase, 1300 W LXM05AD42M3X, 200...240 V, three phase, 1300 W LXM05BD42M3X, 200...240 V, three phase, 1300 W LXM05CD42M3X, 200...240 V, three phase, 1300 W LXM15MD28M3, 230 V, three phase, 1300 W LXM15MD28N4, 230 V, three phase, 1300 W LXM15MD40N4, 230 V, three phase, 2200 W LXM05AD34N4, 380...480 V, three phase, 2200 W LXM05AD57N4, 380...480 V, three phase, 2200 W LXM05BD34N4 10 A, 380...480 V, three phase, 2200 W LXM05BD57N4, 380...480 V, three phase, 2200 W LXM05CD34N4, 380...480 V, three phase, 2200 W LXM05CD57N4, 380...480 V, three phase, 2200 W LXM15MD28N4, 400 V, three phase, 2300 W LXM15MD40N4, 400 V, three phase, 2400 W LXM15MD40N4, 480 V, three phase, 2700 W LXM15MD28N4, 480 V, three phase |
| Nominal torque | 73.5 lbf.in (8.3 N.m) LXM32.D30N4 10 A, 400 V, three phase, 73.5 lbf.in (8.3 N.m) LXM32.D30N4 10 A, 480 V, three phase, 57.5 lbf.in (6.5 N.m) LXM15MD28N4, 480 V, three phase, 59.21 lbf.in (6.69 N.m) LXM15MD40N4, 480 V, three phase, 62.0 lbf.in (7 N.m) LXM15MD28N4, 400 V, three phase, 62.8 lbf.in (7.1 N.m) LXM05AD34N4, 380...480 V, three phase, 62.8 lbf.in (7.1 N.m) LXM05AD57N4, 380...480 V, three phase, 62.8 lbf.in (7.1 N.m) LXM05BD34N4, 380...480 V, three phase, 62.8 lbf.in (7.1 N.m) LXM05BD57N4, 380...480 V, three phase, 62.8 lbf.in (7.1 N.m) LXM05CD34N4, 380...480 V, three phase, 62.8 lbf.in (7.1 N.m) LXM05CD57N4 10 A, 380...480 V, three phase, 63.46 lbf.in (7.17 N.m) LXM15MD40N4, 400 V, three phase, 72.40 lbf.in (8.18 N.m) LXM15MD40N4, 230 V, three phase, 72.75 lbf.in (8.22 N.m) LXM05AD42M3X, 200...240 V, three phase, 72.75 lbf.in (8.22 N.m) LXM05BD42M3X, 200...240 V, three phase, 72.75 lbf.in (8.22 N.m) LXM05CD42M3X, 200...240 V, three phase, 72.75 lbf.in (8.22 N.m) LXM15LD28M3, 230 V, three phase, 72.75 lbf.in (8.22 N.m) LXM15MD28N4, 230 V, three phase |
| Nominal speed | 2500 rpm LXM32.D30N4 10 A, 400 V, three phase, 3000 rpm LXM32.D30N4 10 A, 480 V, three phase, 1500 rpm LXM05AD42M3X, 200...240 V, three phase, 1500 rpm LXM05BD42M3X, 200...240 V, three phase, 1500 rpm LXM05CD42M3X, 200...240 V, three phase, 3000 rpm LXM05AD34N4, 380...480 V, three phase, 3000 rpm LXM05BD34N4, 380...480 V, three phase, 3000 rpm LXM05CD34N4, 380...480 V, three phase, 1500 rpm LXM15MD28M3, 230 V, three phase, 1500 rpm LXM15MD28N4, 230 V, three phase, 1500 rpm LXM15MD40N4 10 A, 230 V, three phase, 3000 rpm LXM05AD57N4, 380...480 V, three phase, 3000 rpm LXM05BD57N4, 380...480 V, three phase, 3000 rpm LXM05CD57N4, 380...480 V, three phase, 3000 rpm LXM15MD28N4, 400 V, three phase, 3000 rpm LXM15MD40N4, 400 V, three phase, 3500 rpm LXM15MD40N4, 480 V, three phase, 4000 rpm LXM15MD28N4, 480 V, three phase |
| Product compatibility | LXM05AD42M3X 200...240 V three phase, LXM05BD42M3X 200...240 V three phase, LXM05CD42M3X 200...240 V three phase, LXM05AD34N4 380...480 V three phase, LXM05BD34N4 380...480 V three phase, LXM05CD34N4 380...480 V three phase, LXM15MD28N4 400 V three phase, LXM15MD28N4 480 V three phase, LXM15MD40N4 400 V three phase, LXM15MD40N4 480 V three phase, LXM32.D30N4 400 V three phase, LXM32.D30N4 480 V three phase, LXM05AD57N4 380...480 V three phase, LXM05BD57N4 380...480 V three phase, LXM05CD57N4 380...480 V three phase, LXM15MD28M3 230 V three phase, LXM15MD28N4 230 V three phase, LXM15MD40N4 230 V three phase |
| Shaft end | Keyed |
| IP Degree of Protection | IP50 standard |
| Speed feedback resolution | 131072 points/turn |
| Holding brake | Without |
| Mounting Support | International standard flange |
| Electrical Connection | Rotatable right-angled connectors |
Complementary 40
| Range Compatibility | Lexium 15, Lexium 32, Lexium 05 |
|---|---|
| supply voltage max | 480 V |
| Phase | Three phase |
| Continuous stall current | 6.2 A |
| maximum continuous power | 3.64 W |
| Maximum current Irms | 34.8 A LXM15LD28M3, 34.8 A LXM15MD28N4, 34.8 A LXM15MD40N4, 32.3 A LXM05AD42M3X, 32.3 A LXM05AD34N4, 32.3 A LXM05AD57N4, 32.3 A LXM05BD42M3X, 32.3 A LXM05BD34N4, 32.3 A LXM05BD57N4, 32.3 A LXM05CD42M3X, 32.3 A LXM05CD34N4, 32.3 A LXM05CD57N4, 30 A LXM32.D30N4 |
| Maximum permanent current | 32.3 A |
| Switching frequency | 8 kHz |
| Second shaft | Without second shaft end |
| Shaft diameter | 0.9 in (24 mm) |
| Shaft length | 2.0 in (50 mm) |
| Key width | 1.6 in (40 mm) |
| Feedback type | Single turn SinCos Hiperface |
| Motor flange size | 3.9 in (100 mm) |
| Number of motor stacks | 4 |
| Torque constant | 1.62 N.m/A 248 °F (120 °C) |
| Back emf constant | 103 V/krpm 248 °F (120 °C) |
| Number of motor poles | 4.0 |
| Rotor inertia | 4.22 kg.cm² |
| Stator resistance | 1.81 Ohm 68 °F (20 °C) |
| Stator inductance | 6.5 mH 68 °F (20 °C) |
| Stator electrical time constant | 6.52 ms 68 °F (20 °C) |
| Maximum radial force Fr | 1070 N 1000 rpm, 740 N 3000 rpm, 850 N 2000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Type of cooling | Natural convection |
| Length | 10.9 in (276.5 mm) |
| Centring collar diameter | 3.7 in (95 mm) |
| Centring collar depth | 0.1 in (3.5 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.4 in (9 mm) |
| Circle diameter of the mounting holes | 4.5 in (115 mm) |
| Net Weight | 20.9 lb(US) (9.5 kg) |
| Sizing reference | BSH1004P |
| Network number of phases | 3 |
| Accuracy error [angular] | 1.4 ° |
| Temperature copper hot | 248 °F (120 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
| Output current 3s peak | 32.3 A |
| Inertia | 0.0 kg.cm² of brake, 4.22 kg.cm² of motor |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Show all 69 specifications ↓ Show less ↑13 more values in Identification, Logistics.
Identification 8
| Part number | BSH1004P11A2A |
|---|---|
| Type designation | BSH |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389118140455 |
Logistics 5
| Country of origin | DE |
|---|---|
| Shipping weight | 9.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
