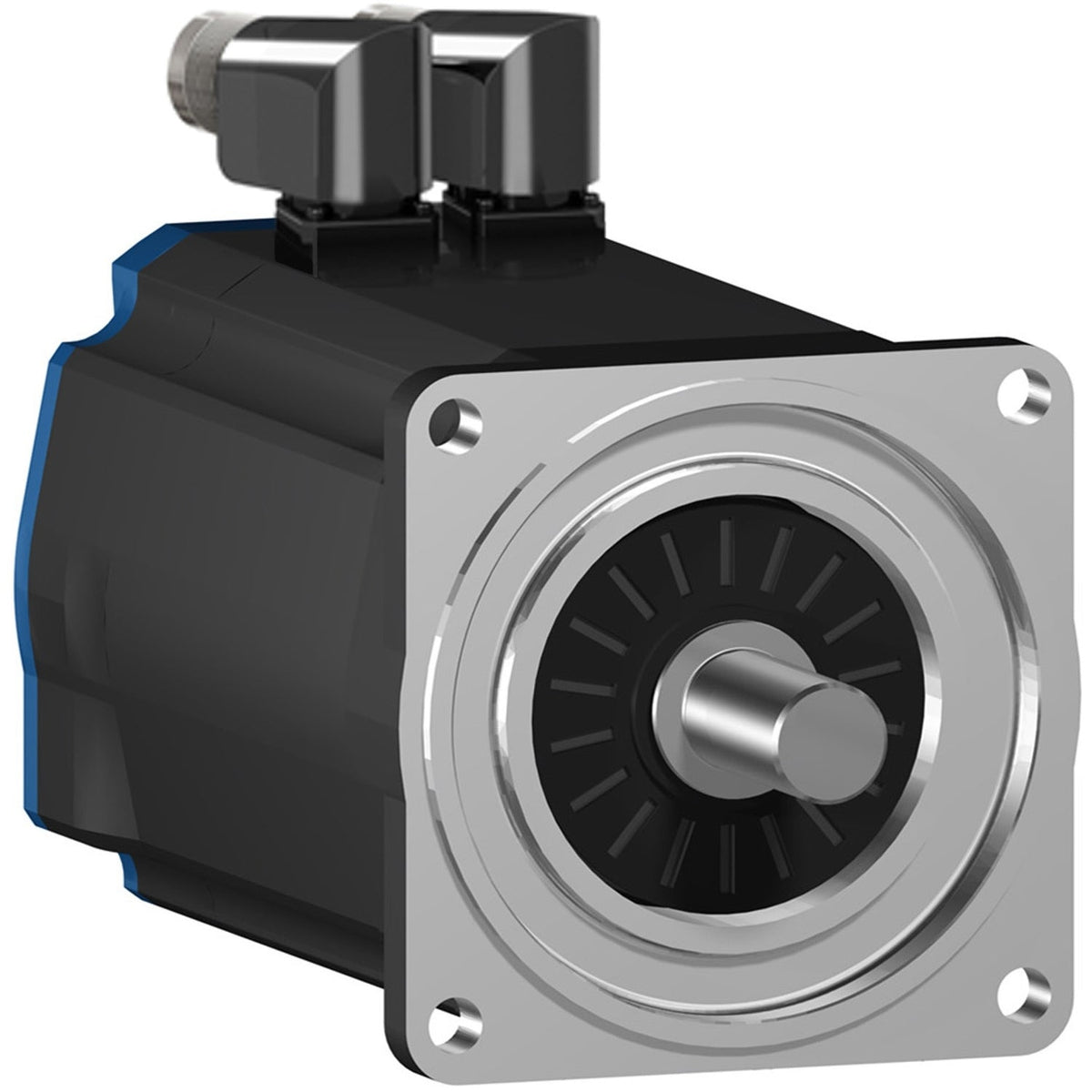

Schneider Electric BSH1003P11F2A Lexium 05 BSH 7.8 N·m 2500 rpm 100 mm Flange Brake Keyed Shaft Servo Motor
Schneider Electric BSH1003P11F2A Lexium 05 BSH servo motor, 7.8 N·m, 2500 rpm, 100 mm flange, with brake.
Description
About the BSH
About the BSH
The BSH1003P11F2A is a Schneider Electric Lexium 05 BSH low-inertia AC servo motor rated for 7.8 N·m continuous stall torque at 2500 rpm nominal speed, built on a 100 mm international standard flange. It uses a keyed shaft and ships with brake, paired with Lexium servo drives via a single-turn SinCos Hiperface absolute encoder.
Selection Notes
At 7.8 N·m continuous stall torque on a 100 mm flange, this is the low-inertia class of the Lexium 05 line, suited to fast point-to-point and cyclic motion (pick-and-place, indexing) rather than constant-load conveying. The keyed shaft gives a positive, slip-free torque connection for direct coupling, the standard interface across the BSH10xx frame. It ships with brake: pick this variant for vertical or overhauling axes where the load must hold position when the LXM05/LXM15 drive is de-energized (9 N·m holding torque). For a horizontal axis where the drive's own regenerative braking is sufficient, the equivalent no-brake variant saves the added length and brake pull-in power. The single-turn SinCos Hiperface absolute encoder (131,072 counts/revolution) reports exact shaft angle within one mechanical turn without a battery, so the drive reads position on power-up without a separate homing move for single-turn travel. Continuous stall current is 6.6 A and maximum permanent current 28.3 A: size the paired LXM05/LXM15 drive to this continuous rating rather than the frame's peak figure, and re-check drive sizing before substituting a different torque variant of this same 100 mm flange into an existing design.
Specification
Full specification
Main 15
| Device short name | BSH |
|---|---|
| Product or Component Type | Servo motor |
| Maximum mechanical speed | 6000 rpm |
| Continuous stall torque | 70.8 lbf.in (8 N.m) LXM32.D30N4 10 A, 400 V, three phase, 70.8 lbf.in (8 N.m) LXM32.D30N4 10 A, 480 V, three phase, 69.04 lbf.in (7.8 N.m) LXM05CD28M2, 200...240 V, single phase, 69.04 lbf.in (7.8 N.m) LXM05AD28M2, 200...240 V, single phase, 69.04 lbf.in (7.8 N.m) LXM05BD28M2, 200...240 V, single phase, 69.04 lbf.in (7.8 N.m) LXM05BD34N4, 380...480 V, three phase, 69.04 lbf.in (7.8 N.m) LXM05BD42M3X, 200...240 V, three phase, 69.04 lbf.in (7.8 N.m) LXM05CD34N4, 380...480 V, three phase, 69.04 lbf.in (7.8 N.m) LXM05CD42M3X, 200...240 V, three phase, 59.3 lbf.in (6.7 N.m) LXM15LD21M3, 230 V, three phase, 59.3 lbf.in (6.7 N.m) LXM15LD17N4, 230 V, three phase, 59.3 lbf.in (6.7 N.m) LXM15LD17N4 10 A, 400 V, three phase, 59.3 lbf.in (6.7 N.m) LXM15LD17N4, 480 V, three phase, 69.04 lbf.in (7.8 N.m) LXM15LD28M3, 230 V, three phase, 69.04 lbf.in (7.8 N.m) LXM15MD28N4, 400 V, three phase, 69.04 lbf.in (7.8 N.m) LXM15MD28N4, 480 V, three phase, 69.04 lbf.in (7.8 N.m) LXM15MD40N4, 400 V, three phase, 69.04 lbf.in (7.8 N.m) LXM15MD40N4, 480 V, three phase, 69.04 lbf.in (7.8 N.m) LXM05AD34N4, 380...480 V, three phase, 69.04 lbf.in (7.8 N.m) LXM05AD42M3X, 200...240 V, three phase |
| Peak stall torque | 250.5 lbf.in (28.3 N.m) LXM32.D30N4 10 A, 400 V, three phase, 250.5 lbf.in (28.3 N.m) LXM32.D30N4 10 A, 480 V, three phase, 174.27 lbf.in (19.69 N.m) LXM05AD28M2, 200...240 V, single phase, 174.27 lbf.in (19.69 N.m) LXM05BD28M2, 200...240 V, single phase, 174.27 lbf.in (19.69 N.m) LXM05CD28M2, 200...240 V, single phase, 137.2 lbf.in (15.5 N.m) LXM15LD21M3, 230 V, three phase, 110.6 lbf.in (12.5 N.m) LXM15LD17N4, 230 V, three phase, 110.6 lbf.in (12.5 N.m) LXM15LD17N4, 400 V, three phase, 110.6 lbf.in (12.5 N.m) LXM15LD17N4, 480 V, three phase, 174.27 lbf.in (19.69 N.m) LXM15LD28M3, 230 V, three phase, 174.27 lbf.in (19.69 N.m) LXM15MD28N4, 400 V, three phase, 174.27 lbf.in (19.69 N.m) LXM15MD28N4 10 A, 480 V, three phase, 205.07 lbf.in (23.17 N.m) LXM15MD40N4, 400 V, three phase, 205.07 lbf.in (23.17 N.m) LXM15MD40N4, 480 V, three phase, 203.66 lbf.in (23.01 N.m) LXM05AD34N4, 380...480 V, three phase, 205.07 lbf.in (23.17 N.m) LXM05AD42M3X, 200...240 V, three phase, 203.66 lbf.in (23.01 N.m) LXM05BD34N4, 380...480 V, three phase, 205.07 lbf.in (23.17 N.m) LXM05BD42M3X, 200...240 V, three phase, 203.66 lbf.in (23.01 N.m) LXM05CD34N4, 380...480 V, three phase, 205.07 lbf.in (23.17 N.m) LXM05CD42M3X, 200...240 V, three phase |
| Nominal output power | 2000 W LXM32.D30N4 10 A, 400 V, three phase, 2600 W LXM32.D30N4 10 A, 480 V, three phase, 1100 W LXM05AD28M2, 200...240 V, single phase, 1100 W LXM05BD28M2, 200...240 V, single phase, 1100 W LXM05CD28M2, 200...240 V, single phase, 1100 W LXM05AD42M3X, 200...240 V, three phase, 1100 W LXM05BD42M3X, 200...240 V, three phase, 1100 W LXM05CD42M3X, 200...240 V, three phase, 1300 W LXM15LD28M3, 230 V, three phase, 1700 W LXM15LD17N4, 230 V, three phase, 1700 W LXM15LD21M3, 230 V, three phase, 1800 W LXM05AD34N4 10 A, 380...480 V, three phase, 1800 W LXM05BD34N4, 380...480 V, three phase, 1800 W LXM05CD34N4, 380...480 V, three phase, 2000 W LXM15MD28N4, 400 V, three phase, 2000 W LXM15MD40N4, 400 V, three phase, 2200 W LXM15LD17N4, 400 V, three phase, 2200 W LXM15MD28N4, 480 V, three phase, 2200 W LXM15MD40N4, 480 V, three phase, 2300 W LXM15LD17N4, 480 V, three phase |
| Nominal torque | 55.8 lbf.in (6.3 N.m) LXM32.D30N4 10 A, 400 V, three phase, 55.8 lbf.in (6.3 N.m) LXM32.D30N4 10 A, 480 V, three phase, 32.7 lbf.in (3.7 N.m) LXM15LD17N4, 480 V, three phase, 59.57 lbf.in (6.73 N.m) LXM05AD28M2, 200...240 V, single phase, 59.57 lbf.in (6.73 N.m) LXM05BD28M2, 200...240 V, single phase, 59.57 lbf.in (6.73 N.m) LXM05CD28M2, 200...240 V, single phase, 40.7 lbf.in (4.6 N.m) LXM15MD28N4, 480 V, three phase, 40.7 lbf.in (4.6 N.m) LXM15MD40N4, 480 V, three phase, 41.6 lbf.in (4.7 N.m) LXM15LD17N4, 400 V, three phase, 44.3 lbf.in (5 N.m) LXM15MD28N4, 400 V, three phase, 44.3 lbf.in (5 N.m) LXM15MD40N4, 400 V, three phase, 50.4 lbf.in (5.7 N.m) LXM05AD34N4 10 A, 380...480 V, three phase, 50.4 lbf.in (5.7 N.m) LXM05BD34N4, 380...480 V, three phase, 50.4 lbf.in (5.7 N.m) LXM05CD34N4, 380...480 V, three phase, 53.1 lbf.in (6 N.m) LXM15LD17N4, 230 V, three phase, 53.1 lbf.in (6 N.m) LXM15LD21M3, 230 V, three phase, 55.8 lbf.in (6.3 N.m) LXM15LD28M3, 230 V, three phase, 59.57 lbf.in (6.73 N.m) LXM05AD42M3X, 200...240 V, three phase, 59.57 lbf.in (6.73 N.m) LXM05BD42M3X, 200...240 V, three phase, 59.57 lbf.in (6.73 N.m) LXM05CD42M3X, 200...240 V, three phase |
| Nominal speed | 3000 rpm LXM32.D30N4 10 A, 400 V, three phase, 4000 rpm LXM32.D30N4 10 A, 480 V, three phase, 4500 rpm LXM15LD17N4, 400 V, three phase, 6000 rpm LXM15LD17N4, 480 V, three phase, 1500 rpm LXM05AD28M2, 200...240 V, single phase, 1500 rpm LXM05BD28M2, 200...240 V, single phase, 1500 rpm LXM05CD28M2, 200...240 V, single phase, 1500 rpm LXM05AD42M3X, 200...240 V, three phase, 1500 rpm LXM05BD42M3X, 200...240 V, three phase, 1500 rpm LXM05CD42M3X, 200...240 V, three phase, 2000 rpm LXM15LD28M3, 230 V, three phase, 2500 rpm LXM15LD17N4 10 A, 230 V, three phase, 2500 rpm LXM15LD21M3, 230 V, three phase, 3000 rpm LXM05AD34N4, 380...480 V, three phase, 3000 rpm LXM05BD34N4, 380...480 V, three phase, 3000 rpm LXM05CD34N4, 380...480 V, three phase, 4000 rpm LXM15MD28N4, 400 V, three phase, 4000 rpm LXM15MD40N4, 400 V, three phase, 4500 rpm LXM15MD28N4, 480 V, three phase, 4500 rpm LXM15MD40N4, 480 V, three phase |
| Product compatibility | LXM05AD28M2 200...240 V single phase, LXM05BD28M2 200...240 V single phase, LXM05CD28M2 200...240 V single phase, LXM15LD21M3 230 V three phase, LXM05AD42M3X 200...240 V three phase, LXM05BD42M3X 200...240 V three phase, LXM05CD42M3X 200...240 V three phase, LXM15LD17N4 230 V three phase, LXM15LD17N4 400 V three phase, LXM15LD17N4 480 V three phase, LXM15LD28M3 230 V three phase, LXM05AD34N4 380...480 V three phase, LXM05BD34N4 380...480 V three phase, LXM05CD34N4 380...480 V three phase, LXM15MD28N4 400 V three phase, LXM15MD28N4 480 V three phase, LXM15MD40N4 400 V three phase, LXM15MD40N4 480 V three phase, LXM32.D30N4 400 V three phase, LXM32.D30N4 480 V three phase |
| Shaft end | Keyed |
| IP Degree of Protection | IP50 standard |
| Speed feedback resolution | 131072 points/turn |
| Holding brake | With |
| Mounting Support | International standard flange |
| Electrical Connection | Rotatable right-angled connectors |
Complementary 42
| Range Compatibility | Lexium 15, Lexium 05, Lexium 32 |
|---|---|
| supply voltage max | 480 V |
| Phase | Three phase |
| Continuous stall current | 6.6 A |
| maximum continuous power | 3.14 W |
| Maximum current Irms | 28.3 A LXM15LD21M3, 28.3 A LXM15LD28M3, 28.3 A LXM15LD17N4, 28.3 A LXM15MD28N4, 28.3 A LXM15MD40N4, 28.3 A LXM05AD28M2, 28.3 A LXM05AD42M3X, 28.3 A LXM05AD34N4, 28.3 A LXM05BD28M2, 28.3 A LXM05BD42M3X, 28.3 A LXM05BD34N4, 28.3 A LXM05CD28M2, 28.3 A LXM05CD42M3X, 28.3 A LXM05CD34N4, 28.3 A LXM32.D30N4 |
| Maximum permanent current | 28.3 A |
| Switching frequency | 8 kHz |
| Second shaft | Without second shaft end |
| Shaft diameter | 0.7 in (19 mm) |
| Shaft length | 1.6 in (40 mm) |
| Key width | 1.2 in (30 mm) |
| Feedback type | Single turn SinCos Hiperface |
| Holding torque | 79.7 lbf.in (9 N.m) holding brake |
| Motor flange size | 3.9 in (100 mm) |
| Number of motor stacks | 3 |
| Torque constant | 1.22 N.m/A 248 °F (120 °C) |
| Back emf constant | 77 V/krpm 248 °F (120 °C) |
| Number of motor poles | 4.0 |
| Rotor inertia | 3.838 kg.cm² |
| Stator resistance | 1.43 Ohm 68 °F (20 °C) |
| Stator inductance | 4.7 mH 68 °F (20 °C) |
| Stator electrical time constant | 6.15 ms 68 °F (20 °C) |
| Maximum radial force Fr | 1050 N 1000 rpm, 660 N 4000 rpm, 730 N 3000 rpm, 830 N 2000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Brake pull-in power | 18 W |
| Type of cooling | Natural convection |
| Length | 10.7 in (271.5 mm) |
| Centring collar diameter | 3.7 in (95 mm) |
| Centring collar depth | 0.1 in (3.5 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.4 in (9 mm) |
| Circle diameter of the mounting holes | 4.5 in (115 mm) |
| Net Weight | 17.6 lb(US) (8 kg) |
| Sizing reference | BSH1003P |
| Network number of phases | 3 |
| Accuracy error [angular] | 1.4 ° |
| Temperature copper hot | 248 °F (120 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
| Output current 3s peak | 28.3 A |
| Inertia | 0.618 kg.cm² of brake, 3.22 kg.cm² of motor |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Show all 71 specifications ↓ Show less ↑13 more values in Identification, Logistics.
Identification 8
| Part number | BSH1003P11F2A |
|---|---|
| Type designation | BSH |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389118140240 |
Logistics 5
| Country of origin | DE |
|---|---|
| Shipping weight | 8.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for BSH1003P11F2A
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the BSH
What is the rated current of BSH?
The rated current of BSH is 6.6 A.
What motor power is BSH rated for?
The rated motor power of BSH is 1.1 kW.
What is the HS code of BSH for customs?
The tariff (HS) code on file for BSH is 850152.
What is the EAN of BSH?
The EAN (GTIN) of BSH is 3389118140240.
Where does BSH ship from, and how fast?
BSH ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
