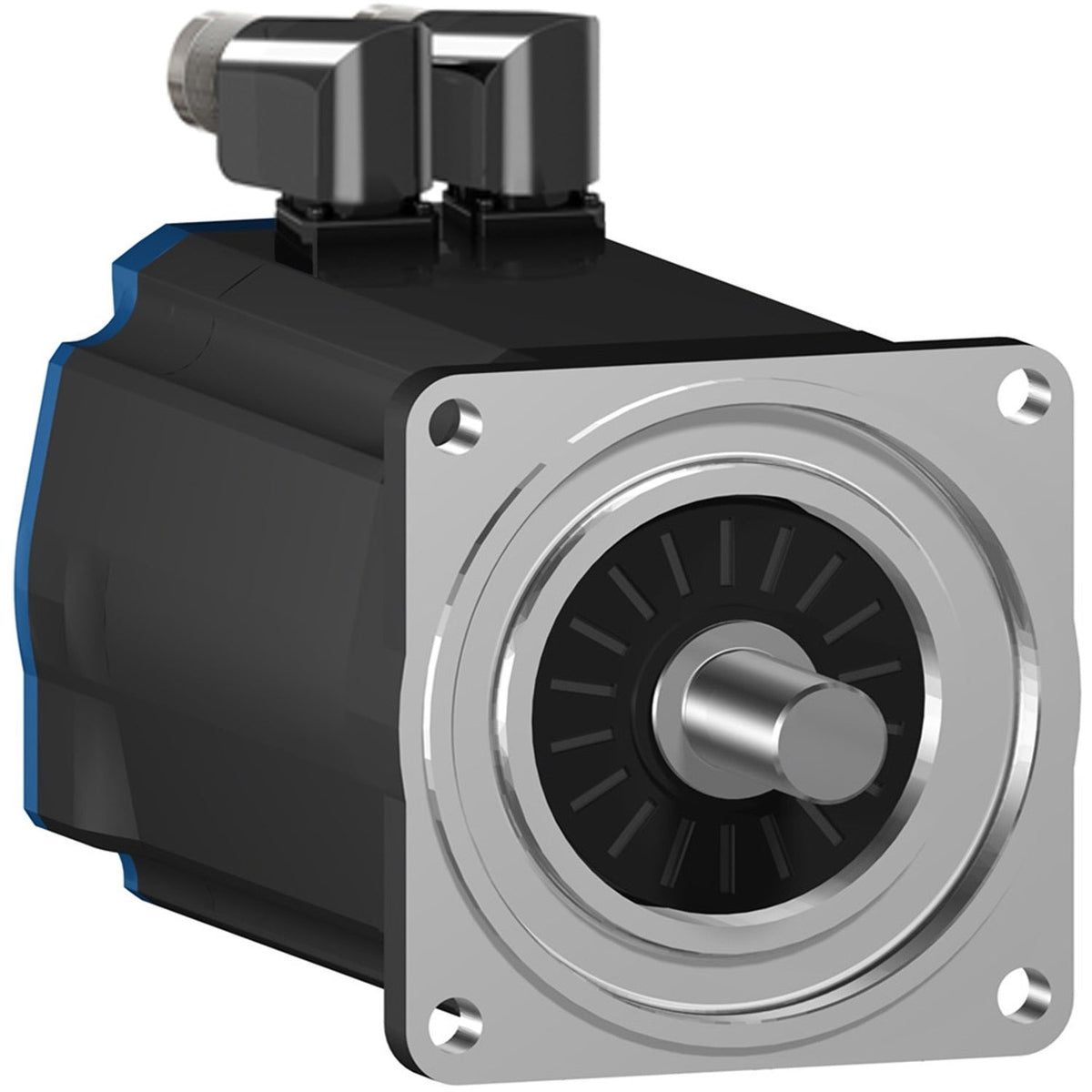

Schneider Electric BSH1001P11A2A Lexium 05 BSH 2.7 N·m 3000 rpm 100 mm Flange Keyed Shaft Servo Motor
Lexium 05 BSH servo motor, 2.7 N·m continuous, 100mm flange, keyed shaft, no brake.
Description
About the BSH
About the BSH
The Schneider Electric BSH1001P11A2A is a Lexium 05 series low-inertia servo motor rated for 2.7 N·m continuous stall torque at 3000 rpm nominal on a 100 mm flange. It runs on a 480 V three-phase supply, pairs with LXM05, LXM15, or LXM32 drives, and uses a keyed shaft with a single-turn SinCos Hiperface encoder. No holding brake is fitted on this variant.
Selection Notes
The BSH1001P11A2A is the largest frame among this group of BSH motors, stepping up to a 100 mm flange where the 70 mm BSH07 family's torque ceiling is not enough — its 1.4 kg·cm² rotor inertia is still in the low-inertia class, so it stays suited to fast cyclic axes rather than heavy flywheel-type loads. It is cross-compatible with LXM05, LXM15, and LXM32 drives, with a 3.5 A continuous stall current that drive sizing needs to account for. Without a brake, this A2A variant is for horizontal or counterbalanced axes only. Its single-turn SinCos Hiperface (P11) encoder reports absolute shaft position on every power-up, so the axis skips a dedicated homing routine before the first move.
Specification
Full specification
Main 15
| Device short name | BSH |
|---|---|
| Product or Component Type | Servo motor |
| Maximum mechanical speed | 6000 rpm |
| Continuous stall torque | 30.004 lbf.in (3.39 N.m) LXM15LD21M3, 230 V, single phase, 23.9 lbf.in (2.7 N.m) LXM15LD10N4, 230 V, three phase, 30.004 lbf.in (3.39 N.m) LXM15LD10N4, 400 V, three phase, 30.004 lbf.in (3.39 N.m) LXM15LD10N4, 480 V, three phase, 30.004 lbf.in (3.39 N.m) LXM15LD21M3, 230 V, three phase, 30.004 lbf.in (3.39 N.m) LXM15LD17N4, 230 V, three phase, 30.004 lbf.in (3.39 N.m) LXM15LD17N4 6 A, 400 V, three phase, 30.004 lbf.in (3.39 N.m) LXM15LD17N4 6 A, 480 V, three phase, 30.09 lbf.in (3.4 N.m) LXM05AD17M3X, 200...240 V, three phase, 30.09 lbf.in (3.4 N.m) LXM05AD22N4, 380...480 V, three phase, 30.09 lbf.in (3.4 N.m) LXM05BD17M3X, 200...240 V, three phase, 30.09 lbf.in (3.4 N.m) LXM05BD22N4, 380...480 V, three phase, 30.09 lbf.in (3.4 N.m) LXM05CD17M3X, 200...240 V, three phase, 30.09 lbf.in (3.4 N.m) LXM05CD22N4, 380...480 V, three phase, 29.2 lbf.in (3.3 N.m) LXM32.D18N4 6 A, 400 V, three phase, 29.2 lbf.in (3.3 N.m) LXM32.D18N4 6 A, 480 V, three phase |
| Peak stall torque | 62.66 lbf.in (7.08 N.m) LXM15LD21M3, 230 V, single phase, 54.79 lbf.in (6.19 N.m) LXM15LD10N4, 230 V, three phase, 54.79 lbf.in (6.19 N.m) LXM15LD10N4, 400 V, three phase, 54.79 lbf.in (6.19 N.m) LXM15LD10N4, 480 V, three phase, 62.66 lbf.in (7.08 N.m) LXM15LD21M3, 230 V, three phase, 62.66 lbf.in (7.08 N.m) LXM15LD17N4, 230 V, three phase, 62.66 lbf.in (7.08 N.m) LXM15LD17N4 6 A, 400 V, three phase, 62.66 lbf.in (7.08 N.m) LXM15LD17N4 6 A, 480 V, three phase, 62.8 lbf.in (7.1 N.m) LXM05AD17M3X, 200...240 V, three phase, 62.8 lbf.in (7.1 N.m) LXM05AD22N4, 380...480 V, three phase, 62.8 lbf.in (7.1 N.m) LXM05BD17M3X, 200...240 V, three phase, 62.8 lbf.in (7.1 N.m) LXM05BD22N4, 380...480 V, three phase, 62.8 lbf.in (7.1 N.m) LXM05CD17M3X, 200...240 V, three phase, 62.8 lbf.in (7.1 N.m) LXM05CD22N4, 380...480 V, three phase, 85.0 lbf.in (9.6 N.m) LXM32.D18N4 6 A, 400 V, three phase, 85.0 lbf.in (9.6 N.m) LXM32.D18N4 6 A, 480 V, three phase |
| Nominal output power | 1300 W LXM15LD17N4, 400 V, three phase, 1500 W LXM15LD10N4, 480 V, three phase, 950 W LXM15LD21M3, 230 V, single phase, 1300 W LXM15LD10N4, 400 V, three phase, 1500 W LXM15LD17N4, 480 V, three phase, 500 W LXM05AD17M3X, 200...240 V, three phase, 500 W LXM05BD17M3X 6 A, 200...240 V, three phase, 500 W LXM05CD17M3X 6 A, 200...240 V, three phase, 850 W LXM15LD10N4, 230 V, three phase, 900 W LXM05AD22N4, 380...480 V, three phase, 900 W LXM05BD22N4, 380...480 V, three phase, 900 W LXM05CD22N4, 380...480 V, three phase, 950 W LXM15LD17N4, 230 V, three phase, 950 W LXM15LD21M3, 230 V, three phase, 1100 W LXM32.D18N4 6 A, 400 V, three phase, 1100 W LXM32.D18N4 6 A, 480 V, three phase |
| Nominal torque | 26.6 lbf.in (3 N.m) LXM15LD21M3, 230 V, single phase, 22.1 lbf.in (2.5 N.m) LXM15LD10N4, 480 V, three phase, 22.1 lbf.in (2.5 N.m) LXM15LD17N4, 480 V, three phase, 23.9 lbf.in (2.7 N.m) LXM15LD10N4, 230 V, three phase, 23.9 lbf.in (2.7 N.m) LXM15LD10N4, 400 V, three phase, 23.9 lbf.in (2.7 N.m) LXM15LD17N4, 400 V, three phase, 25.84 lbf.in (2.92 N.m) LXM05AD22N4 6 A, 380...480 V, three phase, 25.84 lbf.in (2.92 N.m) LXM05BD22N4 6 A, 380...480 V, three phase, 25.84 lbf.in (2.92 N.m) LXM05CD22N4, 380...480 V, three phase, 26.6 lbf.in (3 N.m) LXM15LD17N4, 230 V, three phase, 26.6 lbf.in (3 N.m) LXM15LD21M3, 230 V, three phase, 27.97 lbf.in (3.16 N.m) LXM05AD17M3X, 200...240 V, three phase, 27.97 lbf.in (3.16 N.m) LXM05BD17M3X, 200...240 V, three phase, 27.97 lbf.in (3.16 N.m) LXM05CD17M3X, 200...240 V, three phase, 23.9 lbf.in (2.7 N.m) LXM32.D18N4 6 A, 400 V, three phase, 23.9 lbf.in (2.7 N.m) LXM32.D18N4 6 A, 480 V, three phase |
| Nominal speed | 3000 rpm LXM15LD10N4, 230 V, three phase, 3000 rpm LXM15LD21M3, 230 V, single phase, 3000 rpm LXM05AD22N4, 380...480 V, three phase, 3000 rpm LXM05BD22N4, 380...480 V, three phase, 3000 rpm LXM05CD22N4, 380...480 V, three phase, 3000 rpm LXM15LD17N4, 230 V, three phase, 3000 rpm LXM15LD21M3 6 A, 230 V, three phase, 1500 rpm LXM05AD17M3X 6 A, 200...240 V, three phase, 1500 rpm LXM05BD17M3X, 200...240 V, three phase, 1500 rpm LXM05CD17M3X, 200...240 V, three phase, 4500 rpm LXM15LD10N4, 400 V, three phase, 4500 rpm LXM15LD17N4, 400 V, three phase, 6000 rpm LXM15LD10N4, 480 V, three phase, 6000 rpm LXM15LD17N4, 480 V, three phase, 4000 rpm LXM32.D18N4 6 A, 400 V, three phase, 4000 rpm LXM32.D18N4 6 A, 480 V, three phase |
| Product compatibility | LXM15LD21M3 230 V single phase, LXM15LD10N4 400 V three phase, LXM05AD17M3X 200...240 V three phase, LXM05BD17M3X 200...240 V three phase, LXM05CD17M3X 200...240 V three phase, LXM15LD10N4 230 V three phase, LXM15LD10N4 480 V three phase, LXM15LD21M3 230 V three phase, LXM15LD17N4 230 V three phase, LXM05AD22N4 380...480 V three phase, LXM05BD22N4 380...480 V three phase, LXM05CD22N4 380...480 V three phase, LXM15LD17N4 400 V three phase, LXM15LD17N4 480 V three phase, LXM32.D18N4 400 V three phase, LXM32.D18N4 480 V three phase |
| Shaft end | Keyed |
| IP Degree of Protection | IP50 standard |
| Speed feedback resolution | 131072 points/turn |
| Holding brake | Without |
| Mounting Support | International standard flange |
| Electrical Connection | Rotatable right-angled connectors |
Complementary 40
| Range Compatibility | Lexium 05, Lexium 32, Lexium 15 |
|---|---|
| supply voltage max | 480 V |
| Phase | Three phase |
| Continuous stall current | 3.5 A |
| maximum continuous power | 1.6 W |
| Maximum current Irms | 12 A LXM15LD21M3, 12 A LXM15LD10N4, 12 A LXM15LD17N4, 12 A LXM05AD17M3X, 12 A LXM05AD22N4, 12 A LXM05BD17M3X, 12 A LXM05BD22N4, 12 A LXM05CD17M3X, 12 A LXM05CD22N4, 12 A LXM32.D18N4 |
| Maximum permanent current | 12 A |
| Switching frequency | 8 kHz |
| Second shaft | Without second shaft end |
| Shaft diameter | 0.7 in (19 mm) |
| Shaft length | 1.6 in (40 mm) |
| Key width | 1.2 in (30 mm) |
| Feedback type | Single turn SinCos Hiperface |
| Motor flange size | 3.9 in (100 mm) |
| Number of motor stacks | 1 |
| Torque constant | 0.89 N.m/A 248 °F (120 °C) |
| Back emf constant | 60 V/krpm 248 °F (120 °C) |
| Number of motor poles | 4.0 |
| Rotor inertia | 1.4 kg.cm² |
| Stator resistance | 3.8 Ohm 68 °F (20 °C) |
| Stator inductance | 9.5 mH 68 °F (20 °C) |
| Stator electrical time constant | 4.63 ms 68 °F (20 °C) |
| Maximum radial force Fr | 530 N 5000 rpm, 570 N 4000 rpm, 630 N 3000 rpm, 720 N 2000 rpm, 900 N 1000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Type of cooling | Natural convection |
| Length | 6.6 in (168.5 mm) |
| Centring collar diameter | 3.7 in (95 mm) |
| Centring collar depth | 0.1 in (3.5 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.4 in (9 mm) |
| Circle diameter of the mounting holes | 4.5 in (115 mm) |
| Net Weight | 9.3 lb(US) (4.2 kg) |
| Sizing reference | BSH1001P |
| Network number of phases | 3 |
| Accuracy error [angular] | 1.4 ° |
| Temperature copper hot | 248 °F (120 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
| Output current 3s peak | 12.0 A |
| Inertia | 0.0 kg.cm² of brake, 1.4 kg.cm² of motor |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Show all 69 specifications ↓ Show less ↑13 more values in Identification, Logistics.
Identification 8
| Part number | BSH1001P11A2A |
|---|---|
| Type designation | BSH |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389118138216 |
Logistics 5
| Country of origin | DE |
|---|---|
| Shipping weight | 4.2 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for BSH1001P11A2A
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the BSH
What is the rated current of BSH?
The rated current of BSH is 3.5 A.
What motor power is BSH rated for?
The rated motor power of BSH is 0.85 kW.
What is the HS code of BSH for customs?
The tariff (HS) code on file for BSH is 850152.
What is the EAN of BSH?
The EAN (GTIN) of BSH is 3389118138216.
Where does BSH ship from, and how fast?
BSH ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
