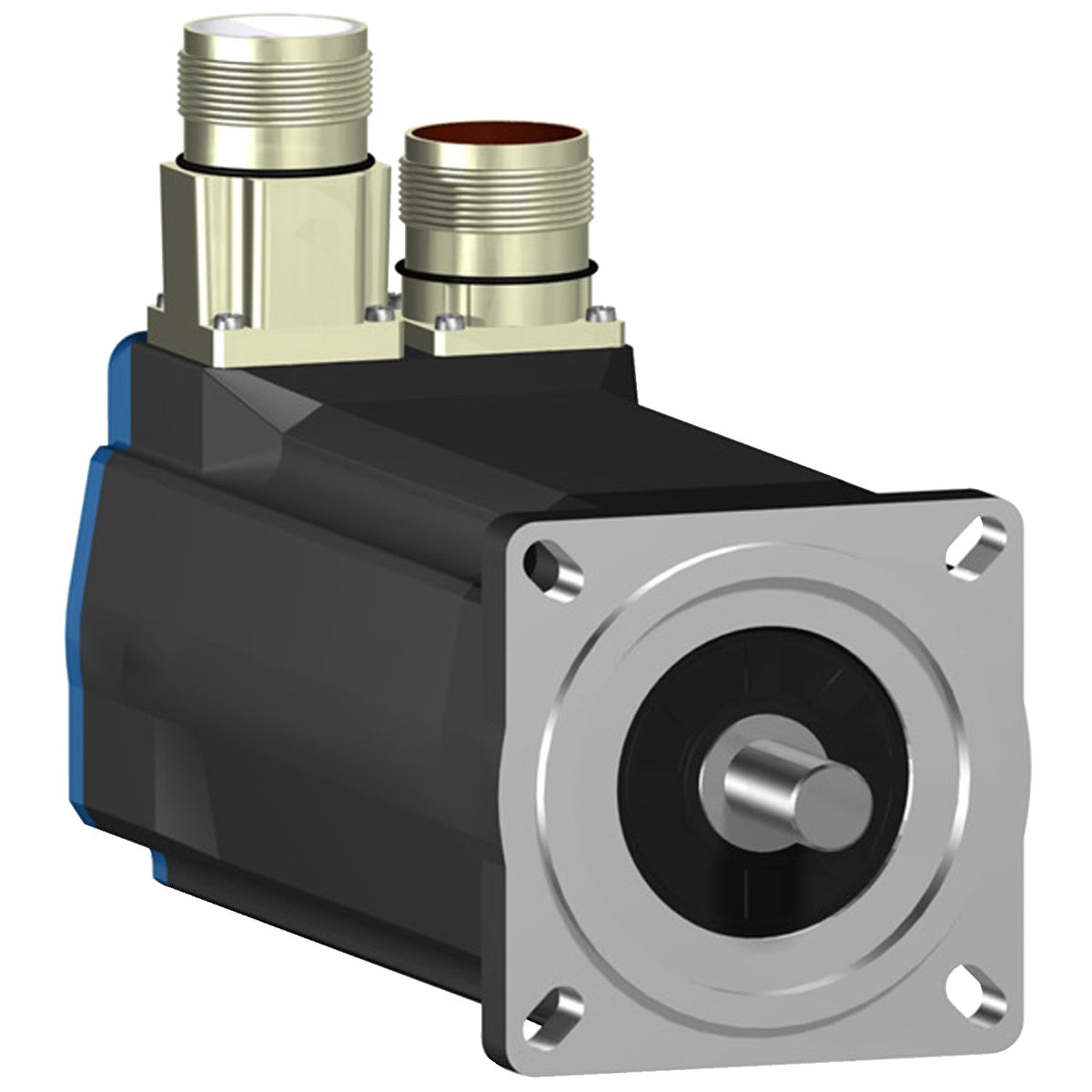

Schneider Electric BSH0703P11F2A Lexium 05 BSH 2.8 N·m 3000 rpm 70 mm Flange Brake Keyed Shaft Servo Motor
Lexium 05 BSH servo motor with brake, 2.8 N·m continuous, 70mm flange, keyed shaft.
Description
About the BSH
About the BSH
The Schneider Electric BSH0703P11F2A is a Lexium 05 series low-inertia servo motor rated for 2.8 N·m continuous stall torque at 3000 rpm on a 70 mm flange, with an integrated 3 N·m holding brake. It runs on a 480 V three-phase supply, pairs with LXM05, LXM15, or LXM32 drives, and uses a keyed shaft with a single-turn SinCos Hiperface encoder.
Selection Notes
The BSH0703P11F2A's 3 N·m holding brake is almost 3x its own 2.8 N·m continuous torque rating, making it comparatively stronger relative to motor output than the brakes on the BSH0701F2A or BSH0702F2A — a useful margin on an axis carrying an overhauling load. It draws 12 W to release. Continuous stall current is the highest in the 70 mm BSH line at 4.1 A, so check drive current headroom before substituting it for a BSH0701 or BSH0702 on an existing LXM05/LXM15/LXM32 setup. The single-turn SinCos Hiperface (P11) encoder reports absolute shaft position on power-up, so the axis does not need a dedicated homing move before the first cycle.
Specification
Full specification
Main 15
| Device short name | BSH |
|---|---|
| Product or Component Type | Servo motor |
| Maximum mechanical speed | 8000 rpm |
| Continuous stall torque | 25.05 lbf.in (2.83 N.m) LXM15LD21M3, 230 V, single phase, 9.7 lbf.in (1.1 N.m) LXM15LU60N4, 480 V, three phase, 9.7 lbf.in (1.1 N.m) LXM15LU60N4, 400 V, three phase, 13.3 lbf.in (1.5 N.m) LXM15LU60N4, 230 V, three phase, 19.74 lbf.in (2.23 N.m) LXM15LD13M3, 230 V, three phase, 21.2 lbf.in (2.4 N.m) LXM15LD10N4, 230 V, three phase, 21.2 lbf.in (2.4 N.m) LXM15LD10N4, 400 V, three phase, 21.2 lbf.in (2.4 N.m) LXM15LD10N4, 480 V, three phase, 25.05 lbf.in (2.83 N.m) LXM15LD17N4, 230 V, three phase, 25.05 lbf.in (2.83 N.m) LXM15LD17N4, 400 V, three phase, 25.05 lbf.in (2.83 N.m) LXM15LD17N4, 480 V, three phase, 25.05 lbf.in (2.83 N.m) LXM15LD21M3, 230 V, three phase, 24.8 lbf.in (2.8 N.m) LXM05AD17M2, 200...240 V, single phase, 24.8 lbf.in (2.8 N.m) LXM05AD17M3X, 200...240 V, three phase, 24.8 lbf.in (2.8 N.m) LXM05AD22N4, 380...480 V, three phase, 24.8 lbf.in (2.8 N.m) LXM05AD28M2, 200...240 V, single phase, 24.8 lbf.in (2.8 N.m) LXM05BD17M2, 200...240 V, single phase, 24.8 lbf.in (2.8 N.m) LXM05BD17M3X 6 A, 200...240 V, three phase, 24.8 lbf.in (2.8 N.m) LXM05BD22N4 6 A, 380...480 V, three phase, 24.8 lbf.in (2.8 N.m) LXM05BD28M2, 200...240 V, single phase, 24.8 lbf.in (2.8 N.m) LXM05CD17M2, 200...240 V, single phase, 24.8 lbf.in (2.8 N.m) LXM05CD17M3X, 200...240 V, three phase, 24.8 lbf.in (2.8 N.m) LXM05CD22N4, 380...480 V, three phase, 24.8 lbf.in (2.8 N.m) LXM05CD28M2, 200...240 V, single phase, 27.4 lbf.in (3.1 N.m) LXM32.D18N4 6 A, 400 V, three phase, 27.4 lbf.in (3.1 N.m) LXM32.D18N4 6 A, 480 V, three phase |
| Peak stall torque | 53.02 lbf.in (5.99 N.m) LXM15LD21M3, 230 V, single phase, 63.37 lbf.in (7.16 N.m) LXM05AD17M2, 200...240 V, single phase, 91.2 lbf.in (10.3 N.m) LXM05AD28M2, 200...240 V, single phase, 63.37 lbf.in (7.16 N.m) LXM05BD17M2, 200...240 V, single phase, 91.2 lbf.in (10.3 N.m) LXM05BD28M2, 200...240 V, single phase, 63.37 lbf.in (7.16 N.m) LXM05CD17M2, 200...240 V, single phase, 91.2 lbf.in (10.3 N.m) LXM05CD28M2, 200...240 V, single phase, 29.2 lbf.in (3.3 N.m) LXM15LU60N4, 480 V, three phase, 29.2 lbf.in (3.3 N.m) LXM15LU60N4, 400 V, three phase, 29.2 lbf.in (3.3 N.m) LXM15LU60N4, 230 V, three phase, 53.1 lbf.in (6 N.m) LXM15LD13M3, 230 V, three phase, 46.9 lbf.in (5.3 N.m) LXM15LD10N4, 230 V, three phase, 46.9 lbf.in (5.3 N.m) LXM15LD10N4, 400 V, three phase, 46.9 lbf.in (5.3 N.m) LXM15LD10N4, 480 V, three phase, 68.24 lbf.in (7.71 N.m) LXM15LD17N4, 230 V, three phase, 68.24 lbf.in (7.71 N.m) LXM15LD17N4, 400 V, three phase, 68.24 lbf.in (7.71 N.m) LXM15LD17N4, 480 V, three phase, 82.13 lbf.in (9.28 N.m) LXM15LD21M3 6 A, 230 V, three phase, 63.37 lbf.in (7.16 N.m) LXM05AD17M3X 6 A, 200...240 V, three phase, 77.44 lbf.in (8.75 N.m) LXM05AD22N4, 380...480 V, three phase, 63.37 lbf.in (7.16 N.m) LXM05BD17M3X, 200...240 V, three phase, 77.44 lbf.in (8.75 N.m) LXM05BD22N4, 380...480 V, three phase, 63.37 lbf.in (7.16 N.m) LXM05CD17M3X, 200...240 V, three phase, 77.44 lbf.in (8.75 N.m) LXM05CD22N4, 380...480 V, three phase, 100.01 lbf.in (11.3 N.m) LXM32.D18N4 6 A, 400 V, three phase, 100.01 lbf.in (11.3 N.m) LXM32.D18N4 6 A, 480 V, three phase |
| Nominal output power | 750 W LXM05AD17M2, 200...240 V, single phase, 750 W LXM05AD28M2, 200...240 V, single phase, 750 W LXM05BD17M2, 200...240 V, single phase, 750 W LXM05BD28M2, 200...240 V, single phase, 750 W LXM05CD17M2, 200...240 V, single phase, 750 W LXM05CD28M2, 200...240 V, single phase, 750 W LXM15LD21M3, 230 V, single phase, 1250 W LXM15LD10N4, 400 V, three phase, 1300 W LXM15LD17N4, 400 V, three phase, 1400 W LXM15LD17N4, 480 V, three phase, 1500 W LXM15LD10N4, 480 V, three phase, 350 W LXM15LU60N4, 230 V, three phase, 700 W LXM15LD13M3, 230 V, three phase, 700 W LXM15LU60N4, 400 V, three phase, 750 W LXM05AD17M3X, 200...240 V, three phase, 750 W LXM05AD22N4, 380...480 V, three phase, 750 W LXM05BD17M3X, 200...240 V, three phase, 750 W LXM05BD22N4 6 A, 380...480 V, three phase, 750 W LXM05CD17M3X 6 A, 200...240 V, three phase, 750 W LXM05CD22N4, 380...480 V, three phase, 750 W LXM15LD10N4, 230 V, three phase, 750 W LXM15LD17N4, 230 V, three phase, 750 W LXM15LD21M3, 230 V, three phase, 950 W LXM15LU60N4, 480 V, three phase, 1300 W LXM32.D18N4 6 A, 400 V, three phase, 1300 W LXM32.D18N4 6 A, 480 V, three phase |
| Nominal torque | 21.2 lbf.in (2.4 N.m) LXM05AD17M2, 200...240 V, single phase, 21.2 lbf.in (2.4 N.m) LXM05AD28M2, 200...240 V, single phase, 21.2 lbf.in (2.4 N.m) LXM05BD17M2, 200...240 V, single phase, 21.2 lbf.in (2.4 N.m) LXM05BD28M2, 200...240 V, single phase, 21.2 lbf.in (2.4 N.m) LXM05CD17M2, 200...240 V, single phase, 21.2 lbf.in (2.4 N.m) LXM05CD28M2, 200...240 V, single phase, 21.2 lbf.in (2.4 N.m) LXM15LD21M3, 230 V, single phase, 9.91 lbf.in (1.12 N.m) LXM15LU60N4, 230 V, three phase, 9.91 lbf.in (1.12 N.m) LXM15LU60N4, 400 V, three phase, 9.91 lbf.in (1.12 N.m) LXM15LU60N4, 480 V, three phase, 15.9 lbf.in (1.8 N.m) LXM15LD10N4, 480 V, three phase, 17.35 lbf.in (1.96 N.m) LXM15LD17N4, 480 V, three phase, 17.7 lbf.in (2 N.m) LXM15LD10N4, 400 V, three phase, 17.7 lbf.in (2 N.m) LXM15LD17N4, 400 V, three phase, 19.74 lbf.in (2.23 N.m) LXM15LD13M3, 230 V, three phase, 21.2 lbf.in (2.4 N.m) LXM05AD17M3X, 200...240 V, three phase, 21.2 lbf.in (2.4 N.m) LXM05AD22N4, 380...480 V, three phase, 21.2 lbf.in (2.4 N.m) LXM05BD17M3X 6 A, 200...240 V, three phase, 21.2 lbf.in (2.4 N.m) LXM05BD22N4 6 A, 380...480 V, three phase, 21.2 lbf.in (2.4 N.m) LXM05CD17M3X, 200...240 V, three phase, 21.2 lbf.in (2.4 N.m) LXM05CD22N4, 380...480 V, three phase, 21.2 lbf.in (2.4 N.m) LXM15LD10N4, 230 V, three phase, 21.2 lbf.in (2.4 N.m) LXM15LD17N4, 230 V, three phase, 21.2 lbf.in (2.4 N.m) LXM15LD21M3, 230 V, three phase, 21.60 lbf.in (2.44 N.m) LXM32.D18N4 6 A, 400 V, three phase, 21.60 lbf.in (2.44 N.m) LXM32.D18N4 6 A, 480 V, three phase |
| Nominal speed | 3000 rpm LXM15LD13M3, 230 V, three phase, 3000 rpm LXM05AD17M2, 200...240 V, single phase, 3000 rpm LXM05BD17M2, 200...240 V, single phase, 3000 rpm LXM05CD17M2, 200...240 V, single phase, 3000 rpm LXM05AD17M3X, 200...240 V, three phase, 3000 rpm LXM05BD17M3X, 200...240 V, three phase, 3000 rpm LXM05CD17M3X, 200...240 V, three phase, 3000 rpm LXM15LU60N4, 230 V, three phase, 8000 rpm LXM15LD10N4, 480 V, three phase, 8000 rpm LXM15LU60N4, 480 V, three phase, 3000 rpm LXM15LD10N4, 230 V, three phase, 6000 rpm LXM15LD10N4, 400 V, three phase, 3000 rpm LXM05AD28M2, 200...240 V, single phase, 3000 rpm LXM05BD28M2, 200...240 V, single phase, 3000 rpm LXM05CD28M2, 200...240 V, single phase, 3000 rpm LXM15LD21M3, 230 V, single phase, 3000 rpm LXM05AD22N4, 380...480 V, three phase, 3000 rpm LXM05BD22N4 6 A, 380...480 V, three phase, 3000 rpm LXM05CD22N4 6 A, 380...480 V, three phase, 3000 rpm LXM15LD17N4, 230 V, three phase, 3000 rpm LXM15LD21M3, 230 V, three phase, 6000 rpm LXM15LD17N4, 400 V, three phase, 6000 rpm LXM15LU60N4, 400 V, three phase, 7000 rpm LXM15LD17N4, 480 V, three phase, 5000 rpm LXM32.D18N4 6 A, 400 V, three phase, 5000 rpm LXM32.D18N4 6 A, 480 V, three phase |
| Product compatibility | LXM05AD17M2 200...240 V single phase, LXM05AD28M2 200...240 V single phase, LXM05BD17M2 200...240 V single phase, LXM05BD28M2 200...240 V single phase, LXM05CD17M2 200...240 V single phase, LXM05CD28M2 200...240 V single phase, LXM15LD21M3 230 V single phase, LXM15LU60N4 230 V three phase, LXM15LD13M3 230 V three phase, LXM15LU60N4 400 V three phase, LXM15LU60N4 480 V three phase, LXM15LD10N4 400 V three phase, LXM05AD17M3X 200...240 V three phase, LXM05BD17M3X 200...240 V three phase, LXM05CD17M3X 200...240 V three phase, LXM15LD10N4 230 V three phase, LXM15LD10N4 480 V three phase, LXM15LD21M3 230 V three phase, LXM15LD17N4 230 V three phase, LXM05AD22N4 380...480 V three phase, LXM05BD22N4 380...480 V three phase, LXM05CD22N4 380...480 V three phase, LXM15LD17N4 400 V three phase, LXM15LD17N4 480 V three phase, LXM32.D18N4 400 V three phase, LXM32.D18N4 480 V three phase |
| Shaft end | Keyed |
| IP Degree of Protection | IP50 standard |
| Speed feedback resolution | 131072 points/turn |
| Holding brake | With |
| Mounting Support | International standard flange |
| Electrical Connection | Rotatable right-angled connectors |
Complementary 42
| Range Compatibility | Lexium 05, Lexium 15, Lexium 32 |
|---|---|
| supply voltage max | 480 V |
| Phase | Three phase |
| Continuous stall current | 4.1 A |
| maximum continuous power | 1.7 W |
| Maximum current Irms | 15.2 A LXM15LD13M3, 15.2 A LXM15LD21M3, 15.2 A LXM15LD17N4, 15.2 A LXM15LU60N4, 15.2 A LXM15LD10N4, 17 A LXM05AD17M2, 17 A LXM05AD28M2, 17 A LXM05AD17M3X, 17 A LXM05AD22N4, 17 A LXM05BD17M2, 17 A LXM05BD28M2, 17 A LXM05BD17M3X, 17 A LXM05BD22N4, 17 A LXM05CD17M2, 17 A LXM05CD28M2, 17 A LXM05CD17M3X, 17 A LXM05CD22N4, 17 A LXM32.D18N4 |
| Maximum permanent current | 17 A |
| Switching frequency | 8 kHz |
| Second shaft | Without second shaft end |
| Shaft diameter | 0.6 in (14 mm) |
| Shaft length | 1.2 in (30 mm) |
| Key width | 0.8 in (20 mm) |
| Feedback type | Single turn SinCos Hiperface |
| Holding torque | 26.6 lbf.in (3 N.m) holding brake |
| Motor flange size | 2.8 in (70 mm) |
| Number of motor stacks | 3 |
| Torque constant | 0.78 N.m/A 248 °F (120 °C) |
| Back emf constant | 49 V/krpm 248 °F (120 °C) |
| Number of motor poles | 3.0 |
| Rotor inertia | 0.81 kg.cm² |
| Stator resistance | 2.7 Ohm 68 °F (20 °C) |
| Stator inductance | 7.3 mH 68 °F (20 °C) |
| Stator electrical time constant | 4.82 ms 68 °F (20 °C) |
| Maximum radial force Fr | 400 N 6000 rpm, 430 N 5000 rpm, 460 N 4000 rpm, 510 N 3000 rpm, 580 N 2000 rpm, 730 N 1000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Brake pull-in power | 12 W |
| Type of cooling | Natural convection |
| Length | 10 in (254 mm) |
| Centring collar diameter | 2.4 in (60 mm) |
| Centring collar depth | 0.10 in (2.5 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.2 in (5.5 mm) |
| Circle diameter of the mounting holes | 3.2 in (82 mm) |
| Net Weight | 8.4 lb(US) (3.8 kg) |
| Sizing reference | BSH0703P |
| Network number of phases | 3 |
| Accuracy error [angular] | 1.4 ° |
| Temperature copper hot | 248 °F (120 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
| Output current 3s peak | 17.0 A |
| Inertia | 0.11 kg.cm² of brake, 0.58 kg.cm² of motor |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Show all 71 specifications ↓ Show less ↑13 more values in Identification, Logistics.
Identification 8
| Part number | BSH0703P11F2A |
|---|---|
| Type designation | BSH |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389118137233 |
Logistics 5
| Country of origin | DE |
|---|---|
| Shipping weight | 3.8 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
