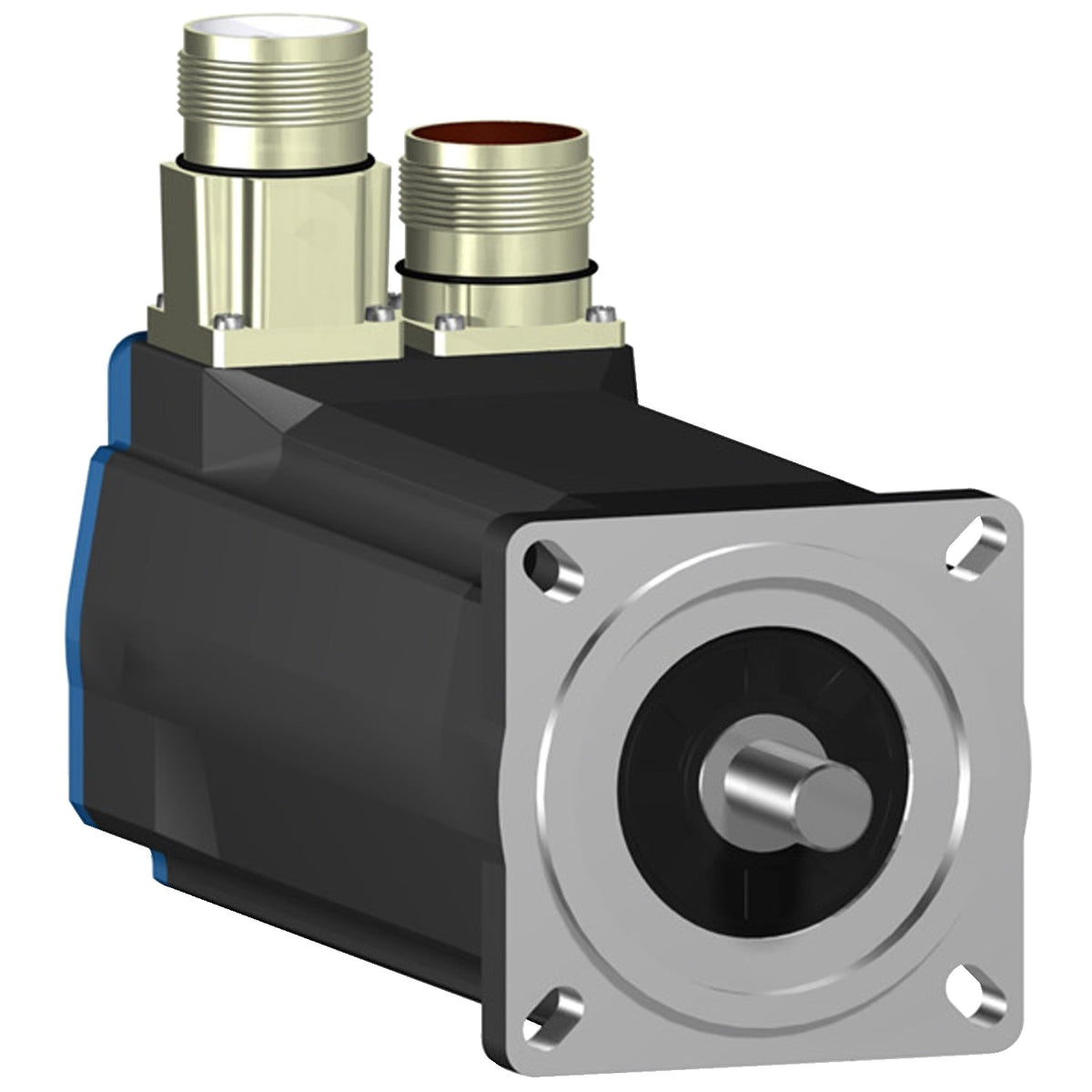

Schneider Electric BSH0703P11A2A Lexium 05 BSH 2.8 N·m 3000 rpm 70 mm Flange Keyed Shaft Servo Motor
Lexium 05 BSH servo motor, 2.8 N·m continuous, 70mm flange, keyed shaft, no brake.
Description
About the BSH
About the BSH
The Schneider Electric BSH0703P11A2A is a Lexium 05 series low-inertia servo motor rated for 2.8 N·m continuous stall torque at 3000 rpm on a 70 mm flange. It runs on a 480 V three-phase supply, pairs with LXM05, LXM15, or LXM32 drives, and uses a keyed shaft with a single-turn SinCos Hiperface encoder. No holding brake is fitted on this variant.
Selection Notes
The BSH0703P11A2A shares the 70 mm flange with the BSH0701 and BSH0702 but carries the highest continuous stall current of the three at 4.1 A, so it draws the most from its paired drive even at a comparatively modest 2.8 N·m continuous torque — a sign it is built for speed and dynamic response more than peak torque. It is cross-compatible with LXM05, LXM15, and LXM32 drives. Without a brake, this A2A variant suits horizontal or balanced axes; choose the F2A version in the same frame for loads that must hold position unpowered. Its single-turn SinCos Hiperface (P11) encoder reports absolute shaft position at every power-up, so the axis skips a dedicated homing move before the first cycle.
Specification
Full specification
Main 15
| Device short name | BSH |
|---|---|
| Product or component type | Servo motor |
| Maximum mechanical speed | 8000 rpm |
| Continuous stall torque | 2.83 N.m for LXM15LD21M3, 230 V, single phase, 1.1 N.m for LXM15LU60N4, 480 V, three phase, 1.1 N.m for LXM15LU60N4, 400 V, three phase, 1.5 N.m for LXM15LU60N4, 230 V, three phase, 2.23 N.m for LXM15LD13M3, 230 V, three phase, 2.4 N.m for LXM15LD10N4, 230 V, three phase, 2.4 N.m for LXM15LD10N4, 400 V, three phase, 2.4 N.m for LXM15LD10N4, 480 V, three phase, 2.83 N.m for LXM15LD17N4, 230 V, three phase, 2.83 N.m for LXM15LD17N4, 400 V, three phase, 2.83 N.m for LXM15LD17N4, 480 V, three phase, 2.83 N.m for LXM15LD21M3, 230 V, three phase, 2.8 N.m for LXM05AD17M2, 200...240 V, single phase, 2.8 N.m for LXM05AD17M3X, 200...240 V, three phase, 2.8 N.m for LXM05AD22N4, 380...480 V, three phase, 2.8 N.m for LXM05AD28M2, 200...240 V, single phase, 2.8 N.m for LXM05BD17M2, 200...240 V, single phase, 2.8 N.m for LXM05BD17M3X at 6 A, 200...240 V, three phase, 2.8 N.m for LXM05BD22N4 at 6 A, 380...480 V, three phase, 2.8 N.m for LXM05BD28M2, 200...240 V, single phase, 2.8 N.m for LXM05CD17M2, 200...240 V, single phase, 2.8 N.m for LXM05CD17M3X, 200...240 V, three phase, 2.8 N.m for LXM05CD22N4, 380...480 V, three phase, 2.8 N.m for LXM05CD28M2, 200...240 V, single phase, 3.1 N.m for LXM32.D18N4 at 6 A, 400 V, three phase, 3.1 N.m for LXM32.D18N4 at 6 A, 480 V, three phase |
| Peak stall torque | 5.99 N.m for LXM15LD21M3, 230 V, single phase, 7.16 N.m for LXM05AD17M2, 200...240 V, single phase, 10.3 N.m for LXM05AD28M2, 200...240 V, single phase, 7.16 N.m for LXM05BD17M2, 200...240 V, single phase, 10.3 N.m for LXM05BD28M2, 200...240 V, single phase, 7.16 N.m for LXM05CD17M2, 200...240 V, single phase, 10.3 N.m for LXM05CD28M2, 200...240 V, single phase, 3.3 N.m for LXM15LU60N4, 480 V, three phase, 3.3 N.m for LXM15LU60N4, 400 V, three phase, 3.3 N.m for LXM15LU60N4, 230 V, three phase, 6 N.m for LXM15LD13M3, 230 V, three phase, 5.3 N.m for LXM15LD10N4, 230 V, three phase, 5.3 N.m for LXM15LD10N4, 400 V, three phase, 5.3 N.m for LXM15LD10N4, 480 V, three phase, 7.71 N.m for LXM15LD17N4, 230 V, three phase, 7.71 N.m for LXM15LD17N4, 400 V, three phase, 7.71 N.m for LXM15LD17N4, 480 V, three phase, 9.28 N.m for LXM15LD21M3 at 6 A, 230 V, three phase, 7.16 N.m for LXM05AD17M3X at 6 A, 200...240 V, three phase, 8.75 N.m for LXM05AD22N4, 380...480 V, three phase, 7.16 N.m for LXM05BD17M3X, 200...240 V, three phase, 8.75 N.m for LXM05BD22N4, 380...480 V, three phase, 7.16 N.m for LXM05CD17M3X, 200...240 V, three phase, 8.75 N.m for LXM05CD22N4, 380...480 V, three phase, 11.3 N.m for LXM32.D18N4 at 6 A, 400 V, three phase, 11.3 N.m for LXM32.D18N4 at 6 A, 480 V, three phase |
| Nominal output power | 750 W for LXM05AD17M2, 200...240 V, single phase, 750 W for LXM05AD28M2, 200...240 V, single phase, 750 W for LXM05BD17M2, 200...240 V, single phase, 750 W for LXM05BD28M2, 200...240 V, single phase, 750 W for LXM05CD17M2, 200...240 V, single phase, 750 W for LXM05CD28M2, 200...240 V, single phase, 750 W for LXM15LD21M3, 230 V, single phase, 1250 W for LXM15LD10N4, 400 V, three phase, 1300 W for LXM15LD17N4, 400 V, three phase, 1400 W for LXM15LD17N4, 480 V, three phase, 1500 W for LXM15LD10N4, 480 V, three phase, 350 W for LXM15LU60N4, 230 V, three phase, 700 W for LXM15LD13M3, 230 V, three phase, 700 W for LXM15LU60N4, 400 V, three phase, 750 W for LXM05AD17M3X, 200...240 V, three phase, 750 W for LXM05AD22N4, 380...480 V, three phase, 750 W for LXM05BD17M3X, 200...240 V, three phase, 750 W for LXM05BD22N4 at 6 A, 380...480 V, three phase, 750 W for LXM05CD17M3X at 6 A, 200...240 V, three phase, 750 W for LXM05CD22N4, 380...480 V, three phase, 750 W for LXM15LD10N4, 230 V, three phase, 750 W for LXM15LD17N4, 230 V, three phase, 750 W for LXM15LD21M3, 230 V, three phase, 950 W for LXM15LU60N4, 480 V, three phase, 1300 W for LXM32.D18N4 at 6 A, 400 V, three phase, 1300 W for LXM32.D18N4 at 6 A, 480 V, three phase |
| Nominal torque | 2.4 N.m for LXM05AD17M2, 200...240 V, single phase, 2.4 N.m for LXM05AD28M2, 200...240 V, single phase, 2.4 N.m for LXM05BD17M2, 200...240 V, single phase, 2.4 N.m for LXM05BD28M2, 200...240 V, single phase, 2.4 N.m for LXM05CD17M2, 200...240 V, single phase, 2.4 N.m for LXM05CD28M2, 200...240 V, single phase, 2.4 N.m for LXM15LD21M3, 230 V, single phase, 1.12 N.m for LXM15LU60N4, 230 V, three phase, 1.12 N.m for LXM15LU60N4, 400 V, three phase, 1.12 N.m for LXM15LU60N4, 480 V, three phase, 1.8 N.m for LXM15LD10N4, 480 V, three phase, 1.96 N.m for LXM15LD17N4, 480 V, three phase, 2 N.m for LXM15LD10N4, 400 V, three phase, 2 N.m for LXM15LD17N4, 400 V, three phase, 2.23 N.m for LXM15LD13M3, 230 V, three phase, 2.4 N.m for LXM05AD17M3X, 200...240 V, three phase, 2.4 N.m for LXM05AD22N4, 380...480 V, three phase, 2.4 N.m for LXM05BD17M3X at 6 A, 200...240 V, three phase, 2.4 N.m for LXM05BD22N4 at 6 A, 380...480 V, three phase, 2.4 N.m for LXM05CD17M3X, 200...240 V, three phase, 2.4 N.m for LXM05CD22N4, 380...480 V, three phase, 2.4 N.m for LXM15LD10N4, 230 V, three phase, 2.4 N.m for LXM15LD17N4, 230 V, three phase, 2.4 N.m for LXM15LD21M3, 230 V, three phase, 2.44 N.m for LXM32.D18N4 at 6 A, 400 V, three phase, 2.44 N.m for LXM32.D18N4 at 6 A, 480 V, three phase |
| Nominal speed | 3000 rpm for LXM15LD13M3, 230 V, three phase, 3000 rpm for LXM05AD17M2, 200...240 V, single phase, 3000 rpm for LXM05BD17M2, 200...240 V, single phase, 3000 rpm for LXM05CD17M2, 200...240 V, single phase, 3000 rpm for LXM05AD17M3X, 200...240 V, three phase, 3000 rpm for LXM05BD17M3X, 200...240 V, three phase, 3000 rpm for LXM05CD17M3X, 200...240 V, three phase, 3000 rpm for LXM15LU60N4, 230 V, three phase, 8000 rpm for LXM15LD10N4, 480 V, three phase, 8000 rpm for LXM15LU60N4, 480 V, three phase, 3000 rpm for LXM15LD10N4, 230 V, three phase, 6000 rpm for LXM15LD10N4, 400 V, three phase, 3000 rpm for LXM05AD28M2, 200...240 V, single phase, 3000 rpm for LXM05BD28M2, 200...240 V, single phase, 3000 rpm for LXM05CD28M2, 200...240 V, single phase, 3000 rpm for LXM15LD21M3, 230 V, single phase, 3000 rpm for LXM05AD22N4, 380...480 V, three phase, 3000 rpm for LXM05BD22N4 at 6 A, 380...480 V, three phase, 3000 rpm for LXM05CD22N4 at 6 A, 380...480 V, three phase, 3000 rpm for LXM15LD17N4, 230 V, three phase, 3000 rpm for LXM15LD21M3, 230 V, three phase, 6000 rpm for LXM15LD17N4, 400 V, three phase, 6000 rpm for LXM15LU60N4, 400 V, three phase, 7000 rpm for LXM15LD17N4, 480 V, three phase, 5000 rpm for LXM32.D18N4 at 6 A, 400 V, three phase, 5000 rpm for LXM32.D18N4 at 6 A, 480 V, three phase |
| Product compatibility | LXM05AD17M2 at 200...240 V single phase, LXM05AD28M2 at 200...240 V single phase, LXM05BD17M2 at 200...240 V single phase, LXM05BD28M2 at 200...240 V single phase, LXM05CD17M2 at 200...240 V single phase, LXM05CD28M2 at 200...240 V single phase, LXM15LD21M3 at 230 V single phase, LXM15LU60N4 at 230 V three phase, LXM15LD13M3 at 230 V three phase, LXM15LU60N4 at 400 V three phase, LXM15LU60N4 at 480 V three phase, LXM15LD10N4 at 400 V three phase, LXM05AD17M3X at 200...240 V three phase, LXM05BD17M3X at 200...240 V three phase, LXM05CD17M3X at 200...240 V three phase, LXM15LD10N4 at 230 V three phase, LXM15LD10N4 at 480 V three phase, LXM15LD21M3 at 230 V three phase, LXM15LD17N4 at 230 V three phase, LXM05AD22N4 at 380...480 V three phase, LXM05BD22N4 at 380...480 V three phase, LXM05CD22N4 at 380...480 V three phase, LXM15LD17N4 at 400 V three phase, LXM15LD17N4 at 480 V three phase, LXM32.D18N4 at 400 V three phase, LXM32.D18N4 at 480 V three phase |
| Shaft end | Keyed |
| IP degree of protection | IP50 standard |
| Speed feedback resolution | 131072 points/turn |
| Holding brake | Without |
| Mounting support | International standard flange |
| Electrical connection | Rotatable right-angled connectors |
Complementary 39
| Range compatibility | Lexium 15, Lexium 05, Lexium 32 |
|---|---|
| supply voltage max | 480 V |
| Network number of phases | Three phase |
| Continuous stall current | 4.1 A |
| maximum continuous power | 1.7 W |
| Maximum current Irms | 15.2 A for LXM15LD13M3, 15.2 A for LXM15LD21M3, 15.2 A for LXM15LD17N4, 15.2 A for LXM15LU60N4, 15.2 A for LXM15LD10N4, 17 A for LXM05AD17M2, 17 A for LXM05AD28M2, 17 A for LXM05AD17M3X, 17 A for LXM05AD22N4, 17 A for LXM05BD17M2, 17 A for LXM05BD28M2, 17 A for LXM05BD17M3X, 17 A for LXM05BD22N4, 17 A for LXM05CD17M2, 17 A for LXM05CD28M2, 17 A for LXM05CD17M3X, 17 A for LXM05CD22N4, 17 A for LXM32.D18N4 |
| Maximum permanent current | 17 A |
| Switching frequency | 8 kHz |
| Second shaft | Without second shaft end |
| Shaft diameter | 14 mm |
| Shaft length | 30 mm |
| Key width | 20 mm |
| Feedback type | Single turn SinCos Hiperface |
| Motor flange size | 70 mm |
| Number of motor stacks | 3 |
| Torque constant | 0.78 N.m/A at 120 °C |
| Back emf constant | 49 V/krpm at 120 °C |
| Number of motor poles | 3.0 |
| Rotor inertia | 0.58 kg.cm² |
| Stator resistance | 2.7 Ohm at 20 °C |
| Stator inductance | 7.3 mH at 20 °C |
| Stator electrical time constant | 4.82 ms at 20 °C |
| Maximum radial force Fr | 400 N at 6000 rpm, 430 N at 5000 rpm, 460 N at 4000 rpm, 510 N at 3000 rpm, 580 N at 2000 rpm, 730 N at 1000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Type of cooling | Natural convection |
| Length | 220 mm |
| Centring collar diameter | 60 mm |
| Centring collar depth | 2.5 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 5.5 mm |
| Circle diameter of the mounting holes | 82 mm |
| Net weight | 3.62 kg |
| Sizing reference | BSH0703P |
| Accuracy error [angular] | 1.4 ° |
| Temperature copper hot | 120 °C |
| Temperature magnet hot | 100 °C |
| Temperature magnet rt | 20 °C |
| Output current 3s peak | 17.0 A |
| Inertia | 0.0 kg.cm² of brake, 0.58 kg.cm² of motor |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Show all 78 specifications ↓ Show less ↑23 more values in Identification, Logistics.
Identification 7
| Part number | BSH0703P11A2A |
|---|---|
| Type designation | BSH |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.000 cm |
| Package 1 Width | 18.600 cm |
| Package 1 Length | 39.000 cm |
| Package 1 Weight | 4.044 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 59.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 105.556 kg |
| Shipping weight | 3.62 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
