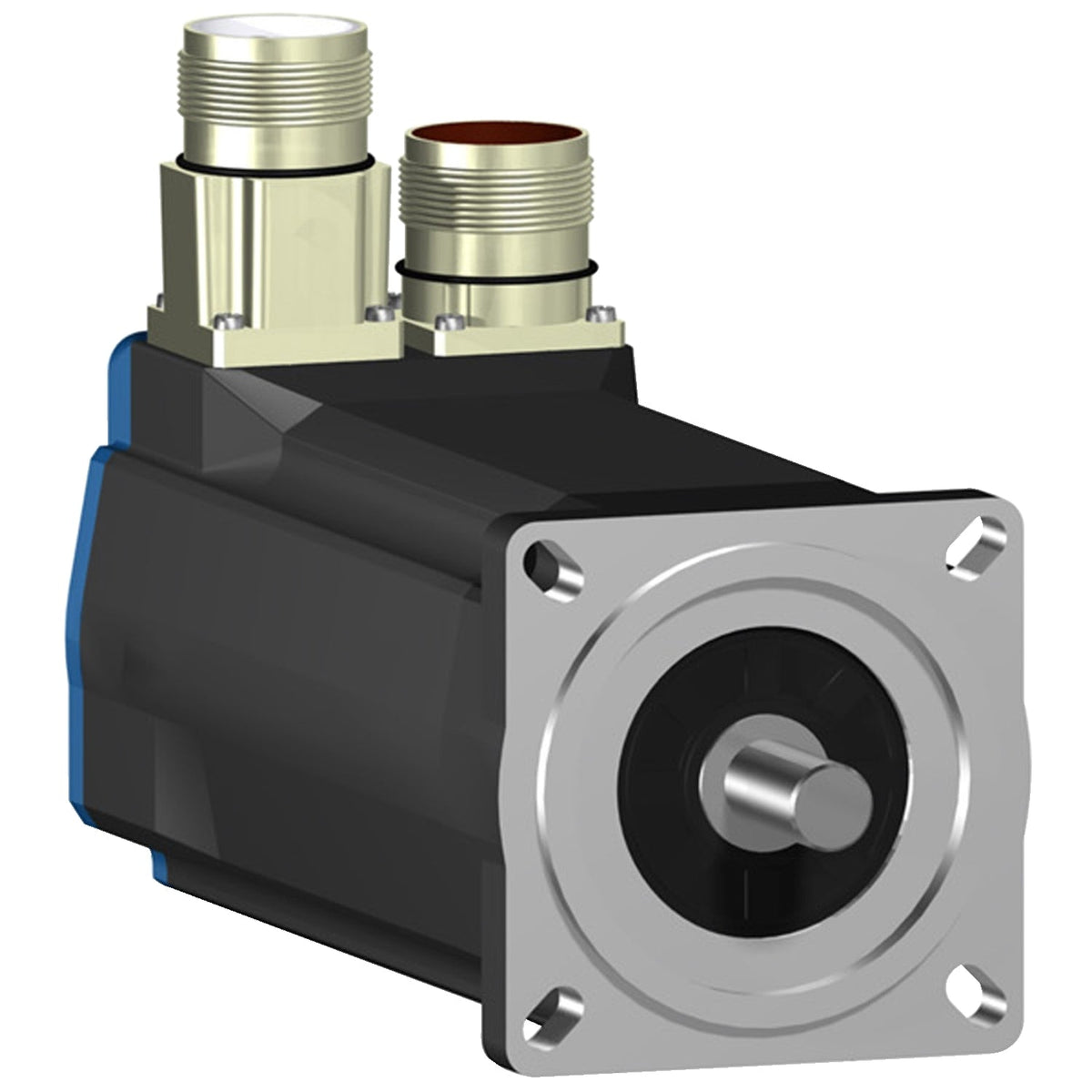

Schneider Electric BSH0702P11F2A Lexium 05 BSH 2.2 N·m 3000 rpm 70 mm Flange Brake Keyed Shaft Servo Motor
Lexium 05 BSH servo motor with brake, 2.2 N·m continuous, 70mm flange, keyed shaft.
Description
About the BSH
About the BSH
The Schneider Electric BSH0702P11F2A is a Lexium 05 series low-inertia servo motor rated for 2.2 N·m continuous stall torque at 3000 rpm nominal on a 70 mm flange, with an integrated 2 N·m holding brake. It runs on a 480 V three-phase supply, pairs with LXM05, LXM15, or LXM32 drives, and uses a keyed shaft with a single-turn SinCos Hiperface encoder.
Selection Notes
The BSH0702P11F2A matches the BSH0702P11A2A on torque, flange, and current rating, with a 2 N·m holding brake added at roughly 0.9x the motor's continuous torque — enough to hold the axis at rest but not to decelerate a moving load, so stopping still has to go through the drive. It needs 10 W to release the brake. It is cross-compatible with LXM05, LXM15, and LXM32 drives, with the same 2.9 A continuous stall current as the no-brake variant. The single-turn SinCos Hiperface (P11) encoder reports absolute position on power-up, so no separate homing routine is required before the first motion.
Specification
Full specification
Main 15
| Device short name | BSH |
|---|---|
| Product or Component Type | Servo motor |
| Maximum mechanical speed | 8000 rpm |
| Continuous stall torque | 19.5 lbf.in (2.2 N.m) LXM32.D12N4 3 A, 400 V, three phase, 19.5 lbf.in (2.2 N.m) LXM32.D12N4 3 A, 480 V, three phase, 18.76 lbf.in (2.12 N.m) LXM05AD10M2, 200...240 V, single phase, 18.76 lbf.in (2.12 N.m) LXM05AD10M3X, 200...240 V, three phase, 18.76 lbf.in (2.12 N.m) LXM05BD10M2, 200...240 V, single phase, 18.76 lbf.in (2.12 N.m) LXM05BD10M3X, 200...240 V, three phase, 18.76 lbf.in (2.12 N.m) LXM05CD10M2, 200...240 V, single phase, 18.76 lbf.in (2.12 N.m) LXM05CD10M3X, 200...240 V, three phase, 19.5 lbf.in (2.2 N.m) LXM15LD13M3, 230 V, single phase, 18.76 lbf.in (2.12 N.m) LXM05AD17M2, 200...240 V, single phase, 18.76 lbf.in (2.12 N.m) LXM05BD17M2, 200...240 V, single phase, 18.76 lbf.in (2.12 N.m) LXM05CD17M2 3 A, 200...240 V, single phase, 19.5 lbf.in (2.2 N.m) LXM15LD10N4, 480 V, three phase, 18.76 lbf.in (2.12 N.m) LXM05AD17M3X, 200...240 V, three phase, 18.76 lbf.in (2.12 N.m) LXM05AD14N4, 380...480 V, three phase, 18.76 lbf.in (2.12 N.m) LXM05BD17M3X, 200...240 V, three phase, 18.76 lbf.in (2.12 N.m) LXM05BD14N4, 380...480 V, three phase, 18.76 lbf.in (2.12 N.m) LXM05CD17M3X, 200...240 V, three phase, 18.76 lbf.in (2.12 N.m) LXM05CD14N4, 380...480 V, three phase, 19.5 lbf.in (2.2 N.m) LXM15LD10N4, 230 V, three phase, 19.5 lbf.in (2.2 N.m) LXM15LD10N4, 400 V, three phase |
| Peak stall torque | 67.3 lbf.in (7.6 N.m) LXM32.D12N4 3 A, 400 V, three phase, 67.3 lbf.in (7.6 N.m) LXM32.D12N4 3 A, 480 V, three phase, 49.83 lbf.in (5.63 N.m) LXM15LD13M3, 230 V, single phase, 40.45 lbf.in (4.57 N.m) LXM05AD10M2, 200...240 V, single phase, 49.83 lbf.in (5.63 N.m) LXM05AD17M2, 200...240 V, single phase, 40.45 lbf.in (4.57 N.m) LXM05BD10M2, 200...240 V, single phase, 49.83 lbf.in (5.63 N.m) LXM05BD17M2, 200...240 V, single phase, 40.45 lbf.in (4.57 N.m) LXM05CD10M2, 200...240 V, single phase, 49.83 lbf.in (5.63 N.m) LXM05CD17M2, 200...240 V, single phase, 42.93 lbf.in (4.85 N.m) LXM15LD10N4, 230 V, three phase, 42.93 lbf.in (4.85 N.m) LXM15LD10N4, 400 V, three phase, 42.93 lbf.in (4.85 N.m) LXM15LD10N4 3 A, 480 V, three phase, 40.45 lbf.in (4.57 N.m) LXM05AD10M3X, 200...240 V, three phase, 49.83 lbf.in (5.63 N.m) LXM05AD17M3X, 200...240 V, three phase, 49.83 lbf.in (5.63 N.m) LXM05AD14N4, 380...480 V, three phase, 40.45 lbf.in (4.57 N.m) LXM05BD10M3X, 200...240 V, three phase, 49.83 lbf.in (5.63 N.m) LXM05BD17M3X, 200...240 V, three phase, 49.83 lbf.in (5.63 N.m) LXM05BD14N4, 380...480 V, three phase, 40.45 lbf.in (4.57 N.m) LXM05CD10M3X, 200...240 V, three phase, 49.83 lbf.in (5.63 N.m) LXM05CD17M3X, 200...240 V, three phase, 49.83 lbf.in (5.63 N.m) LXM05CD14N4, 380...480 V, three phase |
| Nominal output power | 850 W LXM32.D12N4 3 A, 400 V, three phase, 850 W LXM32.D12N4 3 A, 480 V, three phase, 1000 W LXM15LD10N4, 400 V, three phase, 597 W LXM15LD13M3, 230 V, single phase, 600 W LXM05AD10M2, 200...240 V, single phase, 600 W LXM05AD17M2, 200...240 V, single phase, 600 W LXM05BD10M2, 200...240 V, single phase, 600 W LXM05BD17M2, 200...240 V, single phase, 600 W LXM05CD10M2, 200...240 V, single phase, 600 W LXM05CD17M2, 200...240 V, single phase, 1300 W LXM15LD10N4, 480 V, three phase, 597 W LXM15LD10N4 3 A, 230 V, three phase, 600 W LXM05AD10M3X, 200...240 V, three phase, 600 W LXM05AD14N4, 380...480 V, three phase, 600 W LXM05AD17M3X, 200...240 V, three phase, 600 W LXM05BD10M3X, 200...240 V, three phase, 600 W LXM05BD14N4, 380...480 V, three phase, 600 W LXM05BD17M3X, 200...240 V, three phase, 600 W LXM05CD10M3X, 200...240 V, three phase, 600 W LXM05CD14N4, 380...480 V, three phase, 600 W LXM05CD17M3X, 200...240 V, three phase |
| Nominal torque | 14.52 lbf.in (1.64 N.m) LXM32.D12N4 3 A, 400 V, three phase, 14.52 lbf.in (1.64 N.m) LXM32.D12N4 3 A, 480 V, three phase, 16.8 lbf.in (1.9 N.m) LXM05AD10M2, 200...240 V, single phase, 16.8 lbf.in (1.9 N.m) LXM05AD17M2, 200...240 V, single phase, 16.8 lbf.in (1.9 N.m) LXM05BD10M2, 200...240 V, single phase, 16.8 lbf.in (1.9 N.m) LXM05BD17M2, 200...240 V, single phase, 16.8 lbf.in (1.9 N.m) LXM05CD10M2, 200...240 V, single phase, 16.8 lbf.in (1.9 N.m) LXM05CD17M2, 200...240 V, single phase, 16.8 lbf.in (1.9 N.m) LXM15LD13M3, 230 V, single phase, 13.72 lbf.in (1.55 N.m) LXM15LD10N4, 480 V, three phase, 14.60 lbf.in (1.65 N.m) LXM15LD10N4, 400 V, three phase, 16.8 lbf.in (1.9 N.m) LXM05AD10M3X 3 A, 200...240 V, three phase, 16.8 lbf.in (1.9 N.m) LXM05AD14N4, 380...480 V, three phase, 16.8 lbf.in (1.9 N.m) LXM05AD17M3X, 200...240 V, three phase, 16.8 lbf.in (1.9 N.m) LXM05BD10M3X, 200...240 V, three phase, 16.8 lbf.in (1.9 N.m) LXM05BD14N4, 380...480 V, three phase, 16.8 lbf.in (1.9 N.m) LXM05BD17M3X, 200...240 V, three phase, 16.8 lbf.in (1.9 N.m) LXM05CD10M3X, 200...240 V, three phase, 16.8 lbf.in (1.9 N.m) LXM05CD14N4, 380...480 V, three phase, 16.8 lbf.in (1.9 N.m) LXM05CD17M3X, 200...240 V, three phase, 16.8 lbf.in (1.9 N.m) LXM15LD10N4, 230 V, three phase |
| Nominal speed | 5000 rpm LXM32.D12N4 3 A, 400 V, three phase, 5000 rpm LXM32.D12N4 3 A, 480 V, three phase, 3000 rpm LXM05AD10M2, 200...240 V, single phase, 3000 rpm LXM05BD10M2, 200...240 V, single phase, 3000 rpm LXM05CD10M2, 200...240 V, single phase, 3000 rpm LXM05AD10M3X, 200...240 V, three phase, 3000 rpm LXM05AD14N4, 380...480 V, three phase, 3000 rpm LXM05BD10M3X, 200...240 V, three phase, 3000 rpm LXM05BD14N4, 380...480 V, three phase, 3000 rpm LXM05CD10M3X, 200...240 V, three phase, 3000 rpm LXM05CD14N4, 380...480 V, three phase, 3000 rpm LXM15LD13M3 3 A, 230 V, single phase, 3000 rpm LXM05AD17M2, 200...240 V, single phase, 3000 rpm LXM05BD17M2, 200...240 V, single phase, 3000 rpm LXM05CD17M2, 200...240 V, single phase, 3000 rpm LXM05AD17M3X, 200...240 V, three phase, 3000 rpm LXM05BD17M3X, 200...240 V, three phase, 3000 rpm LXM05CD17M3X, 200...240 V, three phase, 8000 rpm LXM15LD10N4, 480 V, three phase, 3000 rpm LXM15LD10N4, 230 V, three phase, 6000 rpm LXM15LD10N4, 400 V, three phase |
| Product compatibility | LXM05AD10M2 200...240 V single phase, LXM05AD17M2 200...240 V single phase, LXM05BD10M2 200...240 V single phase, LXM05BD17M2 200...240 V single phase, LXM05CD10M2 200...240 V single phase, LXM05CD17M2 200...240 V single phase, LXM15LD13M3 230 V single phase, LXM05AD10M3X 200...240 V three phase, LXM05BD10M3X 200...240 V three phase, LXM05CD10M3X 200...240 V three phase, LXM05AD14N4 380...480 V three phase, LXM05BD14N4 380...480 V three phase, LXM05CD14N4 380...480 V three phase, LXM15LD10N4 400 V three phase, LXM05AD17M3X 200...240 V three phase, LXM05BD17M3X 200...240 V three phase, LXM05CD17M3X 200...240 V three phase, LXM32.D12N4 400 V three phase, LXM32.D12N4 480 V three phase, LXM15LD10N4 230 V three phase, LXM15LD10N4 480 V three phase |
| Shaft end | Keyed |
| IP Degree of Protection | IP50 standard |
| Speed feedback resolution | 131072 points/turn |
| Holding brake | With |
| Mounting Support | International standard flange |
| Electrical Connection | Rotatable right-angled connectors |
Complementary 42
| Range Compatibility | Lexium 15, Lexium 32, Lexium 05 |
|---|---|
| supply voltage max | 480 V |
| Phase | Three phase |
| Continuous stall current | 2.9 A |
| maximum continuous power | 1.51 W |
| Maximum current Irms | 11.8 A LXM15LD13M3, 11.8 A LXM15LD10N4, 11.8 A LXM05AD10M2, 11.8 A LXM05AD17M2, 11.8 A LXM05AD10M3X, 11.8 A LXM05AD17M3X, 11.8 A LXM05AD14N4, 11.8 A LXM05BD10M2, 11.8 A LXM05BD17M2, 11.8 A LXM05BD10M3X, 11.8 A LXM05BD17M3X, 11.8 A LXM05BD14N4, 11.8 A LXM05CD10M2, 11.8 A LXM05CD17M2, 11.8 A LXM05CD10M3X, 11.8 A LXM05CD17M3X, 11.8 A LXM05CD14N4, 11.8 A LXM32.D12N4 |
| Maximum permanent current | 11.8 A |
| Switching frequency | 8 kHz |
| Second shaft | Without second shaft end |
| Shaft diameter | 0.4 in (11 mm) |
| Shaft length | 0.9 in (23 mm) |
| Key width | 0.7 in (18 mm) |
| Feedback type | Single turn SinCos Hiperface |
| Holding torque | 17.7 lbf.in (2 N.m) holding brake |
| Motor flange size | 2.8 in (70 mm) |
| Number of motor stacks | 2 |
| Torque constant | 0.77 N.m/A 248 °F (120 °C) |
| Back emf constant | 48 V/krpm 248 °F (120 °C) |
| Number of motor poles | 3.0 |
| Rotor inertia | 0.482 kg.cm² |
| Stator resistance | 4.2 Ohm 68 °F (20 °C) |
| Stator inductance | 10.65 mH 68 °F (20 °C) |
| Stator electrical time constant | 4.52 ms 68 °F (20 °C) |
| Maximum radial force Fr | 390 N 6000 rpm, 410 N 5000 rpm, 450 N 4000 rpm, 490 N 3000 rpm, 560 N 2000 rpm, 710 N 1000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Brake pull-in power | 10 W |
| Type of cooling | Natural convection |
| Length | 8.4 in (212.5 mm) |
| Centring collar diameter | 2.4 in (60 mm) |
| Centring collar depth | 0.10 in (2.5 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.2 in (5.5 mm) |
| Circle diameter of the mounting holes | 3.2 in (82 mm) |
| Net Weight | 6.6 lb(US) (3 kg) |
| Sizing reference | BSH0702P |
| Network number of phases | 3 |
| Accuracy error [angular] | 1.4 ° |
| Temperature copper hot | 248 °F (120 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
| Output current 3s peak | 11.8 A |
| Inertia | 0.11 kg.cm² of brake, 0.41 kg.cm² of motor |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Show all 71 specifications ↓ Show less ↑13 more values in Identification, Logistics.
Identification 8
| Part number | BSH0702P11F2A |
|---|---|
| Type designation | BSH |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389118136298 |
Logistics 5
| Country of origin | DE |
|---|---|
| Shipping weight | 3.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for BSH0702P11F2A
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the BSH
What is the rated current of BSH?
The rated current of BSH is 2.9 A.
What motor power is BSH rated for?
The rated motor power of BSH is 0.75 kW.
What is the HS code of BSH for customs?
The tariff (HS) code on file for BSH is 850152.
What is the EAN of BSH?
The EAN (GTIN) of BSH is 3389118136298.
