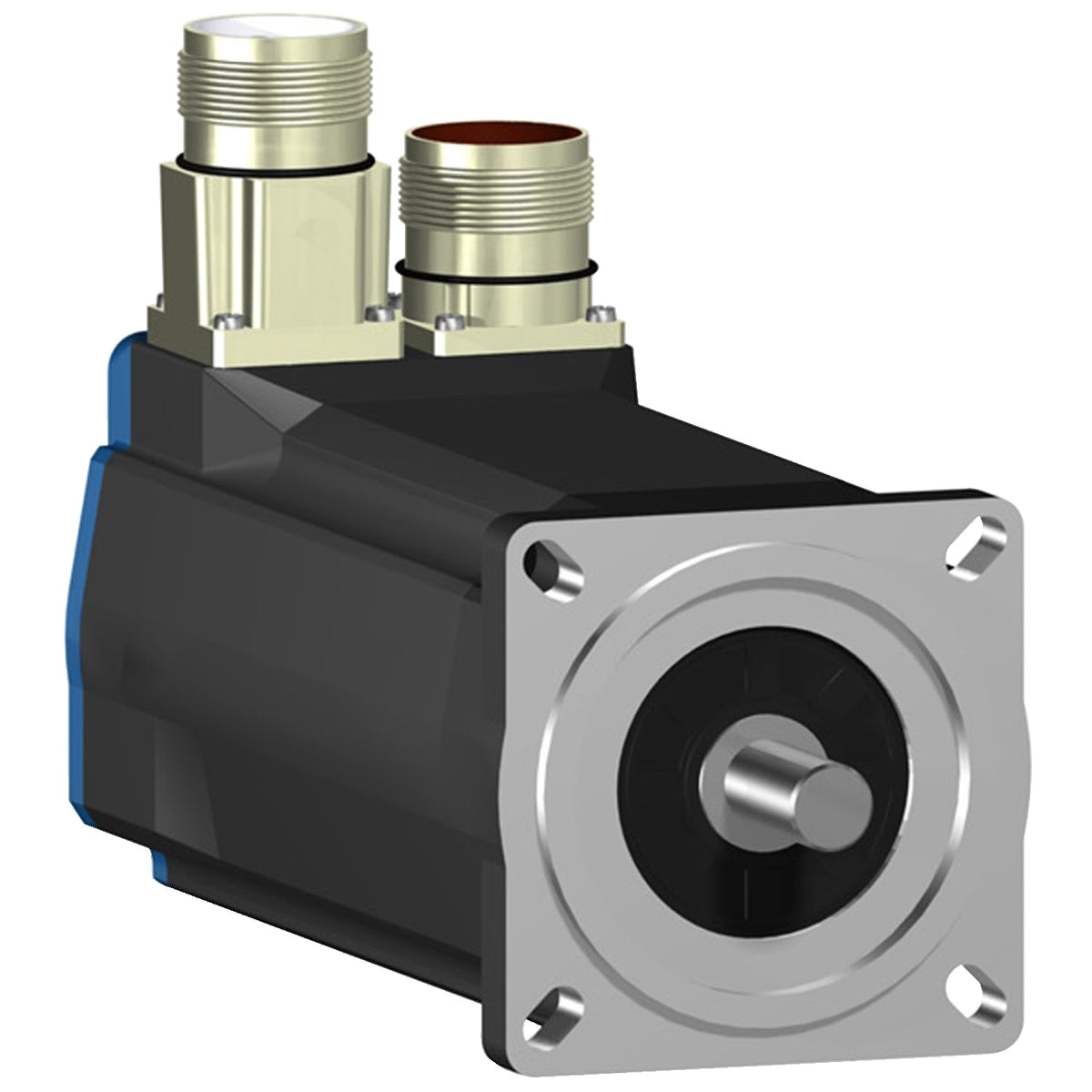

Schneider Electric BSH0702P11A2A Lexium 05 BSH 2.2 N·m 3000 rpm 70 mm Flange Keyed Shaft Servo Motor
Lexium 05 BSH servo motor, 2.2 N·m continuous, 70mm flange, keyed shaft, no brake.
Description
About the BSH
About the BSH
The Schneider Electric BSH0702P11A2A is a Lexium 05 series low-inertia servo motor rated for 2.2 N·m continuous stall torque at 3000 rpm nominal on a 70 mm flange. It runs on a 480 V three-phase supply, pairs with LXM05, LXM15, or LXM32 drives, and uses a keyed shaft with a single-turn SinCos Hiperface encoder. No holding brake is fitted on this variant.
Selection Notes
The BSH0702P11A2A holds the same 70 mm flange as the BSH0701 but steps continuous torque up to 2.2 N·m, the choice when the BSH0701's 1.4 N·m leaves too little margin for the load without moving to the larger 100 mm BSH1001 frame. Its 2.9 A continuous stall current and 11.8 A maximum Irms set the floor for drive current sizing across the LXM05, LXM15, and LXM32 family. Without a brake, use this A2A variant on horizontal axes; the F2A version in the same frame adds holding torque for vertical loads. The single-turn SinCos Hiperface (P11) encoder reports absolute shaft position on power-up, removing the need for a dedicated homing move before the first cycle. Its low rotor inertia keeps it in the fast-cyclic-axis class rather than a high-inertia, heavy-flywheel design.
Specification
Full specification
Main 15
| Device short name | BSH |
|---|---|
| Product or component type | Servo motor |
| Maximum mechanical speed | 8000 rpm |
| Continuous stall torque | 2.2 N.m for LXM32.D12N4 at 3 A, 400 V, three phase, 2.2 N.m for LXM32.D12N4 at 3 A, 480 V, three phase, 2.12 N.m for LXM05AD10M2, 200...240 V, single phase, 2.12 N.m for LXM05AD10M3X, 200...240 V, three phase, 2.12 N.m for LXM05BD10M2, 200...240 V, single phase, 2.12 N.m for LXM05BD10M3X, 200...240 V, three phase, 2.12 N.m for LXM05CD10M2, 200...240 V, single phase, 2.12 N.m for LXM05CD10M3X, 200...240 V, three phase, 2.2 N.m for LXM15LD13M3, 230 V, single phase, 2.12 N.m for LXM05AD17M2, 200...240 V, single phase, 2.12 N.m for LXM05BD17M2, 200...240 V, single phase, 2.12 N.m for LXM05CD17M2 at 3 A, 200...240 V, single phase, 2.2 N.m for LXM15LD10N4, 480 V, three phase, 2.12 N.m for LXM05AD17M3X, 200...240 V, three phase, 2.12 N.m for LXM05AD14N4, 380...480 V, three phase, 2.12 N.m for LXM05BD17M3X, 200...240 V, three phase, 2.12 N.m for LXM05BD14N4, 380...480 V, three phase, 2.12 N.m for LXM05CD17M3X, 200...240 V, three phase, 2.12 N.m for LXM05CD14N4, 380...480 V, three phase, 2.2 N.m for LXM15LD10N4, 230 V, three phase, 2.2 N.m for LXM15LD10N4, 400 V, three phase |
| Peak stall torque | 7.6 N.m for LXM32.D12N4 at 3 A, 400 V, three phase, 7.6 N.m for LXM32.D12N4 at 3 A, 480 V, three phase, 5.63 N.m for LXM15LD13M3, 230 V, single phase, 4.57 N.m for LXM05AD10M2, 200...240 V, single phase, 5.63 N.m for LXM05AD17M2, 200...240 V, single phase, 4.57 N.m for LXM05BD10M2, 200...240 V, single phase, 5.63 N.m for LXM05BD17M2, 200...240 V, single phase, 4.57 N.m for LXM05CD10M2, 200...240 V, single phase, 5.63 N.m for LXM05CD17M2, 200...240 V, single phase, 4.85 N.m for LXM15LD10N4, 230 V, three phase, 4.85 N.m for LXM15LD10N4, 400 V, three phase, 4.85 N.m for LXM15LD10N4 at 3 A, 480 V, three phase, 4.57 N.m for LXM05AD10M3X, 200...240 V, three phase, 5.63 N.m for LXM05AD17M3X, 200...240 V, three phase, 5.63 N.m for LXM05AD14N4, 380...480 V, three phase, 4.57 N.m for LXM05BD10M3X, 200...240 V, three phase, 5.63 N.m for LXM05BD17M3X, 200...240 V, three phase, 5.63 N.m for LXM05BD14N4, 380...480 V, three phase, 4.57 N.m for LXM05CD10M3X, 200...240 V, three phase, 5.63 N.m for LXM05CD17M3X, 200...240 V, three phase, 5.63 N.m for LXM05CD14N4, 380...480 V, three phase |
| Nominal output power | 850 W for LXM32.D12N4 at 3 A, 400 V, three phase, 850 W for LXM32.D12N4 at 3 A, 480 V, three phase, 1000 W for LXM15LD10N4, 400 V, three phase, 597 W for LXM15LD13M3, 230 V, single phase, 600 W for LXM05AD10M2, 200...240 V, single phase, 600 W for LXM05AD17M2, 200...240 V, single phase, 600 W for LXM05BD10M2, 200...240 V, single phase, 600 W for LXM05BD17M2, 200...240 V, single phase, 600 W for LXM05CD10M2, 200...240 V, single phase, 600 W for LXM05CD17M2, 200...240 V, single phase, 1300 W for LXM15LD10N4, 480 V, three phase, 597 W for LXM15LD10N4 at 3 A, 230 V, three phase, 600 W for LXM05AD10M3X, 200...240 V, three phase, 600 W for LXM05AD14N4, 380...480 V, three phase, 600 W for LXM05AD17M3X, 200...240 V, three phase, 600 W for LXM05BD10M3X, 200...240 V, three phase, 600 W for LXM05BD14N4, 380...480 V, three phase, 600 W for LXM05BD17M3X, 200...240 V, three phase, 600 W for LXM05CD10M3X, 200...240 V, three phase, 600 W for LXM05CD14N4, 380...480 V, three phase, 600 W for LXM05CD17M3X, 200...240 V, three phase |
| Nominal torque | 1.64 N.m for LXM32.D12N4 at 3 A, 400 V, three phase, 1.64 N.m for LXM32.D12N4 at 3 A, 480 V, three phase, 1.9 N.m for LXM05AD10M2, 200...240 V, single phase, 1.9 N.m for LXM05AD17M2, 200...240 V, single phase, 1.9 N.m for LXM05BD10M2, 200...240 V, single phase, 1.9 N.m for LXM05BD17M2, 200...240 V, single phase, 1.9 N.m for LXM05CD10M2, 200...240 V, single phase, 1.9 N.m for LXM05CD17M2, 200...240 V, single phase, 1.9 N.m for LXM15LD13M3, 230 V, single phase, 1.55 N.m for LXM15LD10N4, 480 V, three phase, 1.65 N.m for LXM15LD10N4, 400 V, three phase, 1.9 N.m for LXM05AD10M3X at 3 A, 200...240 V, three phase, 1.9 N.m for LXM05AD14N4, 380...480 V, three phase, 1.9 N.m for LXM05AD17M3X, 200...240 V, three phase, 1.9 N.m for LXM05BD10M3X, 200...240 V, three phase, 1.9 N.m for LXM05BD14N4, 380...480 V, three phase, 1.9 N.m for LXM05BD17M3X, 200...240 V, three phase, 1.9 N.m for LXM05CD10M3X, 200...240 V, three phase, 1.9 N.m for LXM05CD14N4, 380...480 V, three phase, 1.9 N.m for LXM05CD17M3X, 200...240 V, three phase, 1.9 N.m for LXM15LD10N4, 230 V, three phase |
| Nominal speed | 5000 rpm for LXM32.D12N4 at 3 A, 400 V, three phase, 5000 rpm for LXM32.D12N4 at 3 A, 480 V, three phase, 3000 rpm for LXM05AD10M2, 200...240 V, single phase, 3000 rpm for LXM05BD10M2, 200...240 V, single phase, 3000 rpm for LXM05CD10M2, 200...240 V, single phase, 3000 rpm for LXM05AD10M3X, 200...240 V, three phase, 3000 rpm for LXM05AD14N4, 380...480 V, three phase, 3000 rpm for LXM05BD10M3X, 200...240 V, three phase, 3000 rpm for LXM05BD14N4, 380...480 V, three phase, 3000 rpm for LXM05CD10M3X, 200...240 V, three phase, 3000 rpm for LXM05CD14N4, 380...480 V, three phase, 3000 rpm for LXM15LD13M3 at 3 A, 230 V, single phase, 3000 rpm for LXM05AD17M2, 200...240 V, single phase, 3000 rpm for LXM05BD17M2, 200...240 V, single phase, 3000 rpm for LXM05CD17M2, 200...240 V, single phase, 3000 rpm for LXM05AD17M3X, 200...240 V, three phase, 3000 rpm for LXM05BD17M3X, 200...240 V, three phase, 3000 rpm for LXM05CD17M3X, 200...240 V, three phase, 8000 rpm for LXM15LD10N4, 480 V, three phase, 3000 rpm for LXM15LD10N4, 230 V, three phase, 6000 rpm for LXM15LD10N4, 400 V, three phase |
| Product compatibility | LXM05AD10M2 at 200...240 V single phase, LXM05AD17M2 at 200...240 V single phase, LXM05BD10M2 at 200...240 V single phase, LXM05BD17M2 at 200...240 V single phase, LXM05CD10M2 at 200...240 V single phase, LXM05CD17M2 at 200...240 V single phase, LXM15LD13M3 at 230 V single phase, LXM05AD10M3X at 200...240 V three phase, LXM05BD10M3X at 200...240 V three phase, LXM05CD10M3X at 200...240 V three phase, LXM05AD14N4 at 380...480 V three phase, LXM05BD14N4 at 380...480 V three phase, LXM05CD14N4 at 380...480 V three phase, LXM15LD10N4 at 400 V three phase, LXM05AD17M3X at 200...240 V three phase, LXM05BD17M3X at 200...240 V three phase, LXM05CD17M3X at 200...240 V three phase, LXM32.D12N4 at 400 V three phase, LXM32.D12N4 at 480 V three phase, LXM15LD10N4 at 230 V three phase, LXM15LD10N4 at 480 V three phase |
| Shaft end | Keyed |
| IP degree of protection | IP50 standard |
| Speed feedback resolution | 131072 points/turn |
| Holding brake | Without |
| Mounting support | International standard flange |
| Electrical connection | Rotatable right-angled connectors |
Complementary 39
| Range compatibility | Lexium 32, Lexium 05, Lexium 15 |
|---|---|
| supply voltage max | 480 V |
| Network number of phases | Three phase |
| Continuous stall current | 2.9 A |
| maximum continuous power | 1.51 W |
| Maximum current Irms | 11.8 A for LXM15LD13M3, 11.8 A for LXM15LD10N4, 11.8 A for LXM05AD10M2, 11.8 A for LXM05AD17M2, 11.8 A for LXM05AD10M3X, 11.8 A for LXM05AD17M3X, 11.8 A for LXM05AD14N4, 11.8 A for LXM05BD10M2, 11.8 A for LXM05BD17M2, 11.8 A for LXM05BD10M3X, 11.8 A for LXM05BD17M3X, 11.8 A for LXM05BD14N4, 11.8 A for LXM05CD10M2, 11.8 A for LXM05CD17M2, 11.8 A for LXM05CD10M3X, 11.8 A for LXM05CD17M3X, 11.8 A for LXM05CD14N4, 11.8 A for LXM32.D12N4 |
| Maximum permanent current | 11.8 A |
| Switching frequency | 8 kHz |
| Second shaft | Without second shaft end |
| Shaft diameter | 11 mm |
| Shaft length | 23 mm |
| Key width | 18 mm |
| Feedback type | Single turn SinCos Hiperface |
| Motor flange size | 70 mm |
| Number of motor stacks | 2 |
| Torque constant | 0.77 N.m/A at 120 °C |
| Back emf constant | 48 V/krpm at 120 °C |
| Number of motor poles | 3.0 |
| Rotor inertia | 0.41 kg.cm² |
| Stator resistance | 4.2 Ohm at 20 °C |
| Stator inductance | 10.65 mH at 20 °C |
| Stator electrical time constant | 4.52 ms at 20 °C |
| Maximum radial force Fr | 390 N at 6000 rpm, 410 N at 5000 rpm, 450 N at 4000 rpm, 490 N at 3000 rpm, 560 N at 2000 rpm, 710 N at 1000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Type of cooling | Natural convection |
| Length | 187 mm |
| Centring collar diameter | 60 mm |
| Centring collar depth | 2.5 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 5.5 mm |
| Circle diameter of the mounting holes | 82 mm |
| Net weight | 2.89 kg |
| Sizing reference | BSH0702P |
| Accuracy error [angular] | 1.4 ° |
| Temperature copper hot | 120 °C |
| Temperature magnet hot | 100 °C |
| Temperature magnet rt | 20 °C |
| Output current 3s peak | 11.8 A |
| Inertia | 0.0 kg.cm² of brake, 0.41 kg.cm² of motor |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Show all 84 specifications ↓ Show less ↑29 more values in Identification, Logistics.
Identification 7
| Part number | BSH0702P11A2A |
|---|---|
| Type designation | BSH |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
