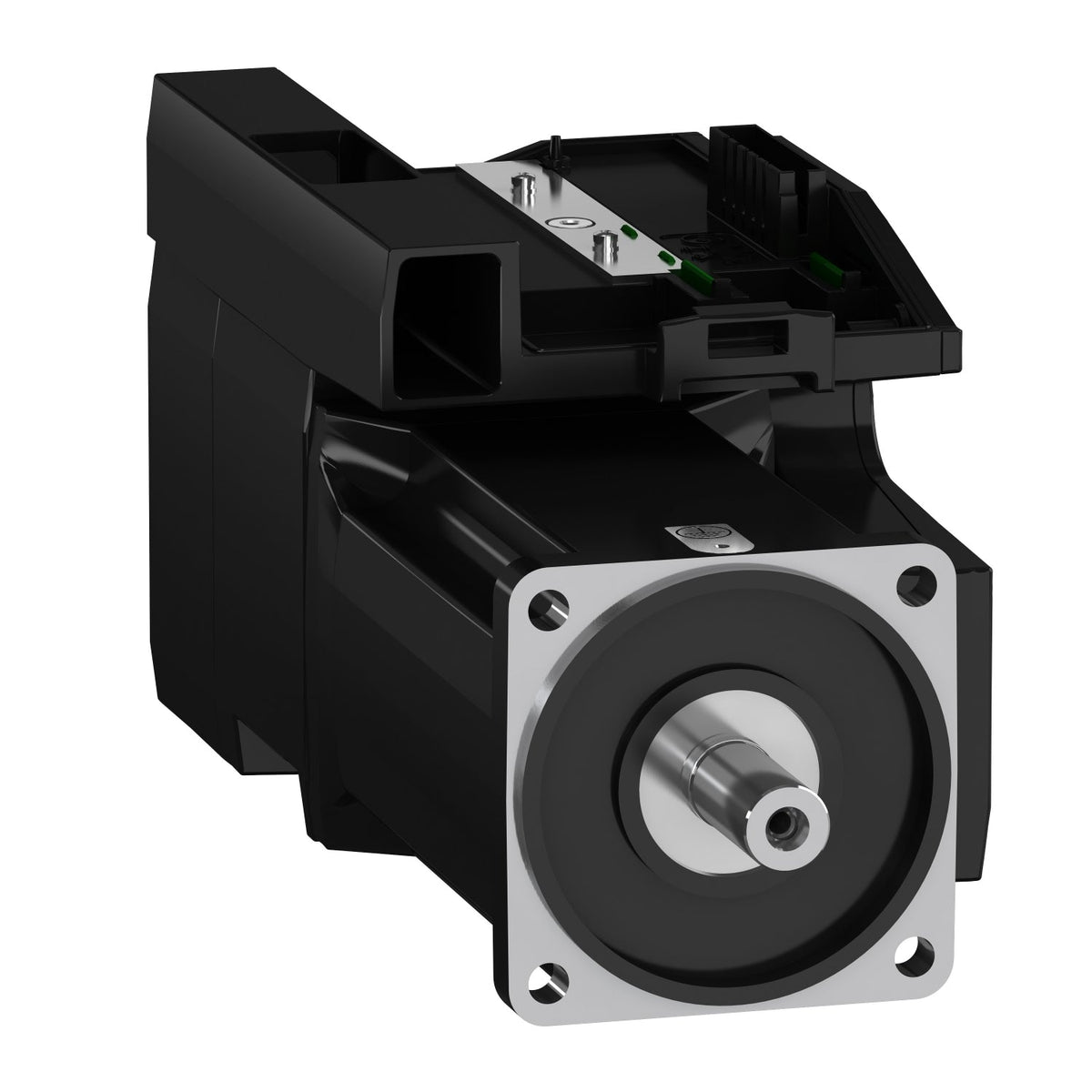

Schneider Electric BMI1002P16A Lexium 32i BMI 6 N·m 6000 rpm 3-Phase Integrated Drive Servo Motor
Schneider Electric BMI1002P16A Lexium 32i BMI integrated servo motor, three-phase, 100 mm flange.
Description
About the BMI
About the BMI
The BMI1002P16A is a Schneider Electric Lexium 32i BMI integrated servo motor — motor and servo drive combined in one housing — rated 6 N·m continuous stall torque at 6000 rpm maximum mechanical speed, built for a three-phase 208-480 V supply on a 100 mm international standard flange. It pairs with the LXM32i CANopen or EtherCAT control unit and uses a single-turn SinCos Hiperface encoder (32768 points/turn).
Selection Notes
The BMI1002P16A integrates the servo drive into the motor housing, removing the separate drive module and its cabinet space — relevant when panel footprint, not raw torque, is the constraint. Its three-phase 208-480 V supply makes it the choice for machines with a three-phase feed at the axis, as opposed to the single-phase BMI0702T16A on the smaller 70 mm frame; it also delivers more than double the continuous torque (6 N·m vs 2.48 N·m). At 4 A continuous stall current and 6 kg·cm² rotor inertia, it suits medium-inertia axes; the integrated EMC filter and 32768-point/turn absolute encoder keep wiring to a single power/feedback cable run back to the LXM32i CANopen or EtherCAT control unit.
Specification
Full specification
Main 3
| Range Compatibility | Lexium 32i |
|---|---|
| Device short name | BMI |
| Product or Component Type | Servo motor with power stage |
Complementary 46
| Maximum mechanical speed | 6000 rpm |
|---|---|
| [Us] rated supply voltage | 208...480 V - 15...10 % |
| Supply voltage limits | 208…480 V |
| Phase | Three phase |
| Supply frequency | 50/60 Hz - 5...5 % |
| Network frequency limits | 47.5…63 Hz |
| EMC filter | Integrated |
| Continuous output current | 4 A 8 kHz |
| Output current 3s peak | 12 A 400 V 3 s |
| Continuous stall current | 4 A |
| Continuous stall torque | 53.1 lbf.in (6 N.m) 208...480 V three phase |
| Peak stall torque | 123.9 lbf.in (14 N.m) 208 V three phase, 123.9 lbf.in (14 N.m) 400 V three phase, 123.9 lbf.in (14 N.m) 480 V three phase |
| Nominal output power | 1000 W 208 V three phase, 1900 W 400 V three phase, 1900 W 480 V three phase |
| Nominal torque | 45.1 lbf.in (5.1 N.m) 400 V three phase, 47.8 lbf.in (5.4 N.m) 208 V three phase, 36.3 lbf.in (4.1 N.m) 480 V three phase |
| Nominal speed | 1900 rpm 208 V three phase, 3800 rpm 400 V three phase, 4700 rpm 480 V three phase |
| Maximum current Irms | 17.5 A 208 V, three phase, 17.5 A 400 V, three phase, 17.5 A 480 V, three phase |
| Product compatibility | Drive control unit LXM32i CANopen, Drive control unit LXM32i EtherCAT |
| Shaft end | Keyed |
| Second shaft | Without second shaft end |
| Shaft diameter | 0.7 in (19 mm) |
| Shaft length | 1.6 in (40 mm) |
| Key width | 0.2 in (6 mm) |
| Feedback type | Absolute single turn SinCos Hiperface |
| Speed feedback resolution | 32768 points/turn |
| Holding brake | Without |
| Mounting Support | International standard flange |
| Motor flange size | 3.9 in (100 mm) |
| Electrical Connection | Printed circuit board connector |
| Torque constant | 1.28 N.m/A 68 °F (20 °C) |
| Back emf constant | 84.52 V/krpm 68 °F (20 °C) |
| Number of motor poles | 10 |
| Rotor inertia | 6.28 kg.cm² |
| Stator resistance | 2.347 Ohm 68 °F (20 °C) |
| Stator inductance | 9.79 mH 68 °F (20 °C) |
| Stator electrical time constant | 4.17 ms 68 °F (20 °C) |
| Maximum radial force Fr | 990 N 1000 rpm, 790 N 2000 rpm, 690 N 3000 rpm, 620 N 4000 rpm, 580 N 5000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Type of cooling | Natural convection |
| Length | 10.7 in (273 mm) |
| Number of motor stacks | 2 |
| Centring collar diameter | 3.7 in (95 mm) |
| Centring collar depth | 0.1 in (3.5 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.4 in (9 mm) |
| Circle diameter of the mounting holes | 4.5 in (115 mm) |
| Distance shaft shoulder-flange | 0.1 in (3.5 mm) |
Environment 1
| IP Degree of Protection | Shaft IP54, Housing IP65 |
|---|
Show all 64 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | BMI1002P16A |
|---|---|
| Type designation | BMI |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606485377049 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | DE |
|---|---|
| Shipping weight | 9.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
