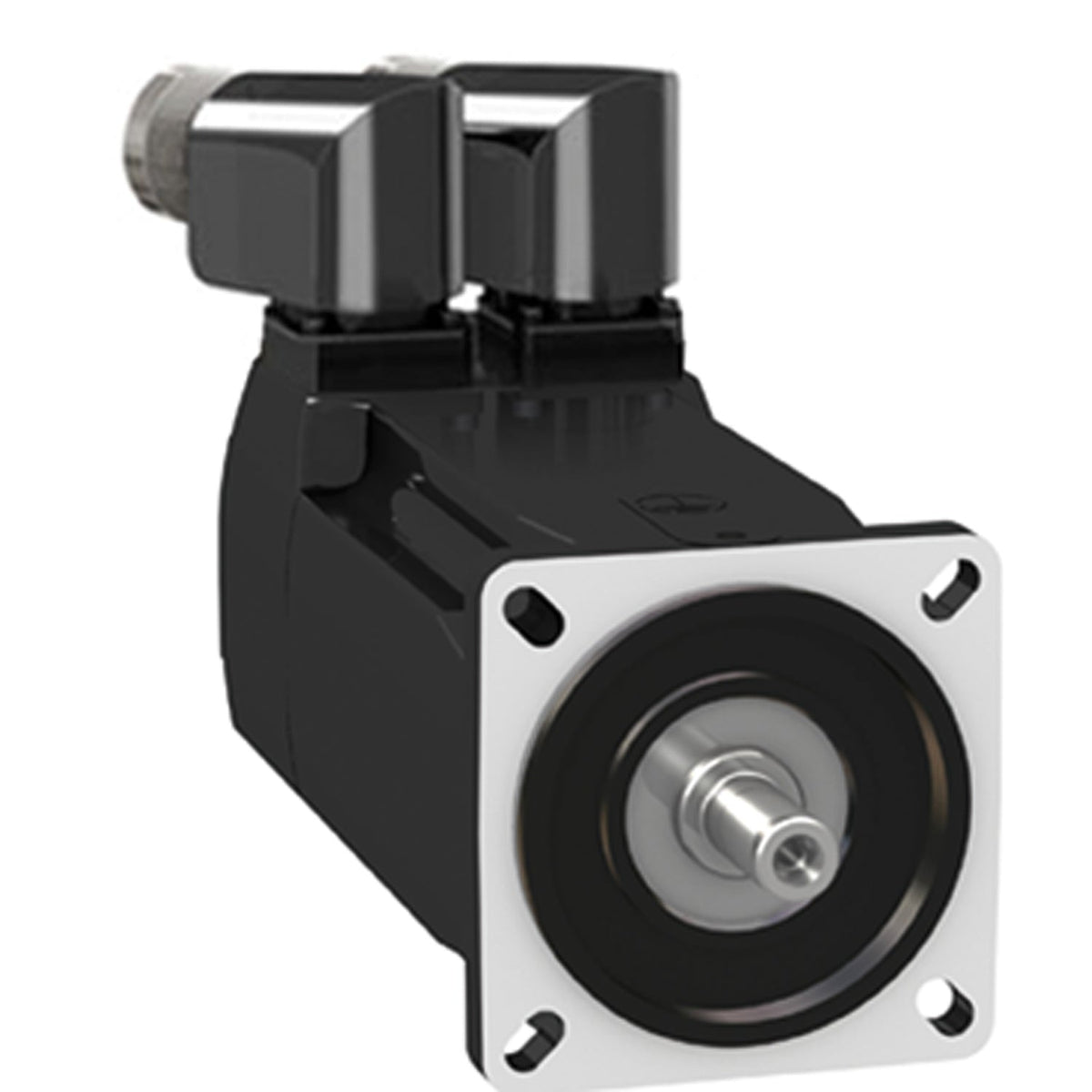

Schneider Electric BMH0703P16F2A Lexium 32 BMH 3.4 N·m 8000 rpm 70 mm Flange Brake Keyed Shaft Servo Motor
Lexium 32 BMH servo motor, 3.4 N·m continuous stall torque, 70 mm flange, keyed shaft, SinCos Hiperface encoder, holding brake.
Description
About the BMH
About the BMH
The Schneider Electric BMH0703P16F2A is a Lexium 32 BMH servo motor sized for the LXM32.D18N4 drive, rated for 3.4 N·m continuous stall torque and 1300 W nominal output power at 5000 rpm nominal speed, with an 8000 rpm maximum mechanical speed. Its keyed shaft, 70 mm flange and 3 N·m holding brake match the smaller BMH07 motors, but a larger 14 mm shaft marks it as the highest-torque motor in the BMH07 frame.
Selection Notes
The BMH0703P16F2A is the highest-torque motor in the BMH07 frame, paired with the LXM32.D18N4 drive for 3.4 N·m continuous stall torque and 1300 W nominal output power at 5000 rpm nominal speed — nearly double the BMH0702P16F2A's output in the same 70 mm flange. Its 14 mm shaft, versus 11 mm on the lower-torque BMH07 motors, and 3.91 A continuous stall current size the mechanical coupling and drive output stage accordingly. The standard 3 N·m holding brake carries over from the BMH0702P16F2A for powered-off position hold, adding the same 7 W pull-in power draw to the drive's control supply, and the same 10.2 N·m peak-to-continuous torque ratio seen across the BMH07 line.
Specification
Full specification
Main 15
| Device short name | BMH |
|---|---|
| Product or Component Type | Servo motor |
| Maximum mechanical speed | 8000 rpm |
| Continuous stall torque | 30.09 lbf.in (3.4 N.m) LXM32.D18N4 6 A, 400 V, three phase, 30.09 lbf.in (3.4 N.m) LXM32.D18N4 6 A, 480 V, three phase |
| Peak stall torque | 90.3 lbf.in (10.2 N.m) LXM32.D18N4 6 A, 400 V, three phase, 90.3 lbf.in (10.2 N.m) LXM32.D18N4 6 A, 480 V, three phase |
| Nominal output power | 1300 W LXM32.D18N4 6 A, 400 V, three phase, 1300 W LXM32.D18N4 6 A, 480 V, three phase |
| Nominal torque | 21.2 lbf.in (2.4 N.m) LXM32.D18N4 6 A, 400 V, three phase, 21.2 lbf.in (2.4 N.m) LXM32.D18N4 6 A, 480 V, three phase |
| Nominal speed | 5000 rpm LXM32.D18N4 6 A, 400 V, three phase, 5000 rpm LXM32.D18N4 6 A, 480 V, three phase |
| Product compatibility | LXM32.D18N4 400...480 V three phase |
| Shaft end | Keyed |
| IP Degree of Protection | IP54 standard |
| Speed feedback resolution | 32768 points/turn |
| Holding brake | With |
| Mounting Support | International standard flange |
| Electrical Connection | Rotatable right-angled connectors |
Complementary 41
| Range Compatibility | Lexium 32 |
|---|---|
| [Us] rated supply voltage | 480 V |
| Phase | Three phase |
| Continuous stall current | 3.91 A |
| Continuous power | 1.68 W |
| Maximum current Irms | 12.57 A LXM32.D18N4 |
| Maximum permanent current | 12.57 A |
| Second shaft | Without second shaft end |
| Shaft diameter | 0.6 in (14 mm) |
| Shaft length | 1.2 in (30 mm) |
| Key width | 0.8 in (20 mm) |
| Feedback type | Single turn SinCos Hiperface |
| Holding torque | 26.6 lbf.in (3 N.m) holding brake |
| Motor flange size | 2.8 in (70 mm) |
| Number of motor stacks | 3 |
| Torque constant | 0.87 N.m/A 248 °F (120 °C) |
| Back emf constant | 55.8 V/krpm 248 °F (120 °C) |
| Number of motor poles | 5.0 |
| Rotor inertia | 1.78 kg.cm² |
| Stator resistance | 2.65 Ohm 68 °F (20 °C) |
| Stator inductance | 4.175 mH 68 °F (20 °C) |
| Stator electrical time constant | 3.2 ms 68 °F (20 °C) |
| Maximum radial force Fr | 730 N 1000 rpm, 580 N 2000 rpm, 510 N 3000 rpm, 460 N 4000 rpm, 430 N 5000 rpm, 400 N 6000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Brake pull-in power | 7 W |
| Type of cooling | Natural convection |
| Length | 8.9 in (225 mm) |
| Centring collar diameter | 2.4 in (60 mm) |
| Centring collar depth | 0.10 in (2.5 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.2 in (5.5 mm) |
| Circle diameter of the mounting holes | 3.2 in (82 mm) |
| Net Weight | 8.8 lb(US) (4 kg) |
| Sizing reference | BMH0703P |
| Network number of phases | 3 |
| Accuracy error [angular] | 4.8 ° |
| Temperature copper hot | 275 °F (135 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
| Output current 3s peak | 12.57 A |
| Inertia | 0.11 kg.cm² of brake, 1.674 kg.cm² of motor |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Show all 70 specifications ↓ Show less ↑13 more values in Identification, Logistics.
Identification 8
| Part number | BMH0703P16F2A |
|---|---|
| Type designation | BMH |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606485199481 |
Logistics 5
| Country of origin | DE |
|---|---|
| Shipping weight | 4.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
