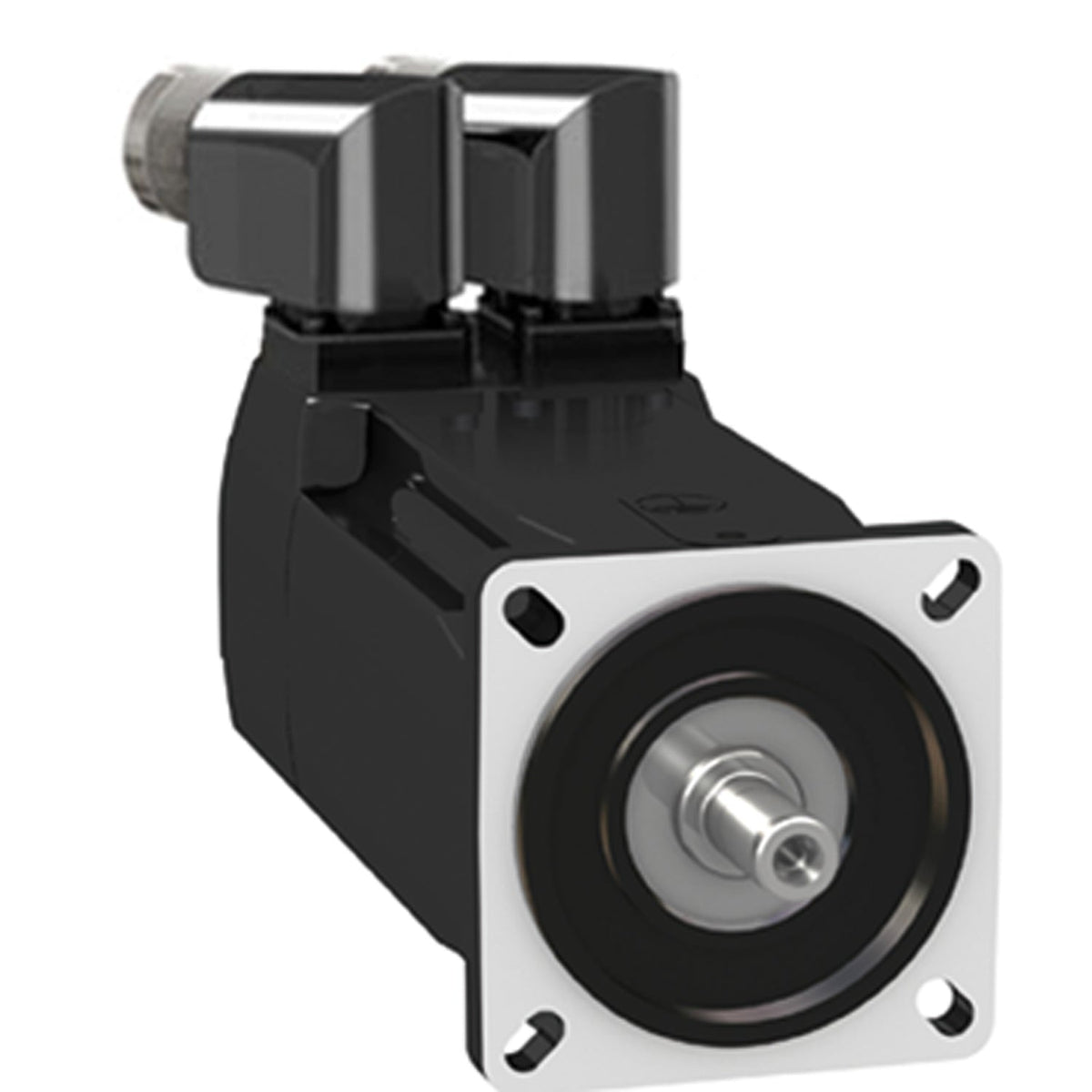

Schneider Electric BMH0702P16A2A Lexium 32 BMH 2.5 N·m 8000 rpm 70 mm Flange Keyed Shaft Servo Motor
Lexium 32 BMH servo motor, 2.5 N·m continuous stall torque, 70 mm flange, keyed shaft, single-turn SinCos Hiperface encoder, no brake.
Description
About the BMH
About the BMH
The Schneider Electric BMH0702P16A2A is a Lexium 32 BMH servo motor sized for the LXM32.D12N4 drive, delivering 2.5 N·m continuous stall torque and 700 W nominal output power at 3000 rpm nominal speed. Built on the same 70 mm flange and keyed shaft as the lower-torque BMH0701P16A2A, it spins to 8000 rpm maximum mechanical speed and ships without a holding brake.
Selection Notes
The BMH0702P16A2A is sized specifically for the LXM32.D12N4 drive, delivering 2.5 N·m continuous stall torque and 700 W nominal output power at 3000 rpm nominal speed — roughly double the BMH0701P16A2A's D12N4-paired rating in the same 70 mm flange and keyed-shaft format. It ships without a holding brake, so it suits axes that do not need to hold a load once the drive is de-energized; the BMH0702P16F2A carries the identical torque and power rating with a 3 N·m brake added. Its 9.68 A maximum permanent current, not the 2.94 A continuous rating, is what sizes the LXM32.D12N4 drive's output stage for peak-demand moves. Rotor inertia of 1.13 kg.cm² and a 2.3 kg net weight both nearly double the BMH0701P16A2A's corresponding D12N4-paired figures along with the torque and power rating.
Specification
Full specification
Main 15
| Device short name | BMH |
|---|---|
| Product or Component Type | Servo motor |
| Maximum mechanical speed | 8000 rpm |
| Continuous stall torque | 22.1 lbf.in (2.5 N.m) LXM32.D12N4 3 A, 400 V, three phase, 22.1 lbf.in (2.5 N.m) LXM32.D12N4 3 A, 480 V, three phase |
| Peak stall torque | 65.5 lbf.in (7.4 N.m) LXM32.D12N4 3 A, 400 V, three phase, 65.5 lbf.in (7.4 N.m) LXM32.D12N4 3 A, 480 V, three phase |
| Nominal output power | 700 W LXM32.D12N4 3 A, 400 V, three phase, 700 W LXM32.D12N4 3 A, 480 V, three phase |
| Nominal torque | 19.5 lbf.in (2.2 N.m) LXM32.D12N4 3 A, 400 V, three phase, 19.5 lbf.in (2.2 N.m) LXM32.D12N4 3 A, 480 V, three phase |
| Nominal speed | 3000 rpm LXM32.D12N4 3 A, 400 V, three phase, 3000 rpm LXM32.D12N4 3 A, 480 V, three phase |
| Product compatibility | LXM32.D12N4 400...480 V three phase |
| Shaft end | Keyed |
| IP Degree of Protection | IP54 standard |
| Speed feedback resolution | 32768 points/turn |
| Holding brake | Without |
| Mounting Support | International standard flange |
| Electrical Connection | Rotatable right-angled connectors |
Complementary 39
| Range Compatibility | Lexium 32 |
|---|---|
| [Us] rated supply voltage | 480 V |
| Phase | Three phase |
| Continuous stall current | 2.94 A |
| Continuous power | 1.51 W |
| Maximum current Irms | 9.65 A LXM32.D12N4 |
| Maximum permanent current | 9.68 A |
| Second shaft | Without second shaft end |
| Shaft diameter | 0.4 in (11 mm) |
| Shaft length | 0.9 in (23 mm) |
| Key width | 0.7 in (18 mm) |
| Feedback type | Single turn SinCos Hiperface |
| Motor flange size | 2.8 in (70 mm) |
| Number of motor stacks | 2 |
| Torque constant | 0.84 N.m/A 248 °F (120 °C) |
| Back emf constant | 54.08 V/krpm 248 °F (120 °C) |
| Number of motor poles | 5.0 |
| Rotor inertia | 1.13 kg.cm² |
| Stator resistance | 3.8 Ohm 68 °F (20 °C) |
| Stator inductance | 5.89 mH 68 °F (20 °C) |
| Stator electrical time constant | 3.2 ms 68 °F (20 °C) |
| Maximum radial force Fr | 710 N 1000 rpm, 560 N 2000 rpm, 490 N 3000 rpm, 450 N 4000 rpm, 410 N 5000 rpm, 390 N 6000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Type of cooling | Natural convection |
| Length | 6.06 in (154 mm) |
| Centring collar diameter | 2.4 in (60 mm) |
| Centring collar depth | 0.10 in (2.5 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.2 in (5.5 mm) |
| Circle diameter of the mounting holes | 3.2 in (82 mm) |
| Net Weight | 5.07 lb(US) (2.3 kg) |
| Sizing reference | BMH0702P |
| Network number of phases | 3 |
| Accuracy error [angular] | 4.8 ° |
| Temperature copper hot | 275 °F (135 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
| Output current 3s peak | 9.65 A |
| Inertia | 0.0 kg.cm² of brake, 1.129 kg.cm² of motor |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Show all 68 specifications ↓ Show less ↑13 more values in Identification, Logistics.
Identification 8
| Part number | BMH0702P16A2A |
|---|---|
| Type designation | BMH |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606485193762 |
Logistics 5
| Country of origin | DE |
|---|---|
| Shipping weight | 2.3 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
