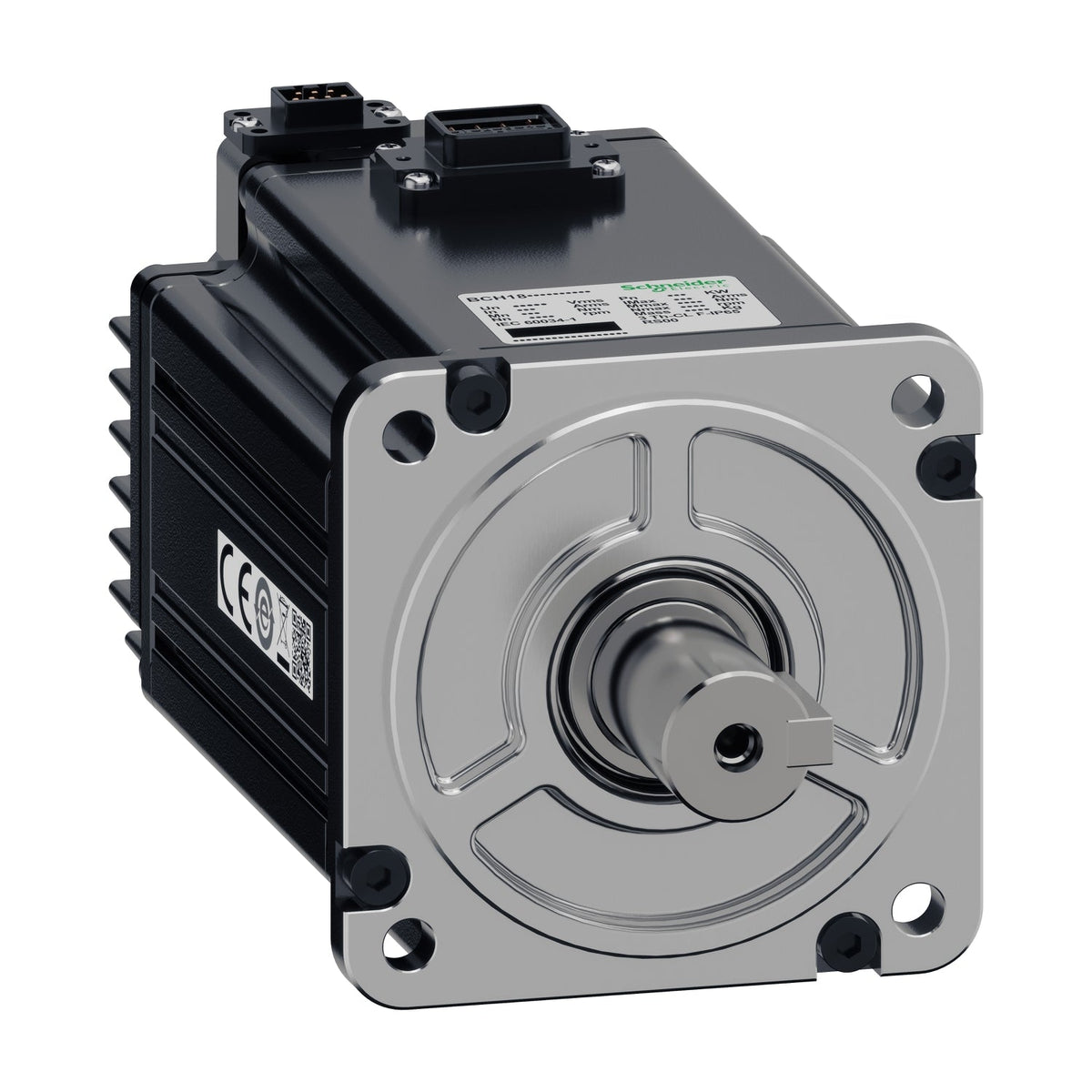

Lexium 18Schneider Electric BCH18MF10332F5C Easy Lexium 18 BCH18 1.0 kW 3.18 N·m 80 mm Brake 23-Bit Servo Motor
Easy Lexium 18 BCH18 servo motor, 1 kW, 3.18 N·m continuous stall torque, 80 mm flange, 23-bit incremental encoder, holding brake.
Description
About the BCH18
About the BCH18
The Schneider Electric BCH18MF10332F5C is the braked version of Schneider's 1 kW Easy Lexium 18 BCH18 servo motor, rated for 3.18 N·m continuous stall torque at 3000 rpm nominal speed and 6000 rpm maximum mechanical speed. Its 80 mm flange carries a 23-bit optic incremental encoder and a 3.0 N·m holding brake, adding mass over the brake-less BCH18MF10332A5C for the same output rating.
Selection Notes
The BCH18MF10332F5C fits the same 80 mm M80 envelope and 1 kW rating as the BCH18MF10332A5C but adds a 3.0 N·m holding brake, so it is the pick when the axis must stay in position — a lifted tool, a clamped fixture — the instant the LXM18 drive loses power. Its 23-bit optic incremental encoder still requires homing after power-up; the BCH18MF1033CF5C offers the same brake and power rating with a multi-turn encoder for applications that cannot tolerate a re-homing move. Net weight rises to 3.75 kg from the brake-less motor's 3 kg, and rotor inertia rises slightly to 2.32 kg.cm², both worth accounting for when sizing the mounting bracket and coupling for the added length and mass.
Specification
Full specification
Main 4
| Range of product | Lexium 18 |
|---|---|
| Range compatibility | Lexium 18 |
| Product or component type | Servo motor |
| Device short name | BCH18 |
Complementary 38
| Maximum mechanical speed | 6000.0 rpm |
|---|---|
| [Us] rated supply voltage | 200...240 V |
| Continuous stall current | 6.5 A |
| Continuous stall torque | 3.18 N.m, 220 V |
| Continuous power | 1000 W |
| Peak stall torque | 11.1 N.m, 220 V |
| Nominal output power | 1000 W, 220 V |
| Nominal torque | 3.18 N.m, 220 V |
| Nominal speed | 3000 rpm, 220 V |
| Maximum permanent current | 22.8 A |
| Shaft end | Parallel key |
| Shaft diameter | 19.0 mm |
| Shaft length | 35.0 mm |
| Key width | 6.0 mm |
| Feedback type | 23 bits optic incremental encoder |
| Holding brake | With |
| Holding torque | 3.0 N.m |
| Mounting support | Asian standard flange |
| Motor flange size | 80 mm |
| Electrical connection | 2 connectors male/female |
| Torque constant | 0.49 N.m/A at 40 °C |
| Back emf constant | 33.3 V/krpm at 40 °C |
| Number of motor poles | 5.0 |
| Rotor inertia | 2.32 kg.cm² |
| Stator resistance | 0.82 Ohm |
| Stator inductance | 3.0 mH |
| Maximum radial force Fr | 392 N |
| Maximum axial force Fa | 147 N |
| Length | 167.5 mm |
| Number of mounting holes | 4.0 |
| Circle diameter of the mounting holes | 6.5 mm |
| Width | 167.5 mm |
| Height | 80.0 mm |
| Depth | 88.6 mm |
| Net weight | 3.75 kg |
| Network number of phases | 3 |
| Encoder type | Optic encoder |
| Inertia | 2.32 kg.cm² of brake, 0.0 kg.cm² of motor |
Environment 2
| IP degree of protection | IP67 |
|---|---|
| Ambient air temperature for operation | 0…40 °C |
Show all 68 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | BCH18MF10332F5C |
|---|---|
| Type designation | BCH18 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.8 cm |
| Package 1 Width | 18.2 cm |
| Package 1 Length | 28.3 cm |
| Package 1 Weight | 4.19 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 25.16 kg |
| Shipping weight | 3.75 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
