Lexium 18Schneider Electric BCH18MD0433CF5C Easy Lexium 18 BCH18 400 W 1.27 N·m 60 mm Brake Multi-Turn Servo Motor

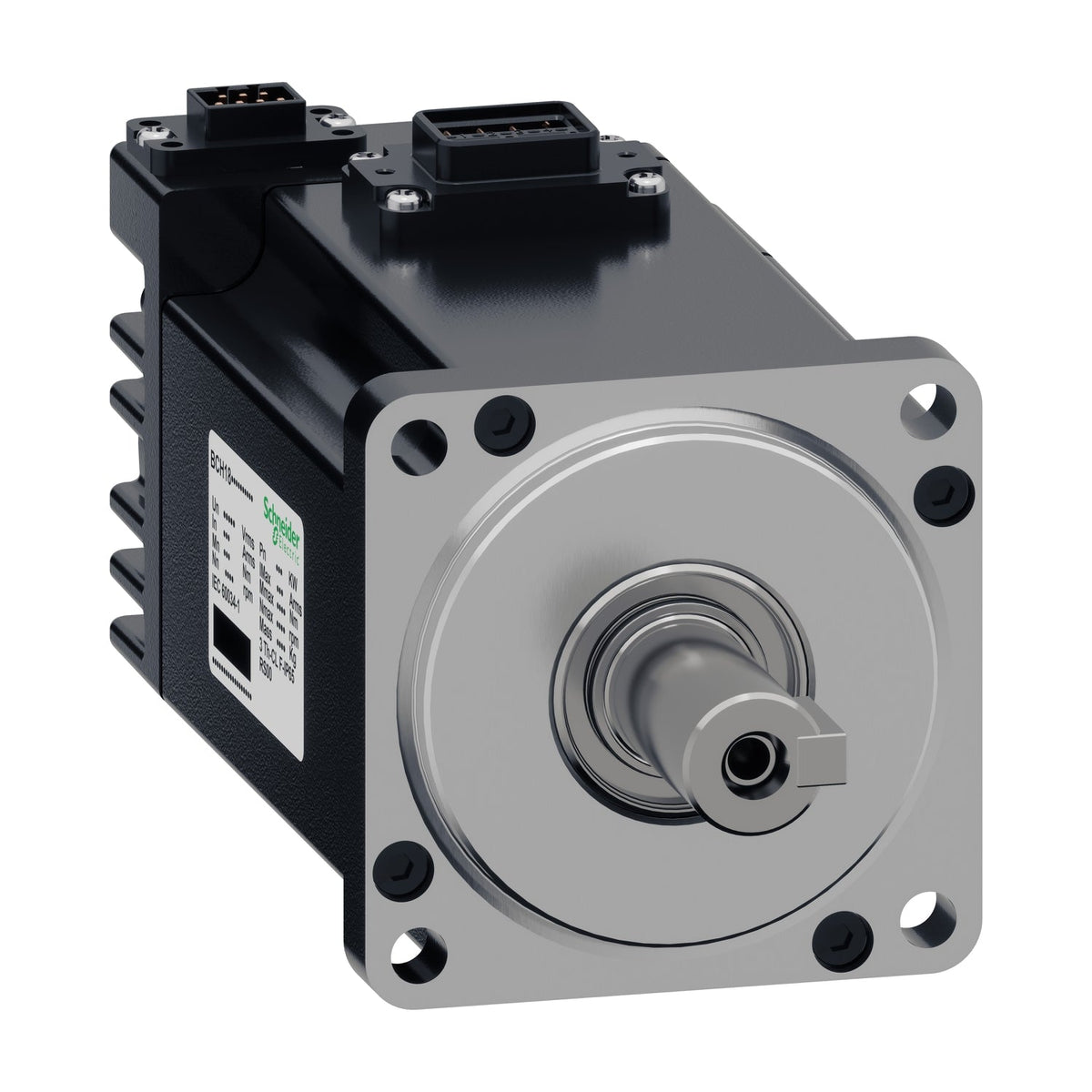

Schneider Electric BCH18MD0433CF5C Easy Lexium 18 servo motor, 400 W, 1.27 N·m continuous torque, 60 mm flange, multi-turn encoder, holding brake.
Description
About the BCH18
About the BCH18
The Schneider Electric BCH18MD0433CF5C is the braked, multi-turn-encoder variant of the 400 W Easy Lexium 18 BCH18 motor: 1.27 N·m continuous stall torque, 2.6 A continuous stall current, 60 mm flange. A 2.0 N·m holding brake and 23-bit multi-turn absolute encoder are both integrated, and rotor inertia with the brake fitted is 0.54 kg.cm².
Selection Notes
This is the fully-specified 400 W motor on the 60 mm flange: a 23-bit multi-turn absolute encoder for position retention through a power cycle, and a 2.0 N·m holding brake for load-holding on a vertical or gravity-loaded axis. Rotor inertia with the brake fitted is 0.54 kg.cm², and net weight is 1.6 kg — the heaviest of the 60 mm-flange motors in this group. Continuous stall current stays at 2.6 A for Lexium 18 (LXM18) drive sizing. Choose the brakeless BCH18MD0433CA5C instead where the axis does not need mechanical holding and the extra 0.45 kg is not worth carrying. Maximum mechanical speed is rated to 6000 rpm against the 3000 rpm nominal speed used above, leaving margin for brief overspeed during deceleration. IP67 sealing and the shared two-connector power/feedback interface mean this motor drops into the same cabling and enclosure design as the rest of the 60 mm-flange Easy Lexium 18 BCH18 range despite carrying the highest power rating in that frame.
Specification
Full specification
Main 4
| Range of product | Lexium 18 |
|---|---|
| Range compatibility | Lexium 18 |
| Product or component type | Servo motor |
| Device short name | BCH18 |
Complementary 38
| Maximum mechanical speed | 6000.0 rpm |
|---|---|
| [Us] rated supply voltage | 220 V |
| Continuous stall current | 2.6 A |
| Continuous stall torque | 1.27 N.m, 220 V |
| Continuous power | 400 W |
| Peak stall torque | 4.45 N.m, 220 V |
| Nominal output power | 400 W, 220 V |
| Nominal torque | 1.27 N.m, 220 V |
| Nominal speed | 3000 rpm, 220 V |
| Maximum current Irms | at 0.4 kW, 220 V |
| Maximum permanent current | 9.3 A |
| Product compatibility | Motion servo drive motion servo motors motor at 0.4 kW, 220 V |
| Shaft end | Parallel key |
| Shaft diameter | 14.0 mm |
| Shaft length | 30.0 mm |
| Key width | 5.0 mm |
| Feedback type | 23 bits optic multi turn encoder |
| Holding brake | With |
| Holding torque | 2.0 N.m |
| Mounting support | Asian standard flange |
| Motor flange size | 60 mm |
| Electrical connection | 2 connectors male/female |
| Number of motor poles | 5.0 |
| Rotor inertia | 0.54 kg.cm² |
| Stator resistance | 3.26 Ohm |
| Stator inductance | 9.4 mH |
| Maximum radial force Fr | 245 N |
| Maximum axial force Fa | 74 N |
| Length | 135.6 mm |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 5.5 mm |
| Width | 135.6 mm |
| Height | 60.0 mm |
| Depth | 68.6 mm |
| Net weight | 1.6 kg |
| Network number of phases | 3 |
| Encoder type | Optic encoder |
| Inertia | 0.54 kg.cm² of brake, 0.0 kg.cm² of motor |
Environment 1
| IP degree of protection | IP67 |
|---|
Show all 67 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | BCH18MD0433CF5C |
|---|---|
| Type designation | BCH18 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.8 cm |
| Package 1 Width | 12.2 cm |
| Package 1 Length | 26.8 cm |
| Package 1 Weight | 1.8715 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 11.229 kg |
| Shipping weight | 1.6 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for BCH18MD0433CF5C
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the BCH18
What is the rated current of BCH18?
The rated current of BCH18 is 2.6 A.
What motor power is BCH18 rated for?
The rated motor power of BCH18 is 0.4 kW.
What is the HS code of BCH18 for customs?
The tariff (HS) code on file for BCH18 is 850152.
Where does BCH18 ship from, and how fast?
BCH18 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
