Schneider Electric BCH18LB01332F5C Easy Lexium 18 BCH18 100 W 0.32 N·m 3000 rpm 40 mm Brake 23-Bit Servo Motor

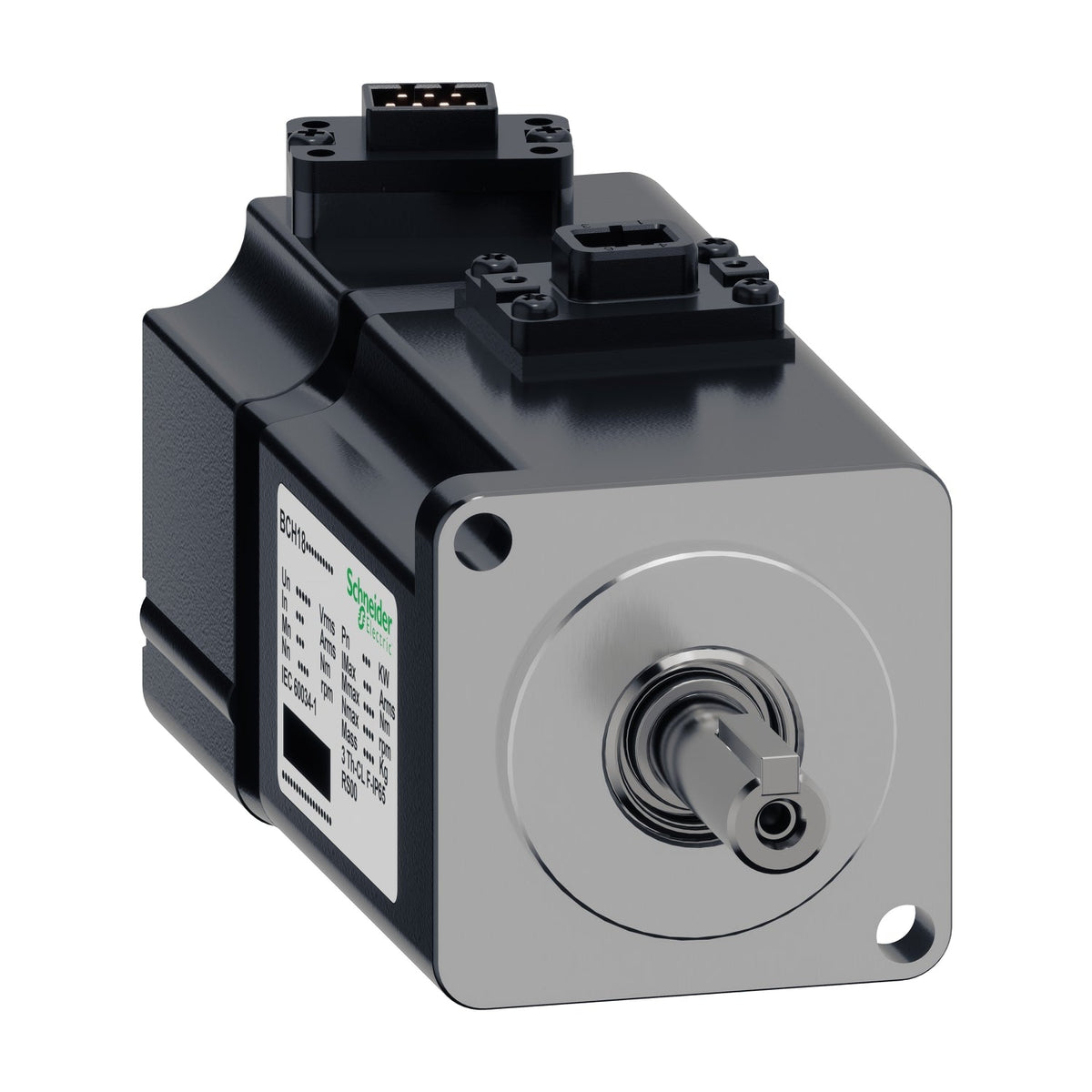

The Schneider Electric BCH18LB01332F5C is a Lexium 18 servo motor in the BCH18 family, rated for 0.1 kW continuous output at 3000 rpm with 0.32 N.m nominal torque. It mounts on a 40 mm flange with a 8 mm keyed shaft with an integrated holding brake for vertical-axis load retention. Position feedback comes from a 23-bit optical incremental encoder for closed-loop control with the matching drive.

Technical Specifications

Selection Notes

The BCH18LB01332F5C delivers 0.32 N.m nominal torque and 0.1 kW continuous power through a 40 mm flange; step up to the 200 W frame in the same Easy Lexium 18 BCH18 line if the load inertia or torque margin calculated for this motor comes out short. The 23-bit optical incremental encoder requires a homing move after every power-up; choose the multi-turn encoder variant instead when the application cannot tolerate a re-homing cycle. This is the brake version: the 0.35 N.m holding brake holds the load in place whenever the drive is de-energized, which the non-brake variant does not provide.

Applications

At 0.1 kW continuous output, the BCH18LB01332F5C fits compact pick-and-place heads, small conveyor and labelling axes, and other light-duty Easy Lexium 18 motion axes within its 6000 rpm mechanical speed limit.
