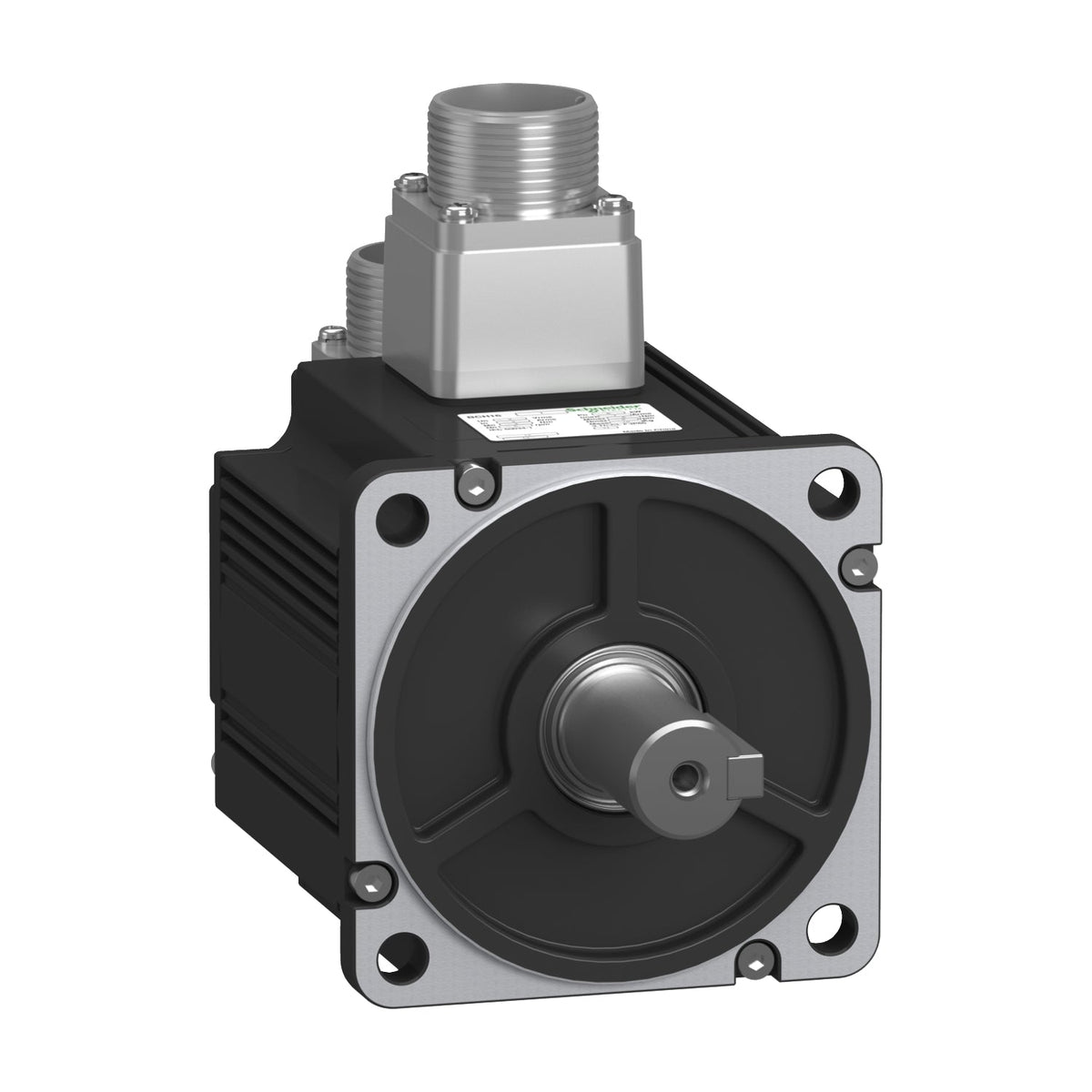

Lexium 16DSchneider Electric BCH16LJ10330A6C2 Lexium 16 BCH16 1.0 kW 3.18 N·m 3000 rpm 100 mm 22 mm Shaft Servo Motor
Lexium 16D servo motor, 1.0 kW, 3.18 N.m, 100 mm flange
Description
About the BCH16
About the BCH16
The Schneider Electric BCH16LJ10330A6C2 is a Lexium 16D servo motor in the BCH16 family, rated for 1.0 kW continuous output at 3000 rpm with 3.18 N.m nominal torque. It mounts on a 100 mm flange with a 22 mm keyed shaft. Position feedback comes from a 2500-line incremental encoder for closed-loop control with the matching drive.
Selection Notes
The BCH16LJ10330A6C2 pairs a 100 mm flange with a 22 mm shaft, so it drops into machine frames sized for the 80 mm BCH16 variants only if the mounting bolt circle is re-checked — the two flange sizes are not interchangeable. The 2500-line incremental encoder is a lower-resolution, lower-cost alternative to the 23-bit variant in the same frame; choose it when the application does not need fine positioning resolution. This is the non-brake version — choose the equivalent brake variant instead whenever the load can back-drive the motor while it is de-energized, such as a vertical axis.
Applications
At 1.0 kW continuous and 3.18 N.m nominal torque, the BCH16LJ10330A6C2 suits pick-and-place axes, conveyor indexing, and packaging-line servo axes driven by a Lexium 16D drive, within the 5000 rpm mechanical speed limit of this frame.
Specification
Full specification
Main 4
| Range of product | Lexium 16D |
|---|---|
| Range compatibility | Lexium 16D |
| Product or component type | Servo motor |
| Device short name | BCH16 |
Complementary 44
| Maximum mechanical speed | 5000 rpm |
|---|---|
| [Us] rated supply voltage | 220 V |
| Network number of phases | 3 phases |
| Continuous stall current | 6.6 A |
| Continuous stall torque | 3.18 N.m for LXM16D at 10.13 A, 220 V, single phase |
| Continuous power | 1000 W |
| Peak stall torque | 9.55 N.m for LXM16D at 10.13 A, 220 V, single phase |
| Nominal output power | 1000 W for LXM16D at 10.13 A, 220 V, single phase |
| Nominal torque | 3.18 N.m for LXM16D at 10.13 A, 220 V, single phase |
| Nominal speed | 3000 rpm for LXM16D at 10.13 A, 220 V, single phase |
| Maximum current Irms | 21.9 A for LXM16D at 1.0 kW, 220 V |
| Maximum permanent current | 21.8 A |
| Product compatibility | LXM16D motion servo motors motor at 1 kW, 220 V, single phase |
| Shaft end | Parallel key |
| Second shaft | Without second shaft end |
| Shaft diameter | 22 mm |
| Shaft length | 35 mm |
| Key width | 8 mm |
| Feedback type | 2500 incremental encoder |
| Holding brake | Without |
| Holding torque | 6.5 N.m |
| Mounting support | Asian standard flange |
| Motor flange size | 100 mm |
| Electrical connection | Connector MIL |
| Torque constant | 0.48 N.m/A at 20 °C |
| Back emf constant | 32 V/krpm at 20 °C |
| Rotor inertia | 2.65 kg.cm² |
| Stator resistance | 0.7 Ohm at 20 °C |
| Stator inductance | 4.3 mH at 20 °C |
| Stator electrical time constant | 6.14 ms at 20 °C |
| Maximum radial force Fr | 343.98 N at 3000 rpm |
| Maximum axial force Fa | 122.3 N |
| Type of cooling | Natural convection |
| Length | 139 mm |
| Centring collar diameter | 95 mm |
| Centring collar depth | 3 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 9 mm |
| Circle diameter of the mounting holes | 115 mm |
| Distance shaft shoulder-flange | 50 mm |
| Width | 100 mm |
| Height | 153.4 mm |
| Depth | 139 mm |
| Net weight | 3.8 kg |
Environment 2
| IP degree of protection | IP65 IM B5, IM V1, IP65 IM V3 |
|---|---|
| Ambient air temperature for operation | 0…40 °C |
Show all 68 specifications ↓ Show less ↑18 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | BCH16LJ10330A6C2 |
|---|---|
| Type designation | BCH16 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 10
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 27.5 cm |
| Package 1 Width | 18 cm |
| Package 1 Length | 36 cm |
| Package 1 Weight | 4.164 kg |
| Shipping weight | 3.8 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
