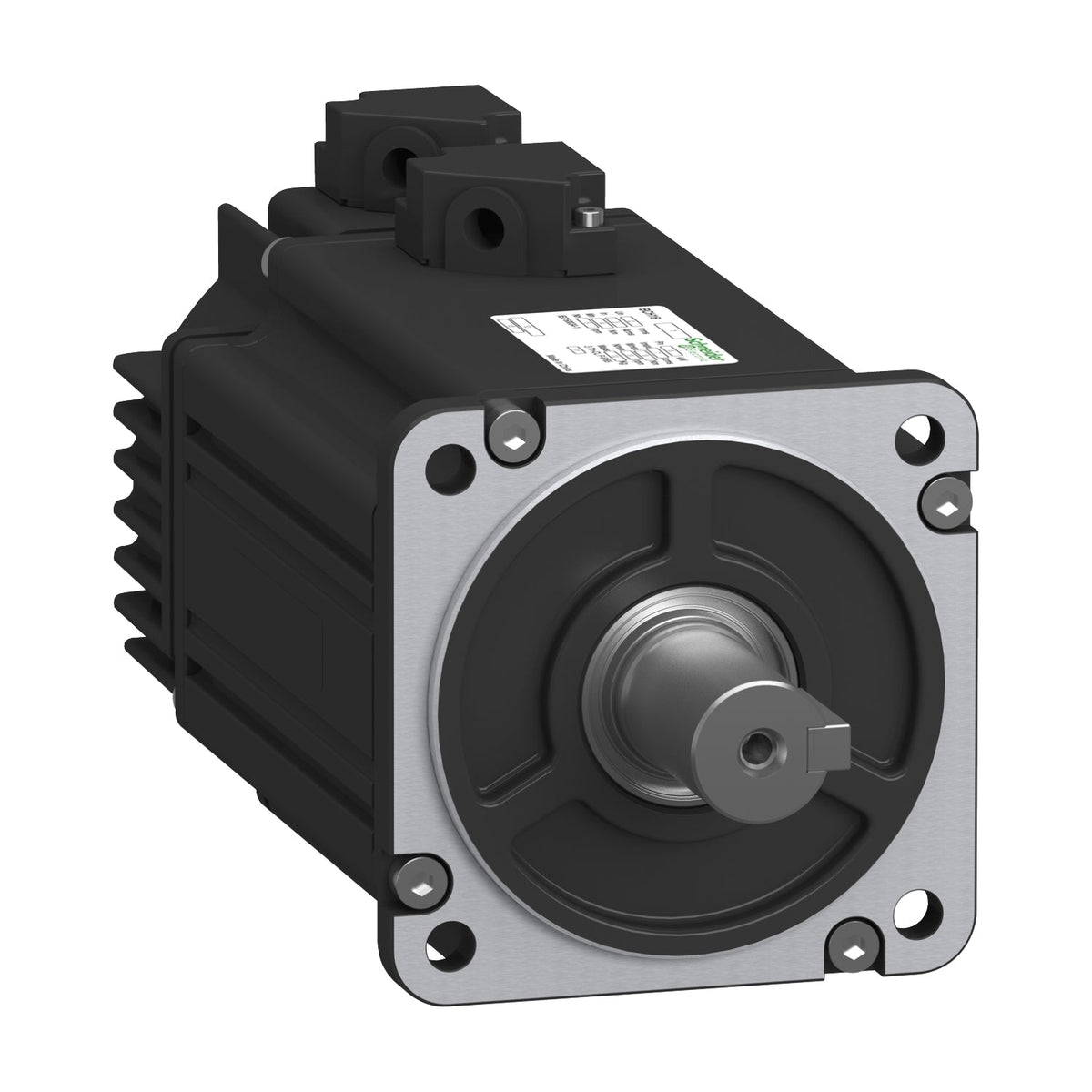

Lexium 16DSchneider Electric BCH16LF10332A5C2 Lexium 16 BCH16 1.0 kW 3.18 N·m 3000 rpm 80 mm Flange 23-Bit Servo Motor
Lexium 16D servo motor, 1.0 kW, 3.18 N.m, 80 mm flange
Description
About the BCH16
About the BCH16
The Schneider Electric BCH16LF10332A5C2 is a Lexium 16D servo motor in the BCH16 family, rated for 1.0 kW continuous output at 3000 rpm with 3.18 N.m nominal torque. It mounts on an 80 mm flange with a 19 mm keyed shaft. Position feedback comes from a 23-bit high-resolution encoder for closed-loop control with the matching drive.
Selection Notes
The BCH16LF10332A5C2 pairs an 80 mm flange with a 19 mm shaft, so it drops into machine frames sized for the 100 mm BCH16 variants only if the mounting bolt circle is re-checked — the two flange sizes are not interchangeable. The 23-bit encoder gives a finer position resolution than the 2500-line incremental version in the same frame, which matters for high-precision indexing axes; pick the incremental variant instead where the controller only needs a coarser feedback signal and cost is the deciding factor. This is the non-brake version — choose the equivalent brake variant instead whenever the load can back-drive the motor while it is de-energized, such as a vertical axis.
Applications
At 1.0 kW continuous and 3.18 N.m nominal torque, the BCH16LF10332A5C2 suits pick-and-place axes, conveyor indexing, and packaging-line servo axes driven by a Lexium 16D drive, within the 5000 rpm mechanical speed limit of this frame.
Specification
Full specification
Main 4
| Range of product | Lexium 16D |
|---|---|
| Range compatibility | Lexium 16D |
| Product or component type | Servo motor |
| Device short name | BCH16 |
Complementary 44
| Maximum mechanical speed | 5000 rpm |
|---|---|
| [Us] rated supply voltage | 220 V |
| Network number of phases | 3 phases |
| Continuous stall current | 6.8 A |
| Continuous stall torque | 3.18 N.m for LXM16D at 10.13 A, 220 V, single phase |
| Continuous power | 1000 W |
| Peak stall torque | 9.55 N.m for LXM16D at 10.13 A, 220 V, single phase |
| Nominal output power | 1000 W for LXM16D at 10.13 A, 220 V, single phase |
| Nominal torque | 3.18 N.m for LXM16D at 10.13 A, 220 V, single phase |
| Nominal speed | 3000 rpm for LXM16D at 10.13 A, 220 V, single phase |
| Maximum current Irms | 21.9 A for LXM16D at 1.0 kW, 220 V |
| Maximum permanent current | 21.8 A |
| Product compatibility | LXM16D motion servo motors motor at 1 kW, 220 V, single phase |
| Shaft end | Parallel key |
| Second shaft | Without second shaft end |
| Shaft diameter | 19 mm |
| Shaft length | 22 mm |
| Key width | 6 mm |
| Feedback type | 23 bit hight resolution encoder |
| Holding brake | Without |
| Holding torque | 6.5 N.m |
| Mounting support | Asian standard flange |
| Motor flange size | 80 mm |
| Electrical connection | Free lead |
| Torque constant | 0.51 N.m/A at 20 °C |
| Back emf constant | 31.1 V/krpm at 20 °C |
| Rotor inertia | 1.24 kg.cm² |
| Stator resistance | 0.75 Ohm at 20 °C |
| Stator inductance | 4.2 mH at 20 °C |
| Stator electrical time constant | 5.6 ms at 20 °C |
| Maximum radial force Fr | 343.98 N at 3000 rpm |
| Maximum axial force Fa | 122.3 N |
| Type of cooling | Natural convection |
| Length | 139 mm |
| Centring collar diameter | 95 mm |
| Centring collar depth | 3 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 9 mm |
| Circle diameter of the mounting holes | 115 mm |
| Distance shaft shoulder-flange | 50 mm |
| Width | 100 mm |
| Height | 153.4 mm |
| Depth | 139 mm |
| Net weight | 3.8 kg |
Environment 2
| IP degree of protection | IP65 IM B5, IM V1, IP65 IM V3 |
|---|---|
| Ambient air temperature for operation | 0…40 °C |
Show all 68 specifications ↓ Show less ↑18 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | BCH16LF10332A5C2 |
|---|---|
| Type designation | BCH16 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 10
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.5 cm |
| Package 1 Width | 17 cm |
| Package 1 Length | 27.5 cm |
| Package 1 Weight | 3.2 kg |
| Shipping weight | 3.8 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
