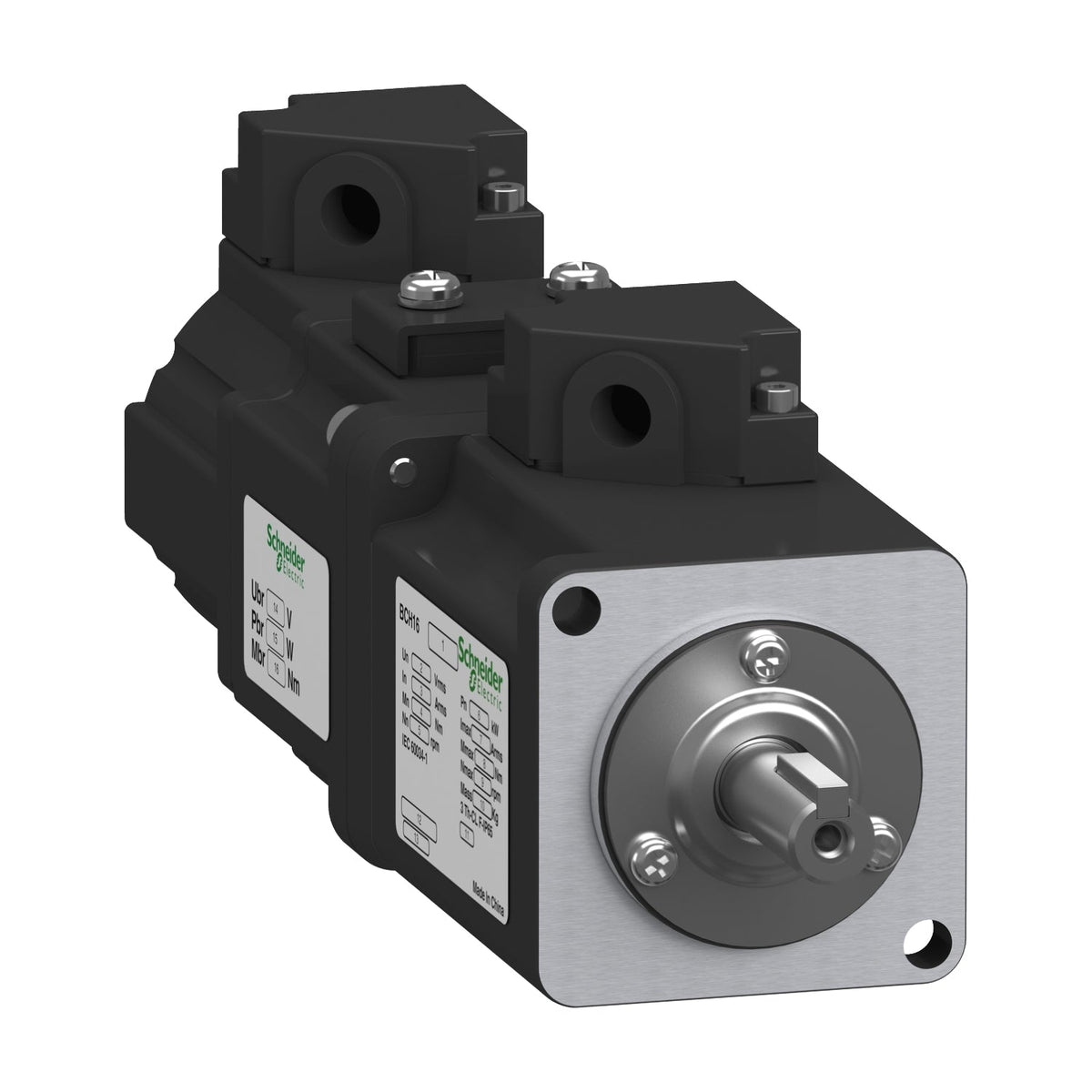

Lexium 16DSchneider Electric BCH16LB01332F5C2 Lexium 16 BCH16 100 W 0.32 N·m 3000 rpm 40 mm Brake 23-Bit Servo Motor
Schneider Electric BCH16LB01332F5C2 Lexium 16D BCH16 servo motor, 100 W, 0.32 N.m, 3000 rpm, 40 mm flange, 23-bit encoder, brake.
Description
About the BCH16
About the BCH16
Rated for 100 W at 3000 rpm with 0.32 N.m of continuous stall torque, the BCH16LB01332F5C2 is a light inertia Schneider Electric Lexium 16D BCH16 servo motor built around a 40 mm flange and a 23-bit absolute encoder. Paired with an LXM16D drive on a 220 V three-phase supply, it is housed in an IP65 enclosure with an integrated holding brake.
Selection Notes
Size the matching LXM16D drive to the 1 A continuous stall current and 2.7 A maximum Irms rating of this motor, not to the flange size alone. The 23-bit absolute encoder gives single-turn absolute position feedback, so the axis does not need a homing move after a power cycle. At light inertia (0.047 kg.cm2 rotor inertia) in a compact 40 mm frame, it suits small, fast-indexing axes such as pick-and-place or dispensing heads rather than high-inertia loads. The integrated 0.32 N.m brake holds the 8 mm shaft at standstill when drive power is removed, which matters on vertical or gravity-loaded axes; on a horizontal axis with the load otherwise constrained, the brake-less variant in the same frame saves weight and cost.
Specification
Full specification
Main 4
| Range of product | Lexium 16D |
|---|---|
| Range compatibility | Lexium 16D |
| Product or component type | Servo motor |
| Device short name | BCH16 |
Complementary 45
| Maximum mechanical speed | 5000 rpm |
|---|---|
| [Us] rated supply voltage | 220 V |
| Network number of phases | 3 phases |
| Continuous stall current | 1.0 A |
| Continuous stall torque | 0.32 N.m for LXM16D at 1.34 A, 220 V, single phase |
| Continuous power | 100 W |
| Peak stall torque | 0.95 N.m for LXM16D at 1.34 A, 220 V, single phase |
| Nominal output power | 100 W for LXM16D at 1.34 A, 220 V, single phase |
| Nominal torque | 0.32 N.m for LXM16D at 1.34 A, 220 V, single phase |
| Nominal speed | 3000 rpm for LXM16D at 1.34 A, 220 V, single phase |
| Maximum current Irms | 2.7 A for LXM16D at 0.1 kW, 220 V |
| Maximum permanent current | 3 A |
| Product compatibility | LXM16D motion servo motors motor at 0.1 kW, 220 V, single phase |
| Shaft end | Parallel key |
| Second shaft | Without second shaft end |
| Shaft diameter | 8 mm |
| Shaft length | 12.5 mm |
| Key width | 3 mm |
| Feedback type | 23 bit hight resolution encoder |
| Holding brake | With |
| Holding torque | 0.32 N.m built-in |
| Mounting support | Asian standard flange |
| Motor flange size | 40 mm |
| Electrical connection | Free lead |
| Torque constant | 0.36 N.m/A at 20 °C |
| Back emf constant | 23.7 V/krpm at 20 °C |
| Rotor inertia | 0.047 kg.cm² |
| Stator resistance | 25.4 Ohm at 20 °C |
| Stator inductance | 26.5 mH at 20 °C |
| Stator electrical time constant | 1.04 ms at 20 °C |
| Maximum radial force Fr | 73.5 N at 3000 rpm |
| Maximum axial force Fa | 12.74 N |
| Brake pull-in power | 6.2 W |
| Type of cooling | Natural convection |
| Length | 131.3 mm |
| Centring collar diameter | 30 mm |
| Centring collar depth | 2.5 mm |
| Number of mounting holes | 2 |
| Mounting holes diameter | 4.5 mm |
| Circle diameter of the mounting holes | 46 mm |
| Distance shaft shoulder-flange | 19.8 mm |
| Width | 40 mm |
| Height | 55 mm |
| Depth | 134.3 mm |
| Net weight | 0.7 kg |
Environment 2
| IP degree of protection | IP65 IM B5, IM V1, IP65 IM V3 |
|---|---|
| Ambient air temperature for operation | 0…40 °C |
Show all 69 specifications ↓ Show less ↑18 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | BCH16LB01332F5C2 |
|---|---|
| Type designation | BCH16 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 10
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.4 cm |
| Package 1 Width | 11 cm |
| Package 1 Length | 25.8 cm |
| Package 1 Weight | 850 g |
| Shipping weight | 0.7 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
