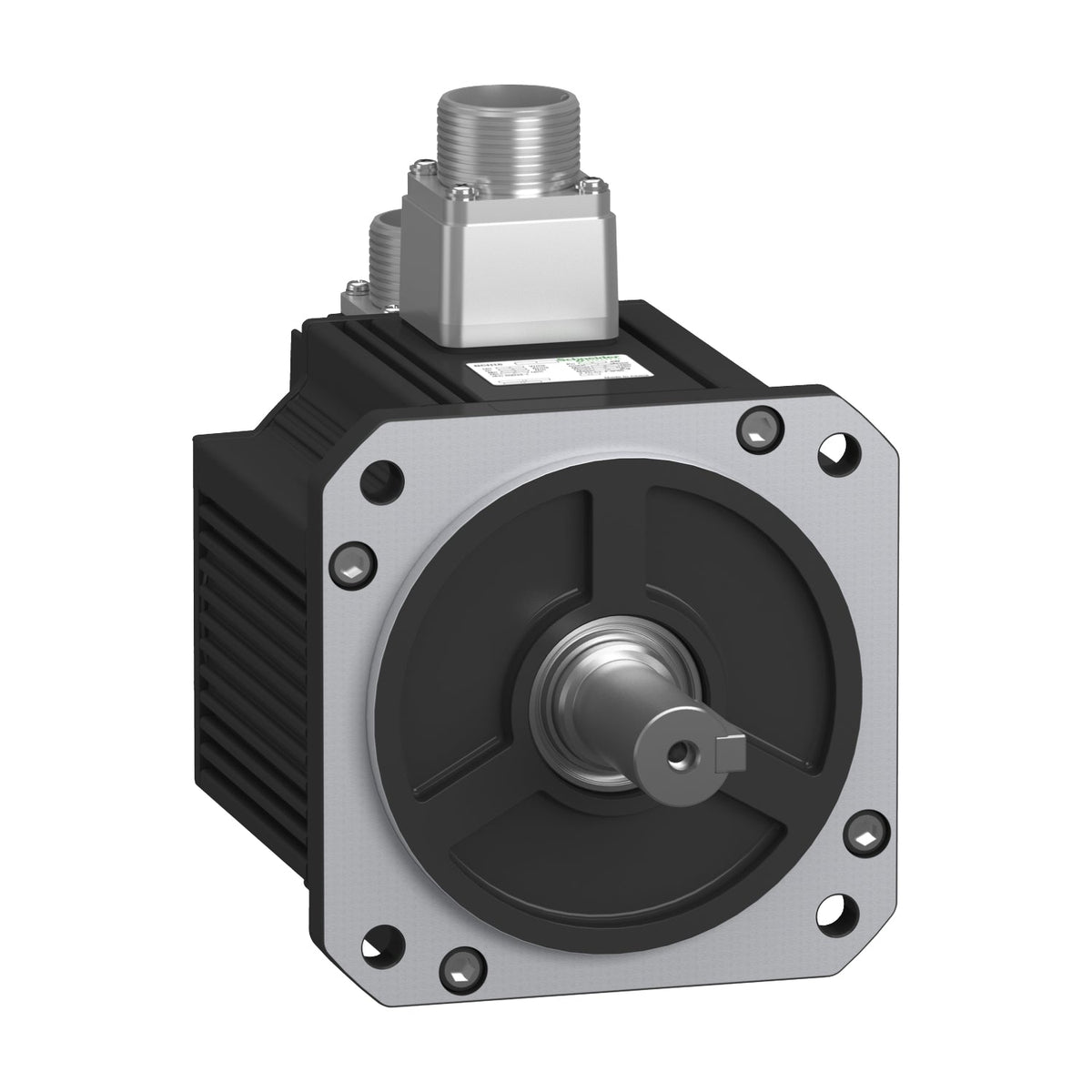

Schneider Electric BCH16HM15232A6C2 Lexium 16 BCH16 1.5 kW 7.16 N·m 2000 rpm 130 mm Flange 23-Bit Servo Motor

The Schneider Electric BCH16HM15232A6C2 is a high inertia BCH16 servo motor from the Lexium 16D range, rated for 1.5 kW continuous output at 2000 rpm with 7.16 N.m continuous stall torque. It runs on a 220 V three-phase supply through the matching LXM16D servo drive, reads position through a 23-bit absolute encoder, and ships in a 130 mm flange, IP65 frame with no holding brake.

Technical Specifications

Selection Notes

At high inertia (14.8 kg.cm2 rotor inertia), this 130 mm frame suits loads with a high reflected inertia relative to the motor, such as ballscrews or geared mechanisms, where a low-inertia motor would need closer inertia matching to the load. The 23-bit absolute encoder gives single-turn absolute position feedback, so the axis does not need a homing move after a power cycle. Without a holding brake, the load on the 22 mm shaft will drift when drive power drops out; pick the brake variant in the same 130 mm frame for vertical axes or any application that must hold position unpowered. Size the matching LXM16D drive to the 7.9 A continuous stall current and 24.9 A maximum Irms rating of this motor, not to the flange size alone.
