Schneider Electric BCH16HM08130A6C2 Lexium 16 BCH16 0.85 kW 1500 rpm 130 mm Flange Servo Motor

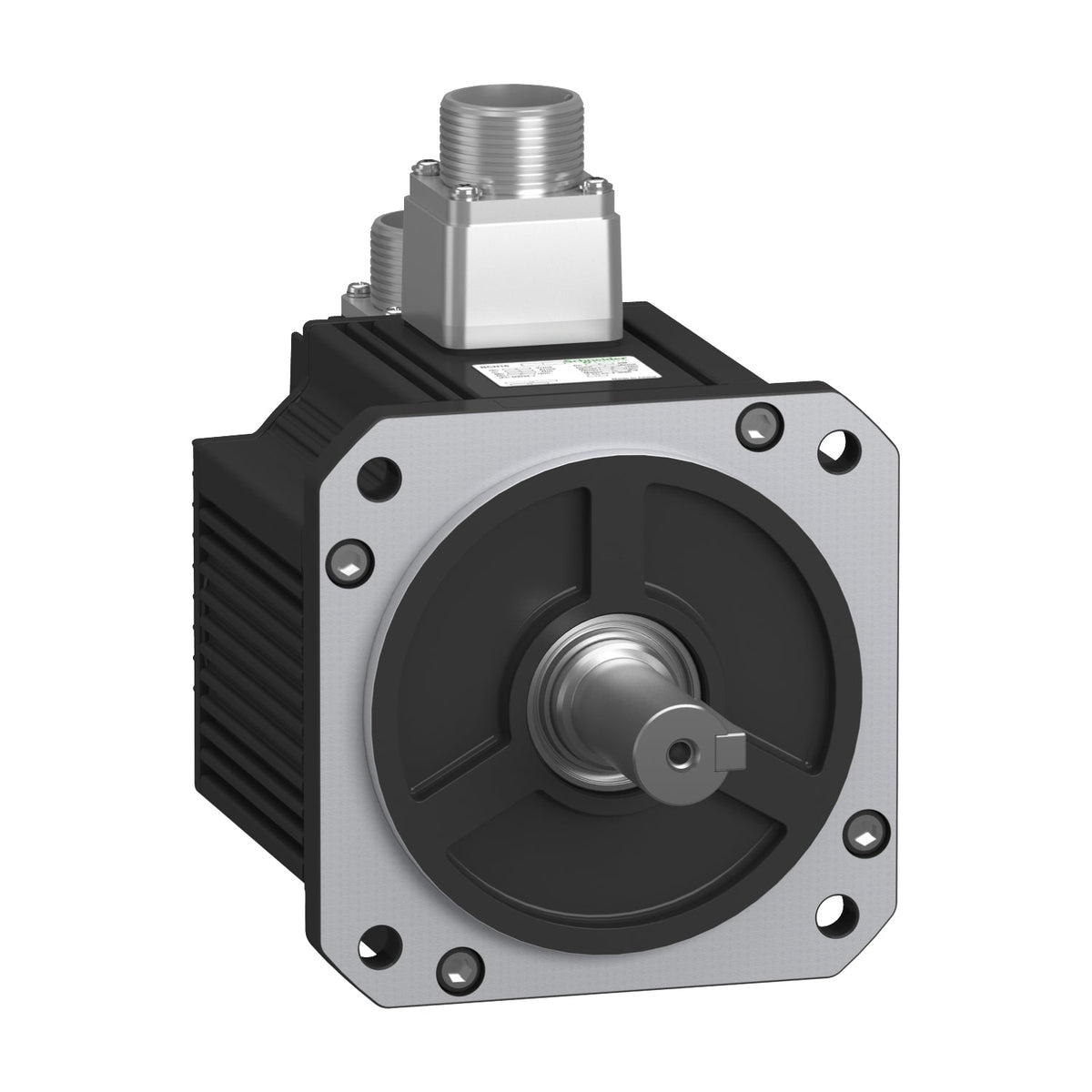

The Schneider Electric BCH16HM08130A6C2 is a Lexium 16D BCH16 servo motor rated for 0.85 kW continuous output. It delivers nominal torque at 1500 rpm (max mechanical speed 3000 rpm), draws 7.0 A continuous stall current, and mounts on a 130 mm flange with a 2500-line incremental encoder. IP65 sealing suits exposed machine-frame mounting.

Technical Specifications

Selection Notes

This high inertia BCH16 motor pairs with the 1 kW, 220 V single-phase LXM16D drive at its matched continuous rating of 7.0 A — oversizing the drive beyond this current class gains nothing since the motor itself caps continuous torque at 5.39 N·m. Without a holding brake, the axis free-wheels at power-off — pick the brake-equipped version if the application needs to hold position or load with drive power removed. The 2500 ppr incremental encoder is the standard feedback for this frame; the 23-bit encoder variant is available where finer closed-loop resolution is needed. The 22 mm parallel-key shaft and 130 mm flange are fixed for this frame size; only the encoder and brake options vary across the 130 mm BCH16 family. Peak stall torque reaches 13.8 N·m for 24.9 A acceleration bursts, so short-duration moves can draw well above the 7.0 A continuous rating without exceeding the motor’s 3 s rating.
