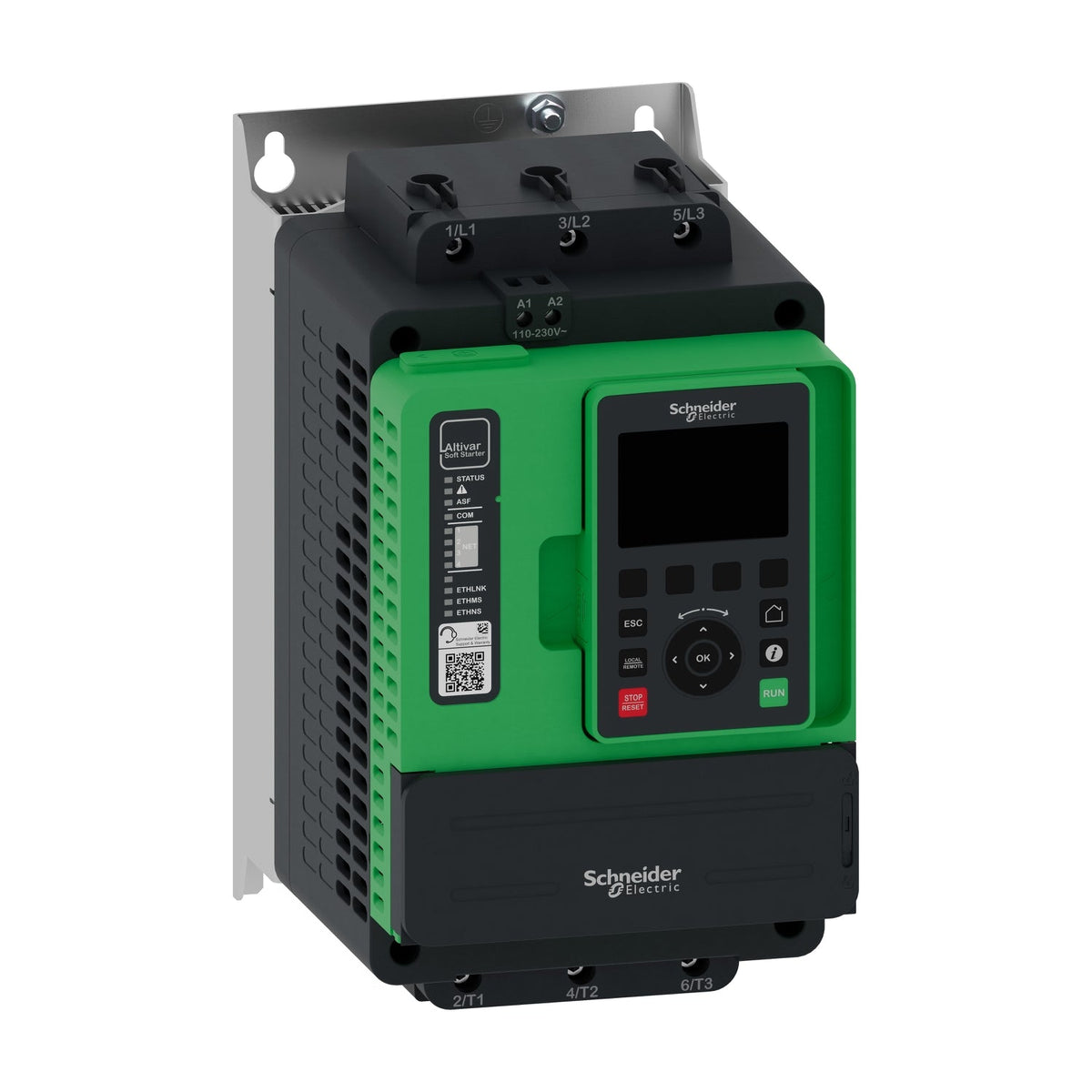

Schneider Electric ATS490D62Y Altivar ATS490 62 A 208-690V 3-Phase 30 kW Soft Starter

The Schneider Electric ATS490D62Y is a soft starter from the Altivar Soft Starter ATS490 range, built to ramp asynchronous motors smoothly from a 208-690 V AC supply. In normal duty it carries 62 A continuous (47 A in heavy duty) and drives up to 30 kW at 400 V. It integrates Safe Torque Off, native Modbus TCP/EtherNet/IP, and IP20 protection for enclosure mounting.

Technical Specifications

Certifications & Standards

• CE
• cULus
• UKCA
• RCM
• CCC
• DNV
• ATEX
• EAC
• KC
• EN/IEC 60947-4-2
• UL 60947-4-2
• IEC 60664-1

Selection Notes

The 62 A normal-duty rating covers motors up to 30 kW at 400 V; where the load runs a more demanding duty cycle, the heavy-duty curve drops to 47 A for motors up to 22 kW. The 400% Ie for 13 s overload profile sets how long the starter tolerates a stalled or jammed load before tripping, relevant when sizing against pump or conveyor startup torque. The integrated Safe Torque Off input meets SIL 1 / PL c without an external safety contactor on the motor branch.

Applications

The ATS490 range targets pumps, fans, compressors, conveyors, mixers, cutters, grinders, and crushers where a controlled, torque-limited start reduces mechanical and electrical stress at startup.
