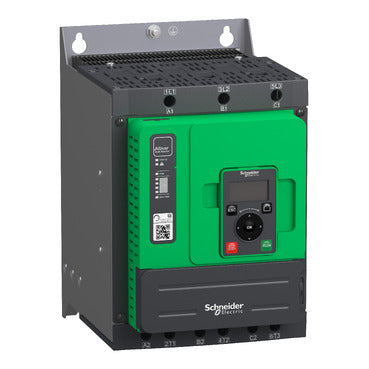

Schneider Electric ATS480D88Y Altivar ATS480 88 A 208-690 V 45 kW Soft Starter
Schneider Electric ATS480D88Y Altivar ATS480 soft starter, 88 A, 208-690 V, 45 kW at 400 V, IP20.
Description
About the ATS480
About the ATS480
The Schneider Electric ATS480D88Y is an Altivar ATS480 soft starter for 3-phase asynchronous motors, rated 88 A continuous (Ie) in normal duty across a 208-690 V AC supply. It starts and stops motors up to 45 kW at 400 V, using torque control (TCS) to manage acceleration and deceleration and DC injection for braking to standstill. The unit carries an IP20 enclosure and a built-in Modbus serial port.
Certifications & Standards
- CE
- cULus
- CCC
- UKCA
- IEC 60947-4-2
Selection Notes
Size the ATS480D88Y to the motor's full-load current, not just its kW label: 88 A covers motors up to 45 kW at 400 V in normal duty, while the 75 A heavy-duty rating (37 kW) applies to loads with longer or more frequent starts, such as conveyors or compressors. Wiring the motor into the delta terminals instead of in-line lowers the current the starter itself has to switch, which is worth doing if the application sits near the top of this frame's range. The built-in torque control (TCS) shapes acceleration and deceleration to reduce mechanical shock on pumps and fans, and the dynamic braking with DC injection brings high-inertia loads to a stop without an external brake. Step up to a higher-current ATS480 model if the driven motor's nameplate current exceeds this unit's Ie; the range shares footprint, I/O and menu structure across ratings.
Specification
Full specification
Main 16
| Range of Product | Altivar Soft Starter ATS480 |
|---|---|
| Product or Component Type | Soft starter |
| Product destination | Asynchronous motors |
| Product Specific Application | Process and infrastructures |
| Device short name | ATS480 |
| Phase | 3 phase |
| Utilisation category | AC-3A, AC-53A |
| Ue power supply voltage | 208...690 V - 15...10 % |
| power supply frequency | 50...60 Hz - 20...20 % |
| [Ie] rated operational current | Normal duty 88.0 A 104 °F (40 °C)) |
| rated current in heavy duty | 75.0 A at 104 °F (40 °C) heavy duty |
| Torque control | True |
| IP Degree of Protection | IP20 |
| Motor power kW | 22.0 kW 230 V in the motor supply line normal duty, 18.5 kW 230 V in the motor supply line heavy duty, 45.0 kW 400 V in the motor supply line normal duty, 37.0 kW 400 V in the motor supply line heavy duty, 45.0 kW 440 V in the motor supply line normal duty, 37.0 kW 440 V in the motor supply line heavy duty, 55.0 kW 500 V in the motor supply line normal duty, 45.0 kW 500 V in the motor supply line heavy duty, 55.0 kW 525 V in the motor supply line normal duty, 45.0 kW 525 V in the motor supply line heavy duty, 75.0 kW 660 V in the motor supply line normal duty, 55.0 kW 660 V in the motor supply line heavy duty, 75.0 kW 690 V in the motor supply line normal duty, 55.0 kW 690 V in the motor supply line heavy duty, 45.0 kW 230 V to the motor delta terminals normal duty, 37.0 kW 230 V to the motor delta terminals heavy duty, 75.0 kW 400 V to the motor delta terminals normal duty, 55.0 kW 400 V to the motor delta terminals heavy duty |
| Maximum Horse Power Rating | 25.0 hp 208 V normal duty, 20.0 hp 208 V heavy duty, 30.0 hp 230 V normal duty, 25.0 hp 230 V heavy duty, 60.0 hp 460 V normal duty, 50.0 hp 460 V heavy duty, 75.0 hp 575 V normal duty, 60.0 hp 575 V heavy duty |
| Option card | Communication module Profibus DP V1, Communication module Modbus TCP/EtherNet/IP, Communication module CANopen daisy chain, Communication module CANopen Sub-D, Communication module CANopen open style, Communication module PROFINET |
Complementary 46
| Device connection | In the motor supply line, To the motor delta terminals |
|---|---|
| [Us] control circuit voltage | 110...230 V AC 50/60 Hz - 15...10 % |
| Apparent power | 0.09 kVA |
| Integrated motor overload protection | True |
| motor thermal protection class | Class 10E |
| Protection type | Phase failure line, Integrated thermal protection motor, Thermal protection starter, Current overload motor, Underload motor, Excessive starting time, locked rotor motor, Motor phase loss motor, Line supply phase loss line, Line supply phase loss motor, Thermal protection motor |
| current limiting %In (5 x Ie maximum) | 150…700 % |
| [In] Rated current pwr loss specifctn | 88.0 A |
| Power loss static current independent | 25.0 W |
| Power loss per device current dependent | 270.0 W |
| Standards | IEC 60947-4-2, UL 60947-4-2, IEC 60664-1 |
| Product Certifications | CE, cULus, CCC, UKCA, RCM, EAC, DNV, ABS, BV, CCS |
| Marking | CE, CCC, UKCA, EAC, RCM, CULus |
| [Uc] control circuit voltage | 24 V DC |
| Discrete input number | 4 |
| Discrete input type | STOP) logic inputs, 3500 Ohm, RUN) logic inputs, 3500 Ohm, DI3) programmable as logic input, 3500 Ohm, DI4) programmable as logic input, 3500 Ohm |
| Input compatibility | STOP discrete input level 1 PLC IEC 61131-2, RUN discrete input level 1 PLC IEC 61131-2, DI3 discrete input level 1 PLC IEC 61131-2, DI4 discrete input level 1 PLC IEC 61131-2 |
| Discrete input logic | Programmable digital input < 5 V |
| Relay output number | 3 |
| Relay output type | Relay outputs R1A 1 NO, Relay outputs R1B 1 NO, Relay outputs RIC NO/NC programmable |
| Minimum switching current | 100 mA 12 V DC relay outputs |
| Maximum switching current | Relay outputs 2 A 250 V AC, Relay outputs 2 A 30 V DC, Relay outputs |
| Discrete output number | 2 |
| Discrete output type | DQ1) programmable digital output <= 30 V, DQ2) programmable digital output <= 30 V |
| Output compatibility | Open collector level 1 PLC IEC 65A-68 |
| Analogue input number | 1 |
| Analogue input type | AI1/PTC PTC/Pt 100 temperature probe, PTC2 PTC/Pt 100 temperature probe, PTC3 PTC/Pt 100 temperature probe |
| Analogue output number | 1 |
| Analogue output type | Current output AQ1 0...20 mA or 0...10 V 500 Ohm |
| Communication Port Protocol | Modbus serial |
| Connector Type | 1 RJ45 |
| Communication data link | Serial |
| Physical interface | 2-wire RS 485 |
| Transmission Rate | 1200...256000 bit/s |
| Transmission frame | RTU |
| Data format | 8 bits, configurable odd, even or no parity |
| Type of polarization | No impedance Modbus serial |
| Number of addresses | 0…227 Modbus serial |
| Method of access | Slave Modbus serial |
| Function Available | External bypass control, Pre-heating, Smoke extraction, Multi-motor cascade, Second motor set, User management, Ports and services hardening, Security event logging, Cybersecure firmware update, Single direction |
| Display screen available | True |
| Operating position | Vertical +/- 10 degree |
| Height | 11.4 in (290.0 mm) |
| Width | 7.5 in (190.0 mm) |
| Depth | 9.7 in (247.0 mm) |
| Net Weight | 18.3 lb(US) (8.3 kg) |
Environment 18
| Electromagnetic compatibility | Conducted and radiated emissions level A conforming to IEC 60947-4-2, Conducted and radiated emissions with bypass level B conforming to IEC 60947-4-2, Damped oscillating waves level 3 conforming to IEC 61000-4-12, Electrostatic discharge level 3 conforming to IEC 61000-4-11, Immunity to electrical transients level 4 conforming to IEC 61000-4-4, Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, Voltage/current impulse level 3 conforming to IEC 61000-4-5 |
|---|---|
| Pollution degree | Level 3 |
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Ui] Rated Insulation Voltage | 690 V |
| Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3, Class 3S2 according to IEC 60721-3-3 |
| Relative humidity | 0…95 % without condensation or dripping water IEC 60068-2-3 |
| Ambient air temperature for operation | 104…140 °F (40…60 °C) (with current derating of 2 % per °C), 5…104 °F (-15…40 °C) (without derating) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Operating altitude | <= 3280.84 ft (1000 m) without derating, > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
| Maximum deflection under vibratory load (during storage) | 1.75 mm at 2...9 Hz |
| Maximum deflection under vibratory load (during transport) | 1.75 mm at 2...9 Hz |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
| Maximum acceleration under vibratory load (during storage) | 15 m/s² at 200...500 Hz, 10 m/s² at 9...200 Hz |
| Maximum acceleration under vibratory load (during transport) | 15 m/s² at 200...500 Hz, 10 m/s² at 9...200 Hz |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Maximum acceleration under shock load (during storage) | 100 m/s² at 11 ms |
| Maximum acceleration under shock load (during transport) | 100 m/s² at 11 ms |
Show all 94 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | ATS480D88Y |
|---|---|
| Type designation | ATS480 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606481089069 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 8.3 kg |
| Ships from | Türkiye |
| Dispatch | 12 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for ATS480D88Y
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- cULus
- CE
- UKCA
- CCC
- EAC
- IEC 60947-4-2
- UL 60947-4-2
- IEC 60664-1
Quick answers
Questions about the ATS480
What is the rated current of ATS480?
The rated current of ATS480 is 88 A.
Which supply voltage is ATS480 rated for?
The rated operational voltage of ATS480 is 208–690 V AC.
What motor power is ATS480 rated for?
The rated motor power of ATS480 is 45 kW.
Which control voltage does ATS480 need?
The control voltage range of ATS480 is 110–230 V.
What is the HS code of ATS480 for customs?
The tariff (HS) code on file for ATS480 is 853710.
What is the EAN of ATS480?
The EAN (GTIN) of ATS480 is 3606481089069.
Where does ATS480 ship from, and how fast?
ATS480 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
