- Part number
- 9001KS43K5R
- Model no
- 9001K
Description
About the 9001K
About the 9001K

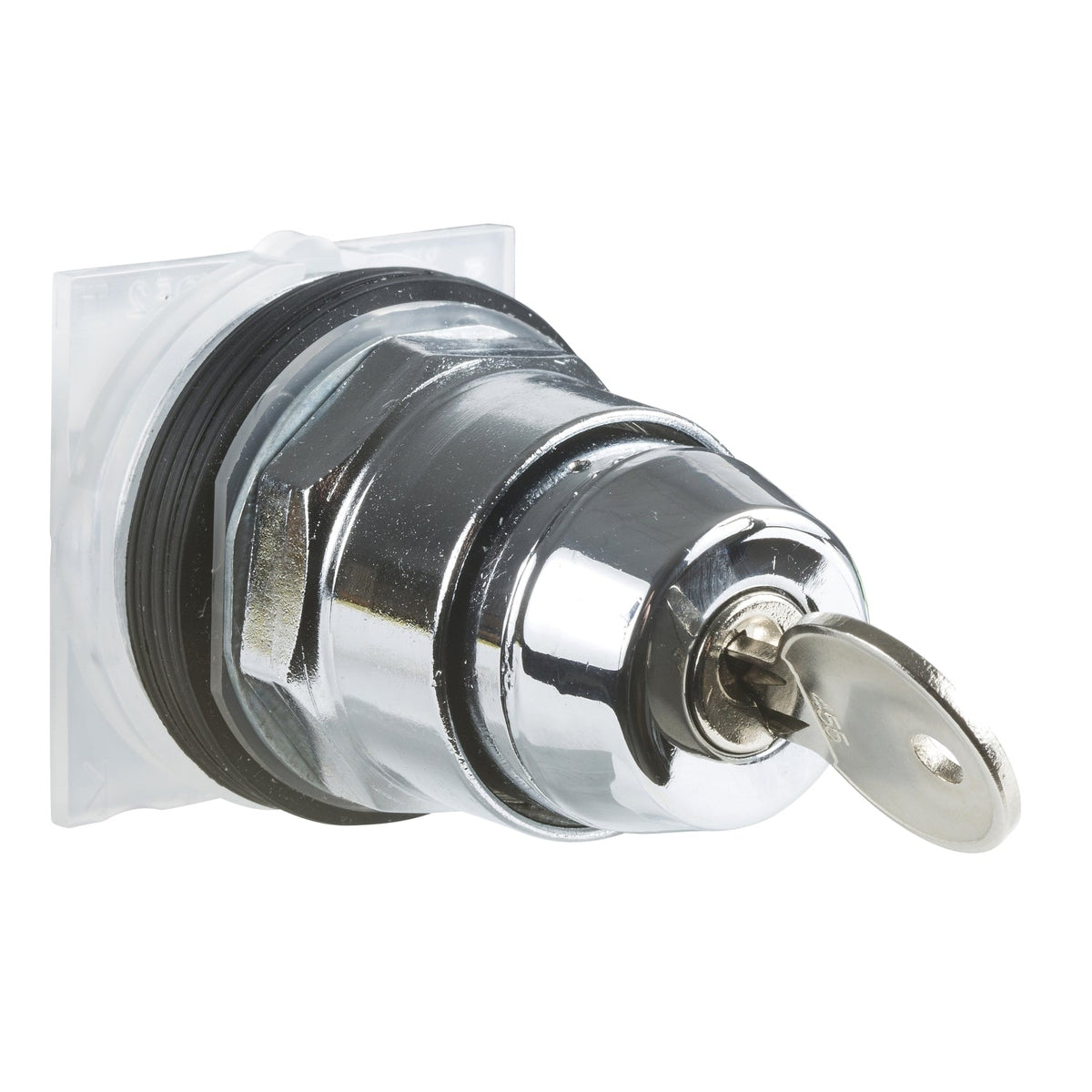

The Schneider Electric 9001KS43K5R is a 3-position Harmony 9001K key-operated selector head using Ronis key E10, withdrawable at the centre position. Supplied as a basic element without a contact block, it mounts on a 30 mm panel cut-out and pairs with a 9001K contact block to lock a three-state function to key holders.
Certifications & Standards
- NEMA
- UL 508
- CSA C22.2 No. 14
- IEC 60947-5-4
- JIS C 852
- IEC 60947-5-1
- IEC 60947-1
- JIS C 4520
Selection Notes
Centre-position key withdrawal (Ronis key E10) lets an operator lock the switch at its neutral/off state while leaving it free to move between the two outer positions when the key is inserted, which differs from the 9001KS11K1R’s left-only withdrawal and suits applications where the neutral state is the one to secure. Cam profile 3 matches the same 3-position 9001K contact blocks used on the handle-operated 9001KS43FB. As a head-only basic element it still needs a separately ordered 9001KA1-compatible contact block to complete the switching function.
Specification
Full specification
Main 5
| Range of Product | Harmony 9001K |
|---|---|
| Product or Component Type | Head for key selector switch |
| Device short name | 9001K |
| Type of operator | stay put |
| Operator profile | key switch |
Complementary 16
| Bezel material | Metal |
|---|---|
| Mounting diameter | 1.2 in (30 mm) |
| Net Weight | 0.516 lb(US) (0.234 kg) |
| Shape of signaling unit head | Octagonal |
| Operator position information | 3 positions |
| Type of Keylock | Key |
| Key number | E10 |
| Key withdrawal position | Center |
| Contacts type and composition | Without contact block |
| Mechanical durability | 0.5 Mcycles |
| Product compatibility | 9001KA1 side 1 or 2 |
| Device presentation | Basic element |
| Operator profile | Key switch |
| Type of operator | Stay put |
| Size | 30 mm |
| Cam profile | 3 |
Environment 10
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Overvoltage category | Class II conforming to IEC 61140 |
| IP Degree of Protection | IP65/IP66 |
| NEMA degree of protection | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4 |
| Standards | IEC 60947-5-4, UL 508, JIS C 852, CSA C22.2 No 14, IEC 60947-5-1, JIS C 4520, IEC 60947-1 |
| Product Certifications | UL 508, NEMA |
| Vibration resistance | 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn IEC 60068-2-27 |
Show all 45 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | 9001KS43K5R |
|---|---|
| Type designation | 9001K |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 047569000126 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | MX |
|---|---|
| Shipping weight | 0.234 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 9001KS43K5R
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- IEC 60947-5-4
- UL 508
- JIS C 852
- CSA C22.2 No 14
- IEC 60947-5-1
- JIS C 4520
- IEC 60947-1
Quick answers
Questions about the 9001K
What is the HS code of 9001K for customs?
The tariff (HS) code on file for 9001K is 853650.
What is the EAN of 9001K?
The EAN (GTIN) of 9001K is 047569000126.
Where does 9001K ship from, and how fast?
9001K ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
