Part number
9001KS11K1R
Model no
9001K
$93.93 On request Dispatch — · From TürkiyeGet a Quote
Harmony 9001K

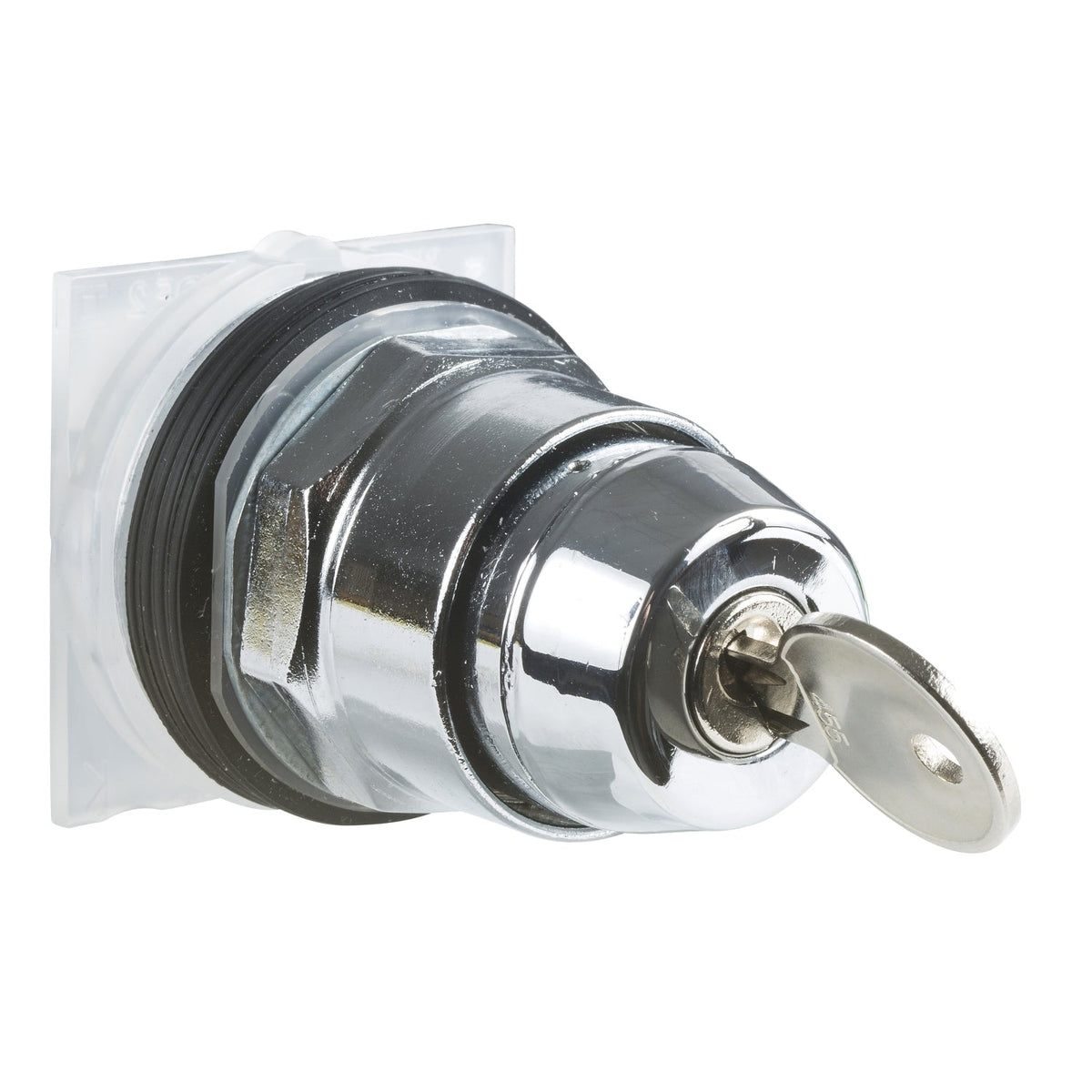

Schneider Electric 9001KS11K1R Harmony 9001K Key Switch Head Metal 30 mm 2-Position Key 455 Selector Switch

Harmony 9001K 2-position key selector head, key 455, left withdrawal, stay put.

Range of Product
Harmony 9001K
Product or Component Type
Head for key selector switch
Device short name
9001K
Type of operator
stay put
Operator profile
key switch
EAN
785901831273
Description

About the 9001K

The Schneider Electric 9001KS11K1R is a 2-position Harmony 9001K key-operated selector head using key number 455, withdrawable in the left position. Supplied as a basic element without a contact block, it mounts on a 30 mm panel cut-out and pairs with a 9001K or 9001SK contact block to restrict mode changes to key holders.

Certifications & Standards

  • NEMA
  • UL 508
  • CSA C22.2 No. 14
  • IEC 60947-5-4
  • JIS C 852
  • IEC 60947-5-1
  • IEC 60947-1
  • JIS C 4520

Selection Notes

Key number 455, withdrawable only in the left position, means the key can be removed to lock the switch in that position and restricts the second position to authorized personnel holding a matching key — the reason to pick a key head over the handle-operated 9001KS11FB where mode changes must be controlled. Cam profile 5 matches the 2-position 9001K contact blocks (including 9001KA1 and 9001KA2), so the same contact block family used on the handle version also fits this key head. As a basic element it still needs a separately ordered contact block to complete the switching function.

Specification

Full specification

45 values · Last verified 30 Oct 2026

Main 5

Range of Product Harmony 9001K
Product or Component Type Head for key selector switch
Device short name 9001K
Type of operator stay put
Operator profile key switch

Complementary 16

Bezel material Metal
Mounting diameter 1.2 in (30 mm)
Net Weight 0.456 lb(US) (0.207 kg)
Shape of signaling unit head Octagonal
Operator position information 2 positions
Type of Keylock Key
Key number 455
Key withdrawal position Left
Contacts type and composition Without contact block
Mechanical durability 0.5 Mcycles
Product compatibility 9001KA1 side 1 or 2, 9001KA2 side 1 or 2
Device presentation Basic element
Operator profile Key switch
Type of operator Stay put
Size 30 mm
Cam profile 5

Environment 10

Protective treatment TC
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -13…158 °F (-25…70 °C)
Overvoltage category Class II conforming to IEC 61140
IP Degree of Protection IP65/IP66
NEMA degree of protection NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
Standards JIS C 852, IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-1, UL 508, IEC 60947-5-4, JIS C 4520
Product Certifications NEMA, UL 508
Vibration resistance 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn IEC 60068-2-27
Show all 45 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number 9001KS11K1R
Type designation 9001K
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 785901831273

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin MX
Shipping weight 0.207 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 9001KS11K1R

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • JIS C 852
  • IEC 60947-1
  • CSA C22.2 No 14
  • IEC 60947-5-1
  • UL 508
  • IEC 60947-5-4
  • JIS C 4520
Quick answers

Questions about the 9001K

What is the HS code of 9001K for customs?

The tariff (HS) code on file for 9001K is 853650.

What is the EAN of 9001K?

The EAN (GTIN) of 9001K is 785901831273.

Where does 9001K ship from, and how fast?

9001K ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
