Part number
9001KS11FB
Model no
9001K
$65.15 On request Dispatch — · From TürkiyeGet a Quote
Harmony 9001K

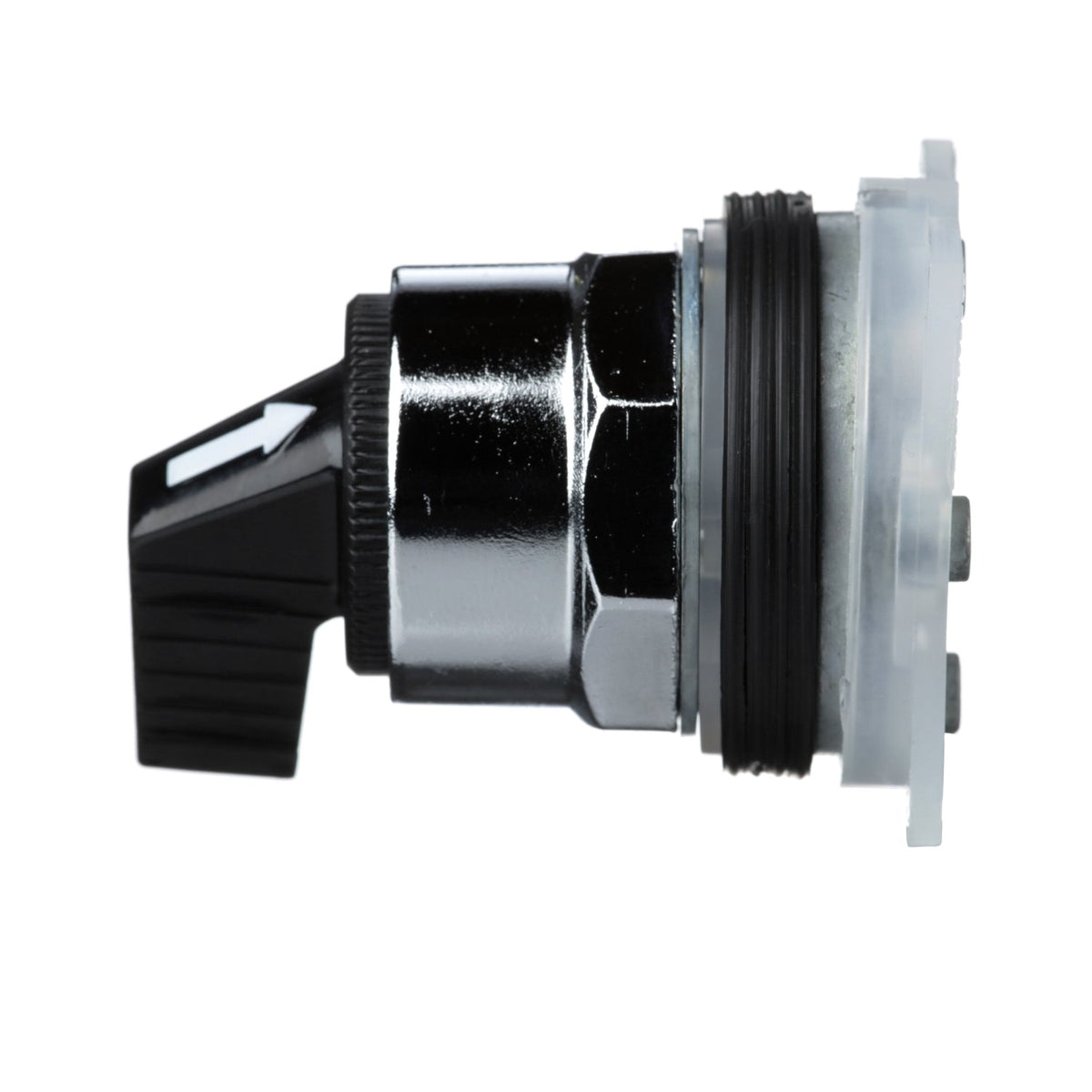

Schneider Electric 9001KS11FB Harmony 9001K Head Metal Black 30 mm 2-Position Stay Put Selector Switch

Harmony 9001K 2-position selector switch head, black long handle, stay put, IP66.

Range of Product
Harmony 9001K
Product or Component Type
Head for selector switch
Device short name
9001K
Type of operator
stay put
Operator profile
Black long handle
EAN
785901322900
Description

About the 9001K

The Schneider Electric 9001KS11FB is a 2-position Harmony 9001K selector switch head with a black long handle and stay-put mechanism. Supplied as a basic element without a contact block, it mounts on a 30 mm panel cut-out and pairs with a separate 9001K contact block such as the 9001KA2 to form a complete switching device.

Certifications & Standards

  • NEMA
  • UL 508
  • CSA C22.2 No. 14
  • IEC 60947-5-4
  • JIS C 852
  • IEC 60947-5-1
  • IEC 60947-1
  • JIS C 4520

Selection Notes

As a head-only "basic element", this selector requires a separately ordered 9001K contact block (compatible with 9001KA2) to make a working switch, so it is the choice when assembling a custom NO/NC combination rather than buying a pre-configured complete device. The 2-position stay-put mechanism holds the handle in either position until manually moved, suited to mode-select functions such as local/remote or manual/auto. Cam profile 5 sets the actuation points for the paired contact block and must match when substituting a different 9001K head.

Specification

Full specification

43 values · Last verified 30 Oct 2026

Main 5

Range of Product Harmony 9001K
Product or Component Type Head for selector switch
Device short name 9001K
Type of operator stay put
Operator profile Black long handle

Complementary 14

Bezel material Metal
Mounting diameter 1.2 in (30 mm)
Net Weight 0.379 lb(US) (0.172 kg)
Shape of signaling unit head Octagonal
Operator position information 2 positions
Contacts type and composition Without contact block
Mechanical durability 0.5 Mcycles
Product compatibility 9001KA2 side 1 or 2
Device presentation Basic element
Cap/operator or lens colour Black
Operator profile Long handle
Type of operator Stay put
Size 30 mm
Cam profile 5

Environment 10

Protective treatment TC
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -13…158 °F (-25…70 °C)
Overvoltage category Class II conforming to IEC 61140
IP Degree of Protection IP65/IP66
NEMA degree of protection NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
Standards CSA C22.2 No 14, IEC 60947-5-4, JIS C 852, IEC 60947-5-1, IEC 60947-1, JIS C 4520, UL 508
Product Certifications NEMA, UL 508
Vibration resistance 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn IEC 60068-2-27
Show all 43 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number 9001KS11FB
Type designation 9001K
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 785901322900

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin MX
Shipping weight 0.172 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 9001KS11FB

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA C22.2 No 14
  • IEC 60947-5-4
  • JIS C 852
  • IEC 60947-5-1
  • IEC 60947-1
  • JIS C 4520
  • UL 508
Quick answers

Questions about the 9001K

What is the HS code of 9001K for customs?

The tariff (HS) code on file for 9001K is 853650.

What is the EAN of 9001K?

The EAN (GTIN) of 9001K is 785901322900.

Where does 9001K ship from, and how fast?

9001K ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
