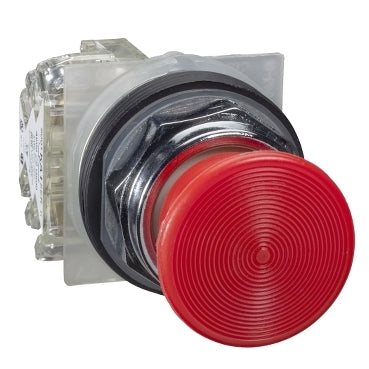

Schneider Electric 9001KR24RH13 Harmony 9001K 35mm Red Mushroom Spring-Return Push Button

The Schneider Electric 9001KR24RH13 is a Harmony 9001K push button with a 35 mm red mushroom head, metal bezel, and spring-return operation. It mounts in a 30 mm cutout, carries 1 C/O (1 NO + 1 NC) contacts rated 3 A at 240 V AC-15, and is IP66-rated for washdown-adjacent control panels.

Technical Specifications

Certifications & Standards

• NEMA
• UL 508
• IEC 60947-5-1
• IEC 60947-1
• IEC 60947-5-4
• JIS C 4520
• JIS C 852
• CSA C22.2 No 14

Selection Notes

The 9001KR24RH13 pairs a 35 mm red mushroom head with spring-return action, so the operator pops back out after release rather than latching - useful where a process needs a momentary, repeatable stop/restart rather than a maintained stop. Red is the conventional color for stop, reset, or alarm-acknowledge actuators, helping an operator locate the function by color alone. Its metal bezel and IP66 sealing suit washdown-adjacent panels. The 1 C/O contact block (without positive opening) covers general pilot-duty switching at 3 A / 240 V AC-15; where the mushroom head needs to serve a certified safety-stop function, a variant rated with positive opening is the correct choice instead.

Applications

Mounted on 30 mm control-panel cutouts as a highly visible stop, reset, or alarm-acknowledge actuator on conveyor, packaging, and general machine-control stations.
