Part number
9001KR1GH13
Model no
9001K
$43.64 On request Dispatch — · From TürkiyeGet a Quote
Harmony 9001K

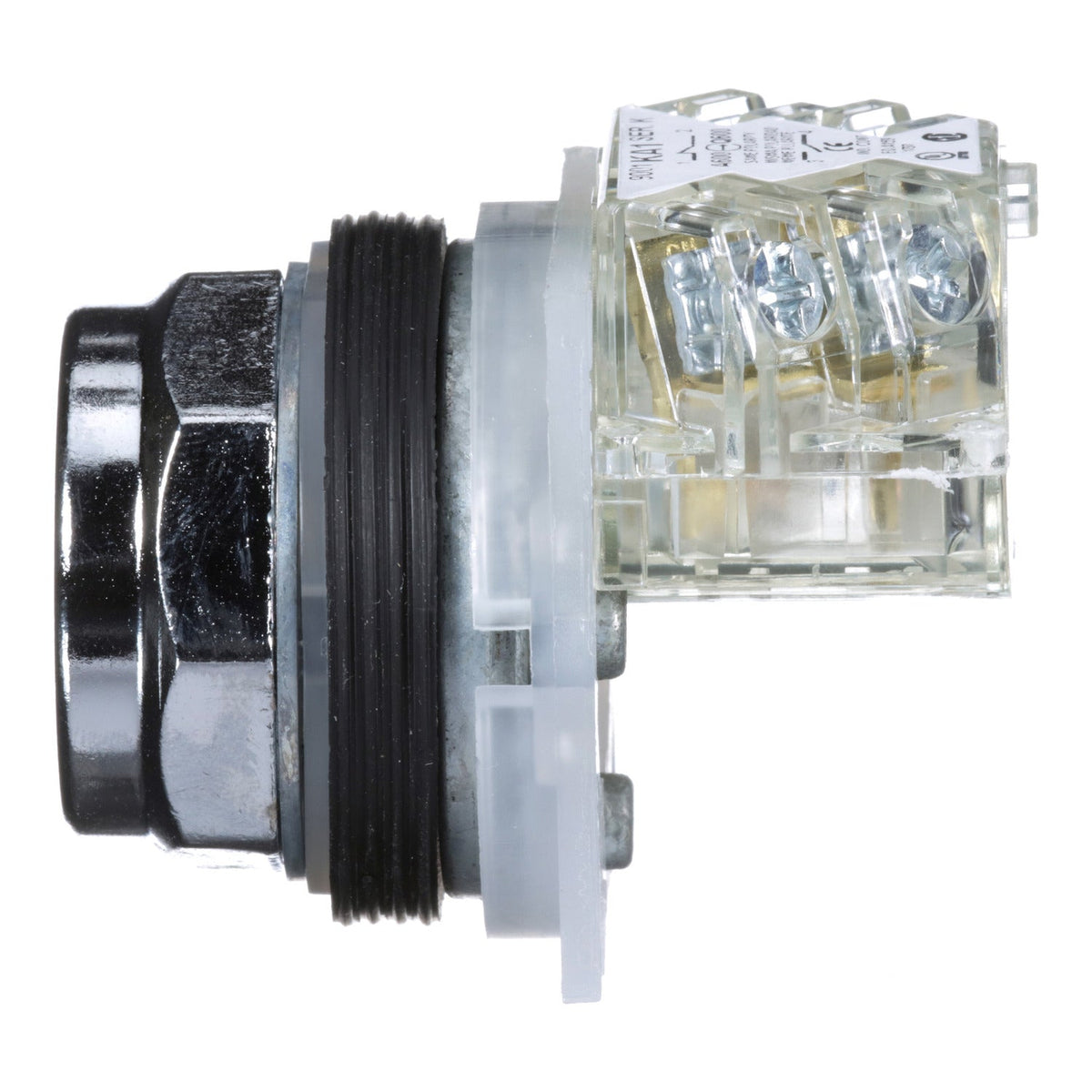

Schneider Electric 9001KR1GH13 Harmony 9001K Metal Flush Green 30 mm Full Guard 1NO+1NC Push Button

Harmony 9001K green flush push button, metal guard, 1NO+1NC, IP66, 30 mm.

Range of Product
Harmony 9001K
Product or Component Type
Push-button
Device short name
9001K
Type of operator
spring return
Operator profile
Green flush, unmarked
Operator additional information
Metal guard
EAN
785901033332
Description

About the 9001K

The Schneider Electric 9001KR1GH13 is a green Harmony 9001K flush push button with a metal guard ring, switching 1 NO + 1 NC on a spring-return octagonal body. Built for 30 mm panel cut-outs, it carries a 3 A AC-15 rating at 240 V and an IP65/IP66 enclosure for heavy-duty industrial control stations.

Certifications & Standards

  • UL 508
  • NEMA
  • IEC 60947-1
  • JIS C 4520
  • IEC 60947-5-1
  • CSA C22.2 No. 14
  • JIS C 852
  • IEC 60947-5-4

Selection Notes

The 1 C/O contact gives a simultaneous NO and NC signal from one actuation, useful where a start command and an interlock status need to be read from the same button. The metal guard ring around the green flush head protects against accidental activation on crowded panels, which is the reason to pick this guarded variant over the plain flush 9001K push button. Its 3 A AC-15 rating at 240 V covers direct control-relay or contactor-coil switching without an interposing relay.

Specification

Full specification

59 values · Last verified 30 Oct 2026

Main 6

Range of Product Harmony 9001K
Product or Component Type Push-button
Device short name 9001K
Type of operator spring return
Operator profile Green flush, unmarked
Operator additional information Metal guard

Complementary 29

Bezel material Metal
Mounting diameter 1.2 in (30 mm)
Shape of signaling unit head Octagonal
Contacts type and composition 1 C/O
Connections - terminals Screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Tightening torque 7.08 lbf.in (0.8 N.m) IEC 60947-1
shape of screw head Cross slotted
Mechanical durability 5000000 cycles
Operating position Any position
[Ie] rated operational current 3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA
[Ui] rated insulation voltage 250 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 2.5 kV IEC 60947-1
Contacts material Silver alloy contacts
Contact operation Standard
Positive opening Without
Short-circuit protection 10 A cartridge fuse IEC 60947-5-1
[Ith] conventional free air thermal current 10 A
[Icm] rated short-circuit making capacity 12 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13
Rated breaking capacity 3 kA 240 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 1.2 kA 600 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13
Terminals description ISO n°1 (13-14-11-12)OF
CAD overall width 1.9 in (48 mm)
CAD overall height 1.8 in (45 mm)
CAD overall depth 2.2 in (56 mm)
Net Weight 0.267 lb(US) (0.121 kg)
Device presentation Complete product
Cap/operator or lens colour Green
Operator profile Flush
Type of operator Spring return
Size 30 mm

Environment 10

Standards IEC 60947-1, JIS C 4520, IEC 60947-5-1, CSA C22.2 No 14, JIS C 852, IEC 60947-5-4
Product Certifications UL 508, NEMA
Protective treatment TC
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -13…158 °F (-25…70 °C)
Vibration resistance 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn IEC 60068-2-27
Electrical shock protection class Class II conforming to IEC 61140
IP Degree of Protection IP65/IP66
NEMA degree of protection NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
Show all 59 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number 9001KR1GH13
Type designation 9001K
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 785901033332

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin MX
Shipping weight 0.121 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 9001KR1GH13

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • IEC 60947-1
  • JIS C 4520
  • IEC 60947-5-1
  • CSA C22.2 No 14
  • JIS C 852
  • IEC 60947-5-4
Quick answers

Questions about the 9001K

What is the HS code of 9001K for customs?

The tariff (HS) code on file for 9001K is 853650.

What is the EAN of 9001K?

The EAN (GTIN) of 9001K is 785901033332.

Where does 9001K ship from, and how fast?

9001K ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
