ABB GJL1311001R8100 B7-30-10-80 3-Pole 20A 220-240V AC 5.5kW Mini Power Contactor AC Switching

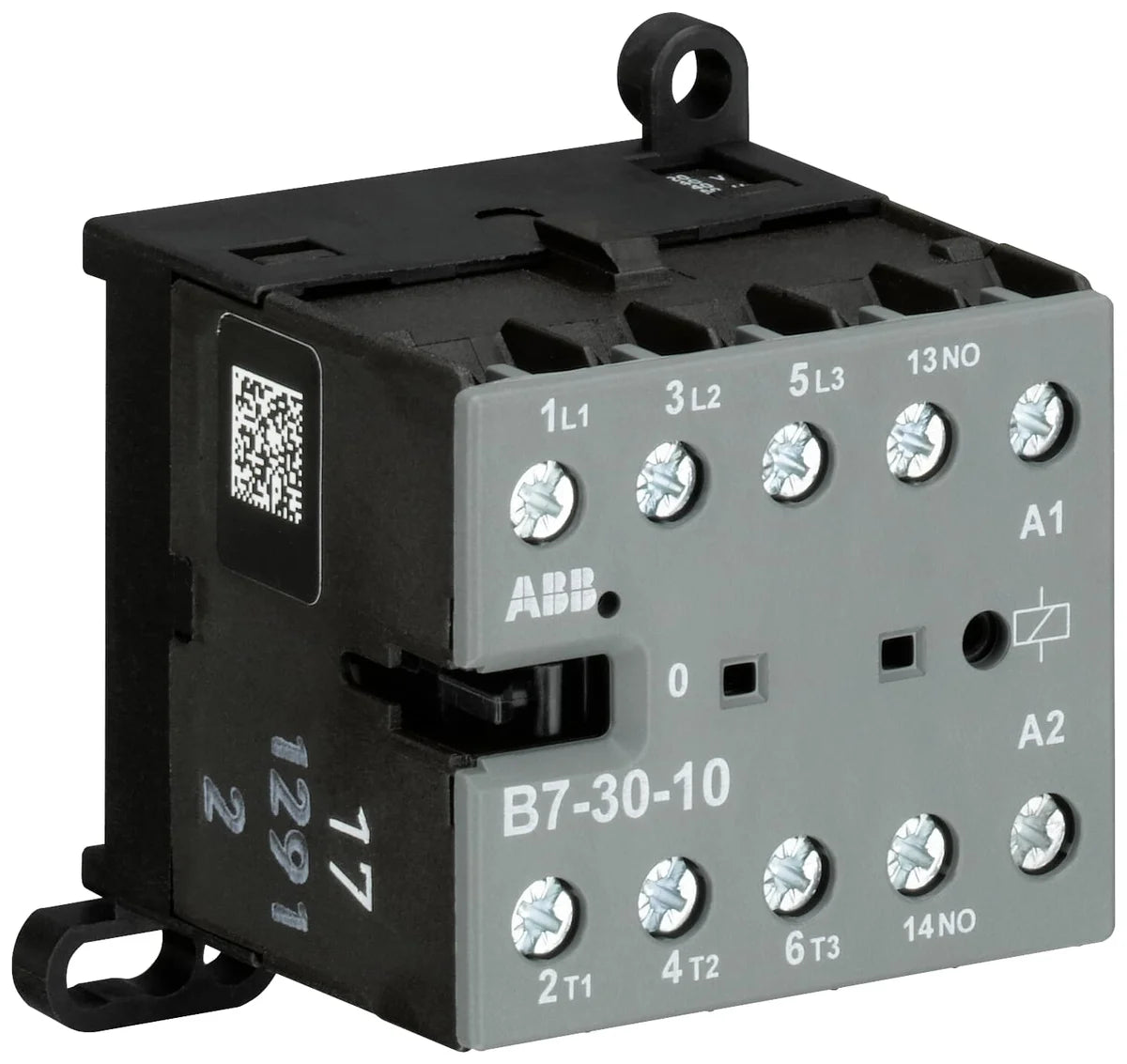

The ABB B7-30-10-80 (SKU: GJL1311001R8100) is a compact 3-pole mini power contactor designed for AC switching applications, rated at 20 A (AC-1) and 5.5 kW (AC-3) with a 220–240 V AC coil voltage. The B7-30-10-80 features screw terminal connections and supports both DIN rail and wall mounting, making it an ideal solution for motor control, automation panels, and industrial switching tasks where space efficiency is critical.

Technical Specifications

Certifications & Standards

• UL: Listed to UL standards for use in North American markets
• CSA: Certified to Canadian Standards Association requirements
• CE: Compliant with European Union CE marking directives
• UKCA: Meets UK Conformity Assessed marking requirements
• CCC: China Compulsory Certification for the Chinese market
• IEC 60947-1 / EN 60947-1 / IEC/EN 60947-1: General rules for low-voltage switchgear and controlgear
• IEC/EN 60947-4: Contactors and motor starters for low-voltage applications
• IEC/EN 60947-5: Control circuit devices and switching elements
• IEC 60335-2: Safety of household and similar electrical appliances
• IEC 60068-2: Environmental testing for robustness and reliability
• RoHS: Restriction of Hazardous Substances compliant
• REACH: Compliant with EU REACH chemical regulation
• WEEE: Registered under the Waste Electrical and Electronic Equipment directive

Applications & Use Cases

• Motor switching and control in industrial automation panels
• HVAC equipment and compressor control up to 5.5 kW
• Conveyor systems and light machinery in manufacturing environments
• Pump and fan control in building services installations
• OEM machine builders requiring compact DIN-rail-mounted switching devices
• Control panel integration where space is at a premium
