- Part number
- 2TLA010070R0400
- CE
- RoHS
- UKCA
- CCC
Description
About the 2TLA010070R0400
About the 2TLA010070R0400

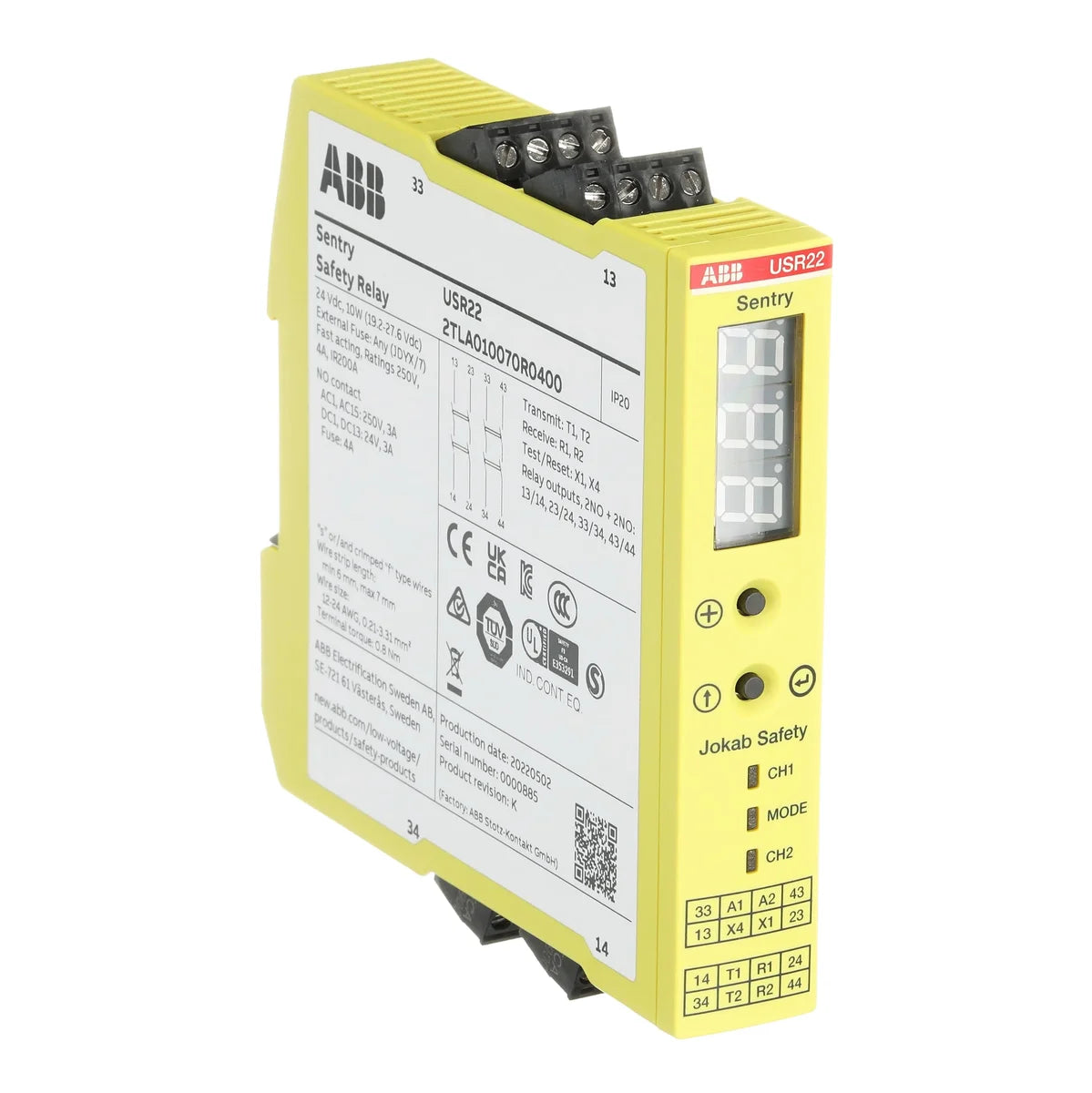

The ABB Sentry USR22 (SKU: 2TLA010070R0400) is a dedicated device for monitoring of safety-related circuits, designed to deliver reliable safety performance in industrial automation and control panel applications. Part of ABB's trusted Sentry series, this compact 22.5mm-wide safety relay meets the stringent requirements of modern machine safety systems, ensuring personnel and equipment protection across a wide range of industrial environments.
Certifications & Standards
- CE: Conformité Européenne — meets EU safety, health, and environmental protection requirements
- UKCA: UK Conformity Assessed — meets Great Britain market regulatory requirements post-Brexit
- cULus: Certified for both Canadian (cUL) and US (UL) safety standards for industrial electrical equipment
- cUL: Canadian UL certification confirming compliance with Canadian safety standards
- RoHS: Restriction of Hazardous Substances — free from restricted hazardous materials per EU Directive 2011/65/EU
- REACH: Compliant with EU REACH regulation on chemical substances (EC No 1907/2006)
- WEEE: Waste Electrical and Electronic Equipment compliant — supports responsible end-of-life disposal and recycling
- CCC: China Compulsory Certification — approved for the Chinese market under mandatory safety standards
Applications & Use Cases
- Safety circuit monitoring in industrial machinery and automated production lines
- Integration into control panels requiring IEC-compliant safety relay modules
- Emergency stop loop monitoring and safety gate interlock systems
- Light curtain and two-hand control interface applications
- General industrial automation safety architecture in manufacturing, packaging, and process industries
Specification
Full specification
Dimensions 4
| Product Net Depth / Length | 120 mm |
|---|---|
| Product Net Height | 120 mm |
| Product Net Width | 22.5 mm |
| Product Net Weight | 0.229 kg |
Safety Information 3
| Certification Agency | cULus, TÜV SÜD, CE, CCC, RCM, S, UKCA, KC |
|---|---|
| Performance Level (PL) | Up to e |
| Safety Integrity Level (SIL) | 3 |
Technical 3
| Number of Outputs | Failsafe, Delayed Contacts 2, Failsafe (Relay) 2 |
|---|---|
| Rated Control Supply Voltage (Us) | 24 V DC |
| Time Range | 0 ... 999 seconds |
Show all 47 specifications ↓ Show less ↑37 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 14
| Part number | 2TLA010070R0400 |
|---|---|
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7350024483383 |
| eCl@ss | 27371819 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Product Main Type | USR |
| Product Name | Safety relay |
| Function | Safety relay for monitoring of safety devices |
| Sub-Function | Start/test input, configurable Manual/Auto reset and Timer, Display (error indication and error log) |
| Special Functions | Configurable (manual/auto reset, type of input, timer type, time) with display (error indication and error log) |
Environmental 3
| Ambient Air Temperature | Operation -25 ... +65 °C, Storage -40 ... +70 °C |
|---|---|
| Degree of Protection | IP20 |
| Operating Humidity (RHamb) | No Icing, Occasional Condensation 10 … 90 % |
Material Compliance 6
| REACH Declaration | 2CMT2022-006480 |
|---|---|
| RoHS Declaration | 2CMT2022-006499 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 4
| eClass | V11.0 : 27371819 |
|---|---|
| ETIM 7 | EC001449 - Device for monitoring of safety-related circuits |
| UNSPSC | 39122331 |
| E-Number (Sweden) | 3860829 |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 125 mm |
| Package Level 1 Depth / Length | 31 mm |
| Package Level 1 Height | 129 mm |
| Package Level 1 Gross Weight | 0.29 kg |
| Package Level 1 EAN | 7350024483383 |
| Shipping weight | 0.229 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 2TLA010070R0400 14
-
Datasheet
ProductDownload PDF: Data Sheet, Technical Information 2TLC010037L0201
Data Sheet, Technical Information 2TLC010037L0201
-
Manual
ProductDownload PDF: Instructions and Manuals 2TLC010073M0201
Instructions and Manuals 2TLC010073M0201
-
Declaration of conformity
ProductDownload PDF: REACH Declaration 2CMT2022-006480
REACH Declaration 2CMT2022-006480
-
Declaration of conformity
ProductDownload PDF: RoHS Declaration 2CMT2022-006499
RoHS Declaration 2CMT2022-006499
-
Declaration of conformity
ProductDownload PDF: Declaration of Conformity - CCC 2020980303000244
Declaration of Conformity - CCC 2020980303000244
-
Declaration of conformity
ProductDownload PDF: Declaration of Conformity - CE 2TLC010010D0201
Declaration of Conformity - CE 2TLC010010D0201
-
Declaration of conformity
ProductDownload PDF: Declaration of Conformity - UKCA 2TLC010190D0201
Declaration of Conformity - UKCA 2TLC010190D0201
-
Certificate
ProductDownload PDF: CQC Certificate CQC2017010303977544
CQC Certificate CQC2017010303977544
-
Certificate
ProductDownload PDF: cUL Certificate 2TLC010006D0201
cUL Certificate 2TLC010006D0201
-
Certificate
ProductDownload PDF: cULus Certificate 2TLC010007D0201
cULus Certificate 2TLC010007D0201
-
Certificate
ProductDownload PDF: TÜV Certificate 2TLC010008D0201
TÜV Certificate 2TLC010008D0201
-
Drawing
ProductDownload PDF: CAD Dimensional Drawing 2CDC001079B0201
CAD Dimensional Drawing 2CDC001079B0201
-
Drawing
ProductDownload PDF: Wiring Diagram 2TLC010017T0001
Wiring Diagram 2TLC010017T0001
-
Drawing
ProductDownload PDF: Dimension Diagram 2TLC010001U0201
Dimension Diagram 2TLC010001U0201
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
- CCC
Quick answers
Questions about the 2TLA010070R0400
What is the HS code of 2TLA010070R0400 for customs?
The tariff (HS) code on file for 2TLA010070R0400 is 85364900.
What is the EAN of 2TLA010070R0400?
The EAN (GTIN) of 2TLA010070R0400 is 7350024483383.
Where does 2TLA010070R0400 ship from, and how fast?
2TLA010070R0400 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
