Part number
2CDS274001R0404
Model no
S204M-C40
$60.29 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye

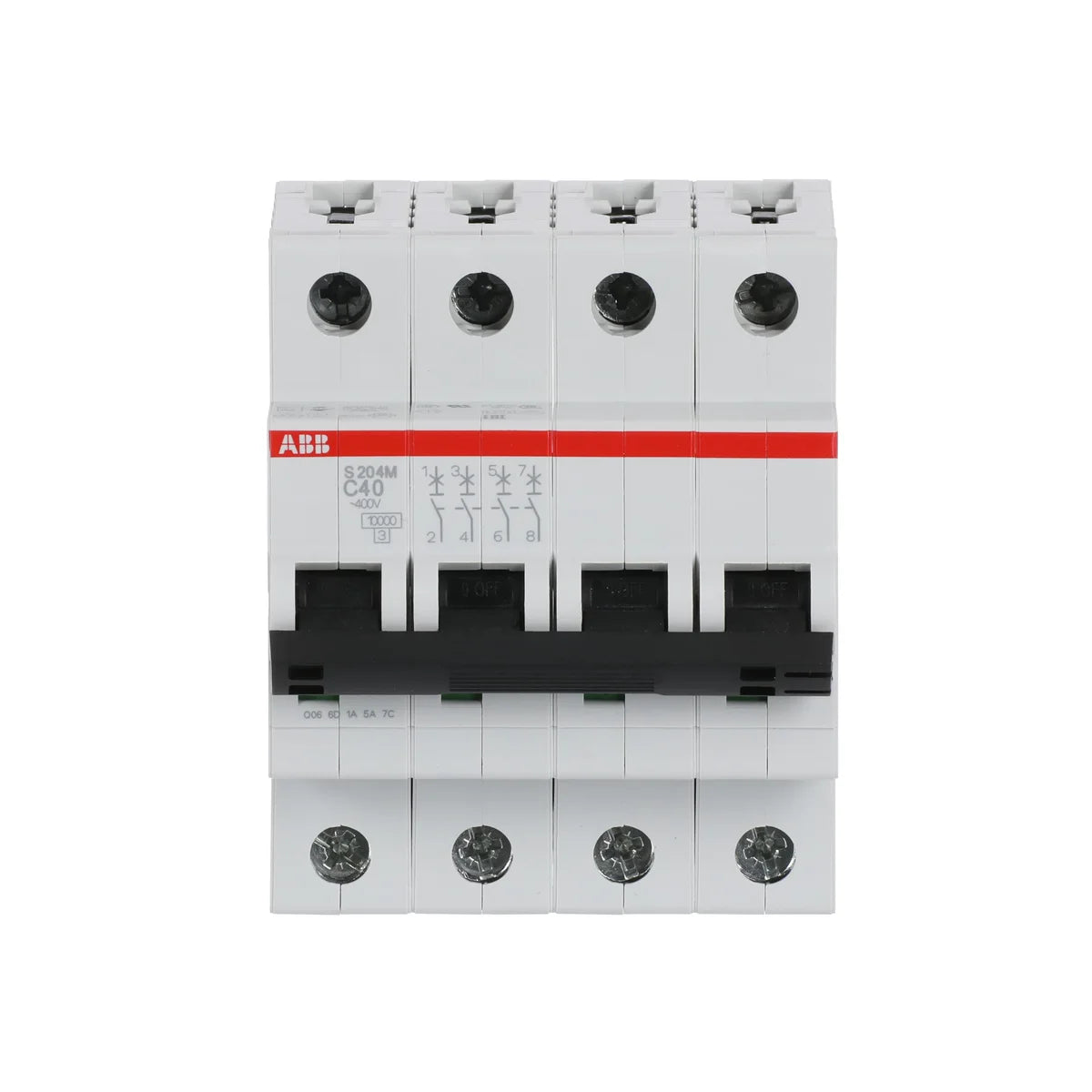

ABB 2CDS274001R0404 S204M-C40 4P 40A 10kA 230/400V AC Miniature Circuit Breaker

Rated current
40 A
Rated operational voltage
230–400 V AC
Poles
4P
Breaking capacity
(230) 25 kA
EAN
4016779550796
Other ratings in ABB S200 All 11 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
25 2CDS274001R0254 In stock $46.39
32 2CDS274001R0324 In stock $57.97
40 2CDS274001R0404This part In stock $60.29
50 2CDS274001R0504 In stock $69.56
63 2CDS274001R0634 In stock $78.81
Description

About the S204M-C40

The ABB S204M-C40 miniature circuit breaker (MCB), reference 2CDS274001R0404, is a 4-pole, 40A, 10kA device from the S200M series designed for reliable overcurrent and short-circuit protection in industrial and commercial installations operating at 230/400V AC. Featuring a C-curve trip characteristic, the S204M-C40 is engineered for loads with moderate inrush currents such as lighting circuits, distribution boards, and general electrical equipment. With compact dimensions of 70mm × 88mm × 69mm and a weight of only 0.48kg, it integrates seamlessly into control panels and distribution boards.

Certifications & Standards

  • IEC/EN 60898-1: International and European standard for circuit breakers for overcurrent protection in household and similar installations
  • IEC/EN 60947-2: International and European standard for low-voltage switchgear — circuit breakers
  • IEC 60898-1: IEC standard for miniature circuit breakers
  • EN 60898-1: European harmonised standard for miniature circuit breakers
  • IEC/EN 60898: Combined IEC and EN standard for circuit breakers for overcurrent protection
  • IEC/EN60898: Alternate citation of the combined IEC/EN 60898 standard
  • IEC 60898-1400: IEC 60898-1 variant covering 400V rated devices
  • IEC 60947-2440: IEC 60947-2 variant covering 440V rated industrial circuit breakers
  • IEC 60068-2: Environmental testing standard for climatic and mechanical durability
  • EN 60898: European standard for household and similar circuit breakers
  • EN 60947-2: European standard for low-voltage circuit breakers
  • EN45555: European standard for ecodesign and energy-related products
  • EN60664: Insulation coordination standard for low-voltage equipment
  • EN60898: Alternate citation for the European EN 60898 standard
  • EN60947: European standard series for low-voltage switchgear and controlgear
  • UL1077: UL standard for supplementary protectors for use in electrical equipment
  • CSA: Canadian Standards Association certification for electrical equipment
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
  • REACH: Compliant with EU REACH regulation on chemical substances (EC No 1907/2006)
  • WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive
  • CE: Conformité Européenne — meets all applicable EU directives and regulations
  • UKCA: UK Conformity Assessed — approved for use in Great Britain markets post-Brexit
Specification

Full specification

82 values · Last verified 30 Oct 2026

Technical 20

Dielectric Test Voltage 50 / 60 Hz - 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (230 V AC) 25 kA, (400 V AC) 15 kA, (440 V AC) 15 kA, (230 V) 25 kA, (400 V) 15 kA
Rated Service Short-Circuit Breaking Capacity (Ics) (230 V AC) 7.5 kA
Power Supply Connection Arbitrary
Contact Position Indication Red ON / Green OFF
Energy Limiting Class 3
Electrical Endurance 10000 AC cycle
Mechanical Endurance 20000 cycle
Number of Protected Poles 4
Number of Poles 4P
Tightening Torque 2.8 N·m
Screw Terminal Type Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking I / O
Actuator Material Insulation Group II, Black, Sealable
Recommended Screw Driver Pozidriv 2
Accessories Available Yes
Connecting Capacity Busbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm²
Installation Size acc. to DIN 43880 1
Terminal Type Screw Terminals
Actuator Type Toggle

Electrical 12

Tripping Characteristic C
Rated Operational Voltage acc. to IEC 60898-1 400 V AC, acc. to IEC 60947-2 440 V AC
Operational Voltage Maximum (Incl. Tolerance) 125 V DC, Maximum (Incl. Tolerance) 440 V AC, Minimum 12 V AC, Minimum 12 V DC
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV
Input Voltage Type AC/DC
Rated Current (In) 40 A
Rated Short-Circuit Capacity (AC) 10 kA, (230 V AC) 10 kA
Frequency (f) 50 Hz
Rated Frequency (f) 50 / 60 Hz
Power Loss 19.2 W, at Rated Operating Conditions per Pole 4.8 W
Overvoltage Category III

Design 1

Housing Material Insulation Group II, RAL 7035
Show all 82 specifications ↓ Show less ↑49 more values in Identification, Technical UL/CSA, Material Compliance, Environmental, Dimensions, Engineering, Installation, External Classifications and Standards, Logistics.

Identification 12

Part number 2CDS274001R0404
Type designation S204M-C40
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779550796
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units carton 1 piece
Package Level 1 Gross Weight 0.5 kg
E-Number (Sweden) 2101268

Technical UL/CSA 4

Maximum Operating Voltage UL/CSA 125 V DC, 480Y/277 V AC
Interrupting Rating acc. to UL1077 (125 V DC) 10 kA, (277 V AC) 6 kA, (480Y / 277 V AC) 6 kA
Connecting Capacity UL/CSA Busbar 14-8 AWG, Conductor 14-4 AWG
Tightening Torque UL/CSA 18 in·lb

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260312
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260312
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business

Environmental 7

Ambient Air Temperature Operation -25 ... +55 °C, Storage -40 ... +70 °C
Reference Ambient Air Temperature 30 °C
Degree of Protection IP20, IP40, Enclosure with Cover IP40
Pollution Degree 3
Environmental Conditions 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27 25g 2 shocks 13 ms

Dimensions 7

Width in Number of Modular Spacings 4
Product Net Width 70 mm
Product Net Height 88 mm
Product Net Depth / Length 69 mm
Product Net Weight 0.48 kg
Pole Net Weight 0.125 kg
Built-In Depth (t2) 69 mm

Engineering 1

EPLAN Data 9AAC211156_EPLAN

Installation 2

Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position any

External Classifications and Standards 6

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards IEC/EN 60898-1, CSA 22.2 No. 235, IEC/EN 60947-2, UL 1077
Certification Agency EN, IEC
Standardization Body EN, IEC

Logistics 4

Shipping weight 0.51 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2CDS274001R0404

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 11 ratings in ABB S200

ABB ABB S200 series page →
Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
6 A 2CDS274001R0064 S204M-C6 In stock $55.64
10 A 2CDS274001R0104 S204M-C10 In stock $46.39
20 A 2CDS274001R0204 S204M-C20 In stock $46.39
25 A 2CDS274001R0254 S204M-C25 In stock $46.39
32 A 2CDS274001R0324 S204M-C32 In stock $57.97
40 A 2CDS274001R0404 This part S204M-C40 In stock $60.29
50 A 2CDS274001R0504 S204M-C50 In stock $69.56
63 A 2CDS274001R0634 S204M-C63 In stock $78.81
Certifications

Certifications and standards

  • CE
  • RoHS
  • UKCA
  • IEC/EN 60898-1
  • CSA 22.2 No. 235
  • IEC/EN 60947-2
  • UL 1077
Quick answers

Questions about the S204M-C40

What is the rated current of S204M-C40?

The rated current of S204M-C40 is 40 A.

Which supply voltage is S204M-C40 rated for?

The rated operational voltage of S204M-C40 is 230–400 V AC.

What is the HS code of S204M-C40 for customs?

The tariff (HS) code on file for S204M-C40 is 853620.

What is the EAN of S204M-C40?

The EAN (GTIN) of S204M-C40 is 4016779550796.

Where does S204M-C40 ship from, and how fast?

S204M-C40 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
