Part number
2CDS274001R0324
Model no
S204M-C32
$57.97 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye

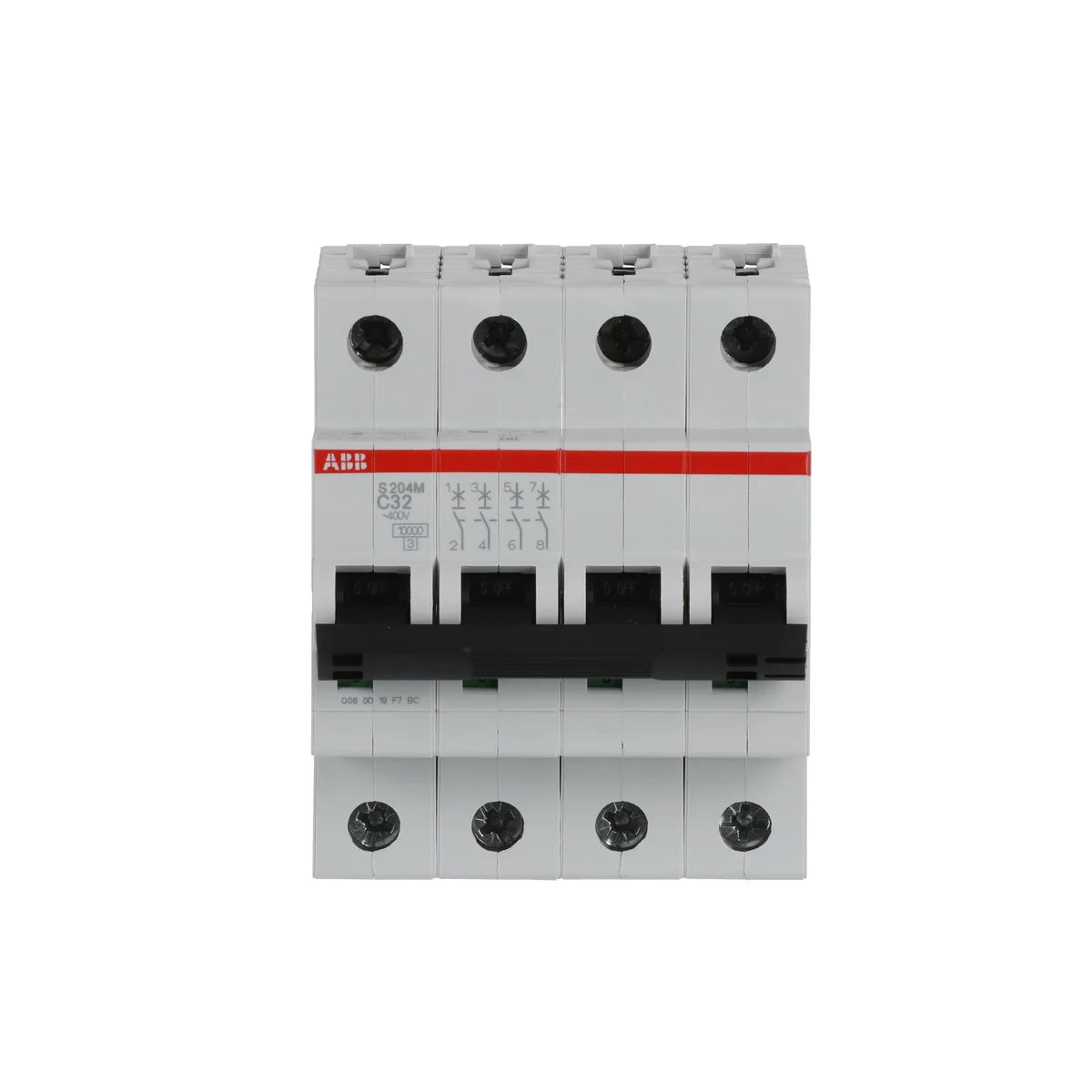

ABB 2CDS274001R0324 S204M-C32 4P 32A 10kA C-Curve 230/400V AC Miniature Circuit Breaker

Rated current
32 A
Rated operational voltage
230–400 V AC
Poles
4P
Breaking capacity
(230) 25 kA
EAN
4016779550789
Other ratings in ABB S200 All 11 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
20 2CDS274001R0204 In stock $46.39
25 2CDS274001R0254 In stock $46.39
32 2CDS274001R0324This part In stock $57.97
40 2CDS274001R0404 In stock $60.29
50 2CDS274001R0504 In stock $69.56
Description

About the S204M-C32

The ABB S204M-C32 miniature circuit breaker (SKU: 2CDS274001R0324) is a 4-pole, 32A, C-curve MCB from the S200M series, delivering a 10 kA breaking capacity at 230/400V AC. Designed for industrial control panels and commercial distribution boards, the S204M-C32 provides reliable overcurrent and short-circuit protection in demanding environments where robust performance and compact dimensions are essential.

Certifications & Standards

  • IEC/EN 60898-1: International and European standard for circuit breakers for overcurrent protection in household and similar installations
  • IEC/EN 60947-2: International and European standard for low-voltage switchgear — circuit breakers
  • UL 1077: UL standard for supplementary protectors for use in electrical equipment
  • CSA 22.2 No. 235: Canadian standard for supplementary protectors
  • IEC 60898-1400: Extended IEC test requirement for circuit breakers
  • IEC 60947-2440: Extended IEC test requirement for low-voltage circuit breakers
  • IEC 60068-2: Environmental testing standard
  • EN 60898: European standard for circuit breakers for overcurrent protection
  • EN 60947-2: European standard for low-voltage switchgear — circuit breakers
  • EN45555: European standard for ecodesign of energy-related products
  • EN60664: Insulation coordination for equipment within low-voltage systems
  • IEC/EN60664: International/European insulation coordination standard
  • CE: Conformité Européenne — meets EU health, safety, and environmental requirements
  • UKCA: UK Conformity Assessed — meets Great Britain market requirements post-Brexit
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
  • REACH: Compliant with EU regulation on chemicals (EC No. 1907/2006)
  • WEEE: Waste Electrical and Electronic Equipment Directive compliant
Specification

Full specification

82 values · Last verified 30 Oct 2026

Technical 20

Dielectric Test Voltage 50 / 60 Hz - 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (230 V AC) 25 kA, (400 V AC) 15 kA, (440 V AC) 15 kA, (230 V) 25 kA, (400 V) 15 kA
Rated Service Short-Circuit Breaking Capacity (Ics) (230 V AC) 7.5 kA
Power Supply Connection Arbitrary
Contact Position Indication Red ON / Green OFF
Energy Limiting Class 3
Electrical Endurance 10000 AC cycle
Mechanical Endurance 20000 cycle
Number of Protected Poles 4
Number of Poles 4P
Tightening Torque 2.8 N·m
Screw Terminal Type Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking I / O
Actuator Material Insulation Group II, Black, Sealable
Recommended Screw Driver Pozidriv 2
Accessories Available Yes
Connecting Capacity Busbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm²
Installation Size acc. to DIN 43880 1
Terminal Type Screw Terminals
Actuator Type Toggle

Electrical 12

Tripping Characteristic C
Rated Operational Voltage acc. to IEC 60898-1 400 V AC, acc. to IEC 60947-2 440 V AC
Operational Voltage Maximum (Incl. Tolerance) 125 V DC, Maximum (Incl. Tolerance) 440 V AC, Minimum 12 V AC, Minimum 12 V DC
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV
Input Voltage Type AC/DC
Rated Current (In) 32 A
Rated Short-Circuit Capacity (AC) 10 kA, (230 V AC) 10 kA
Frequency (f) 50 Hz
Rated Frequency (f) 50 / 60 Hz
Power Loss 14.8 W, at Rated Operating Conditions per Pole 3.7 W
Overvoltage Category III

Design 1

Housing Material Insulation Group II, RAL 7035
Show all 82 specifications ↓ Show less ↑49 more values in Identification, Technical UL/CSA, Material Compliance, Environmental, Dimensions, Engineering, Installation, External Classifications and Standards, Logistics.

Identification 12

Part number 2CDS274001R0324
Type designation S204M-C32
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779550789
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units carton 1 piece
Package Level 1 Gross Weight 0.5 kg
E-Number (Sweden) 2101267

Technical UL/CSA 4

Maximum Operating Voltage UL/CSA 125 V DC, 480Y/277 V AC
Interrupting Rating acc. to UL1077 (125 V DC) 10 kA, (277 V AC) 6 kA, (480Y / 277 V AC) 6 kA
Connecting Capacity UL/CSA Busbar 14-8 AWG, Conductor 14-4 AWG
Tightening Torque UL/CSA 18 in·lb

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260312
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260312
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business

Environmental 7

Ambient Air Temperature Operation -25 ... +55 °C, Storage -40 ... +70 °C
Reference Ambient Air Temperature 30 °C
Degree of Protection IP20, IP40, Enclosure with Cover IP40
Pollution Degree 3
Environmental Conditions 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27 25g 2 shocks 13 ms

Dimensions 7

Width in Number of Modular Spacings 4
Product Net Width 70 mm
Product Net Height 88 mm
Product Net Depth / Length 69 mm
Product Net Weight 0.48 kg
Pole Net Weight 0.125 kg
Built-In Depth (t2) 69 mm

Engineering 1

EPLAN Data 9AAC211156_EPLAN

Installation 2

Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position any

External Classifications and Standards 6

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards IEC/EN 60898-1, CSA 22.2 No. 235, IEC/EN 60947-2, UL 1077
Certification Agency EN, IEC
Standardization Body EN, IEC

Logistics 4

Shipping weight 0.51 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2CDS274001R0324

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 11 ratings in ABB S200

ABB ABB S200 series page →
Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
6 A 2CDS274001R0064 S204M-C6 In stock $55.64
10 A 2CDS274001R0104 S204M-C10 In stock $46.39
20 A 2CDS274001R0204 S204M-C20 In stock $46.39
25 A 2CDS274001R0254 S204M-C25 In stock $46.39
32 A 2CDS274001R0324 This part S204M-C32 In stock $57.97
40 A 2CDS274001R0404 S204M-C40 In stock $60.29
50 A 2CDS274001R0504 S204M-C50 In stock $69.56
63 A 2CDS274001R0634 S204M-C63 In stock $78.81
Certifications

Certifications and standards

  • CE
  • RoHS
  • UKCA
  • IEC/EN 60898-1
  • CSA 22.2 No. 235
  • IEC/EN 60947-2
  • UL 1077
Quick answers

Questions about the S204M-C32

What is the rated current of S204M-C32?

The rated current of S204M-C32 is 32 A.

Which supply voltage is S204M-C32 rated for?

The rated operational voltage of S204M-C32 is 230–400 V AC.

What is the HS code of S204M-C32 for customs?

The tariff (HS) code on file for S204M-C32 is 853620.

What is the EAN of S204M-C32?

The EAN (GTIN) of S204M-C32 is 4016779550789.

Where does S204M-C32 ship from, and how fast?

S204M-C32 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
