Part number
2CDS273001R0405
Model no
S203M-B40
$41.12 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye

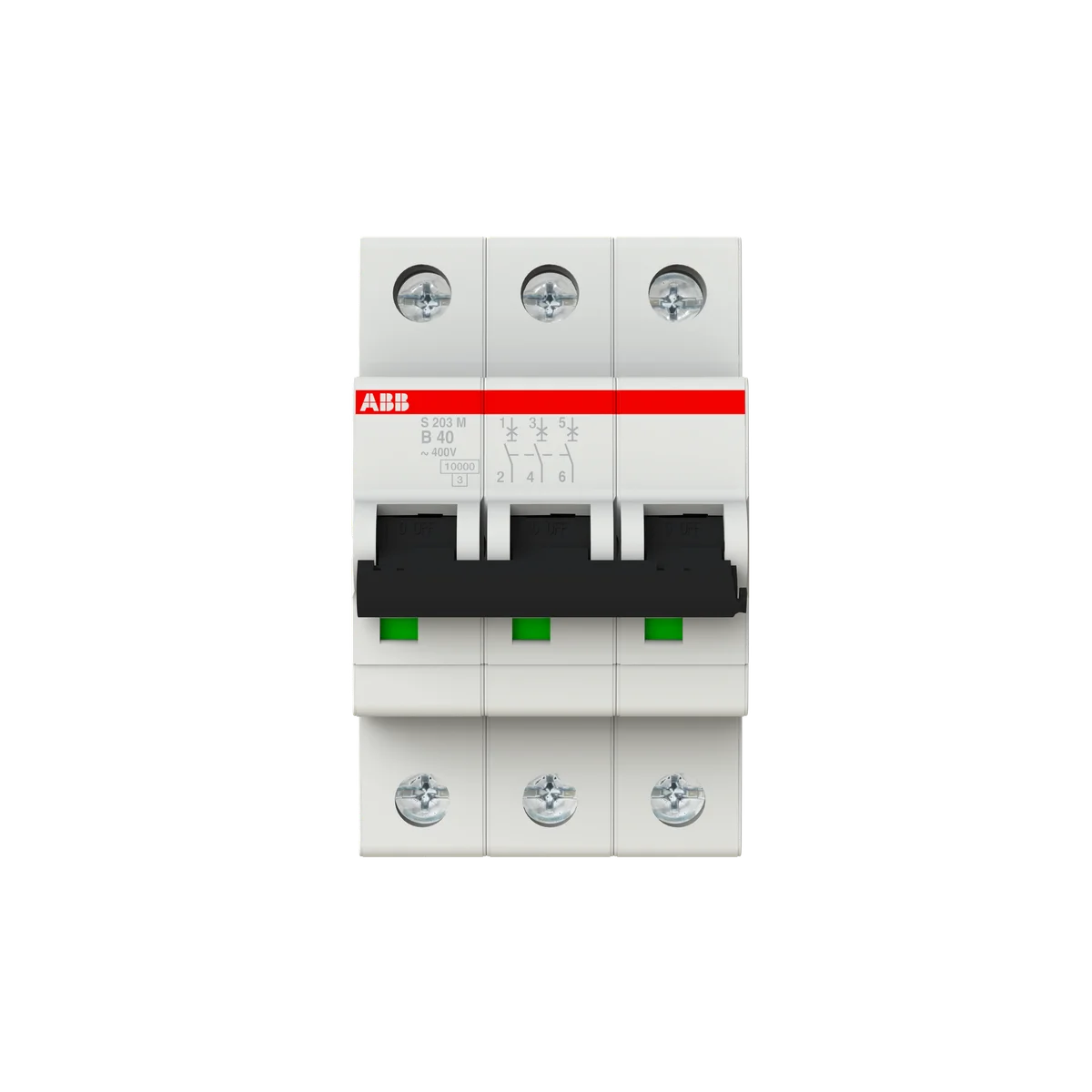

ABB 2CDS273001R0405 S203M-B40 3P 40A 10kA B-Curve 230/400V AC Miniature Circuit Breaker

Rated current
40 A
Rated operational voltage
230–400 V AC
Poles
3P
Breaking capacity
(230) 25 kA
EAN
4016779549738
Other ratings in ABB S200 All 8 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
25 2CDS273001R0255 In stock $31.61
32 2CDS273001R0325 In stock $39.53
40 2CDS273001R0405This part In stock $41.12
50 2CDS273001R0505 In stock $47.43
63 2CDS273001R0635 In stock $53.76
Description

About the S203M-B40

The ABB S203M-B40 miniature circuit breaker (MCB), catalog number S203M-B40 and SKU 2CDS273001R0405, is a 3-pole, 40A, B-curve device from the S200M series delivering a 10 kA breaking capacity at 230/400V AC. Designed for residential and light commercial distribution boards, it provides reliable overcurrent and short-circuit protection for electrical installations where high breaking capacity in a compact DIN-rail form factor is essential.

Certifications & Standards

  • IEC/EN 60898-1: International and European standard for circuit breakers for overcurrent protection in household and similar installations
  • IEC/EN 60947-2: International and European standard for low-voltage switchgear — circuit breakers
  • IEC 60898-1: IEC standard for overcurrent protection circuit breakers
  • EN 60898-1: European harmonised standard for household circuit breakers
  • IEC/EN 60898: Combined IEC/EN compliance for circuit breaker safety
  • IEC/EN60898: Alternate notation — same IEC/EN 60898 compliance
  • IEC 60898-1400: IEC 60898-1 variant at 400V rating
  • IEC 60947-2440: IEC 60947-2 variant at 440V rating
  • IEC 60068-2: Environmental testing standard for electrical/electronic equipment
  • EN 60898: European standard for circuit breakers in household and similar installations
  • EN 60947-2: European standard for low-voltage switchgear circuit breakers
  • EN 45555: European standard for general requirements for the ecodesign of networked standby
  • EN 60664: Insulation coordination for equipment within low-voltage systems
  • EN 60898: European standard — circuit breakers for overcurrent protection
  • EN 60947: Low-voltage switchgear and controlgear — European harmonised family standard
  • UL 1077: UL standard for supplementary protectors for use in electrical equipment
  • CSA: Canadian Standards Association certification
  • RoHS: Restriction of Hazardous Substances — EU Directive 2011/65/EU compliant
  • REACH: EU REACH regulation compliance — no restricted substances above threshold
  • WEEE: Waste Electrical and Electronic Equipment Directive compliant
  • CE: Conformité Européenne — meets EU safety, health, and environmental requirements
  • UKCA: UK Conformity Assessed — meets UK market requirements post-Brexit

Applications & Use Cases

  • Overcurrent and short-circuit protection in residential and commercial distribution boards
  • Protection of lighting circuits, socket outlets, and general-purpose loads with moderate inrush current (B-curve)
  • Industrial control panels requiring compact 3-pole DIN-rail mounted protection
  • Sub-distribution boards in office buildings, retail premises, and light industrial facilities
  • Replacement or upgrade of existing 3-pole MCBs in S200/S200M-compatible installations
Specification

Full specification

82 values · Last verified 30 Oct 2026

Technical 20

Dielectric Test Voltage 50 / 60 Hz - 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (230 V AC) 25 kA, (400 V AC) 15 kA, (440 V AC) 15 kA, (230 V) 25 kA, (400 V) 15 kA
Rated Service Short-Circuit Breaking Capacity (Ics) (230 V AC) 7.5 kA
Power Supply Connection Arbitrary
Contact Position Indication Red ON / Green OFF
Energy Limiting Class 3
Electrical Endurance 20000 AC cycle, 10000 AC cycle
Mechanical Endurance 20000 cycle
Number of Protected Poles 3
Number of Poles 3P
Tightening Torque 2.8 N·m
Screw Terminal Type Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking I / O
Actuator Material Insulation Group II, Black, Sealable
Recommended Screw Driver Pozidriv 2
Accessories Available Yes
Connecting Capacity Busbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm²
Installation Size acc. to DIN 43880 1
Terminal Type Screw Terminals
Actuator Type Toggle

Electrical 12

Tripping Characteristic B
Rated Operational Voltage acc. to IEC 60898-1 400 V AC, acc. to IEC 60947-2 440 V AC
Operational Voltage Maximum (Incl. Tolerance) 440 V AC, Minimum 12 V AC, Minimum 12 V DC
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV
Input Voltage Type AC/DC
Rated Current (In) 40 A
Rated Short-Circuit Capacity (AC) 10 kA, (230 V AC) 10 kA
Frequency (f) 50 Hz
Rated Frequency (f) 50 / 60 Hz
Power Loss 14.4 W, at Rated Operating Conditions per Pole 4.8 W
Overvoltage Category III

Design 1

Housing Material Insulation Group II, RAL 7035
Show all 82 specifications ↓ Show less ↑49 more values in Identification, Technical UL/CSA, Material Compliance, Environmental, Dimensions, Engineering, Installation, External Classifications and Standards, Logistics.

Identification 12

Part number 2CDS273001R0405
Type designation S203M-B40
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779549738
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units carton 1 piece
Package Level 1 Gross Weight 0.38 kg
E-Number (Sweden) 2101157

Technical UL/CSA 4

Maximum Operating Voltage UL/CSA 125 V DC, 480Y/277 V AC
Interrupting Rating acc. to UL1077 (125 V DC) 10 kA, (277 V AC) 6 kA, (480Y / 277 V AC) 6 kA
Connecting Capacity UL/CSA Busbar 14-8 AWG, Conductor 14-4 AWG
Tightening Torque UL/CSA 18 in·lb

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260312
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260312
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business

Environmental 7

Ambient Air Temperature Operation -25 ... +55 °C, Storage -40 ... +70 °C
Reference Ambient Air Temperature 30 °C
Degree of Protection IP20, IP40, Enclosure with Cover IP40
Pollution Degree 3
Environmental Conditions 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27 25g 2 shocks 13 ms

Dimensions 7

Width in Number of Modular Spacings 3
Product Net Width 52.5 mm
Product Net Height 88 mm
Product Net Depth / Length 69 mm
Product Net Weight 0.36 kg
Pole Net Weight 0.125 kg
Built-In Depth (t2) 69 mm

Engineering 1

EPLAN Data 9AAC211156_EPLAN

Installation 2

Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position any

External Classifications and Standards 6

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards IEC/EN 60898-1, CSA 22.2 No. 235, IEC/EN 60947-2, UL 1077
Certification Agency EN, IEC
Standardization Body EN, IEC

Logistics 4

Shipping weight 0.4 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2CDS273001R0405

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 8 ratings in ABB S200

ABB ABB S200 series page →
Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
6 A 2CDS273001R0065 S203M-B6 Critical stock $37.95
10 A 2CDS273001R0105 S203M-B10 In stock $31.61
20 A 2CDS273001R0205 S203M-B20 In stock $31.61
25 A 2CDS273001R0255 S203M-B25 In stock $31.61
32 A 2CDS273001R0325 S203M-B32 In stock $39.53
40 A 2CDS273001R0405 This part S203M-B40 In stock $41.12
50 A 2CDS273001R0505 S203M-B50 In stock $47.43
63 A 2CDS273001R0635 S203M-B63 In stock $53.76
Certifications

Certifications and standards

  • CE
  • RoHS
  • UKCA
  • IEC/EN 60898-1
  • CSA 22.2 No. 235
  • IEC/EN 60947-2
  • UL 1077
Quick answers

Questions about the S203M-B40

What is the rated current of S203M-B40?

The rated current of S203M-B40 is 40 A.

Which supply voltage is S203M-B40 rated for?

The rated operational voltage of S203M-B40 is 230–400 V AC.

What is the HS code of S203M-B40 for customs?

The tariff (HS) code on file for S203M-B40 is 853620.

What is the EAN of S203M-B40?

The EAN (GTIN) of S203M-B40 is 4016779549738.

Where does S203M-B40 ship from, and how fast?

S203M-B40 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
