| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 20 | 2CDS273001R0205 | In stock | $31.61 | |
| 25 | 2CDS273001R0255 | In stock | $31.61 | |
| 32 | 2CDS273001R0325This part | In stock | $39.53 | |
| 40 | 2CDS273001R0405 | In stock | $41.12 | |
| 50 | 2CDS273001R0505 | In stock | $47.43 |

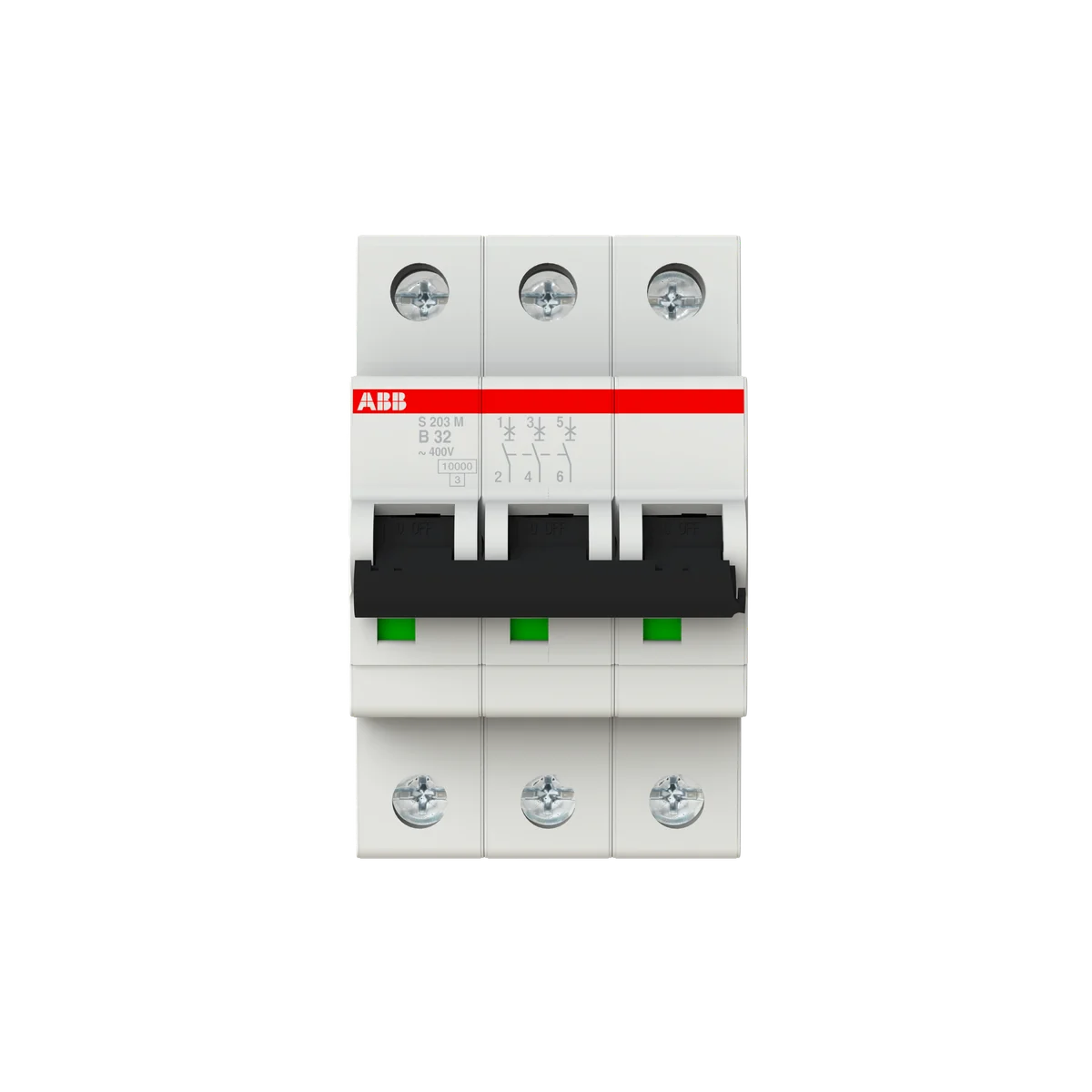

The ABB S203M-B32 (SKU: 2CDS273001R0325) is a 3-pole 32A B-curve miniature circuit breaker from the S200M series, rated at 230/400 V AC with a 10 kA breaking capacity. Designed for reliable overcurrent and short-circuit protection in industrial control panels, distribution boards, and building automation systems, the S203M-B32 meets the highest international standards including IEC/EN 60898-1 and IEC/EN 60947-2, making it a trusted choice for engineers and procurement professionals worldwide.
What is the difference between the S203M-B32 and a standard S200 series MCB?
The S200M series is designed for higher breaking capacity (10 kA at 400 V AC) in a compact form factor, making it suitable for more demanding industrial environments compared to the standard S200 series.
What does the B-curve mean for this circuit breaker?
The B trip curve means the breaker trips magnetically at 3–5× the rated current. It is ideal for protecting resistive loads, long cable runs, and sensitive equipment where low inrush currents are expected.
Is the ABB S203M-B32 DIN rail mountable?
Yes, the S203M-B32 is designed for standard 35 mm DIN rail mounting, enabling easy installation in control panels and distribution boards.
| Dielectric Test Voltage | 50 / 60 Hz - 1 min 2 kV |
|---|---|
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 25 kA, (400 V AC) 15 kA, (440 V AC) 15 kA, (230 V) 25 kA, (400 V) 15 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 7.5 kA |
| Power Supply Connection | Arbitrary |
| Contact Position Indication | Red ON / Green OFF |
| Energy Limiting Class | 3 |
| Electrical Endurance | 20000 AC cycle, 10000 AC cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Protected Poles | 3 |
| Number of Poles | 3P |
| Tightening Torque | 2.8 N·m |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Actuator Marking | I / O |
| Actuator Material | Insulation Group II, Black, Sealable |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Yes |
| Connecting Capacity | Busbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm² |
| Installation Size | acc. to DIN 43880 1 |
| Terminal Type | Screw Terminals |
| Actuator Type | Toggle |
| Tripping Characteristic | B |
|---|---|
| Rated Operational Voltage | acc. to IEC 60898-1 400 V AC, acc. to IEC 60947-2 440 V AC |
| Operational Voltage | Maximum (Incl. Tolerance) 440 V AC, Minimum 12 V AC, Minimum 12 V DC |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV |
| Input Voltage Type | AC/DC |
| Rated Current (In) | 32 A |
| Rated Short-Circuit Capacity | (AC) 10 kA, (230 V AC) 10 kA |
| Frequency (f) | 50 Hz |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Loss | 11.1 W, at Rated Operating Conditions per Pole 3.7 W |
| Overvoltage Category | III |
| Housing Material | Insulation Group II, RAL 7035 |
|---|
| Part number | 2CDS273001R0325 |
|---|---|
| Type designation | S203M-B32 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4016779549721 |
| ETIM class | EC000042 |
| eCl@ss | 27141901 |
| Package Level 1 Units | carton 1 piece |
| Package Level 1 Gross Weight | 0.38 kg |
| E-Number (Sweden) | 2101156 |
| Maximum Operating Voltage UL/CSA | 125 V DC, 480Y/277 V AC |
|---|---|
| Interrupting Rating acc. to UL1077 | (125 V DC) 10 kA, (277 V AC) 6 kA, (480Y / 277 V AC) 6 kA |
| Connecting Capacity UL/CSA | Busbar 14-8 AWG, Conductor 14-4 AWG |
| Tightening Torque UL/CSA | 18 in·lb |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|---|
| RoHS Date | 20260312 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260312 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Ambient Air Temperature | Operation -25 ... +55 °C, Storage -40 ... +70 °C |
|---|---|
| Reference Ambient Air Temperature | 30 °C |
| Degree of Protection | IP20, IP40, Enclosure with Cover IP40 |
| Pollution Degree | 3 |
| Environmental Conditions | 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 % |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Width in Number of Modular Spacings | 3 |
|---|---|
| Product Net Width | 52.5 mm |
| Product Net Height | 88 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.36 kg |
| Pole Net Weight | 0.125 kg |
| Built-In Depth (t2) | 69 mm |
| EPLAN Data | 9AAC211156_EPLAN |
|---|
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
|---|---|
| Mounting Position | any |
| ETIM 10 | EC000042 - Miniature circuit breaker (MCB) |
|---|---|
| UNSPSC | 39121603 |
| eClass | V11.0 : 27141901 |
| Standards | IEC/EN 60898-1, CSA 22.2 No. 235, IEC/EN 60947-2, UL 1077 |
| Certification Agency | EN, IEC |
| Standardization Body | EN, IEC |
| Shipping weight | 0.4 kg |
|---|---|
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheet| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 6 A | 2CDS273001R0065 | S203M-B6 | Critical stock | $37.95 | |||
| 10 A | 2CDS273001R0105 | S203M-B10 | In stock | $31.61 | |||
| 20 A | 2CDS273001R0205 | S203M-B20 | In stock | $31.61 | |||
| 25 A | 2CDS273001R0255 | S203M-B25 | In stock | $31.61 | |||
| 32 A | 2CDS273001R0325 This part | S203M-B32 | In stock | $39.53 | |||
| 40 A | 2CDS273001R0405 | S203M-B40 | In stock | $41.12 | |||
| 50 A | 2CDS273001R0505 | S203M-B50 | In stock | $47.43 | |||
| 63 A | 2CDS273001R0635 | S203M-B63 | In stock | $53.76 |
The rated current of S203M-B32 is 32 A.
The rated operational voltage of S203M-B32 is 230–400 V AC.
The tariff (HS) code on file for S203M-B32 is 853620.
The EAN (GTIN) of S203M-B32 is 4016779549721.
S203M-B32 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
