Part number
2CDS273001R0104
Model no
S203M-C10
$34.79 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye

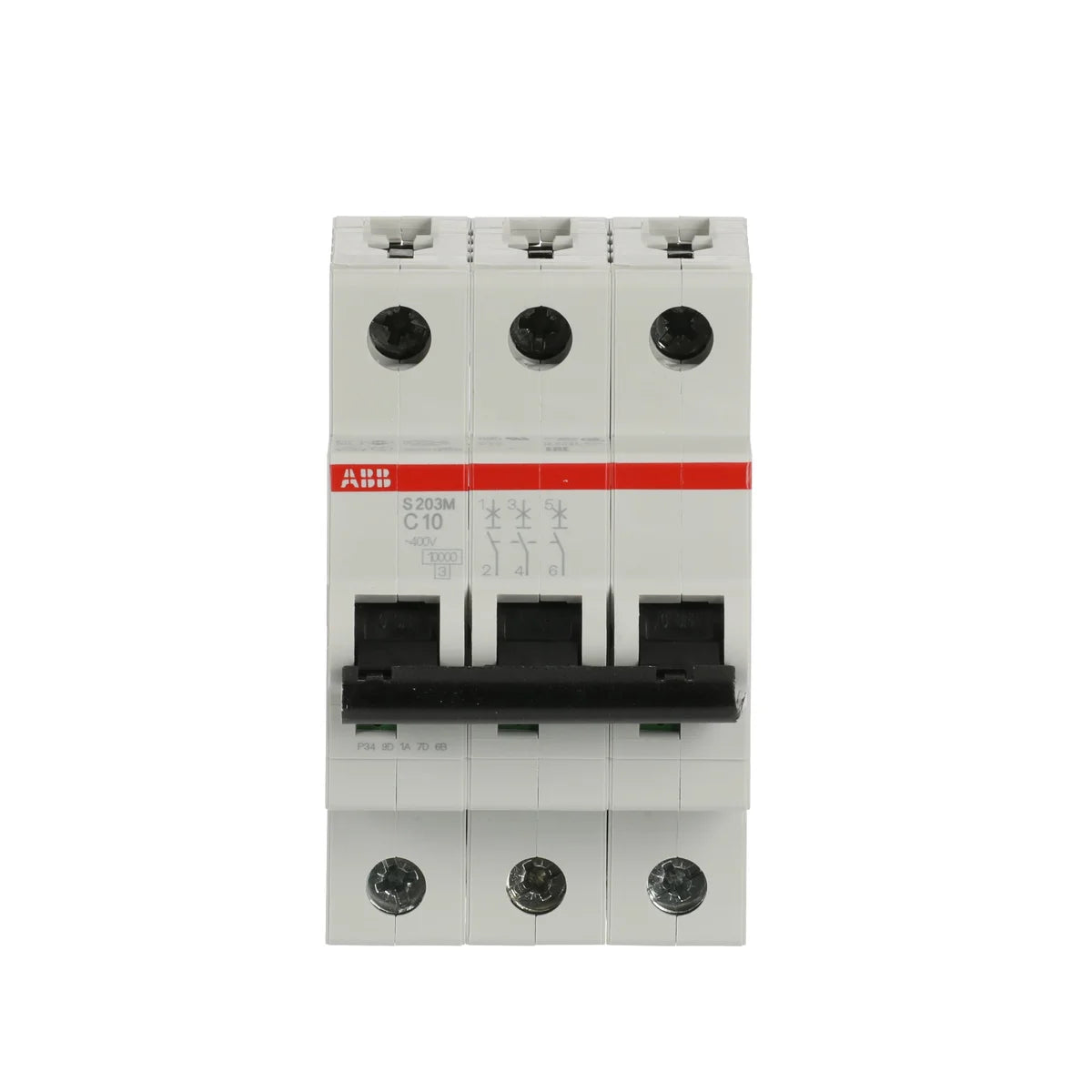

ABB 2CDS273001R0104 S203M-C10 3P 10A 10kA C-Curve Miniature Circuit Breaker

Rated current
10 A
Rated operational voltage
230–400 V AC
Poles
3P
Breaking capacity
(230) 25 kA
EAN
4016779550437
Other ratings in ABB S200 All 13 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
4 2CDS273001R0044 In stock $41.75
6 2CDS273001R0064 In stock $41.75
10 2CDS273001R0104This part In stock $34.79
16 2CDS273001R0164 In stock $34.79
20 2CDS273001R0204 In stock $34.79
Description

About the S203M-C10

The ABB S203M-C10 miniature circuit breaker (SKU: 2CDS273001R0104) is a high-performance 3-pole MCB from the S200M series, rated at 10A with a 10kA breaking capacity at 230/400V AC and a Type C tripping characteristic — ideal for protecting inductive and resistive loads in industrial control panels and distribution boards. Compact in design at 52.5mm × 88mm × 69mm and weighing just 336g, the S203M-C10 delivers reliable overcurrent and short-circuit protection in demanding electrical installations.

Certifications & Standards

  • IEC/EN 60898-1: Miniature circuit breakers for household and similar installations
  • IEC/EN 60947-2: Low-voltage switchgear and controlgear — circuit breakers
  • IEC 60898-1: International standard for MCBs for overcurrent protection
  • EN 60898-1: European harmonised standard for miniature circuit breakers
  • IEC/EN 60898: General MCB compliance standard
  • EN 60898: European standard for circuit breakers for overcurrent protection
  • IEC/EN 60664: Insulation coordination for equipment within low-voltage systems
  • IEC 60898-1400: Extended MCB compliance requirement
  • IEC 60947-2440: Circuit breaker performance under IEC 60947-2 supplementary requirements
  • IEC 60068-2: Environmental testing — mechanical and climatic reliability
  • EN 60947-2: European standard for low-voltage circuit breakers
  • EN 60947: Low-voltage switchgear and controlgear general compliance
  • EN 60664: Insulation coordination within low-voltage systems (European)
  • EN 45555: General methods for the assessment of the ability to recover materials and energy from electrical and electronic equipment
  • CSA 22.2 No. 235: Canadian Standards Association — supplementary protectors
  • CSA: Canadian Standards Association certified
  • UL 1077: Underwriters Laboratories — supplementary protectors for use in electrical equipment
  • UL1077: UL supplementary protector standard compliance
  • CE: Conforms to European Union safety, health, and environmental requirements
  • UKCA: UK Conformity Assessed — meets Great Britain market requirements
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
  • REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals compliance
  • WEEE: Waste Electrical and Electronic Equipment Directive compliance
Specification

Full specification

82 values · Last verified 30 Oct 2026

Technical 20

Dielectric Test Voltage 50 / 60 Hz - 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (230 V AC) 25 kA, (400 V AC) 15 kA, (440 V AC) 15 kA, (230 V) 25 kA, (400 V) 15 kA
Rated Service Short-Circuit Breaking Capacity (Ics) (230 V AC) 7.5 kA
Power Supply Connection Arbitrary
Contact Position Indication Red ON / Green OFF
Energy Limiting Class 3
Electrical Endurance 20000 AC cycle
Mechanical Endurance 20000 cycle
Number of Protected Poles 3
Number of Poles 3P
Tightening Torque 2.8 N·m
Screw Terminal Type Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking I / O
Actuator Material Insulation Group II, Black, Sealable
Recommended Screw Driver Pozidriv 2
Accessories Available Yes
Connecting Capacity Busbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm²
Installation Size acc. to DIN 43880 1
Terminal Type Screw Terminals
Actuator Type Toggle

Electrical 12

Tripping Characteristic C
Rated Operational Voltage acc. to IEC 60898-1 400 V AC, acc. to IEC 60947-2 440 V AC
Operational Voltage Maximum (Incl. Tolerance) 440 V AC, Minimum 12 V AC, Minimum 12 V DC
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV
Input Voltage Type AC/DC
Rated Current (In) 10 A
Rated Short-Circuit Capacity (AC) 10 kA, (230 V AC) 10 kA
Frequency (f) 50 Hz
Rated Frequency (f) 50 / 60 Hz
Power Loss 6.3 W, at Rated Operating Conditions per Pole 2.1 W
Overvoltage Category III

Design 1

Housing Material Insulation Group II, RAL 7035
Show all 82 specifications ↓ Show less ↑49 more values in Identification, Technical UL/CSA, Material Compliance, Environmental, Dimensions, Engineering, Installation, External Classifications and Standards, Logistics.

Identification 12

Part number 2CDS273001R0104
Type designation S203M-C10
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779550437
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units carton 1 piece
Package Level 1 Gross Weight 0.356 kg
E-Number (Sweden) 2101242

Technical UL/CSA 4

Maximum Operating Voltage UL/CSA 125 V DC, 480Y/277 V AC
Interrupting Rating acc. to UL1077 (125 V DC) 10 kA, (277 V AC) 6 kA, (480Y / 277 V AC) 6 kA
Connecting Capacity UL/CSA Busbar 14-8 AWG, Conductor 14-4 AWG
Tightening Torque UL/CSA 18 in·lb

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260312
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260312
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business

Environmental 7

Ambient Air Temperature Operation -25 ... +55 °C, Storage -40 ... +70 °C
Reference Ambient Air Temperature 30 °C
Degree of Protection IP20, IP40, Enclosure with Cover IP40
Pollution Degree 3
Environmental Conditions 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27 25g 2 shocks 13 ms

Dimensions 7

Width in Number of Modular Spacings 3
Product Net Width 52.5 mm
Product Net Height 88 mm
Product Net Depth / Length 69 mm
Product Net Weight 0.336 kg
Pole Net Weight 0.125 kg
Built-In Depth (t2) 69 mm

Engineering 1

EPLAN Data 9AAC211156_EPLAN

Installation 2

Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position any

External Classifications and Standards 6

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards IEC/EN 60898-1, CSA 22.2 No. 235, IEC/EN 60947-2, UL 1077
Certification Agency EN, IEC
Standardization Body EN, IEC

Logistics 4

Shipping weight 0.4 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2CDS273001R0104

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 13 ratings in ABB S200

ABB ABB S200 series page →
Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
3 A 2CDS273001R0034 S203M-C3 In stock $46.97
4 A 2CDS273001R0044 S203M-C4 In stock $41.75
6 A 2CDS273001R0064 S203M-C6 In stock $41.75
10 A 2CDS273001R0104 This part S203M-C10 In stock $34.79
16 A 2CDS273001R0164 S203M-C16 In stock $34.79
20 A 2CDS273001R0204 S203M-C20 In stock $34.79
25 A 2CDS273001R0254 S203M-C25 In stock $34.79
32 A 2CDS273001R0324 S203M-C32 In stock $43.47
Certifications

Certifications and standards

  • CE
  • CSA
  • RoHS
  • UKCA
  • IEC/EN 60898-1
  • CSA 22.2 No. 235
  • IEC/EN 60947-2
  • UL 1077
Quick answers

Questions about the S203M-C10

What is the rated current of S203M-C10?

The rated current of S203M-C10 is 10 A.

Which supply voltage is S203M-C10 rated for?

The rated operational voltage of S203M-C10 is 230–400 V AC.

What is the HS code of S203M-C10 for customs?

The tariff (HS) code on file for S203M-C10 is 853620.

What is the EAN of S203M-C10?

The EAN (GTIN) of S203M-C10 is 4016779550437.

Where does S203M-C10 ship from, and how fast?

S203M-C10 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
