Part number
2CDS273001R0044
Model no
S203M-C4
$41.75 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye

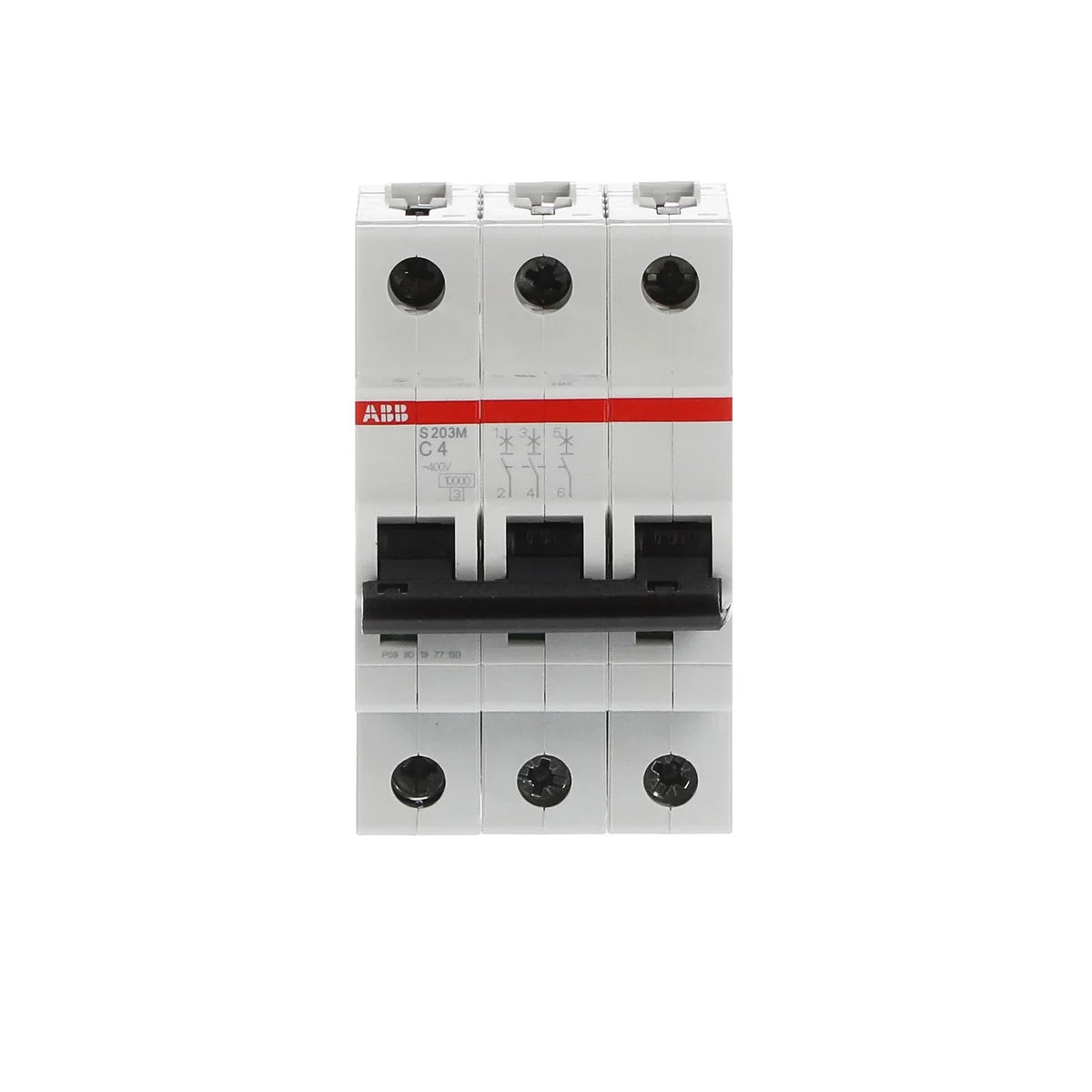

ABB 2CDS273001R0044 S203M-C4 3P 4A 10kA C-Curve Miniature Circuit Breaker

Rated current
4 A
Rated operational voltage
230–400 V AC
Poles
3P
Breaking capacity
(230) 25 kA
EAN
4016779550406
Other ratings in ABB S200 All 13 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
2 2CDS273001R0024 In stock $46.97
3 2CDS273001R0034 In stock $46.97
4 2CDS273001R0044This part In stock $41.75
6 2CDS273001R0064 In stock $41.75
10 2CDS273001R0104 In stock $34.79
Description

About the S203M-C4

The ABB S203M-C4 miniature circuit breaker (SKU: 2CDS273001R0044) is a high-performance 3-pole MCB from the S200M series, rated at 4A with a 10kA breaking capacity at 230/400V AC and a C-curve tripping characteristic — ideal for protecting branch circuits and loads with moderate inrush currents in commercial and industrial installations. Compact at 52.5mm × 88mm × 69mm and weighing only 0.336 kg, the S203M-C4 fits neatly onto standard DIN rails in control panels, distribution boards, and switchgear enclosures.

Certifications & Standards

  • IEC/EN 60898-1: International and European standard for circuit breakers for overcurrent protection in household and similar installations
  • IEC/EN 60947-2: International and European standard for low-voltage switchgear — circuit breakers
  • IEC 60898-1: IEC standard for circuit breakers for overcurrent protection
  • EN 60898-1: European harmonised standard for miniature circuit breakers
  • IEC/EN 60898: Combined IEC/EN standard for overcurrent circuit breakers
  • IEC/EN60898: Equivalent designation for IEC/EN 60898 compliance
  • IEC 60898-1400: IEC 60898-1 variant covering 400V rated breaking capacity
  • IEC 60947-2440: IEC 60947-2 variant for 440V industrial switchgear applications
  • IEC 60068-2: Environmental testing standard for climatic and mechanical robustness
  • EN 60898: European standard for overcurrent circuit breakers
  • EN 60947-2: European low-voltage switchgear and controlgear standard — circuit breakers
  • EN 45555: European standard for end-of-life treatment of electrical and electronic equipment
  • EN 60664: Insulation coordination standard for low-voltage equipment
  • EN 60898: European standard for miniature circuit breakers, household and similar applications
  • EN 60947: European standard for low-voltage switchgear and controlgear
  • UL 1077: UL standard for supplementary protectors (miniature circuit breakers) for use in electrical equipment
  • CSA: Canadian Standards Association approval for electrical safety in North American markets
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
  • REACH: Compliant with EU REACH regulation (EC) No 1907/2006 on chemical safety
  • WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive 2012/19/EU
  • CE: Conforms to applicable European Union directives and regulations
  • UKCA: UK Conformity Assessed marking for Great Britain market compliance

Applications & Use Cases

  • Branch circuit protection in commercial and industrial distribution boards
  • Motor and transformer circuit protection where moderate inrush (C-curve) is expected
  • Control panel wiring protection in industrial automation and manufacturing
  • Protection of lighting circuits, HVAC, and general-purpose loads in 400V AC systems
  • Switchgear assemblies requiring IEC 60947-2 compliant overcurrent protection
Specification

Full specification

82 values · Last verified 30 Oct 2026

Technical 20

Dielectric Test Voltage 50 / 60 Hz - 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (230 V AC) 25 kA, (400 V AC) 15 kA, (440 V AC) 15 kA, (230 V) 25 kA, (400 V) 15 kA
Rated Service Short-Circuit Breaking Capacity (Ics) (230 V AC) 7.5 kA
Power Supply Connection Arbitrary
Contact Position Indication Red ON / Green OFF
Energy Limiting Class 3
Electrical Endurance 20000 AC cycle
Mechanical Endurance 20000 cycle
Number of Protected Poles 3
Number of Poles 3P
Tightening Torque 2.8 N·m
Screw Terminal Type Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking I / O
Actuator Material Insulation Group II, Black, Sealable
Recommended Screw Driver Pozidriv 2
Accessories Available Yes
Connecting Capacity Busbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm²
Installation Size acc. to DIN 43880 1
Terminal Type Screw Terminals
Actuator Type Toggle

Electrical 12

Tripping Characteristic C
Rated Operational Voltage acc. to IEC 60898-1 400 V AC, acc. to IEC 60947-2 440 V AC
Operational Voltage Maximum (Incl. Tolerance) 440 V AC, Minimum 12 V AC, Minimum 12 V DC
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV
Input Voltage Type AC/DC
Rated Current (In) 4 A
Rated Short-Circuit Capacity (AC) 10 kA, (230 V AC) 10 kA
Frequency (f) 50 Hz
Rated Frequency (f) 50 / 60 Hz
Power Loss 5.4 W, at Rated Operating Conditions per Pole 1.8 W
Overvoltage Category III

Design 1

Housing Material Insulation Group II, RAL 7035
Show all 82 specifications ↓ Show less ↑49 more values in Identification, Technical UL/CSA, Material Compliance, Environmental, Dimensions, Engineering, Installation, External Classifications and Standards, Logistics.

Identification 12

Part number 2CDS273001R0044
Type designation S203M-C4
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779550406
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units carton 1 piece
Package Level 1 Gross Weight 0.356 kg
E-Number (Sweden) 2101239

Technical UL/CSA 4

Maximum Operating Voltage UL/CSA 125 V DC, 480Y/277 V AC
Interrupting Rating acc. to UL1077 (125 V DC) 10 kA, (277 V AC) 6 kA, (480Y / 277 V AC) 6 kA
Connecting Capacity UL/CSA Busbar 14-8 AWG, Conductor 14-4 AWG
Tightening Torque UL/CSA 18 in·lb

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260312
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260312
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business

Environmental 7

Ambient Air Temperature Operation -25 ... +55 °C, Storage -40 ... +70 °C
Reference Ambient Air Temperature 30 °C
Degree of Protection IP20, IP40, Enclosure with Cover IP40
Pollution Degree 3
Environmental Conditions 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27 25g 2 shocks 13 ms

Dimensions 7

Width in Number of Modular Spacings 3
Product Net Width 52.5 mm
Product Net Height 88 mm
Product Net Depth / Length 69 mm
Product Net Weight 0.336 kg
Pole Net Weight 0.125 kg
Built-In Depth (t2) 69 mm

Engineering 1

EPLAN Data 9AAC211156_EPLAN

Installation 2

Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position any

External Classifications and Standards 6

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards IEC/EN 60898-1, CSA 22.2 No. 235, IEC/EN 60947-2, UL 1077
Certification Agency EN, IEC
Standardization Body EN, IEC

Logistics 4

Shipping weight 0.4 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2CDS273001R0044

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 13 ratings in ABB S200

ABB ABB S200 series page →
Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
1 A 2CDS273001R0014 S203M-C1 In stock $46.97
2 A 2CDS273001R0024 S203M-C2 In stock $46.97
3 A 2CDS273001R0034 S203M-C3 In stock $46.97
4 A 2CDS273001R0044 This part S203M-C4 In stock $41.75
6 A 2CDS273001R0064 S203M-C6 In stock $41.75
10 A 2CDS273001R0104 S203M-C10 In stock $34.79
16 A 2CDS273001R0164 S203M-C16 In stock $34.79
20 A 2CDS273001R0204 S203M-C20 In stock $34.79
Certifications

Certifications and standards

  • CE
  • CSA
  • RoHS
  • UKCA
  • IEC/EN 60898-1
  • CSA 22.2 No. 235
  • IEC/EN 60947-2
  • UL 1077
Quick answers

Questions about the S203M-C4

What is the rated current of S203M-C4?

The rated current of S203M-C4 is 4 A.

Which supply voltage is S203M-C4 rated for?

The rated operational voltage of S203M-C4 is 230–400 V AC.

What is the HS code of S203M-C4 for customs?

The tariff (HS) code on file for S203M-C4 is 853620.

What is the EAN of S203M-C4?

The EAN (GTIN) of S203M-C4 is 4016779550406.

Where does S203M-C4 ship from, and how fast?

S203M-C4 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
