Part number
2CDS253001R0324
Model no
S203-C32
$33.45 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye

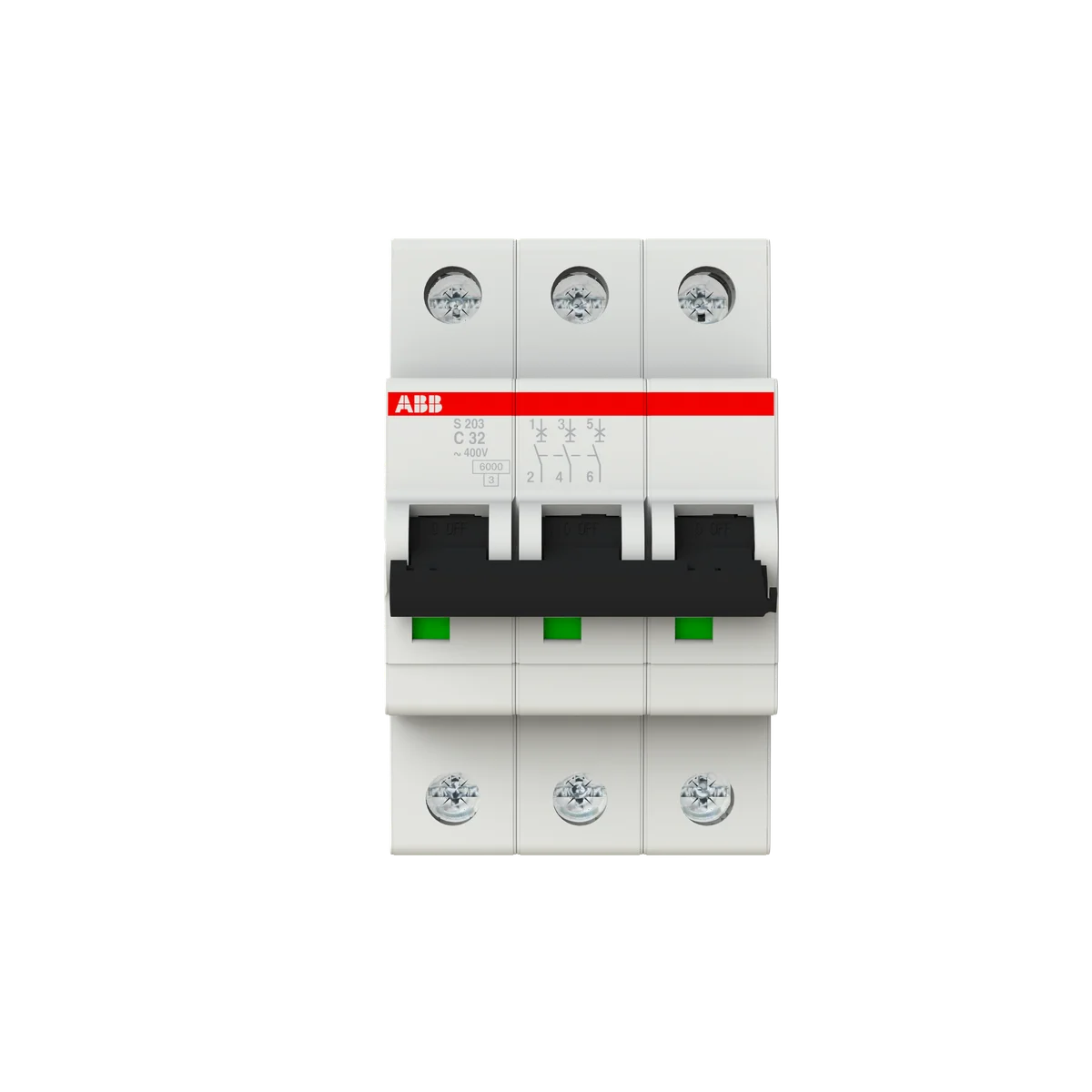

ABB 2CDS253001R0324 S203-C32 3P 32A 6kA C-Curve DIN Rail Miniature Circuit Breaker

Rated current
32 A
Rated operational voltage
230–400 V AC
Poles
3P
Breaking capacity
(230) 20 kA
EAN
4016779468305
Other ratings in ABB S200 All 13 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
20 2CDS253001R0204 In stock $26.77
25 2CDS253001R0254 In stock $26.77
32 2CDS253001R0324This part In stock $33.45
40 2CDS253001R0404 In stock $34.79
50 2CDS253001R0504 In stock $40.15
Description

About the S203-C32

The ABB S203-C32 miniature circuit breaker (MCB), catalog number S203-C32 (SKU 2CDS253001R0324), is a 3-pole, 32A, 6kA breaking capacity device from the trusted ABB S200 series. Designed for overcurrent and short-circuit protection in residential, commercial, and industrial control panels, the S203-C32 features a C-curve trip characteristic ideal for loads with moderate inrush currents such as motors, transformers, and fluorescent lighting. Rated at 230/400V AC and DIN rail mountable, it delivers reliable protection in a compact 52.5 × 88 × 69mm footprint.

Certifications & Standards

  • IEC/EN 60898-1: International and European standard for circuit breakers for overcurrent protection in household and similar installations
  • IEC/EN 60947-2: International and European standard for low-voltage switchgear — circuit breakers for industrial use
  • UL 1077: UL standard for supplementary protectors (recognized component circuit breakers)
  • IEC 60898-1400: Extended IEC 60898-1 variant covering additional rated voltage classes
  • IEC 60947-2440: Extended IEC 60947-2 variant for higher breaking capacity ratings
  • IEC 60068-2: Environmental testing standard for durability and climatic endurance
  • EN 60947-2: European standard for low-voltage switchgear — circuit breakers
  • EN 60898-1: European standard for circuit breakers in household and similar installations
  • EN 45555: European standard for general methods for assessment of the ability of electrical and electronic household products to be repaired, reused, and recycled
  • EN 60664: Insulation coordination standard for equipment within low-voltage systems
  • CSA: Canadian Standards Association certification for the North American market
  • CE: European Conformity marking confirming compliance with EU health, safety, and environmental directives
  • UKCA: UK Conformity Assessed marking for products placed on the Great Britain market post-Brexit
  • RoHS: Restriction of Hazardous Substances — confirms compliance with EU Directive 2011/65/EU limiting hazardous materials
  • REACH: EU chemical safety regulation confirming no substances of very high concern above threshold limits
  • WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal

Applications & Use Cases

  • Overcurrent and short-circuit protection in 3-phase distribution boards and consumer units
  • Protection of motor circuits, transformer secondaries, and fluorescent lighting loads (C-curve)
  • Industrial control panels and automation enclosures operating at 230/400V AC
  • Commercial building services and HVAC electrical distribution
  • Feeder and branch circuit protection in IEC-compliant installations worldwide
Specification

Full specification

84 values · Last verified 30 Oct 2026

Technical 21

Dielectric Test Voltage 50 / 60 Hz - 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (230 V AC) 20 kA, (400 V AC) 10 kA, (440 V AC) 10 kA, (230 V) 20 kA, (400 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics) (230 V AC) 15 kA, (400 V AC) 7.5 kA, (440 V AC) 7.5 kA
Power Supply Connection Arbitrary
Contact Position Indication Red ON / Green OFF
Energy Limiting Class 3
Electrical Endurance 10000 AC cycle
Mechanical Endurance 20000 cycle
Number of Protected Poles 3
Number of Poles 3P
Tightening Torque 2.8 N·m
Screw Terminal Type Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking I / O
Actuator Material Insulation Group II, Black, Sealable
Recommended Screw Driver Pozidriv 2
Accessories Available Yes
Connecting Capacity Busbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm²
Installation Size acc. to DIN 43880 1
Wire Stripping Length 12.5 mm
Terminal Type Screw Terminals
Actuator Type Toggle

Electrical 12

Tripping Characteristic C
Rated Operational Voltage acc. to IEC 60898-1 400 V AC, acc. to IEC 60947-2 440 V AC
Operational Voltage Maximum (Incl. Tolerance) 440 V AC, Minimum 12 V AC, Minimum 12 V DC
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV
Input Voltage Type AC/DC
Rated Current (In) 32 A
Rated Short-Circuit Capacity (AC) 6 kA, (DC) 6 kA
Frequency (f) 50 Hz
Rated Frequency (f) 50 / 60 Hz
Power Loss 11.1 W, at Rated Operating Conditions per Pole 3.7 W
Overvoltage Category III

Design 1

Housing Material Insulation Group II, RAL 7035
Show all 84 specifications ↓ Show less ↑50 more values in Identification, Technical UL/CSA, Material Compliance, Environmental, Dimensions, Engineering, Installation, External Classifications and Standards, Logistics.

Identification 12

Part number 2CDS253001R0324
Type designation S203-C32
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779468305
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units carton 1 piece
Package Level 1 Gross Weight 0.38 kg
E-Number (Sweden) 2100606

Technical UL/CSA 4

Maximum Operating Voltage UL/CSA 110 V DC, 480Y/277 V AC
Interrupting Rating acc. to UL1077 (277 V AC) 6 kA, (480Y / 277 V AC) 6 kA, (240 V) 10 kA
Connecting Capacity UL/CSA Busbar 18-8 AWG, Conductor 18-4 AWG
Tightening Torque UL/CSA 18 in·lb

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260312
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260312
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business

Environmental 7

Ambient Air Temperature Operation -25 ... +55 °C, Storage -40 ... +70 °C
Reference Ambient Air Temperature 30 °C
Degree of Protection IP20, IP40, Enclosure with Cover IP40
Pollution Degree 3
Environmental Conditions 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27 25g 2 shocks 13 ms

Dimensions 7

Width in Number of Modular Spacings 3
Product Net Width 52.5 mm
Product Net Height 88 mm
Product Net Depth / Length 69 mm
Product Net Weight 0.36 kg
Pole Net Weight 0.125 kg
Built-In Depth (t2) 69 mm

Engineering 1

EPLAN Data 9AAC204436_EPLAN

Installation 3

Mounting Type DIN-Rail
Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position any

External Classifications and Standards 6

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Certification Agency EN, IEC, UL
Standardization Body EN, IEC, UL

Logistics 4

Shipping weight 0.4 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2CDS253001R0324

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 13 ratings in ABB S200

ABB ABB S200 series page →
Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
10 A 2CDS253001R0104 S203-C10 In stock $26.77
16 A 2CDS253001R0164 S203-C16 In stock $26.77
20 A 2CDS253001R0204 S203-C20 In stock $26.77
25 A 2CDS253001R0254 S203-C25 In stock $26.77
32 A 2CDS253001R0324 This part S203-C32 In stock $33.45
40 A 2CDS253001R0404 S203-C40 In stock $34.79
50 A 2CDS253001R0504 S203-C50 In stock $40.15
63 A 2CDS253001R0634 S203-C63 In stock $45.48
Certifications

Certifications and standards

  • CE
  • RoHS
  • UKCA
  • IEC/EN 60898-1
  • IEC/EN 60947-2
  • UL 1077
Quick answers

Questions about the S203-C32

What is the rated current of S203-C32?

The rated current of S203-C32 is 32 A.

Which supply voltage is S203-C32 rated for?

The rated operational voltage of S203-C32 is 230–400 V AC.

What is the HS code of S203-C32 for customs?

The tariff (HS) code on file for S203-C32 is 853620.

What is the EAN of S203-C32?

The EAN (GTIN) of S203-C32 is 4016779468305.

Where does S203-C32 ship from, and how fast?

S203-C32 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
