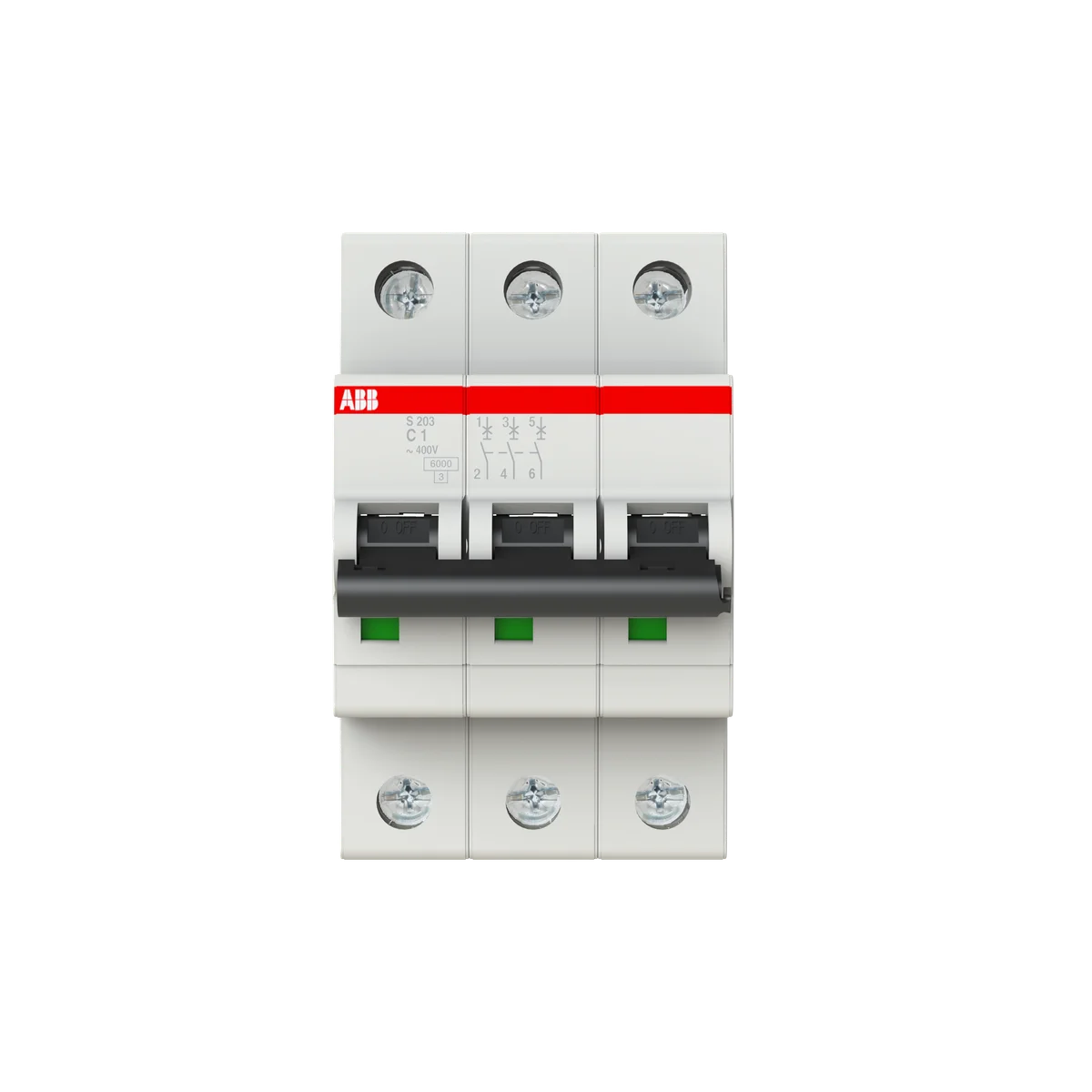

ABB 2CDS253001R0014 S203-C1 3P 1A 6kA C-Curve Miniature Circuit Breaker
Other ratings in ABB S200
All 13 ratings ↓
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 1 | 2CDS253001R0014This part | In stock | $36.11 | |
| 2 | 2CDS253001R0024 | In stock | $36.11 | |
| 3 | 2CDS253001R0034 | In stock | $36.11 | |
| 4 | 2CDS253001R0044 | In stock | $32.11 | |
| 6 | 2CDS253001R0064 | In stock | $32.11 |
Description
About the S203-C1
About the S203-C1
The ABB S203-C1 miniature circuit breaker (SKU: 2CDS253001R0014) is a 3-pole, 1A, C-curve MCB rated at 6kA breaking capacity for 230/400V AC applications. Part of ABB's trusted S200 series, the S203-C1 delivers reliable overcurrent and short-circuit protection for control panels, distribution boards, and industrial automation systems — all in a compact DIN-rail mountable design measuring 52.5mm × 88mm × 69mm.
Certifications & Standards
- IEC/EN 60898-1: International/European standard for circuit breakers for overcurrent protection in household and similar installations
- IEC/EN 60947-2: International/European standard for low-voltage switchgear — circuit breakers
- IEC 60898-1400: Extended IEC standard compliance for MCB applications
- IEC 60947-2440: Extended IEC standard compliance for low-voltage circuit breakers
- IEC 60068-2: Environmental testing standard compliance
- EN 60898-1: European standard for overcurrent circuit breakers
- EN 60947-2: European low-voltage switchgear standard
- EN45555: European standard for end-of-life treatment of electrical and electronic equipment
- EN60664: Insulation coordination for equipment within low-voltage systems
- UL 1077: UL standard for supplementary protectors for use in electrical equipment
- CSA: Canadian Standards Association certification
- CE: European Conformity marking — meets EU safety, health, and environmental requirements
- UKCA: UK Conformity Assessed marking for Great Britain market compliance
- RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
- REACH: Compliant with EU REACH regulation on chemical substances
- WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive
Applications & Use Cases
- Overcurrent and short-circuit protection in industrial control panels
- Branch circuit protection in commercial and industrial distribution boards
- Protection of motor control circuits and automation equipment
- Building services, HVAC, and light industrial machinery protection
- Applications requiring a C-curve characteristic for moderate inrush loads
Specification
Full specification
Technical 21
| Dielectric Test Voltage | 50 / 60 Hz - 1 min 2 kV |
|---|---|
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 20 kA, (400 V AC) 10 kA, (440 V AC) 10 kA, (230 V) 20 kA, (400 V) 10 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 15 kA, (400 V AC) 7.5 kA, (440 V AC) 7.5 kA |
| Power Supply Connection | Arbitrary |
| Contact Position Indication | Red ON / Green OFF |
| Energy Limiting Class | 3 |
| Electrical Endurance | 20000 AC cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Protected Poles | 3 |
| Number of Poles | 3P |
| Tightening Torque | 2.8 N·m |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Actuator Marking | I / O |
| Actuator Material | Insulation Group II, Black, Sealable |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Yes |
| Connecting Capacity | Busbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm² |
| Installation Size | acc. to DIN 43880 1 |
| Wire Stripping Length | 12.5 mm |
| Terminal Type | Screw Terminals |
| Actuator Type | Toggle |
Electrical 12
| Tripping Characteristic | C |
|---|---|
| Rated Operational Voltage | acc. to IEC 60898-1 400 V AC, acc. to IEC 60947-2 440 V AC |
| Operational Voltage | Maximum (Incl. Tolerance) 440 V AC, Minimum 12 V AC, Minimum 12 V DC |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV |
| Input Voltage Type | AC/DC |
| Rated Current (In) | 1 A |
| Rated Short-Circuit Capacity | (AC) 6 kA, (DC) 6 kA |
| Frequency (f) | 50 Hz |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Loss | 4.2 W, at Rated Operating Conditions per Pole 1.4 W |
| Overvoltage Category | III |
Design 1
| Housing Material | Insulation Group II, RAL 7035 |
|---|
Show all 84 specifications ↓ Show less ↑50 more values in Identification, Technical UL/CSA, Material Compliance, Environmental, Dimensions, Engineering, Installation, External Classifications and Standards, Logistics.
Identification 12
| Part number | 2CDS253001R0014 |
|---|---|
| Type designation | S203-C1 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4016779523424 |
| ETIM class | EC000042 |
| eCl@ss | 27141901 |
| Package Level 1 Units | carton 1 piece |
| Package Level 1 Gross Weight | 0.356 kg |
| E-Number (Sweden) | 2100582 |
Technical UL/CSA 4
| Maximum Operating Voltage UL/CSA | 110 V DC, 480Y/277 V AC |
|---|---|
| Interrupting Rating acc. to UL1077 | (277 V AC) 6 kA, (480Y / 277 V AC) 6 kA, (240 V) 10 kA |
| Connecting Capacity UL/CSA | Busbar 18-8 AWG, Conductor 18-4 AWG |
| Tightening Torque UL/CSA | 18 in·lb |
Material Compliance 6
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|---|
| RoHS Date | 20260312 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260312 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
Environmental 7
| Ambient Air Temperature | Operation -25 ... +55 °C, Storage -40 ... +70 °C |
|---|---|
| Reference Ambient Air Temperature | 30 °C |
| Degree of Protection | IP20, IP40, Enclosure with Cover IP40 |
| Pollution Degree | 3 |
| Environmental Conditions | 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 % |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
Dimensions 7
| Width in Number of Modular Spacings | 3 |
|---|---|
| Product Net Width | 52.5 mm |
| Product Net Height | 88 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.336 kg |
| Pole Net Weight | 0.125 kg |
| Built-In Depth (t2) | 69 mm |
Engineering 1
| EPLAN Data | 9AAC204436_EPLAN |
|---|
Installation 3
| Mounting Type | DIN-Rail |
|---|---|
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Mounting Position | any |
External Classifications and Standards 6
| ETIM 10 | EC000042 - Miniature circuit breaker (MCB) |
|---|---|
| UNSPSC | 39121603 |
| eClass | V11.0 : 27141901 |
| Standards | IEC/EN 60898-1, IEC/EN 60947-2, UL 1077 |
| Certification Agency | EN, IEC, UL |
| Standardization Body | EN, IEC, UL |
Logistics 4
| Shipping weight | 0.4 kg |
|---|---|
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 2CDS253001R0014
No documents are on file for this part yet.
Ask us for the datasheet
Other ratings
All 13 ratings in ABB S200
ABB ABB S200 series page →
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 1 A | 2CDS253001R0014 This part | S203-C1 | In stock | $36.11 | |||
| 2 A | 2CDS253001R0024 | S203-C2 | In stock | $36.11 | |||
| 3 A | 2CDS253001R0034 | S203-C3 | In stock | $36.11 | |||
| 4 A | 2CDS253001R0044 | S203-C4 | In stock | $32.11 | |||
| 6 A | 2CDS253001R0064 | S203-C6 | In stock | $32.11 | |||
| 10 A | 2CDS253001R0104 | S203-C10 | In stock | $26.77 | |||
| 16 A | 2CDS253001R0164 | S203-C16 | In stock | $26.77 | |||
| 20 A | 2CDS253001R0204 | S203-C20 | In stock | $26.77 | |||
| 25 A | 2CDS253001R0254 | S203-C25 | In stock | $26.77 | |||
| 32 A | 2CDS253001R0324 | S203-C32 | In stock | $33.45 | |||
| 40 A | 2CDS253001R0404 | S203-C40 | In stock | $34.79 | |||
| 50 A | 2CDS253001R0504 | S203-C50 | In stock | $40.15 | |||
| 63 A | 2CDS253001R0634 | S203-C63 | In stock | $45.48 |
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- UKCA
- IEC/EN 60898-1
- IEC/EN 60947-2
- UL 1077
Quick answers
Questions about the S203-C1
What is the rated current of S203-C1?
The rated current of S203-C1 is 1 A.
Which supply voltage is S203-C1 rated for?
The rated operational voltage of S203-C1 is 230–400 V AC.
What is the HS code of S203-C1 for customs?
The tariff (HS) code on file for S203-C1 is 853620.
What is the EAN of S203-C1?
The EAN (GTIN) of S203-C1 is 4016779523424.
Where does S203-C1 ship from, and how fast?
S203-C1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
