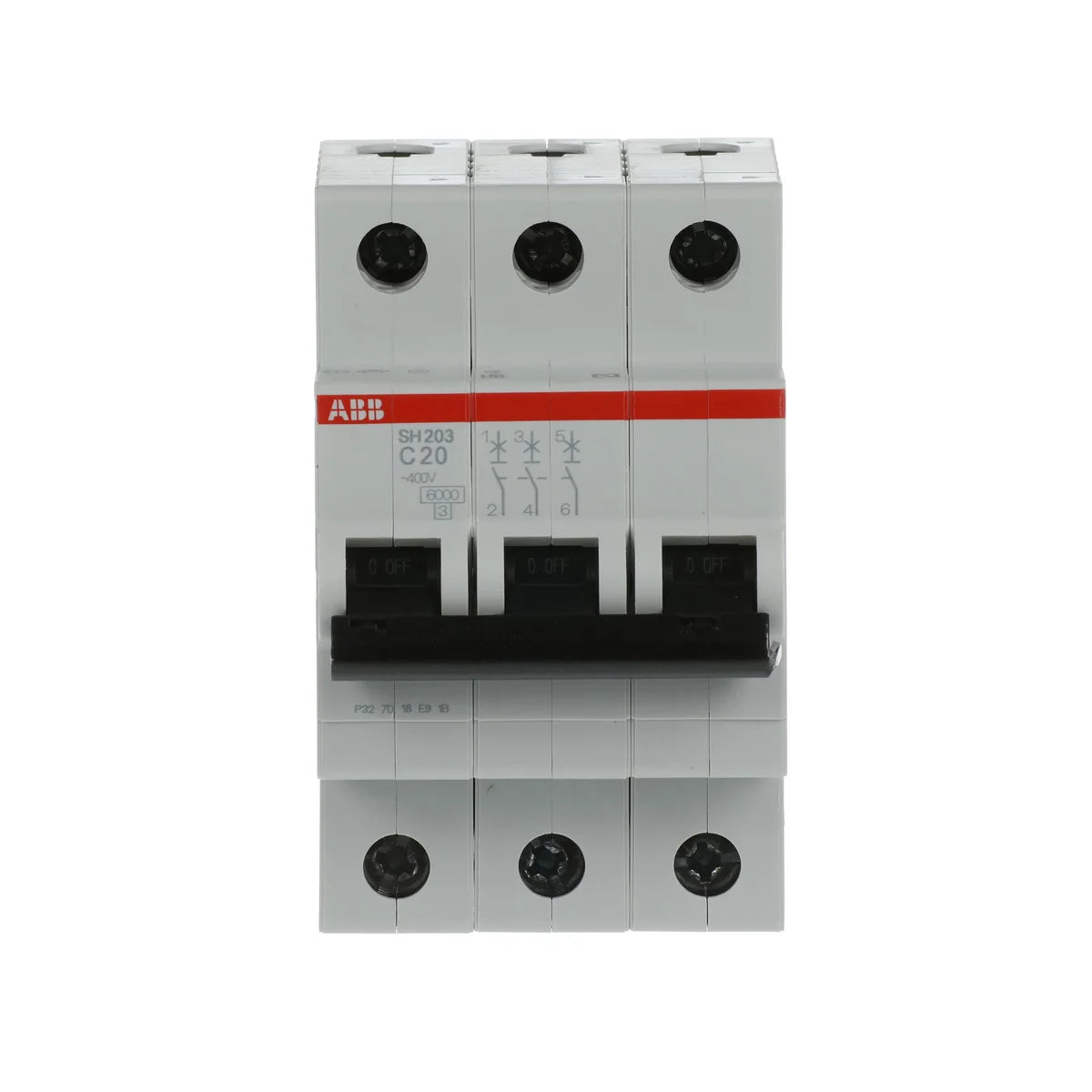

ABB 2CDS213001R0204 SH203-C20 3P 20A 6kA 230/400V AC Miniature Circuit Breaker

The ABB SH203-C20 miniature circuit breaker (SKU: 2CDS213001R0204) is a 3-pole, 20A, 6kA breaking capacity MCB rated for 230/400V AC, designed for reliable overcurrent protection in residential, commercial, and light industrial distribution boards. Part of the ABB SH200 series, the SH203-C20 delivers dependable C-curve tripping characteristics for standard inductive and resistive loads, making it an ideal choice for protecting branch circuits in control panels and final distribution applications.

Technical Specifications

Certifications & Standards

• IEC/EN 60898-1: International and European standard for circuit breakers for overcurrent protection in household and similar installations
• IEC 60898-1: IEC standard for miniature circuit breakers for overcurrent protection
• EN 60898-1: European harmonised standard for miniature circuit breakers
• IEC/EN60898-1: Combined IEC/EN compliance for household and similar circuit breakers
• EN60898-1: EN compliance designation for circuit breaker safety requirements
• IEC 60898: Broader IEC standard family covering circuit breakers for overcurrent protection
• IEC 60068-2: Environmental testing standard covering climatic and mechanical robustness
• EN60664: Insulation coordination standard for equipment within low-voltage systems
• EN45555: General methods for the assessment of the ability of energy-related products to be repaired, reused, and recycled
• EN45555-92: Specific annex of EN45555 addressing additional sustainability requirements
• REACH: EU regulation on the registration, evaluation, authorisation, and restriction of chemicals — compliant
• RoHS: EU Restriction of Hazardous Substances Directive — compliant, restricting use of specific hazardous materials
• SNI: Standar Nasional Indonesia — compliant with Indonesian national standard requirements
• WEEE: EU Waste Electrical and Electronic Equipment Directive — registered and compliant for responsible end-of-life disposal

Applications & Use Cases

• Overcurrent and short-circuit protection in residential distribution boards
• Branch circuit protection in commercial buildings and office fit-outs
• Light industrial control panels and machinery protection
• Final circuit protection in 3-phase 400V TN and TT distribution systems
• Replacement and upgrade of legacy 3-pole MCBs in existing panel boards

Frequently Asked Questions

What does the C in SH203-C20 mean?
The C denotes the tripping curve. A C-curve MCB trips magnetically at 5–10× rated current, making it suitable for loads with moderate inrush currents such as motors, transformers, and fluorescent lighting.

What is the breaking capacity of the SH203-C20?
The SH203-C20 has a rated breaking capacity (Icu) of 6 kA at 400V AC, in accordance with IEC/EN 60898-1.

Is the SH203-C20 DIN rail mountable?
Yes, the ABB SH200 series MCBs are designed for standard 35mm DIN rail mounting, compatible with all common distribution board formats.

What voltage system is the SH203-C20 rated for?
The SH203-C20 is rated for 230/400V AC, suitable for use in standard single-phase and three-phase low-voltage networks.
