ABB S200 vs S800: Standard vs High-Performance MCB
ABB S200 and S800 MCBs compared on current rating, breaking capacity, standards, and the point where a feeder outgrows S200 and needs S800.
- Part number
- 2CDS213001R0104
- Model no
- SH203-C10
In stock · 50+
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- CE
- RoHS

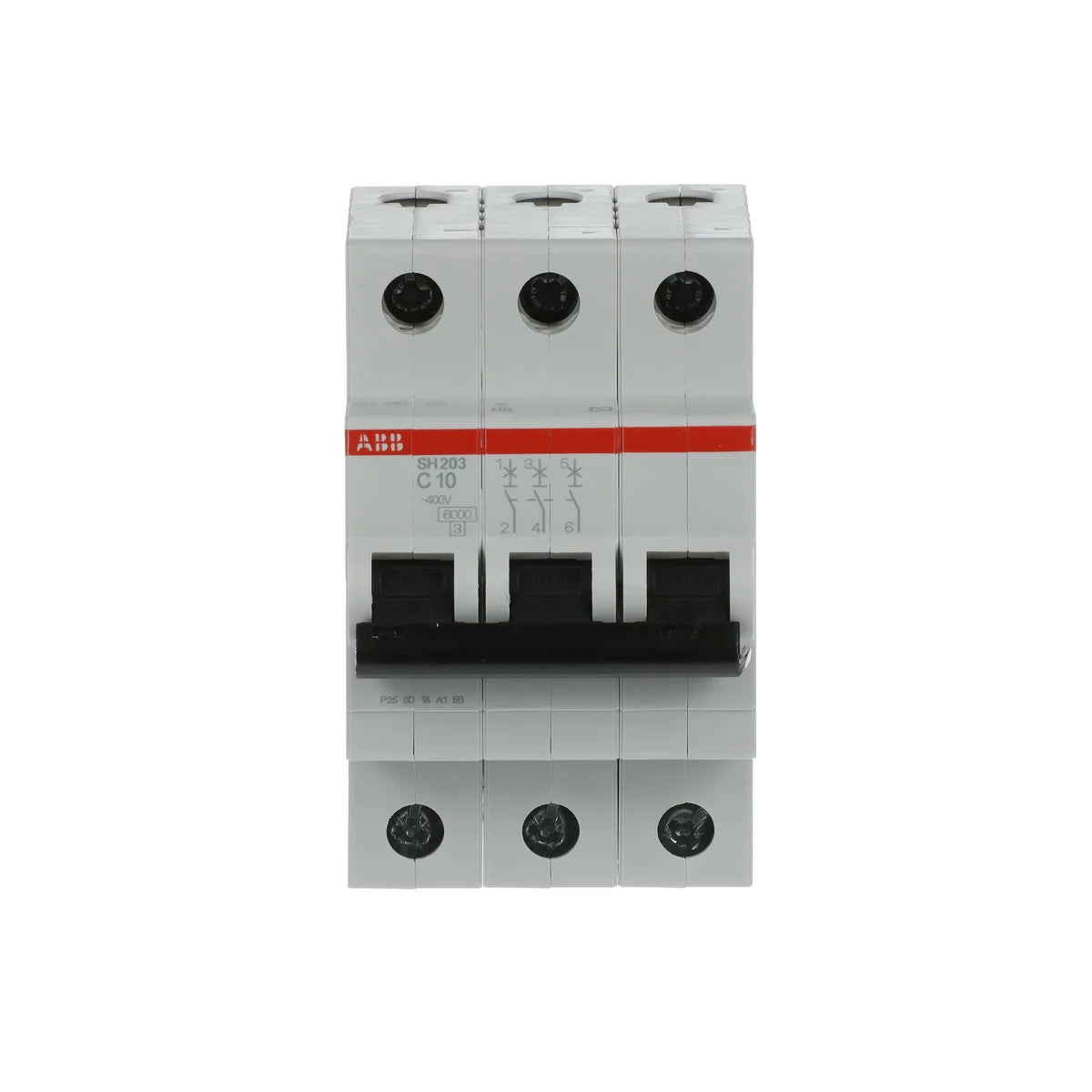

ABB 2CDS213001R0104 SH203-C10 3P 10A 6kA 230/400V AC Miniature Circuit Breaker
Other ratings in ABB SH200
All 9 ratings ↓
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 6 | 2CDS213001R0064 | In stock | $24.14 | |
| 10 | 2CDS213001R0104This part | In stock | $20.10 | |
| 16 | 2CDS213001R0164 | In stock | $20.10 | |
| 20 | 2CDS213001R0204 | In stock | $20.10 | |
| 25 | 2CDS213001R0254 | In stock | $20.10 |
Description
About the SH203-C10
About the SH203-C10
The ABB SH203-C10 miniature circuit breaker (MCB), SKU 2CDS213001R0104, is a 3-pole, 10A, Type C device rated at 230/400V AC with a 6kA breaking capacity — designed for reliable overload and short-circuit protection in residential, commercial, and light industrial distribution boards. Compact at 52.5mm × 85mm × 69mm and weighing only 0.306 kg, the SH203-C10 fits neatly onto standard DIN rails and delivers consistent performance in accordance with IEC/EN 60898-1.
Certifications & Standards
- IEC/EN 60898-1: International and European standard for household and similar electrical installations — circuit breakers for overcurrent protection
- IEC 60898-1: Core IEC standard for miniature circuit breakers rated up to 125A
- EN 60898-1: European harmonised implementation of IEC 60898-1
- IEC/EN60898-1: Combined IEC/EN compliance marking as referenced on product documentation
- IEC 60898: Broader IEC series standard for circuit-breaker performance and safety
- IEC 60068-2: Environmental testing standard — confirming product robustness under mechanical and climatic stress
- EN 60664: Insulation coordination for equipment within low-voltage systems
- EN 60898-1: European standard for circuit breakers in residential and commercial applications
- EN45555: European standard on general methods for assessing durability and recyclability of energy-related products
- EN45555-92: Specific clause/amendment of EN45555 applicable to this product category
- CE: Confirms compliance with all applicable EU directives for market access within the European Economic Area
- RoHS: Restriction of Hazardous Substances — product is free from restricted materials per EU Directive 2011/65/EU
- REACH: Compliance with EU REACH regulation (EC No 1907/2006) on chemical substances
- WEEE: Waste Electrical and Electronic Equipment directive compliance — product is registered for proper end-of-life disposal
- SNI: Indonesian National Standard certification for market access in Indonesia
Specification
Full specification
Technical 18
| Dielectric Test Voltage | 50 / 60 Hz - 1 min 2 kV |
|---|---|
| Power Supply Connection | Arbitrary |
| Contact Position Indication | ON / OFF |
| Energy Limiting Class | 3 |
| Electrical Endurance | 20000 AC cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Protected Poles | 3 |
| Number of Poles | 3P |
| Tightening Torque | 2 N·m |
| Screw Terminal Type | Cage Terminal |
| Actuator Marking | I / O |
| Actuator Material | Insulation Group II, Black, Sealable |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | No |
| Connecting Capacity | Conductor 25 / 25 mm², Flexible with Ferrule 0.75 ... 16 mm², Flexible 0.75 ... 16 mm², Rigid 0.75 ... 25 mm², Stranded 0.75 ... 25 mm² |
| Installation Size | acc. to DIN 43880 1 |
| Terminal Type | Screw Terminals |
| Actuator Type | Toggle |
Electrical 11
| Tripping Characteristic | C |
|---|---|
| Rated Operational Voltage | acc. to IEC 60898-1 400 V |
| Operational Voltage | Maximum (Incl. Tolerance) 440 V AC, Minimum 12 V AC |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 10 A |
| Rated Short-Circuit Capacity | (AC) 6 kA, (400 V AC) 6 kA |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Loss | 6.3 W, at Rated Operating Conditions per Pole 2.1 W |
| Overvoltage Category | III |
Design 1
| Housing Material | Insulation Group II, RAL 7035 |
|---|
Show all 72 specifications ↓ Show less ↑42 more values in Identification, Material Compliance, Environmental, Dimensions, Installation, External Classifications and Standards, Logistics.
Identification 11
| Part number | 2CDS213001R0104 |
|---|---|
| Type designation | SH203-C10 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4016779631297 |
| ETIM class | EC000042 |
| eCl@ss | 27141901 |
| Package Level 1 Units | carton 1 piece |
| Package Level 1 Gross Weight | 0.326 kg |
Material Compliance 6
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|---|
| RoHS Date | 20260312 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260312 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
Environmental 7
| Ambient Air Temperature | Operation -25 ... +55 °C, Storage -40 ... +70 °C |
|---|---|
| Reference Ambient Air Temperature | 30 °C |
| Degree of Protection | IP20, Enclosure with Cover IP40 |
| Pollution Degree | 2 |
| Environmental Conditions | 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 % |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
Dimensions 7
| Width in Number of Modular Spacings | 3 |
|---|---|
| Product Net Width | 52.5 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.306 kg |
| Pole Net Weight | 0.125 kg |
| Built-In Depth (t2) | 69 mm |
Installation 2
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
|---|---|
| Mounting Position | any |
External Classifications and Standards 5
| ETIM 10 | EC000042 - Miniature circuit breaker (MCB) |
|---|---|
| UNSPSC | 39121603 |
| eClass | V11.0 : 27141901 |
| Standards | IEC/EN 60898-1 |
| Certification Agency | EN, IEC |
Logistics 4
| Shipping weight | 0.39 kg |
|---|---|
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 2CDS213001R0104
No documents are on file for this part yet.
Ask us for the datasheet
Other ratings
All 9 ratings in ABB SH200
ABB ABB SH200 series page →
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 6 A | 2CDS213001R0064 | SH203-C6 | In stock | $24.14 | |||
| 10 A | 2CDS213001R0104 This part | SH203-C10 | In stock | $20.10 | |||
| 16 A | 2CDS213001R0164 | SH203-C16 | In stock | $20.10 | |||
| 20 A | 2CDS213001R0204 | SH203-C20 | In stock | $20.10 | |||
| 25 A | 2CDS213001R0254 | SH203-C25 | In stock | $20.10 | |||
| 32 A | 2CDS213001R0324 | SH203-C32 | In stock | $25.14 | |||
| 40 A | 2CDS213001R0404 | SH203-C40 | In stock | $26.15 | |||
| 50 A | 2CDS213001R0504 | SH203-C50 | In stock | $30.16 | |||
| 63 A | 2CDS213001R0634 | SH203-C63 | In stock | $34.18 |
Certifications
Certifications and standards
- CE
- RoHS
- IEC/EN 60898-1
Quick answers
Questions about the SH203-C10
What is the rated current of SH203-C10?
The rated current of SH203-C10 is 10 A.
Which supply voltage is SH203-C10 rated for?
The rated operational voltage of SH203-C10 is 230–400 V AC.
What is the HS code of SH203-C10 for customs?
The tariff (HS) code on file for SH203-C10 is 853620.
What is the EAN of SH203-C10?
The EAN (GTIN) of SH203-C10 is 4016779631297.
Where does SH203-C10 ship from, and how fast?
SH203-C10 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
