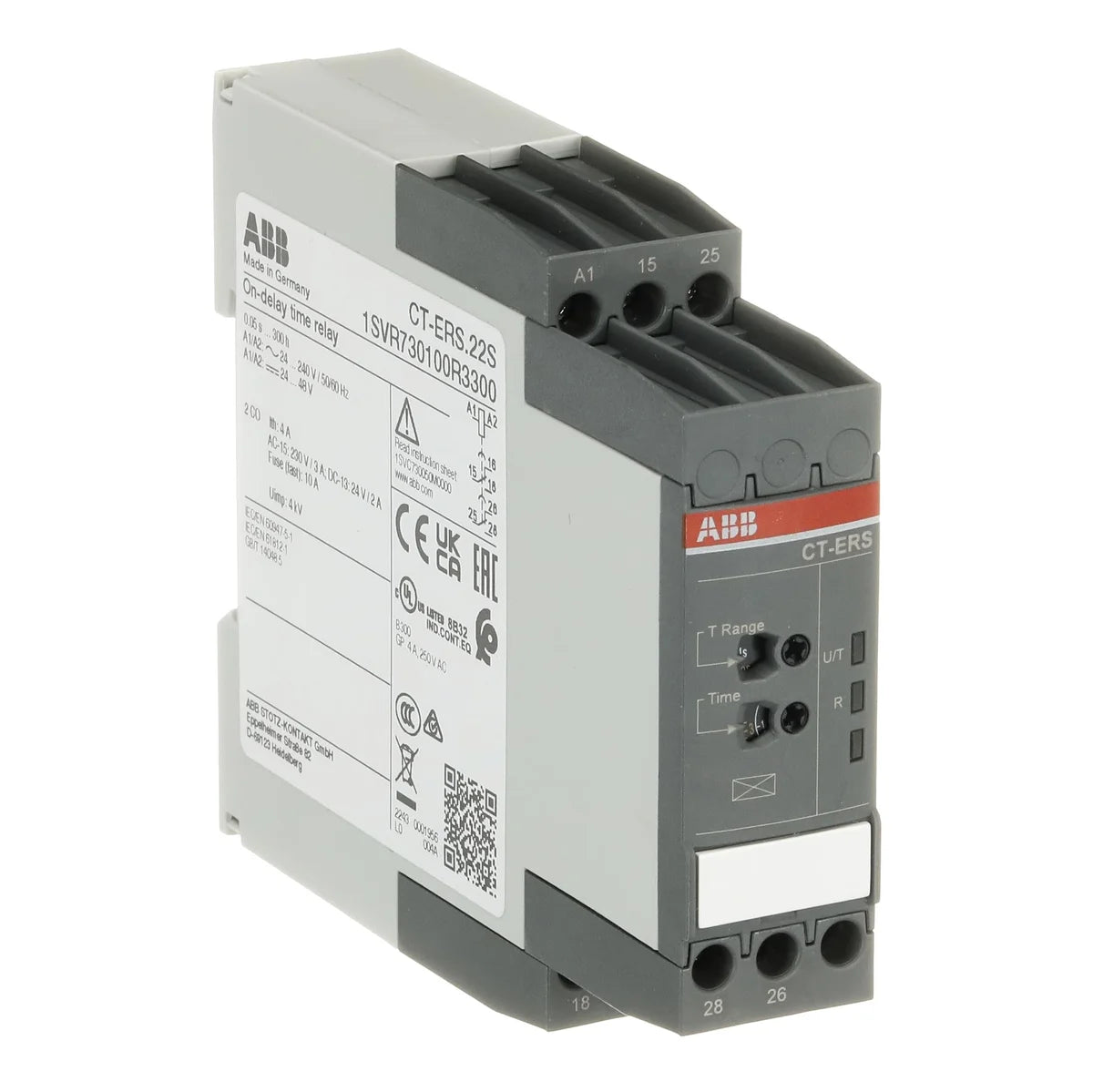

CT-SABB 1SVR730100R3300 CT-ERS.22S ON-Delay Timer Relay 2C/O 24-48VDC 24-240VAC 4A
Description
About the CT-ERS.22S
About the CT-ERS.22S
The ABB CT-ERS.22S (SKU: 1SVR730100R3300) is an ON-delay timer relay from the CT-S series, designed for precise time-delayed switching in industrial control and automation applications. Featuring a 2-changeover (2C/O) output contact rated at 4 A and a wide supply voltage range of 24–48 V DC / 24–240 V AC, the CT-ERS.22S delivers reliable, flexible timing performance in a compact DIN rail-mountable housing measuring 97 × 30 × 109 mm.
Certifications & Standards
- CE: Conformité Européenne — meets EU safety, health, and environmental requirements
- UKCA: UK Conformity Assessed — compliance mark for the UK market
- cULus: Listed by Underwriters Laboratories for both US and Canadian markets
- UL 508: Industrial control equipment standard (Underwriters Laboratories)
- CSA C22.2 No.14: Canadian Standards Association industrial control equipment
- CAN/CSA C22.2 No.14: Canadian national standard for industrial control equipment
- IEC/EN 61812-1: Time relays for industrial and residential use — requirements and tests
- EN 61812-1: European harmonised standard for time relays
- IEC/EN 63000: Technical documentation for assessment of electrical and electronic equipment with respect to RoHS
- EN 63000: European harmonised RoHS technical documentation standard
- DNV GL: Det Norske Veritas GL type approval — suitable for marine and offshore applications
- CCC: China Compulsory Certification — approved for the Chinese market
- RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
- REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals — EU compliance
Specification
Full specification
Dimensions 4
| Product Net Width | 22.5 mm |
|---|---|
| Product Net Height | 85.6 mm |
| Product Net Depth / Length | 103.7 mm |
| Product Net Weight | 0.121 kg |
Technical 27
| Timer Relay Type | ON-Delay |
|---|---|
| Time Range | 0.05 s ... 300 h |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC, 24 ... 48 V DC |
| Rated Operational Voltage | Auxiliary Circuit 250 V |
| Rated Frequency (f) | 50 / 60 Hz, DC |
| Output | 2 C/O Contacts |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Minimum Switching Capacity | 12 V, 100 mA |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit 4 kV, Output Circuit 1 / Output Circuit 2 4 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 500 V, Output Circuit 1 / Output Circuit 2 300 V |
| Degree of Protection | Housing IP50, Terminals IP20 |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A, Output Circuit NO - F Type Fuses 10 A |
| Electrical Durability | AC-12 100000 cycle |
| Mechanical Durability | Nr. Operations 30000000 cycle |
| Connecting Capacity | Flexible with Ferrule 1x 0.5 ... 2.5 mm², Flexible with Ferrule 2x 0.5 ... 1.5 mm², Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm², Flexible 1x 0.5 ... 2.5 mm², Flexible 2x 0.5 ... 1.5 mm², Rigid 1x 0.5 ... 4 mm², Rigid 2x 0.5 ... 2.5 mm² |
| Tightening Torque | 0.6 ... 0.8 N·m |
| Wire Stripping Length | 8 mm |
| Recommended Screw Driver | 0.8 x 4, 4.5, Pozidriv 1 |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61812-1, UL 508 |
Technical UL/CSA 6
| Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
|---|---|
| Contact Rating UL/CSA | B300 |
| Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG, Flexible 2x 18-16 AWG, Rigid 1x 20-12 AWG, Rigid 2x 20-14 AWG |
| Tightening Torque UL/CSA | 7.08 in·lb |
| Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | V-0 |
Show all 67 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SVR730100R3300 |
|---|---|
| Type designation | CT-ERS.22S |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4016779851466 |
| eCl@ss | 27371605 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
Environmental 2
| Ambient Air Temperature | Operation -25 ... +60 °C, Storage -40 ... +85 °C |
|---|---|
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
Material Compliance 4
| REACH Declaration | 1SVD981001-4501 |
|---|---|
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
External Classifications and Standards 4
| ETIM 7 | EC001439 - Timer relay |
|---|---|
| eClass | V11.0 : 27371605 |
| UNSPSC | 39122329 |
| E-Number (Sweden) | 4033116 |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 97 mm |
| Package Level 1 Depth / Length | 30 mm |
| Package Level 1 Height | 109 mm |
| Package Level 1 Gross Weight | 0.144 kg |
| Package Level 1 EAN | 4016779851466 |
| Shipping weight | 0.144 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
